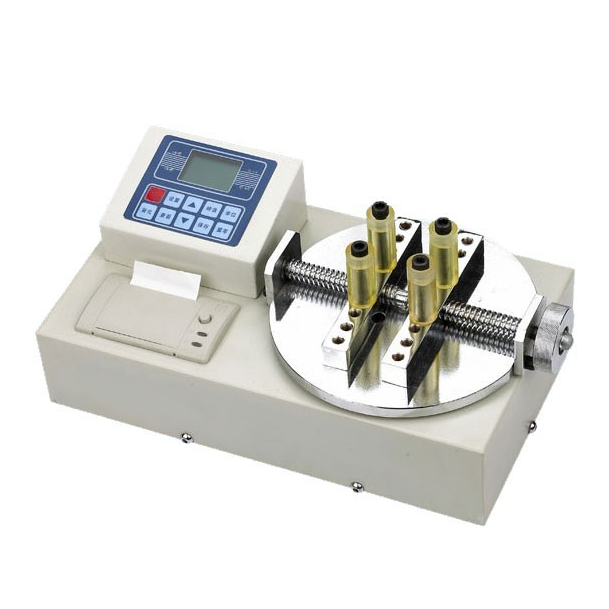

HB Series Digital Cap Torque Meter

Measurement range: 1/0.001N.m
Accuracy: ±0.5%
Units:  N.m Kgf.cm Kgf.cm
Measurement method: Track, Peak, Auto Peak
Availability:
  • HB-10
  • NADE
  • Input: AC220-240V Output: DC9V 400mA
  • 1
  • 1 year
  • China

Product Description

Nly-20

Introduction:
HB Series Cap Digital Torque Meter is an intellectualized measure instrument, which is specially designed for testing and measuring
different of torque. HB is main used for kinds motorized or air screwdriver, torque screwdriver, torque wrench, torque driver,
measure and calibrate torque testing, and parts fracture test. It is widely applied in electric industry, machinery industry, light

industry, automobile industry, scientific research and so on. It is an easy-to-operate, high-precision, cost-effective inspection tool.


Application industry:

Various bottle caps (such as beverage bottle caps, cosmetic bottle caps, drug bottle caps, etc.), lamp caps

Car reflectors, door and window wrenches, contact lens covers


Features

1.  LCD display, simple operation, easy to use.
2.  Torque size for LCD liquid crystal display, simple and accurate reading, minimum reading up to 0.001n.m;
3.  There are three test modes of peak value, automatic peak value and real-time value;
4.  Can work clockwise, counterclockwise, can measure the torsion of tight parts and loose parts;
5.  The structure part is simple and strong;
6.  The diameter of the measuring object is 15mm~200mm;
7.  The instrument is powered by rechargeable nickel metal hydride battery;
8.  Full range 120% overload protection;
9.  N.m, KGF. cm, LBF. In three test units conversion;
10. Green environmental protection, no operation automatic shutdown function;
11. Configure the large memory function, can store 99 groups of test data;
12. Upper and lower limit setting function, the upper and lower limit refers to the lamp indication, the upper limit buzzer
    alarm;
13. Suitable for all sizes and shapes of bottle body and cap, bottle body can be upright test, also can be inverted test;

14. USB interface output, with the free matching synchronization software, the test data can be input into the computer through the data cable to obtain the test curve graph, and can be exported for various detailed analysis.


Specification

Model

HB-10

HB-20

HB-50

HB-100

HB-200



Measurement range

N.m

1/0.001

2/0.001

5/0.001

10/0.01

20/0.01

Kgf.cm

10.2/0.01

20.4/0.01

51/0.01

102/0.1

204/0.1

Ibf.in

8.85/0.01

17.7/0.01

44.25/0.01

88.5/0.1

177/0.1

Accuracy

±0.5%

Units

 N.m Kgf.cm Kgf.cm

Measurement method

Track, Peak, Auto Peak

Weight

9.8kg

Working voltage

Input: AC220-240V Output: DC9V 400mA

Load cell

Inside

Working temperature

0~40℃

Transport temperature

-10~60℃

Relative moisture

15~70%RH

Working entironment

No vibrancy and no cautery
