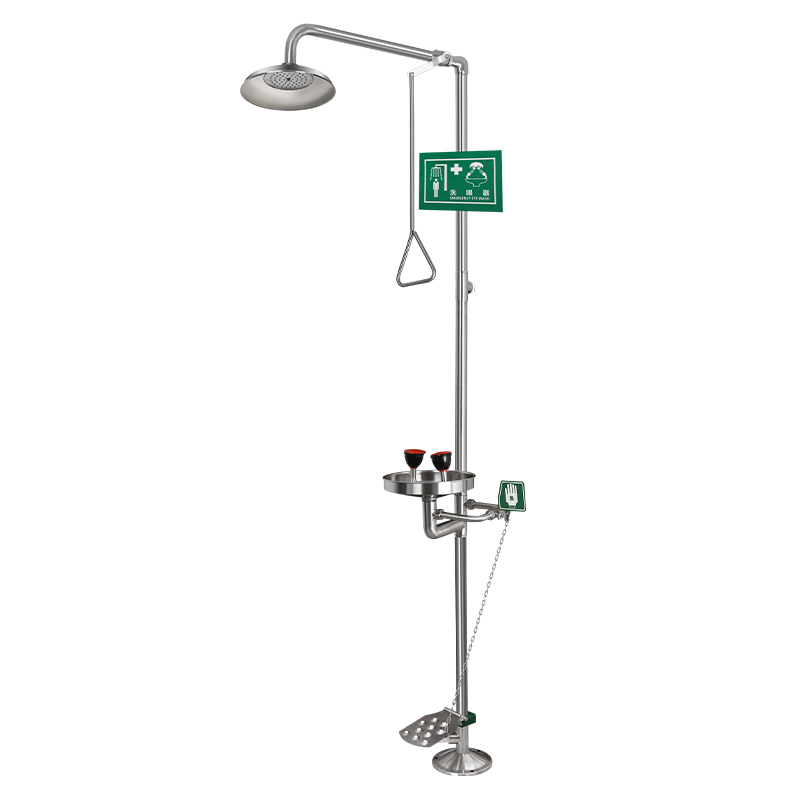

F1103 Compound shower eyewash device with the foot pedals

Material: 304 stainless steel
Function: shower/eyewash
Appearance treatment: polishing/brushing
On-off ball valve: two-piece ball valve
Availability:
  • F1103
  • NADE
  • 1
  • 1 year
  • China

Product Description

F1103.jpg 2.jpg

The product is used in chemical plants, pharmaceutical factories, laboratories, shipyards, etc



Specification

Model

F1103

Product name

compound shower eyewash

Material

304 stainless steel

Function

shower/eyewash (can be used at the same time or separately)

Appearance treatment

polishing/brushing

On-off ball valve

two-piece ball valve

Pipe diameter

38mm

Product body

304 stainless steel one-piece precision casting, thickness 3mm

Test pressure

1.6Mpa

Working pressure

0.2 ~ 0.6Mpa

Operating environment temperature

0℃~40℃

Spray water flow rate

≥ 76 L/min

Wash face/eye wash flow

≥ 11.4 L/min

Receiving basin

304 stainless steel crimping basin, diameter 300mm

Eyewash nozzle

with filter, dust cover, flow limiter and pressure control device to meet different water pressures

Shower nozzle

stainless steel crimping design, diameter 250mm, in line with national standard requirements

Inlet/outlet size

DN25 (additional reducer and drain connector)

Executive standard

National standard GB/T38144.1/2-2019 American standard ANSI.Z358.1/2-2014

Advantages compared to similar products

all 304 stainless steel, beautiful appearance, simple installation, stable quality.
