F1104
NADE
1
1 year
China
Product Description
The product is used in chemical plants, pharmaceutical factories, laboratories, shipyards, etc
Specification
Model | F1104 |

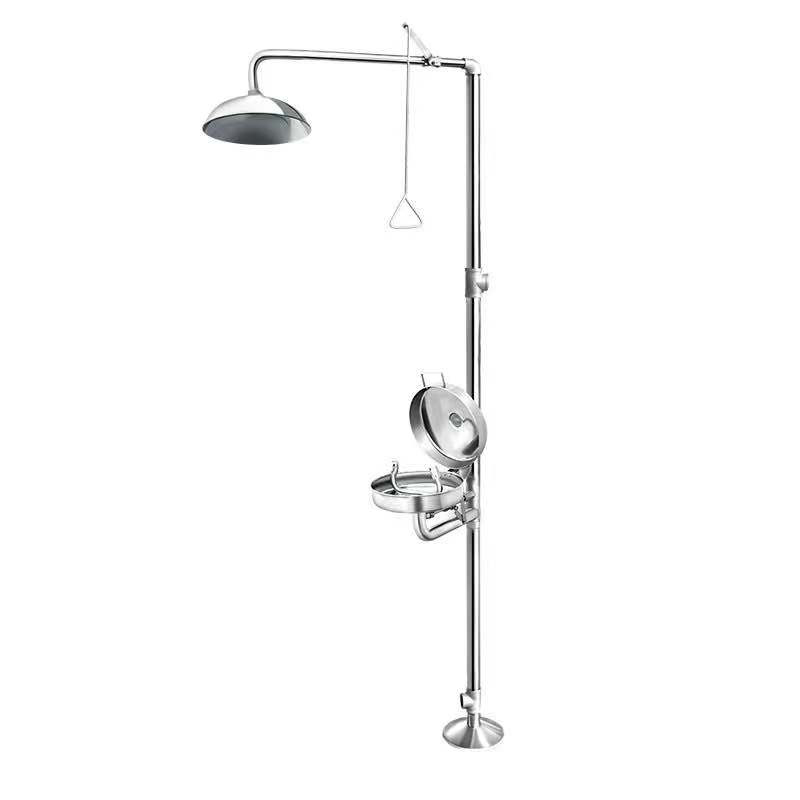

Product name | compound shower eyewash (with dust cover) |
Material | 304 stainless steel |
Function | shower/eyewash (can be used at the same time or separately) |
Appearance treatment | polishing/brushing |
On-off ball valve | two-piece ball valve |
Pipe diameter | 38mm |
Product body | 304 stainless steel one-piece precision casting, thickness 3mm |
Test pressure | 1.6Mpa |
Working pressure | 0.2 ~ 0.6Mpa |
Operating environment temperature | 0℃~40℃ |
Spray water flow rate | ≥ 76 L/min |
Wash face/eye wash flow | ≥ 11.4 L/min |
Receiving basin | 304 stainless steel crimping basin, diameter 300mm |
Eyewash nozzle | with filter, dust cover, flow limiter and pressure control device to meet different water pressures |
Shower nozzle | stainless steel crimping design, diameter 250mm, in line with national standard requirements |
Inlet/outlet size | DN25 (additional reducer and drain connector) |
Executive standard | National standard GB/T38144.1/2-2019 American standard ANSI.Z358.1/2-2014 |
Advantages compared to similar products | all 304 stainless steel, beautiful appearance, simple installation, stable quality. |
