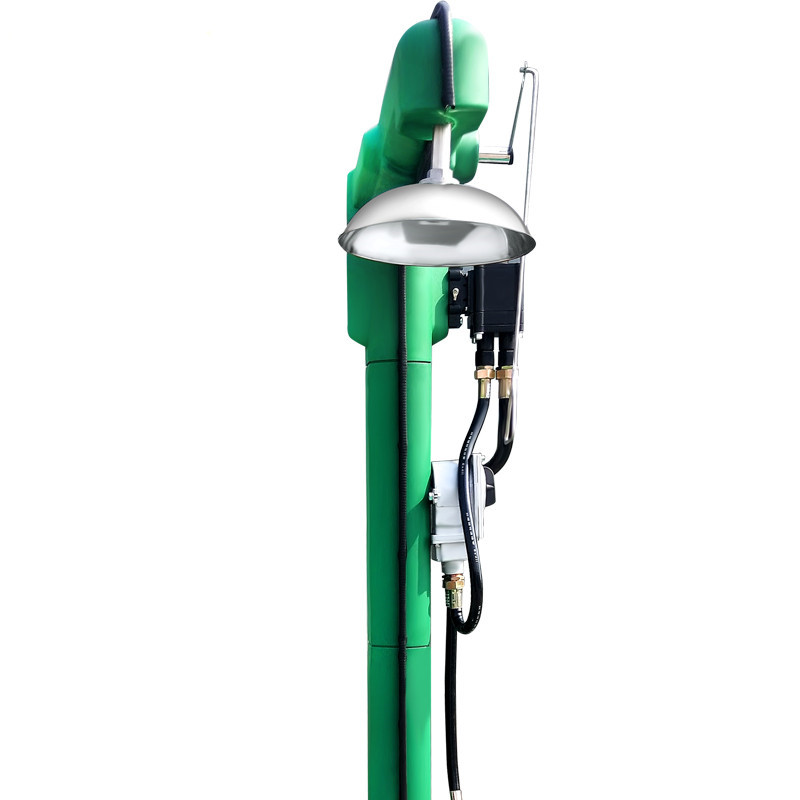

D1701 Electric heat tracing shower eyewash

Material: 304 stainless steel + ABS shell
Function: shower/eyewash
Appearance treatment: ABS flame retardant shell
On-off ball valve: two-piece ball valve
Availability:
  • D1701

  • NADE

  • 1

  • 1 year

  • China

Product Description


The product is used in chemical plants, pharmaceutical factories, laboratories, shipyards, etc



Specification

Model

D1701

Product name

electric heat tracing shower eyewash

Material

304 stainless steel + ABS shell

Function

shower/eyewash (can be used at the same time or separately)

Appearance treatment

ABS flame retardant shell

Explosion-proof grade

EXD II CT6 (can be customized according to on-site media)

Protection level

IP65 (can be customized according to the site media)

On-off ball valve

two-piece ball valve

Pipe diameter

38mm

Product body

304 stainless steel one-piece precision casting, thickness 3mm

Test pressure

1.6Mpa

Working pressure

0.2 ~ 0.6Mpa

Operating environment temperature

-30℃~40℃

Spray water flow rate

≥ 76 L/min

Wash face/eye wash flow

≥ 11.4 L/min

Eyewash nozzle

with filter, dust cover, flow limiter and pressure control device to meet different water pressures

Inlet/outlet size

DN25 (can be customized according to customer requirements)

Executive standard

National standard GB/T38144.1/2-2019 American standard ANSI.Z358.1/2-2014

Others

 Sound and light alarm system, DCS remote centralized control system, light control lighting system, heating cable alarm system, etc. can be customized according to customer requirements.

Notes: Communicate electrical appliances in advance
