NADE Laboratory UNT-1913 high performance X-Ray CR/DR image performance detector

Product Description

This product is a medical X-ray imaging test phantom according to the national metrological regulations of JJG 1078-2012"Medical digital radiographic system(CR,DR) radiation Source".It can verify the performance of medical Computer Radiography system(CR)and Digital Radiography system(DR),also evaluate whether the instrument meets the factory specification and national standards.

Specification

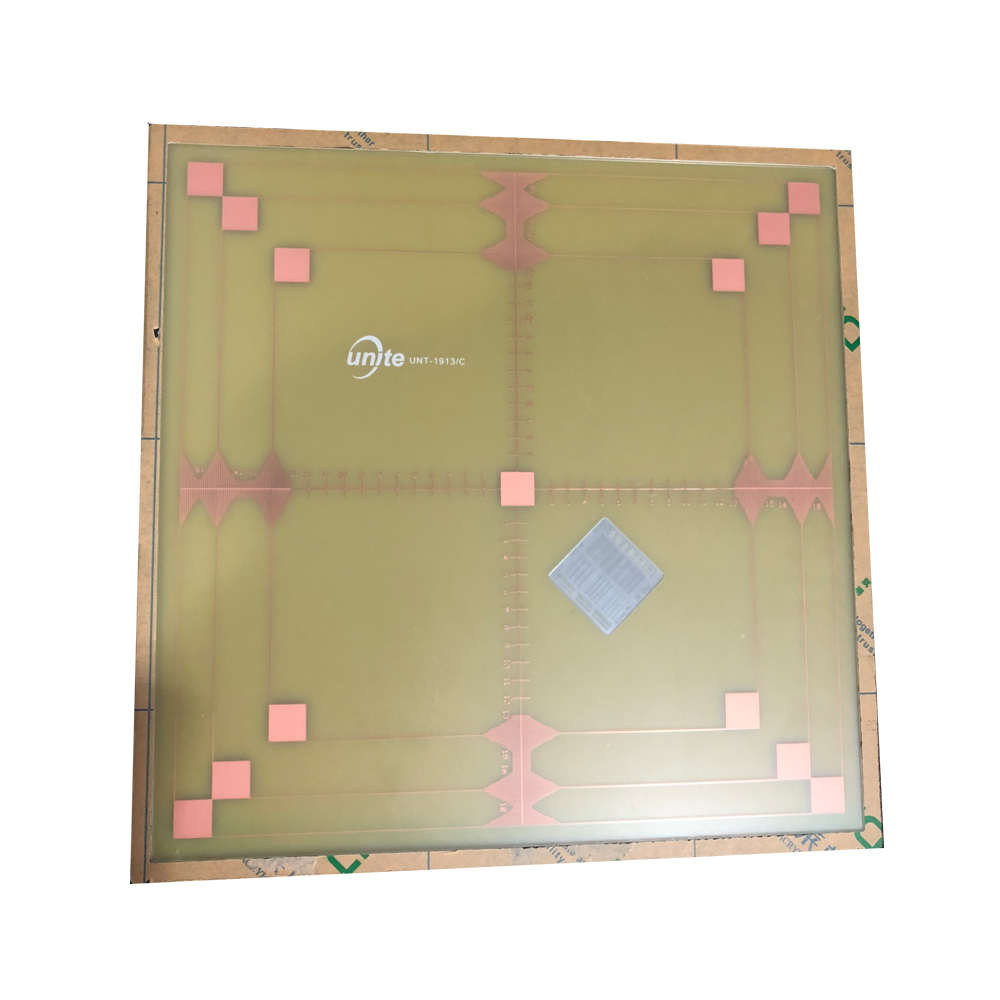

UNT-1913/C Test Phantom

Size:406 mm×406 mm

Thickness:3 mm

Scale dividing value:1 mm

Spatial Resolution test card:0.6~5.0 LP/mm,0.1 mm

Lead equivalent

UNT-1913/D LC Phantom

Material:99.5% Aluminum

Size:φ310 mm

Thickness:20 mm±0.05 mm

Range of measurement:0.35%-16%

Aperture:10mm,Tolerance of the hole depth is±0.02mm

UNT-1913/S Filter

Material:99.5%Aluminum

Size:280 mm×280 mm

Thickness:20 mm±0.05 mm
