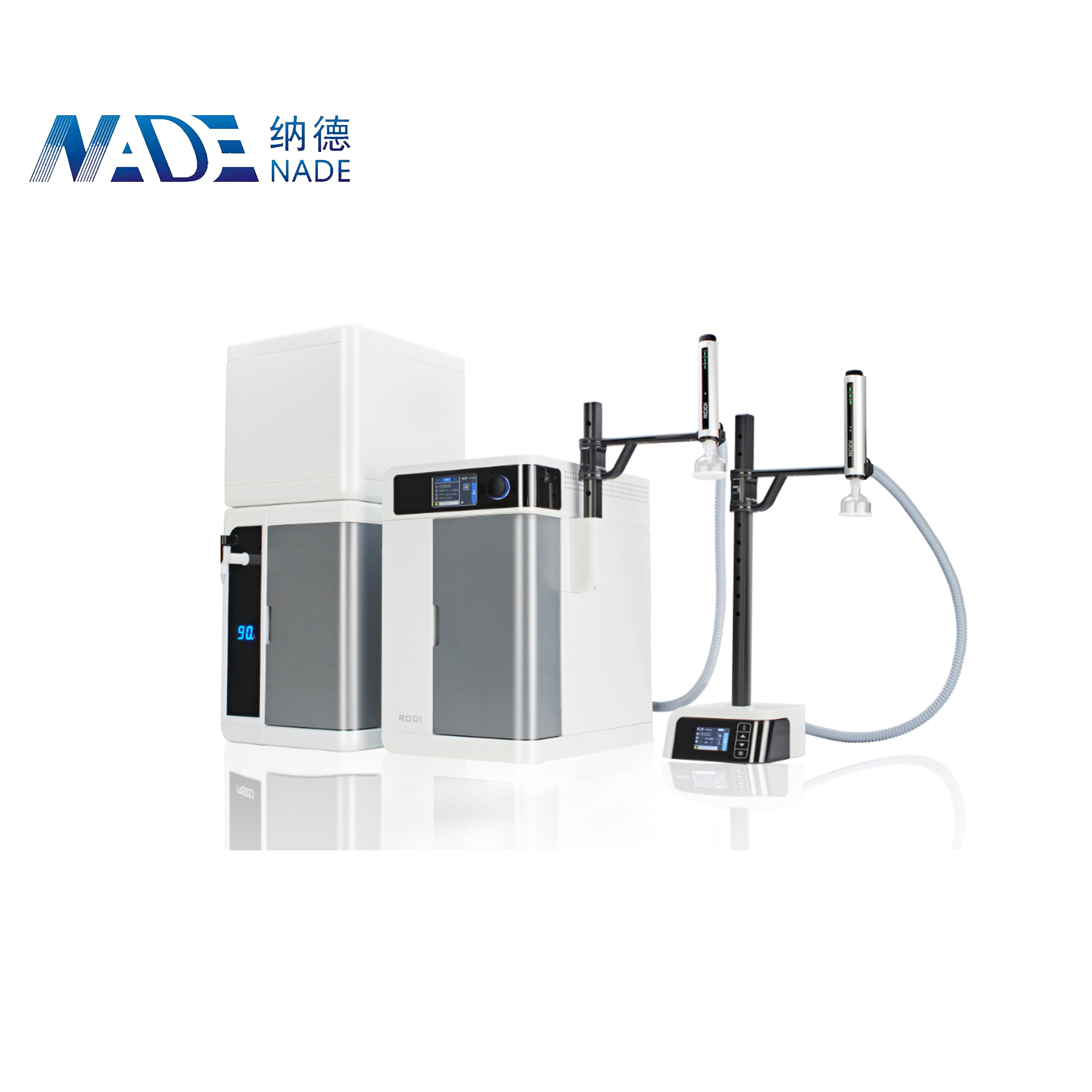

NADE laboratory benchtop type RODI series water purification system

  • New

  • Manufacturing Plant, laboratory

  • No service

  • None

  • None

  • Not Available

  • Provided

  • New Product 2020

  • 1 Year

  • other

  • China

  • NADE

  • AC100-240V,50Hz-100W, 100W

  • Video technical support, Online support

  • 1 Year

  • Municipal tap water, 5-40℃, 1-6 bar

  • Conductivity<5μs/cm(25℃)

  • Resistivity≥18.2MΩ.cm@25℃

  • dropwise-2LPM

  • 1-999ppb

  • 40L

  • ±1%

  • AC100-240V,50Hz

  • RODI Main Unit: 423*445*280mm

Product Description

Product Description

NADE laboratory benchtop type RODI series water purification system

RODI is a laboratory water purification system with intelligent and humanized design. All system modularization, high integration, high space utilization, with the Internet of things application, full digital network tracking and management. Filter column chip management with intelligent identification and the product information can be traced back. This high quality purification system was builded for customers by with more than 10 years technical experience.

Applications:

Primary pure water

Better than GB/T6682-2008 Type III. Used for regular reagent preparation, buffer and medium solution preparation, glass cleaning, microbiological analysis , regular chemistry and qualitative analysis, water supply for autoclave sterillizer, cleaning machine, automatic biochemical analyzer, immune analyzer, etc.

Ultrapure Water

Analytical experiment such as HPLC, ICP-MS, AAS, ect.

UV+UF Type: culture precise tissue cells, strict molecular biology (nucleic acid analysis, sequencing, PCR and electrophoresis)

Feature

l Cloud service of the IOT

With WiFi/GPRS dual-mode wireles Internet access function, and combined with cloud service platform to realize remote network data tracking and management, operation/fault analysis, and the formation of daily use statistics and reports.

l Comprehensive water quality monitoring

On line monitoring of conductivity and TOC of ultra pure water can obtain the change of water quality in each purification stage in a more comprehensive and real-time way.

l Chip management of filter column

The filter column adopts intelligent chip management to prevent leakage/misalignment and make it traceable.

l Highly intelligent

l Modularization

100% Consumables replaced by DIY

l Diversified water operation

  1. Remote water dispenser
  2. Multiple water dispenser
  3. Four different flow rates adjustable
  4. Support foot switch and quantitative water dispense
  5. Fetch water through hand switch

l Visual human-computer interface

  1. 4.3’ color touchscreen
  2. right and limit classification manage
  3. list menu and guided interface
  4. Polychromatic light strip

l Comprehensive safety protection

double leakage protection and system process protection.

NADE laboratory benchtop type RODI series water purification system

NADE laboratory benchtop type RODI series water purification system

Specification

Model

RODI

Feed water type

Municipal tap water, 5-40℃, 1-6 bar

Water quality

pure water——Conductivity<5μs/cm@25℃, Mw>100 Dalton organic matter removal rate>99%(other index meets the national standard of GB6682-III level)

Ultra pure water——Resistivity≥18.2MΩ.cm@25℃,heavy metal ions (ppb)<0.01ppb, TOC< 5ppb,Bacteria< 0.01cfu/ml,

Particle(>0.2μm)<1 Particulates/ml, Pyrogen< 0.001 Eu/ml,

DNases< 4 pg/ml,RNases< 1pg/ml

Meet the ASTM D1193-2006/GB11446.1-2013/GB33087-2016/

GB6682-2008 Type I water standard

Flow rate

dropwise-2LPM

TOC monitoring range

1-999ppb

Maximum reserves

40L

Accuracy of quantitative water dispense

±1%

Voltage

AC100-240V,50Hz

Power

100W

Product Dimension

Pretreatment-water tank integrated unit:339×410×904mm(W×H×D)

RODI Main Unit: 423×445×280mm(W×H×D)

Remote Water Dispenser Station: 200×190×618mm(W×H×D)

Deadweight

Pretreatment-water tank integrated unit:15kg

RODI Main Unit:24kg

Remote Water Dispenser Station:6kg

  1. Typical value
  2. Use built-in ultrafiltration or terminal microfilter, follow correct system maintenance and sampling conditions
  3. Use built-in or terminal ultrafilter, follow correct system maintenance and sampling conditions

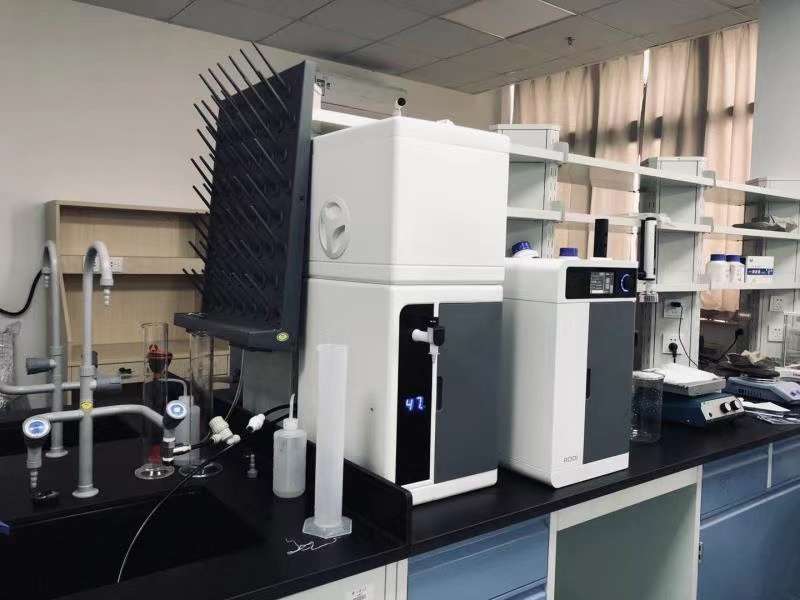

Real photos show
NADE laboratory benchtop type RODI series water purification system NADE laboratory benchtop type RODI series water purification system NADE laboratory benchtop type RODI series water purification system
Packaging & Shipping

Our Packaging Details:

NADE laboratory benchtop type RODI series water purification system

Our Shipping

NADE laboratory benchtop type RODI series water purification system

Our Services

Please contact us by alibaba message or TEL: +0086-571-88064952 for any requirements or questions. There may be a time zone difference depending on your location, but we will respond to you as soon as we can.

We cherish every opportunity to serve our customer! It will be our great pleasure to do business with you and hope it will be a win-win situation for both of us.

NADE laboratory benchtop type RODI series water purification system

Company Information

NADE laboratory benchtop type RODI series water purification system

NADE laboratory benchtop type RODI series water purification system

FAQ

Q: How long is the delivery time?
A: 7-15 working days after we received your payment or order confirmed.


Q: What is the warranty for the equipment?
A: One year. We can provide you lifelong technical support.


Q: What is the payment terms?
A: T/T, L/C, Western Union, etc.

Q: What after-sales service can be provided by Nade ?
A: The after-sales service of Nade is divided into two parts: technical support and maintenance.


Q: What about the technical support and maintenence?
A: Sometimes users will get some problems when they operate the instruments which are unfamiliar or first time use, users can send us emails or call us about detailed information. We will provide users solution or operation video.For so many years’ experience, our instruments works well during warranty period. If there any parts are broken during warranty period, we would like to provide spare parts for free.

Please send your request details to us by clicking "send" at the bottom!
