Homogenizer
0 L
0 L
1 KG
New
Cosmetic
Liquid, Medicine Processing, Chemicals Processing, Food Processing
China
NADE
40*15*10mm
0 kW
1 Year
Online support, Video technical support
Long Service Life
lab
No service
None
None
Ordinary Product
Not Available
Not Available
1 Year
other
50~1500
SS316L
AD500S-H/AD500S-P
Product Description

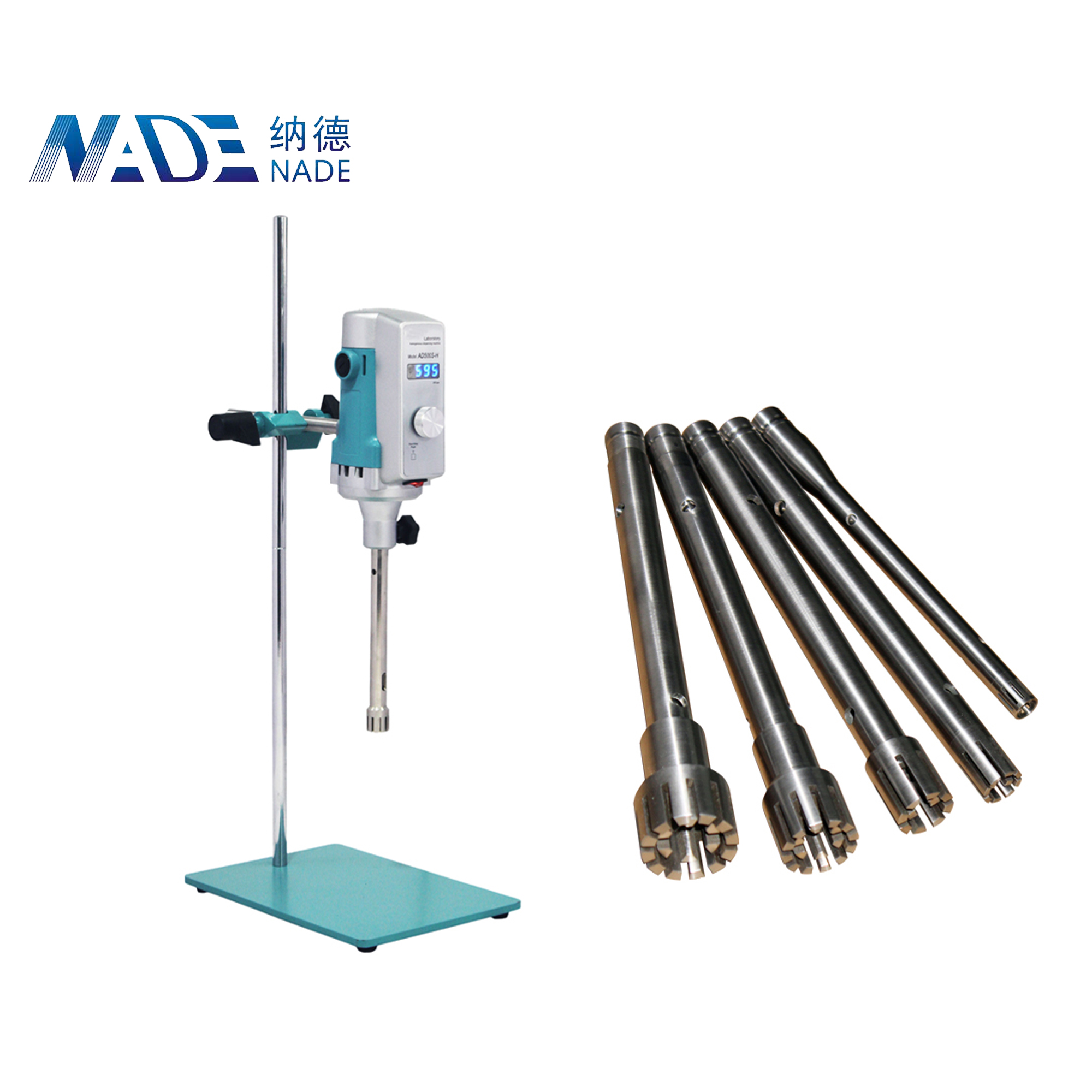

NADE SS316L homogenizer Working head 18G 50~1500ml Suitable for lab homogenizer AD500S-H/AD500S-P
Parameter of working head:
| Working head | 12G | 18G | 24G | 30G | 36G |
| Mixing capacity (H2O, ml) | 30~800 | 50~1500 | 80~5000 | 100~8000 | 150~13000 |
| Max viscosity(mPa.s) | 1000 | 2000 | 5000 | 6000 | 7000 |
| Max. rotation speed(m/s) | 12 | 15 | 18 | 22 | 26 |
| Min./max.immersion depth(mm) | 35/150 | 45/160 | 50/165 | 60/170 | 65/175 |
| Size of stator(mm) | Ø12 | Ø18 | Ø24 | Ø30 | Ø36 |
| Legth(mm) | 215 | 222 | 225 | 235 | 238 |
| Max temperature(℃) | 120 | 120 | 120 | 120 | 120 |
| Working head material | SS316L | SS316L | SS316L | SS316L | SS316L |
