NADE SS304L homogenizer Working head 28G 90~7000ml Suitable for lab homogenizer AD300L-H

NADE SS304L homogenizer Working head 28G 90~7000ml Suitable for lab homogenizer AD300L-H/AD200L-P

Parameter of working head:

Working head	12G	18G	28G	36G
Mixing capacity (H2O, ml)	30~800	50~1500	90~7000	150~13000
Max viscosity(mPa.s)	1000	2000	6000	7000
Max temperature(℃)	120	120	120	120
Legth(mm)	170	210	230	230
Size of stator(mm)	Ø12	Ø18	Ø28	Ø36
Working head material	SS304	SS304	SS304	SS304
Max. rotation speed(m/s)	11	15	19	27
Min./max.immersion depth(mm)	35/110	45/150	50/150	60/160

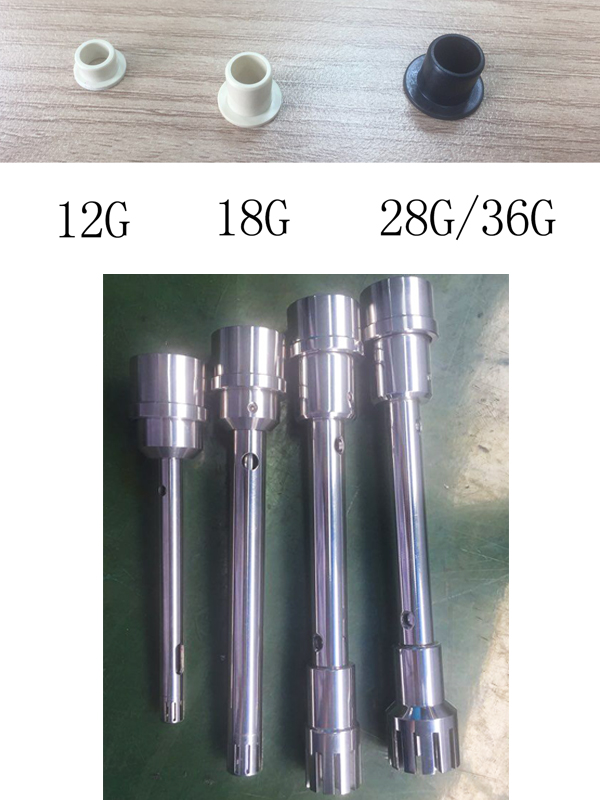

12G SS304L/12G SS316L 18G SS304L/18G SS316L

28G 36G

Please contact us by alibaba message or TEL: +0086-571-88830108x662 for any requirements or questions. There may be a time zone difference depending on your location, but we will respond to you as soon as we can.

We cherish every opportunity to serve our customer! It will be our great pleasure to do business with you and hope it will be a win-win situation for both of us.

Our Packaging Details:

Our Shipping

Q: How long is the delivery time?
A: 7-15 working days after we received your payment or order confirmed.

Q: What is the warranty for the equipment?
A: One year. We can provide you lifelong technical support.

Q: What is the payment terms?
A: T/T, L/C, Western Union, etc.

Q: What after-sales service can be provided by Nade ?
A: The after-sales service of Nade is divided into two parts: technical support and maintenance.

Q: What about the technical support and maintenence?
A: Sometimes users will get some problems when they operate the instruments which are unfamiliar or first time use, users can send us emails or call us about detailed information. We will provide users solution or operation video.For so many years’ experience, our instruments works well during warranty period. If there any parts are broken during warranty period, we would like to provide spare parts for free.
