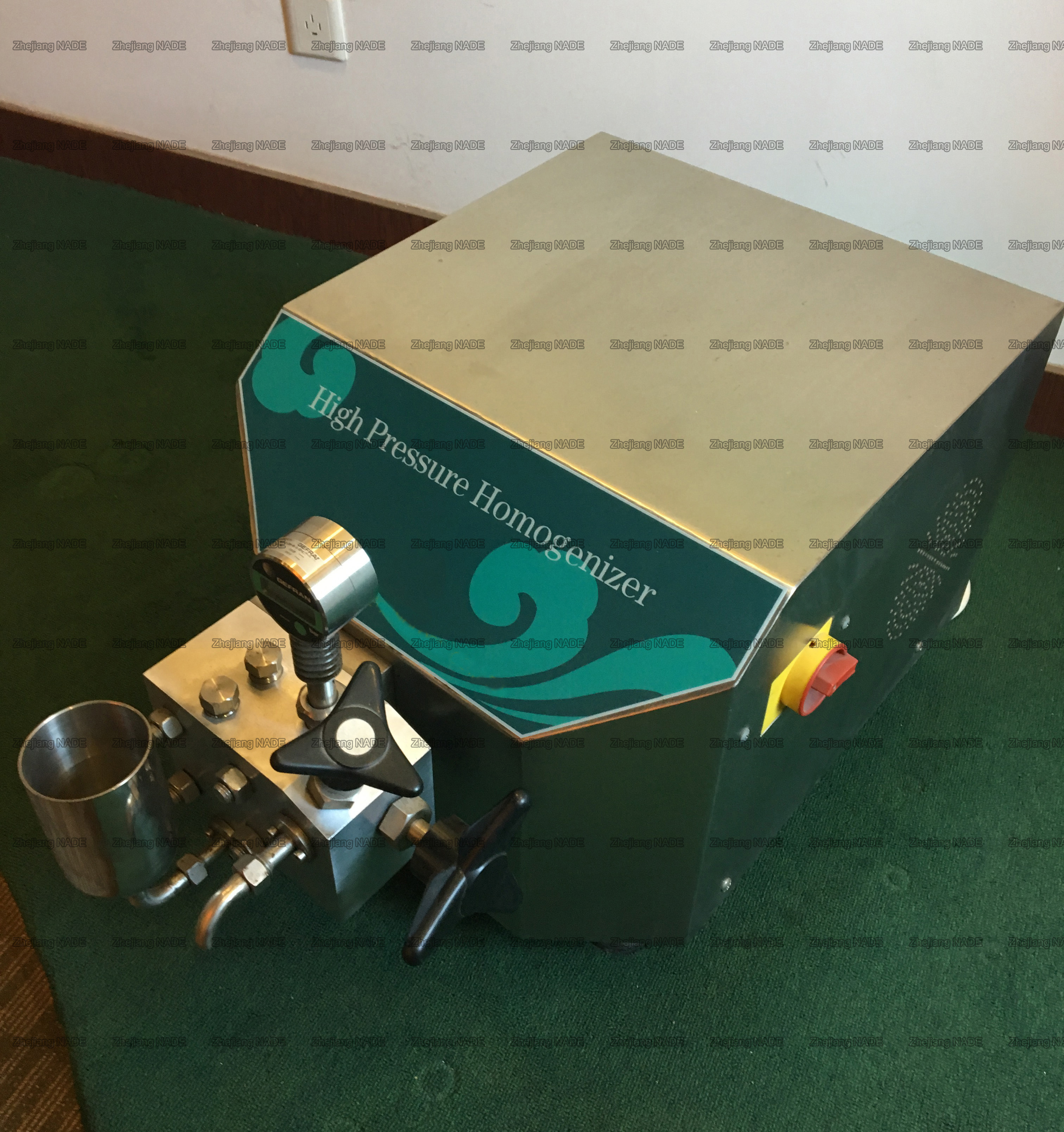

NADE ND-150 12L Laboratory High Pressure Homogenizer Emulsifier For soybean milk,ice cream

  • Homogenizer

  • 12

  • 12 L

  • 120 KG

  • New

  • Other

  • Liquid, Food Processing

  • Milling

  • China

  • NADE

  • 220V/50Hz 110V/60Hz

  • 430*255*300mm

  • CE ISO

  • 1.5 kW

  • 1 Year

  • Online support, Engineers available to service machinery overseas

  • Competitive Price

  • Manufacturing Plant, Food & Beverage Factory

  • No service

  • None

  • None

  • Ordinary Product

  • Not Available

  • Not Available

  • 1 Year

  • other

  • 30ml

  • 12L/h

  • Built-in cooler

Product Description

NADE Laboratory High Pressure Homogenizer Emulsifier For soybean milk,ice cream ND-150 12L

Product Description

NADE ND-150 12L Laboratory High Pressure Homogenizer Emulsifier For soybean milk,ice cream

Pressure through an adjustable current-limiting gap process, the formation of loss of pressure expansion, explosion, shear, combined effect of high-speed collision, the particles and liquid droplets shatter into very small size, while creating an ideal solution or dispersion of emulsion. Product stability, consistency, mixed, and easy absorption, nutritional value, shelf life, flavor, color, security activities are realized in the homogeneous process.

Applications

It is widely used in food, dairy, beverage, pharmaceutical, fine chemicals and bio-technology and other fields of production, scientific research and technological development.

1)For milk,soybean milk,could make fat globule thin observably,make

it easy to assimilate.It is good to increase the edible value.

2)For ice cream,make the liquid fine and loosen and improve internal quality.

3)For emulsion,colloid,juice,serosity,could avoid and decrease the separated layers of liquid material,improve the appearance of liquid material,and make it identical coloury liquid.

This high-pressure homogenizer adopts stainless steel chassis and adopts imported key components. The pressure is high, the material particle size can be evenly refined to below 100nm, and the breaking rate is more than 95%. It has small volume, convenient operation, high processing efficiency and high sample output. Big features.

Specification

Maximum working pressure

1200bar/120M pa/17400psi

Maximum design pressure

1500bar/150Mpa/21750psi

Maximum capacity

12L/h,25L/h two models machine

Minimum capacity

30ml

Cooling

Built-in cooler

Motor Power

1.5KW/380V/50HZ

Dimensions

L800*W460*H450mm

Weight

120Kg

Certifications

NADE ND-150 12L Laboratory High Pressure Homogenizer Emulsifier For soybean milk,ice cream

Packaging & Shipping

NADE ND-150 12L Laboratory High Pressure Homogenizer Emulsifier For soybean milk,ice cream NADE ND-150 12L Laboratory High Pressure Homogenizer Emulsifier For soybean milk,ice cream

Company Information

NADE ND-150 12L Laboratory High Pressure Homogenizer Emulsifier For soybean milk,ice cream

NADE ND-150 12L Laboratory High Pressure Homogenizer Emulsifier For soybean milk,ice cream

Our Services

NADE ND-150 12L Laboratory High Pressure Homogenizer Emulsifier For soybean milk,ice cream

FAQ
Q: How long is the delivery time?
A: 7-15 working days after we received your payment or order confirmed.

Q: What is the warranty for the equipment?
A: One year. We can provide you lifelong technical support.

Q: What is the payment terms?
A: T/T, L/C, Western Union, etc.

Q: What after-sales service can be provided by Nade ?
A: The after-sales service of Nade is divided into two parts: technical support and maintenance.

Q: What about the technical support and maintenence?
A: Sometimes users will get some problems when they operate the instruments which are unfamiliar or first time use, users can send us emails or call us about detailed information. We will provide users solution or operation video.For so many years’ experience, our instruments works well during warranty period. If there any parts are broken during warranty period, we would like to provide spare parts for free.
