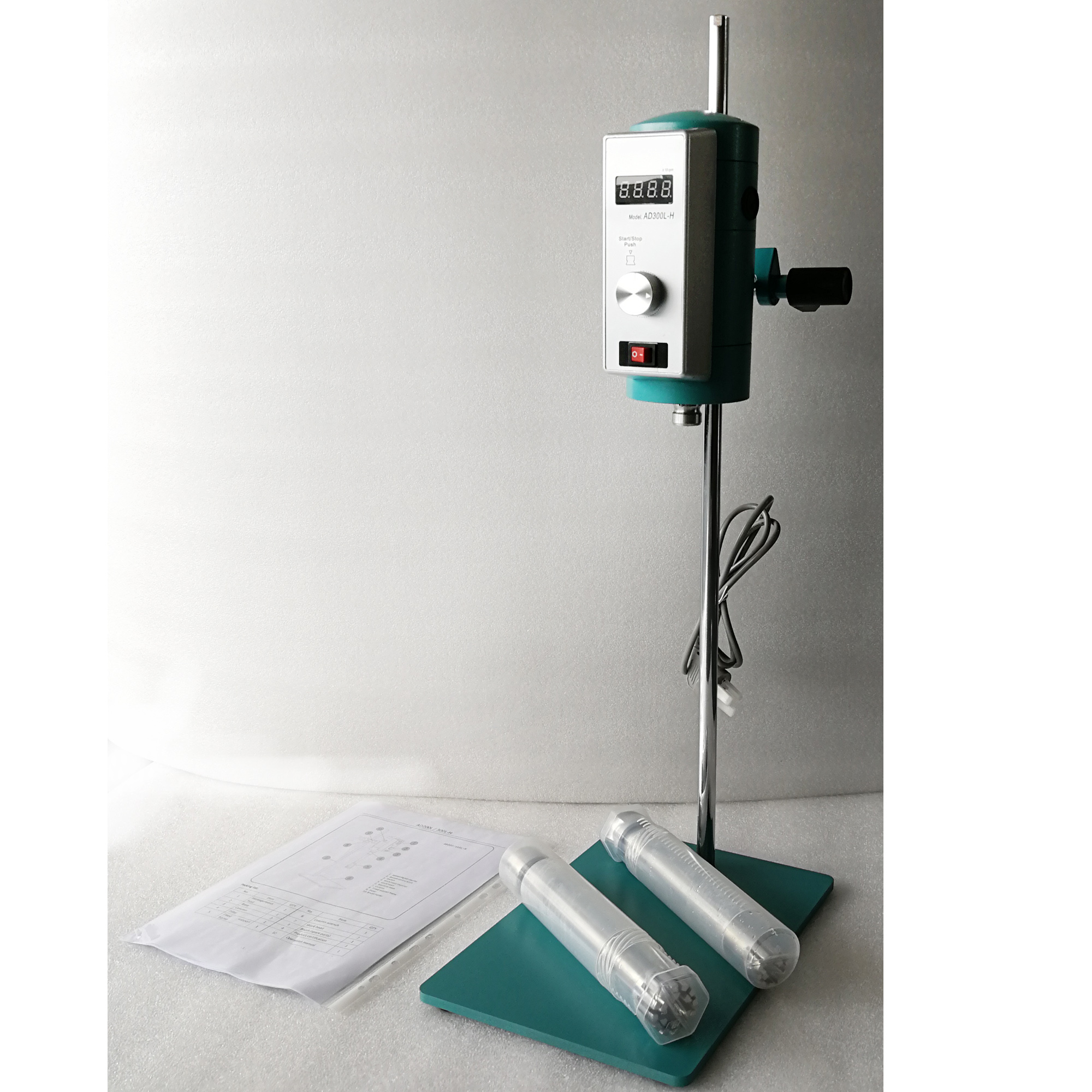

NADE Laboratory Stable suspension High Shear Disperser Emulsifier Homogenizer AD300L-H 12G+28G/18G+36G

  • Homogenizer

  • 0 L

  • 13 L

  • 13L

  • 12 KG

  • New

  • Cosmetic

  • Liquid, Medicine Processing, Chemicals Processing, Food Processing

  • NADE

  • 220V/110V

  • 215*310*720

  • ISO

  • 0.3 kW

  • 1 Year

  • Online support, Video technical support

  • Long Service Life

  • lab

  • 12G/18G/8G/36G

  • 2000-18000 rpm

  • Display value*10 rpm

  • 1~1000min

  • Yes

  • Yes

  • SS304

  • 10KG

  • 300W

Product Description

Introduction

Adopts structure compact series-excited type miniature high speed motor drive for the Low to medium and High viscosity liquid mixing ,dispersing & Homogenizing materials in liquid medium.

Application:

The device can be applied to different areas like dispersing of tissue in biotechnology, sample preparation in medicine, cosmetic industry, paint industry, petro-chemical processing. It can also be applied to any liquid material experiment like liquid and liquid phase, Liquid and solid phase, Viscosity less than 0.2Pa.s, temperature below 80 ℃. The experimental medium can achieve a fine and delicate mixing by squeezing, strongly impacting and cracking, and liquid layers can be avoided during the operating.

Features

1. High Shear Homogenizer has Various of agitators(working heads) are designed for different processing capacity and difference experiment requirement ,include Crushing, emulsifying , homogenizing , polymerization, suspension, dissolving and Mixing etc. Especially for high viscosity material.
2. And it is easy to operate and easy to clean, easy to maintenance .
3.Variable Rating Speed Control provide with a high effect.

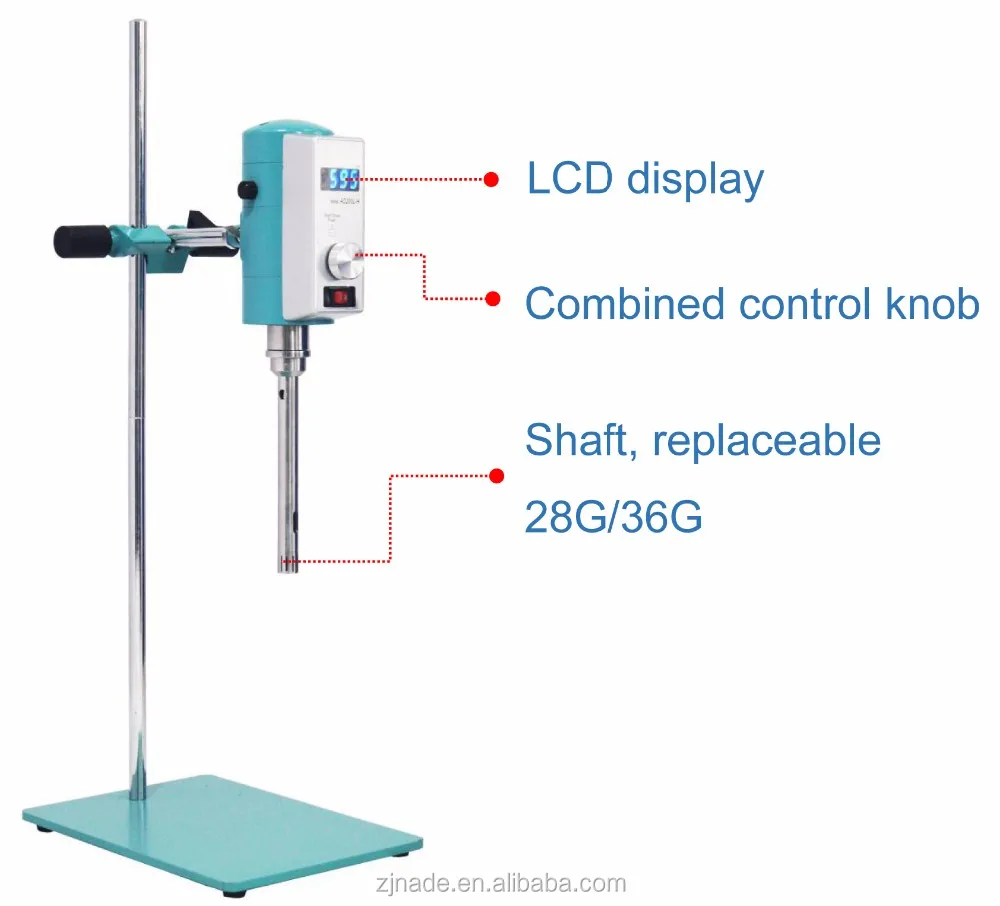

Models with "H" are digital display. Speed controller adopts IC constant speed control, can instantly to compensate for speed change of the load changes and power supply voltage fluctuation

Specification
Model
AD300L-H
Working head
12G, 18G, 28G, 36G
Mixing capacity (H2O,ml)
12G: 30~800ml
18G: 50~1500ml
28G: 90~7000ml
36G: 150~13000m
Rated voltage
220±10% VAC
Rated frequency
50/ 60 Hz
Input power
510 W
Output power
300 W
Rated torque
13.6 N·cm
Working mode
S1
Speed control
Continuously Adjustable
Speed range
2000~18000 rpm
Overload protection
Yes
Dynamical Speed recording
Yes
Speed display
Yes
Timing
Yes, 1-1000min
The Material of the Operating head
Stainless steel 304
Size of the mixer (T×B×H)
215×310×720 mm
Permissible ambient temperature
Lower than 40ºC
Permissible relative humidity
Less than 80%
Net weight
10KG
Parameter of shaft
Working head
12G
18G
28G
36G
Mixing capacity (H2O, ml)
30~800
50~1500
90~7000
150~13000
Max viscosity(mPa.s)
1000
2000
6000
7000
Max temperature(℃)
120
120
120
120
Legth(mm)
170
210
230
230
Size of stator(mm)
Ø12
Ø18
Ø28
Ø36
Working head material
SS304
SS304
SS304
SS304
Max. rotation speed(m/s)
11
15
19
27
Min./max.immersion depth(mm)
35/110
45/150
50/150
60/160
FAQ
Q: What does full package include?
A: Full package includes ONE homogenizer with shaft. shaft size and quantity depends on your choice.
AD300L-H:12G/18G/28G/36G

Q:There are many models of homogenizer on your web, I do not know which model can meet my requirement best?
A: Please inform us your application, what material to handle, in high viscosity or low, handling volume, need display or not, etc. Then we will recommend a most suitable for you.

Q: What if I need to use under 110V voltage?
A: We can provide an optional voltage converter, suitable for 110V voltage.

Q: How long is the warranty?
A: 12 months.

Q: We are distributor, what support can you offer me?
A: We would offer 100% support to our partner, please contact us to discuss.

For any other question, please do not hesitate to contact us.
