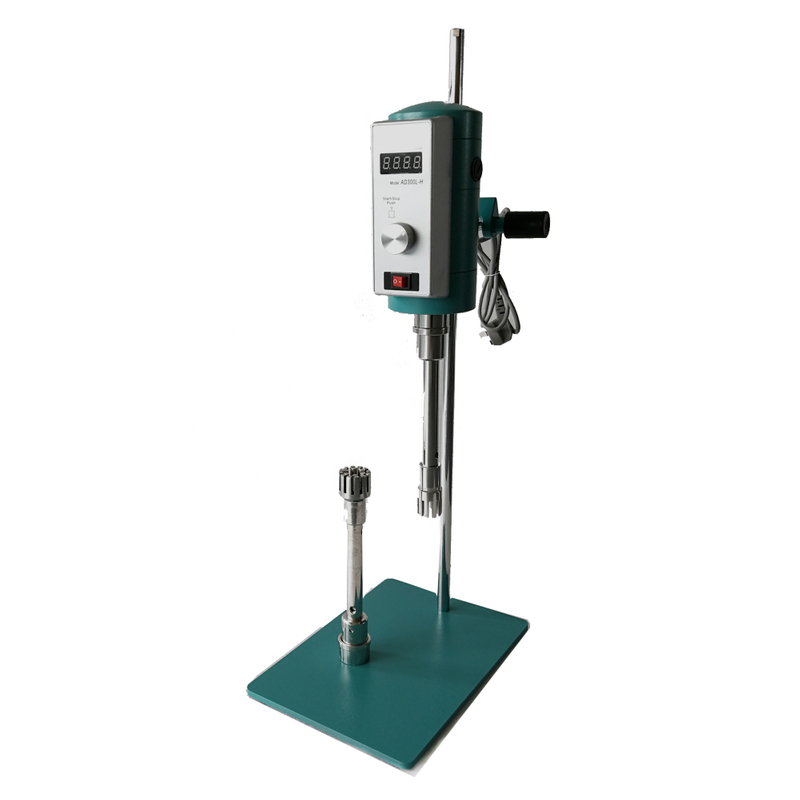

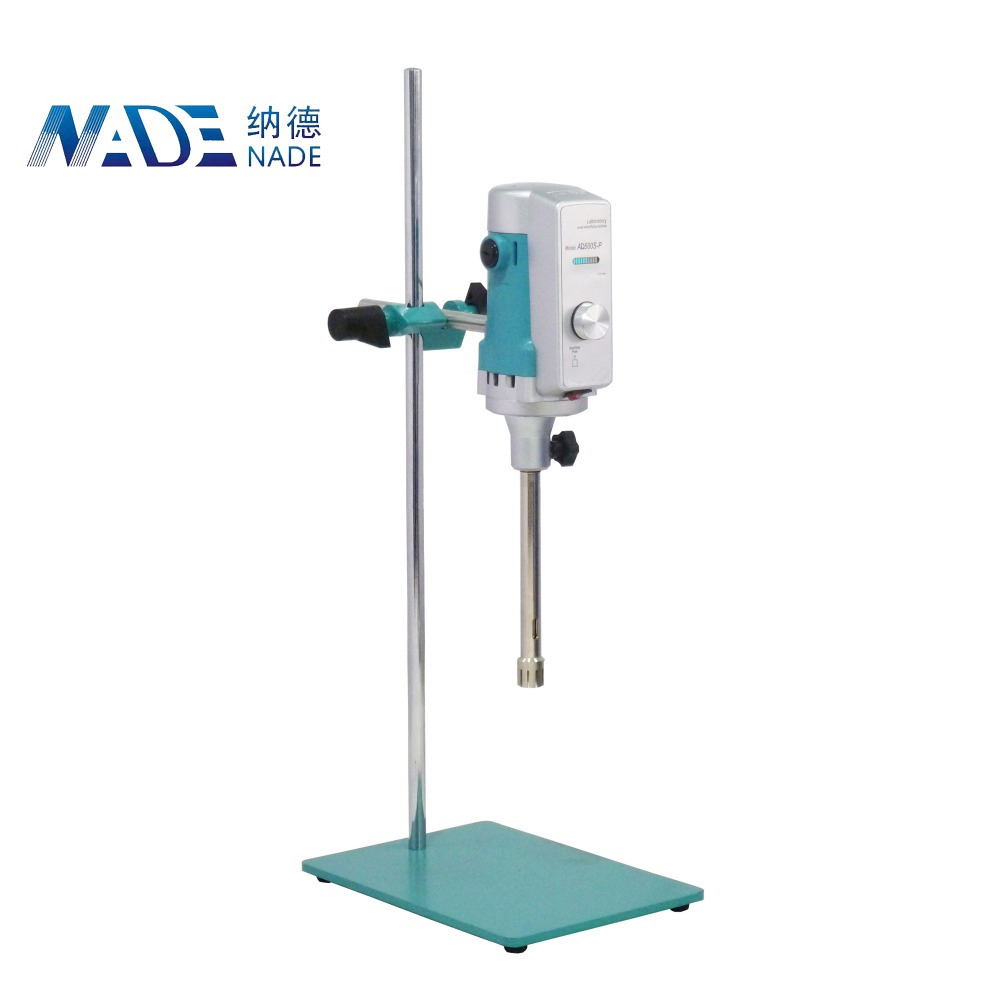

NADE Laboratory Small Scale 30~13000ml Digital High Shear Disperser Emulsifier Homogenizer AD300L-H

Share to:

NADE Laboratory Small Scale 30~13000ml Digital High Shear Disperser Emulsifier Homogenizer AD300L-H



Inquire

Classification:
Other
Brand Name:
NADE
Model Number:
AD300L-H
Place of Origin:
China
Capacity of 28G(H2O):
90~7000ml
Capacity of 36G(H2O):
150~13000ml
Range of Speed:
2000-18000 rpm
Speed display:
Display value*10 rpm
Output Power:
300W
Timing range:
1~1000min
Overload protection:
Yes
Dynamical Speed recording:
Yes
Material of working shaft:
SS304
Net Weight:
10KG

Product Description

Product Description

FAQ

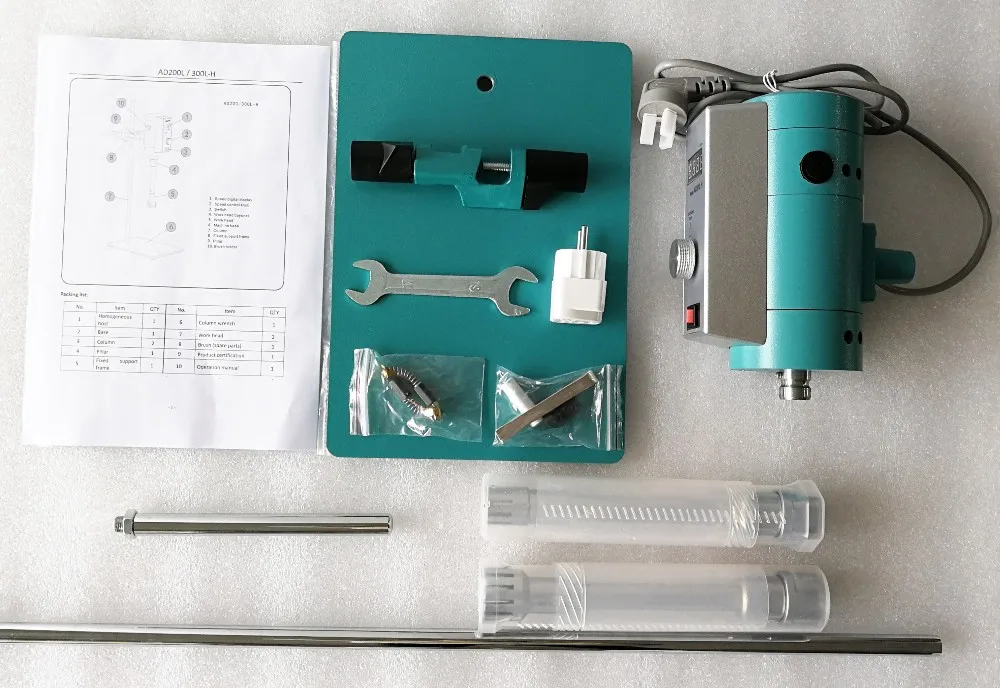

Q: What does full package include?

A: Full package includes ONE homogenizer driver with TWO sizes of shaft, Shaft size are depends on your choice:

Package-1: 12G & 18G

Package-2: 12G & 28G

Package-3: 18G & 36G

Package-4: 28G & 36G

If you prefer other match, please inquire us without hesitate.

Q:There are many models of homogenizer on your web, I do not know which model can meet my requirement best?
A: Please inform us your application, what material to handle, in high viscosity or low, handling volume, need display or not, etc. Then we will recommend a most suitable for you.

Q: What if I need to use under 110V voltage?

A: We can provide an optional voltage converter, suitable for 110V voltage.

Q: How long is the warranty?

A: 12 months.

For any other question, please do not hesitate to contact us.

Introduction

Adopts structure compact series-excited type miniature high speed motor drive for the Low to medium and High viscosity liquid mixing ,dispersing & Homogenizing materials in liquid medium.

Application:

The device can be applied to different areas like dispersing of tissue in biotechnology, sample preparation in medicine, cosmetic industry, paint industry, petro-chemical processing. It can also be applied to any liquid material experiment like liquid and liquid phase, Liquid and solid phase, Viscosity less than 0.2Pa.s, temperature below 80 ℃. The experimental medium can achieve a fine and delicate mixing by squeezing, strongly impacting and cracking, and liquid layers can be avoided during the operating.

Features

1. High Shear Homogenizer has Various of agitators(working heads) are designed for different processing capacity and difference experiment requirement ,include Crushing, emulsifying , homogenizing , polymerization, suspension, dissolving and Mixing etc. Especially for high viscosity material.
2. And it is easy to operate and easy to clean, easy to maintenance .
3. Variable Rating Speed Control provide with a high effect.

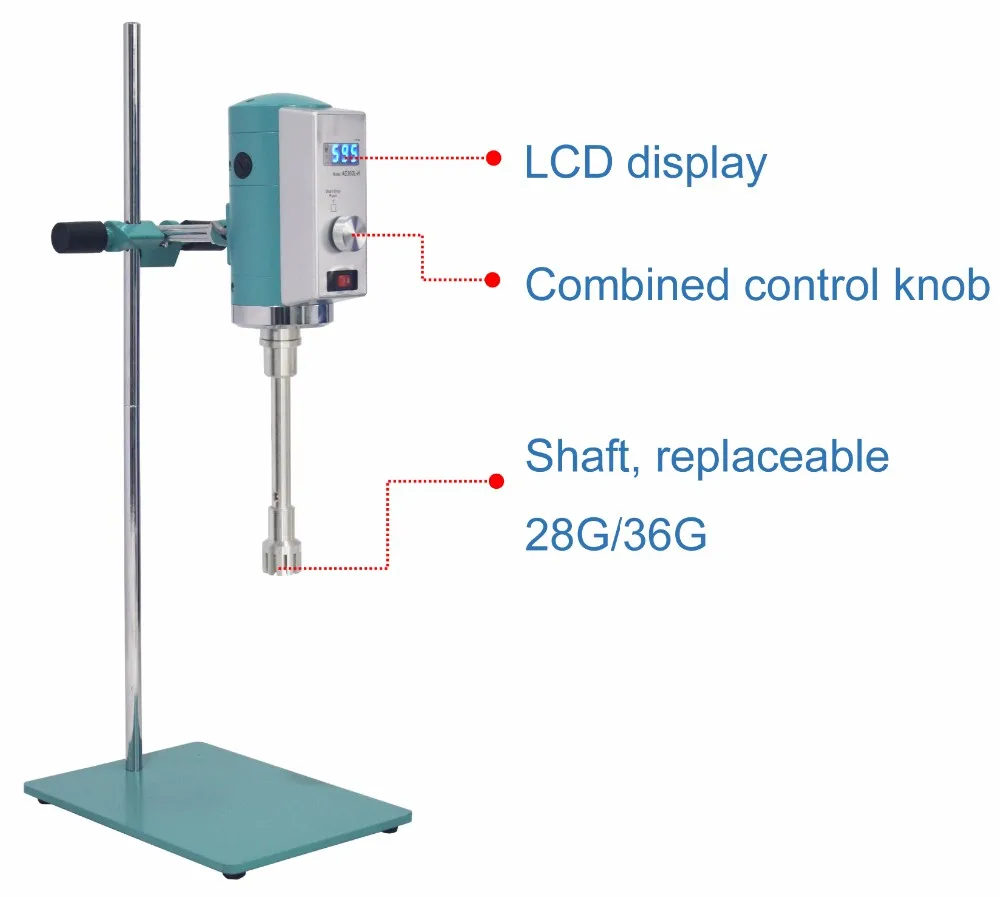

Models with "H" are digital display. Speed controller adopts IC constant speed control, can instantly to compensate for speed change of the load changes and power supply voltage fluctuation

Specification

Model	AD300L-H
Working head	12G/18G/28G/36G
Mixing capacity (H2O,ml)	12G: 30~800ml 18G: 50~1500ml 28G: 90~7000ml 36G: 150~13000ml
Rated voltage	220V±10% V, (Optional 110V±10% , With a voltage adapter)
Rated frequency	50/ 60 Hz
Input power	510 W
Output power	300 W
Rated torque	13.6 N·cm
Working mode	S1
Speed control	Continuously Adjustable
Speed range	2000~18000 rpm
Overload protection	Yes
Dynamical Speed recording	Yes
Speed display	Yes
Timing	Yes, 1-1000min
The Material of the Operating head	Stainless steel 304
Size of the mixer (T×B×H)	215×310×720 mm
Permissible ambient temperature	Lower than 40ºC
Permissible relative humidity	Less than 80%
Net weight	10KG

Parameter of shaft

Working head	12G	18G	28G	36G
Mixing capacity (H2O, ml)	30~800	50~1500	90~7000	150~13000
Max viscosity(mPa.s)	1000	2000	6000	7000
Max temperature(℃)	120	120	120	120
Legth(mm)	170	210	230	230
Size of stator(mm)	Ø12	Ø18	Ø28	Ø36
Working head material	SS304	SS304	SS304	SS304
Max. rotation speed(m/s)	11	15	19	27
Min./max.immersion depth(mm)	35/110	45/150	50/150	60/160
