Magnetic stirring bar
10 L
Chemicals, Medicine
10 L
10L
4.5 KG
New
many kinds of liquid such as cosmetic
Liquid, laboratory
liquid heating, solution mixing
China
NADE
215x360x112mm, 100~120/200~240V, 50/60Hz
215*360*112mm
CE ISO
1.03 kW
1 Year
Online support, No overseas service provided
Easy to Operate
laboratory
No service
None
None
Ordinary Product
Not Available
Not Available
1 Year
Other
RT~550℃
580℃
100-1500rpm
Brushless DC Motor
10L
Glass ceramic, chemical resistant
184*184mm
Product Description

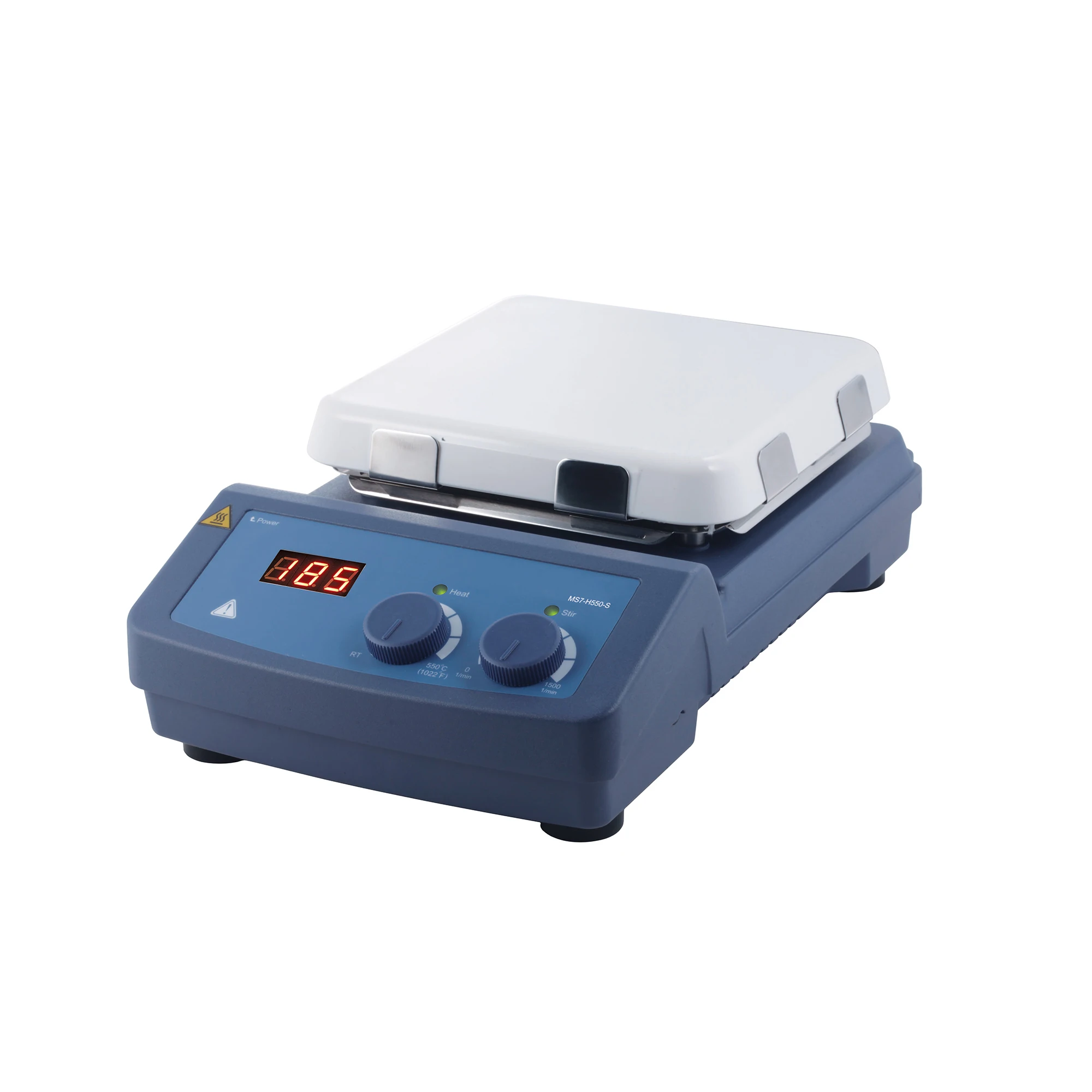

1.MS7-H550-S 7” square hotplate magnetic stirrer is widely used in chemical synthesis, physical and chemical analysis, bio-pharmaceuticals and other fields.
2.Combining with glass ceramic work plate, brushless DC motor, external temperature sensor and the work plate temperature optimized up to 550℃.
3.PID temperature technology precise controls heating process, rapidly reaches target temperature and enhances control accuracy, heating temperature up to 550℃.
4.7 inch square magnetic stirrers have glass ceramic plate extremely resistant to corrosion and easy to clean. The heating models are suitable for external temperature sensor PT1000, display and control actual medium temperature.

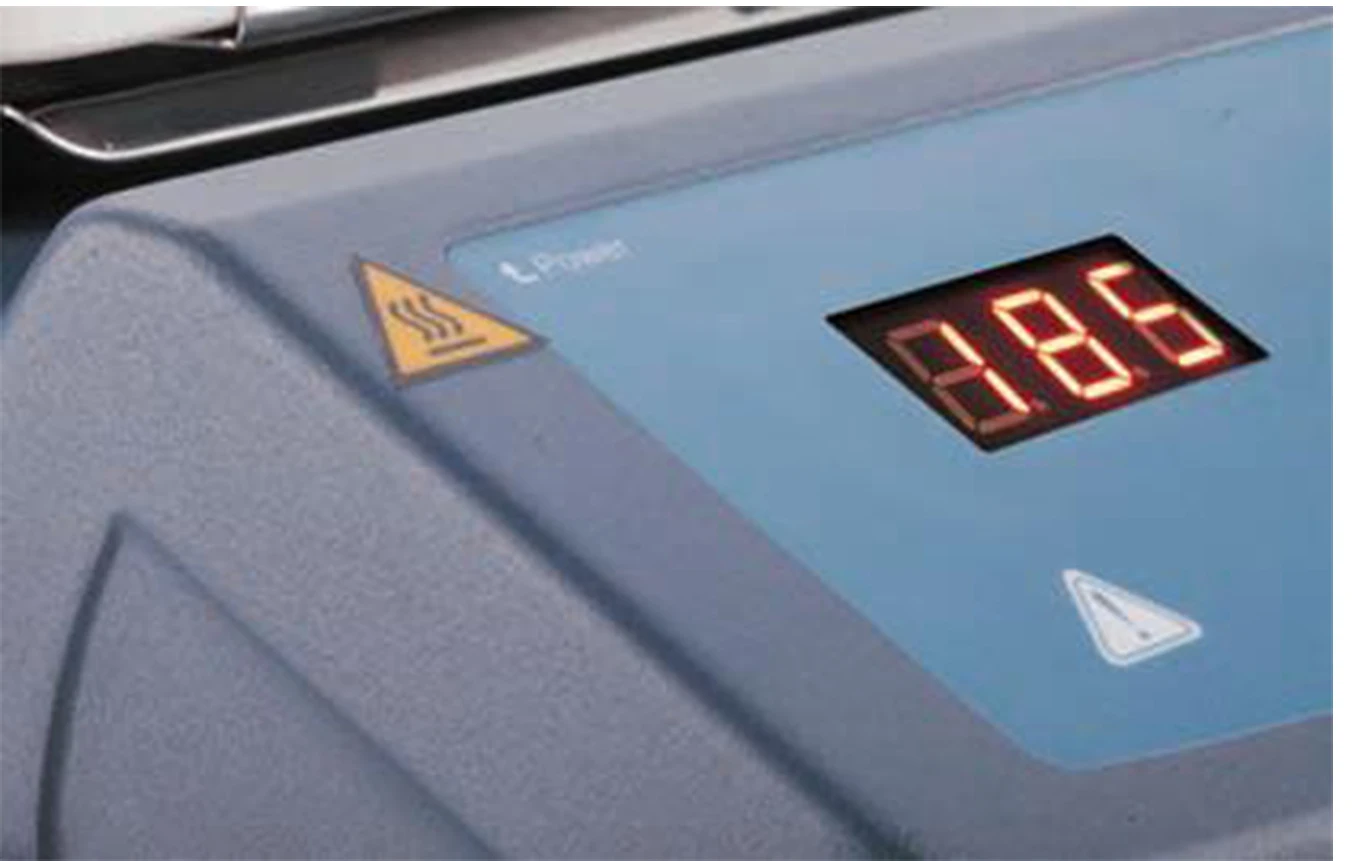

1.LED display for precise monitoring of temperature
2.A wide speed range of 0 to 1500rpm
3.Max. Heating plate temperature 550 ℃
4.External temperature control is possible by connecting the temperature sensor(PT 1000) with accuracy at ±0.2 ℃
5.The “HOT” warning will flash when the work plate temperature is above 50℃ even the hotplate is turned off
| Model | MS7-H550-S |
| Work plate Dimension [W x D] | 184x184mm (7 inch) |
| Work plate material | Glass ceramic |
| Motor type | Brushless DC motor |
| Motor rating input | 15W |
| Motor rating output | 1.5W |
| Power | 1030W |
| Heating output | 1000W |
| Voltage | 100~120/200~240V 50/60Hz |
| Stirring positions | 1 |
| Max. stirring quantity, [H2O] | 10L |
| Max. magnetic bar[length] | 80mm |
| Speed range | 100~1500rpm |
| Speed display | Scale |
| Temperature display | LED |
| Heating temperature range | Room Temp.-550℃, increment 5℃ |
| Temperature control accuracy | ±10℃ |
| Overheating protection | 580℃ |
| Temperature display accuracy | ±1℃ |
| External temperature sensor | PT1000 (accuracy ±0.2) |
| Hot warning | 50℃ |
| Data connector | - |
| Protection class | IP21 |
| Dimension [W x D x H] | 215x360x112mm |
| Weight | 4.5KG |
| Permissible ambient temperature and humidity | 5~40℃ 80% |

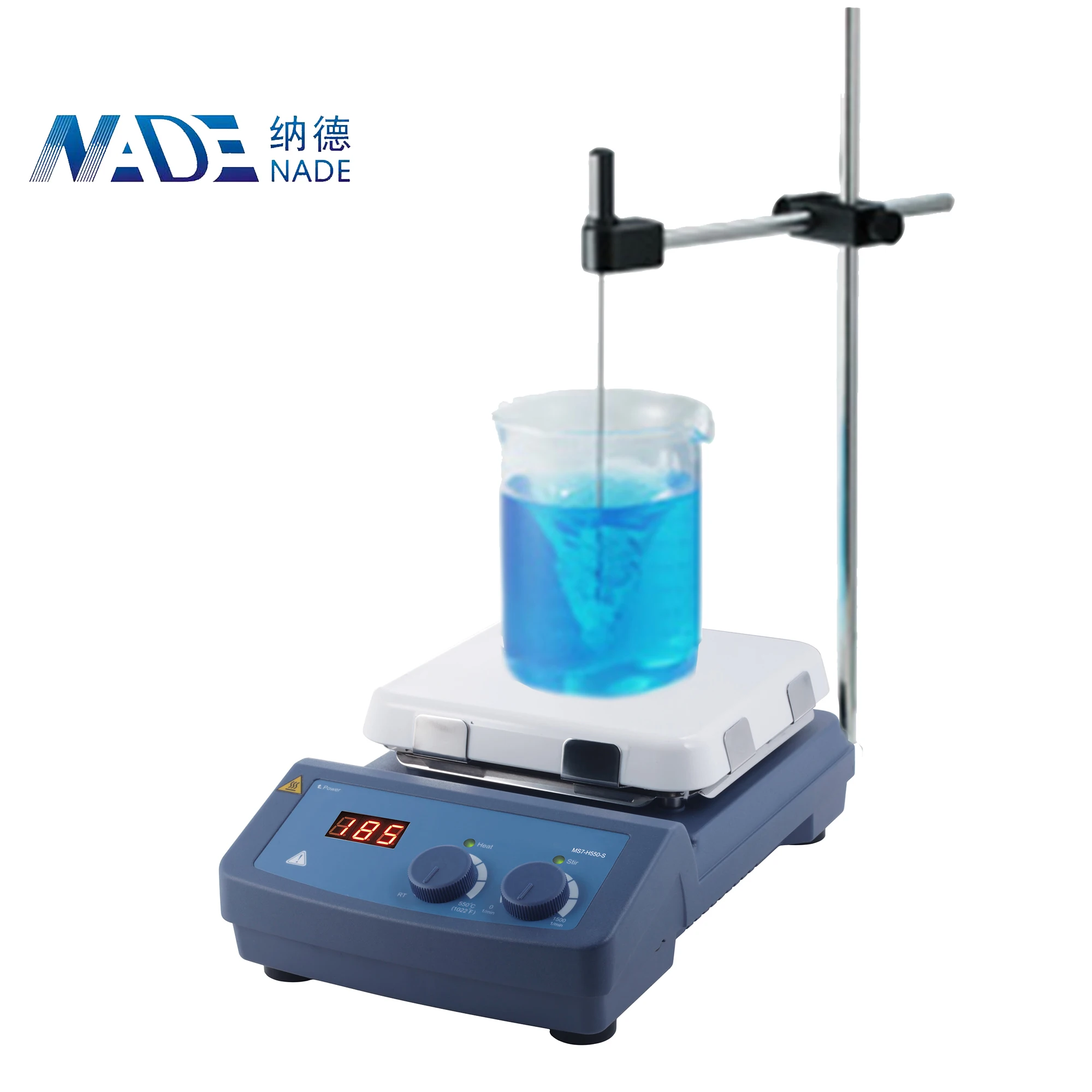

Full set includes: 1 pc of magnetic stirrer + 1 pc of temperature sensor PT1000-A + support for sensor.
* Stirrer can also be used without temperature sensor, but it will not display real temperature value.
