ONI28-C
NADE
100-120/200-240V, 50/60Hz
1
OEM
1 year
China
Product Description
ONI28-C

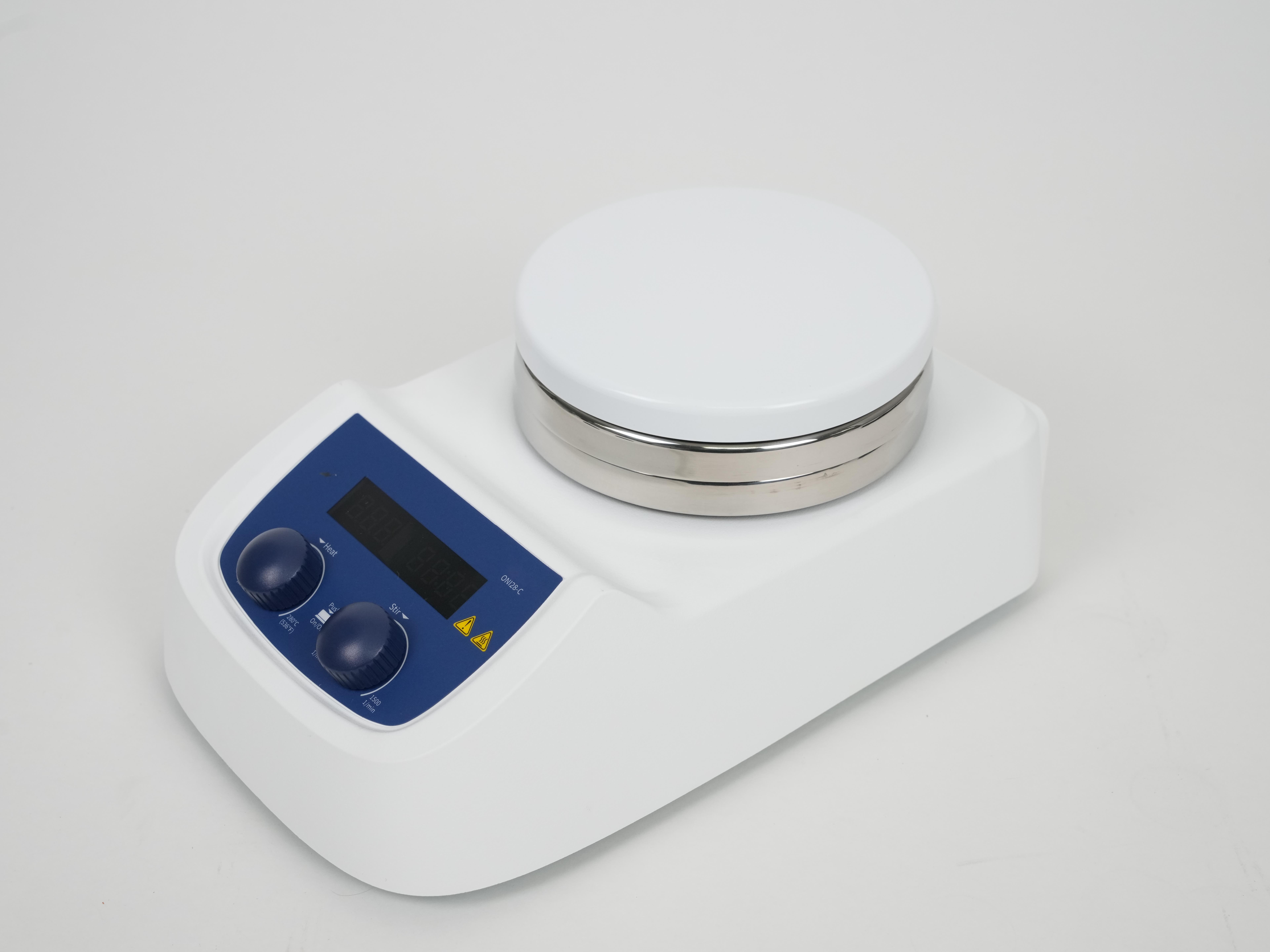

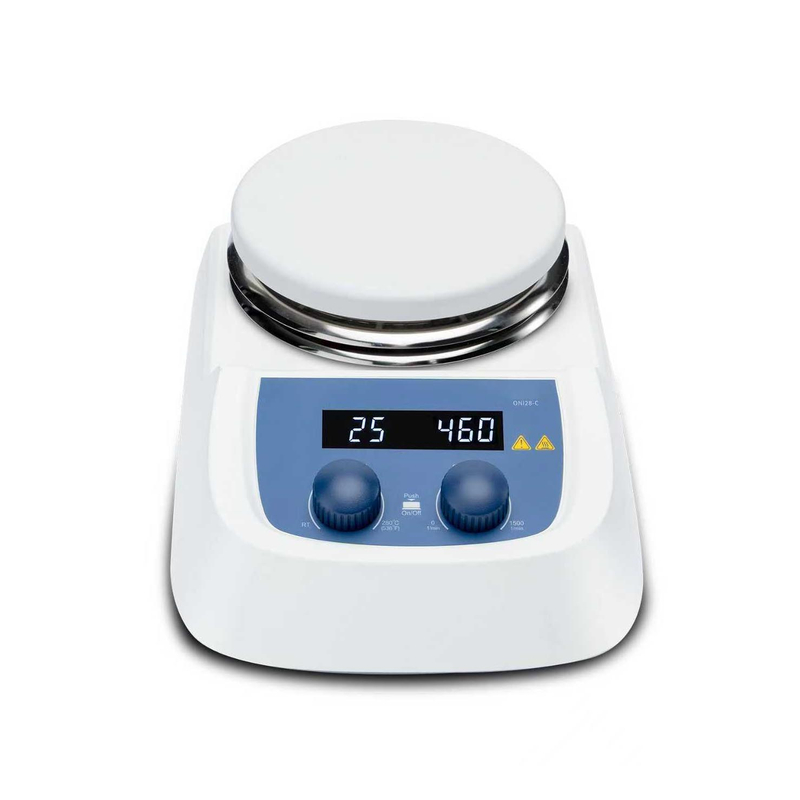

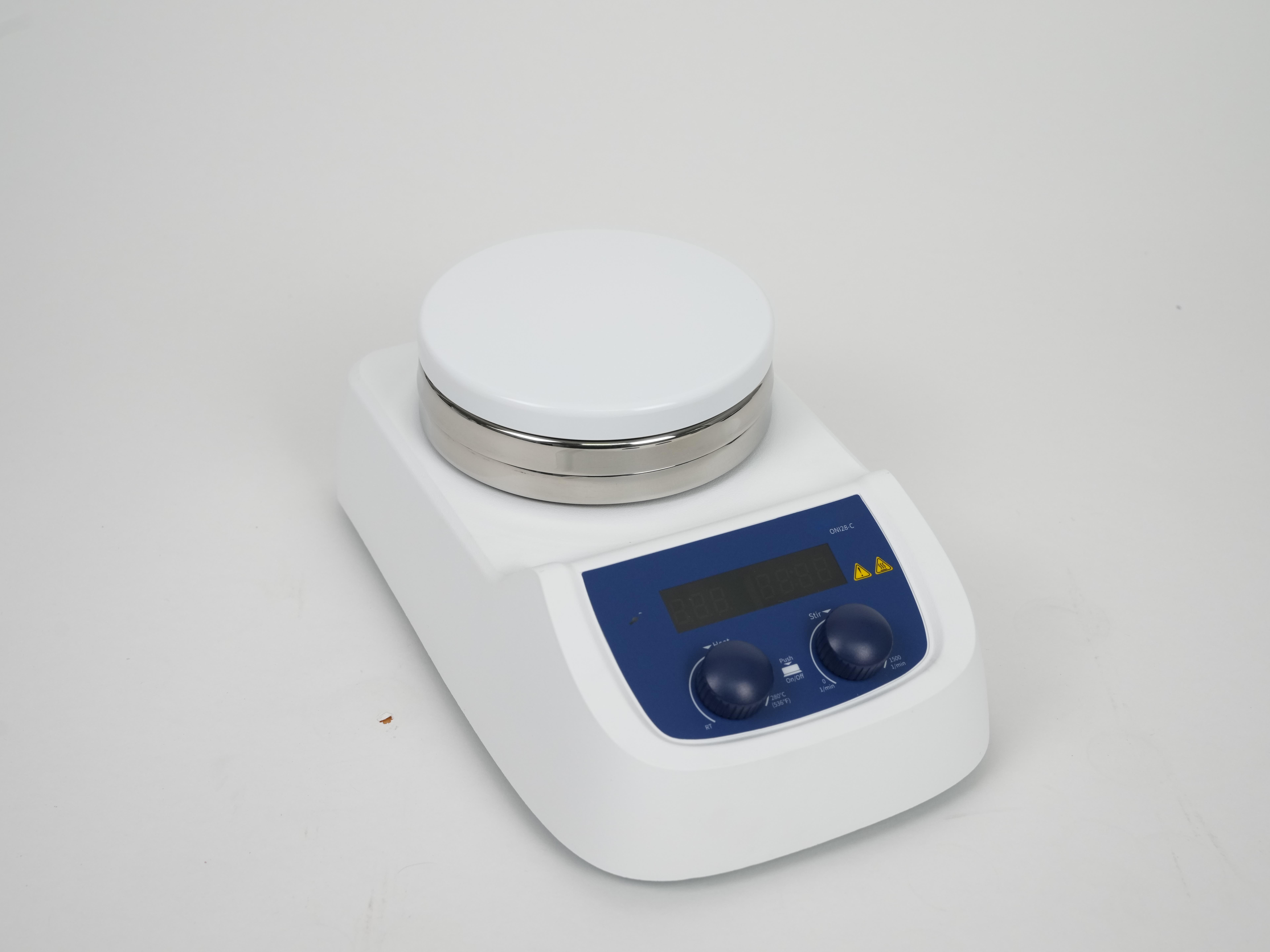

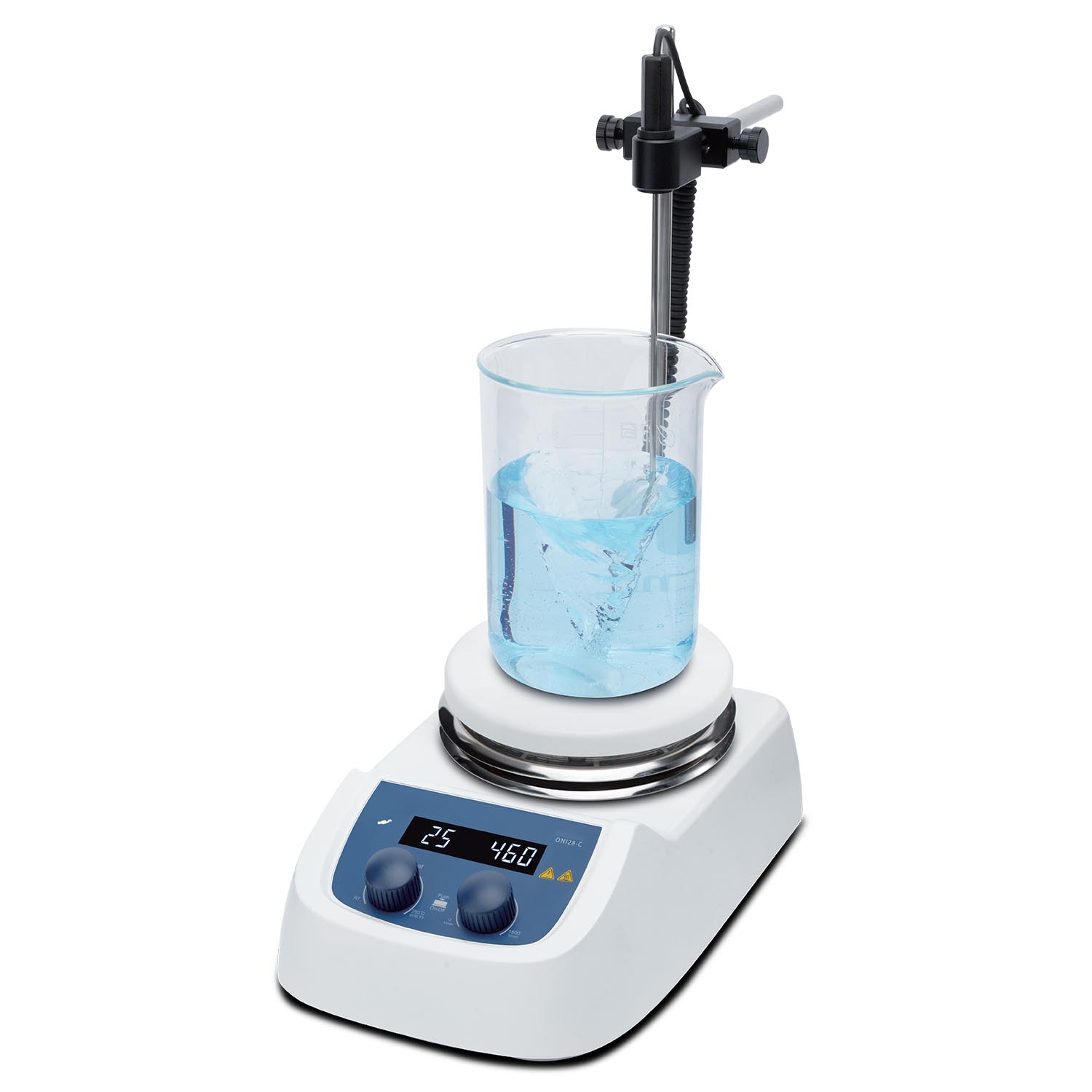

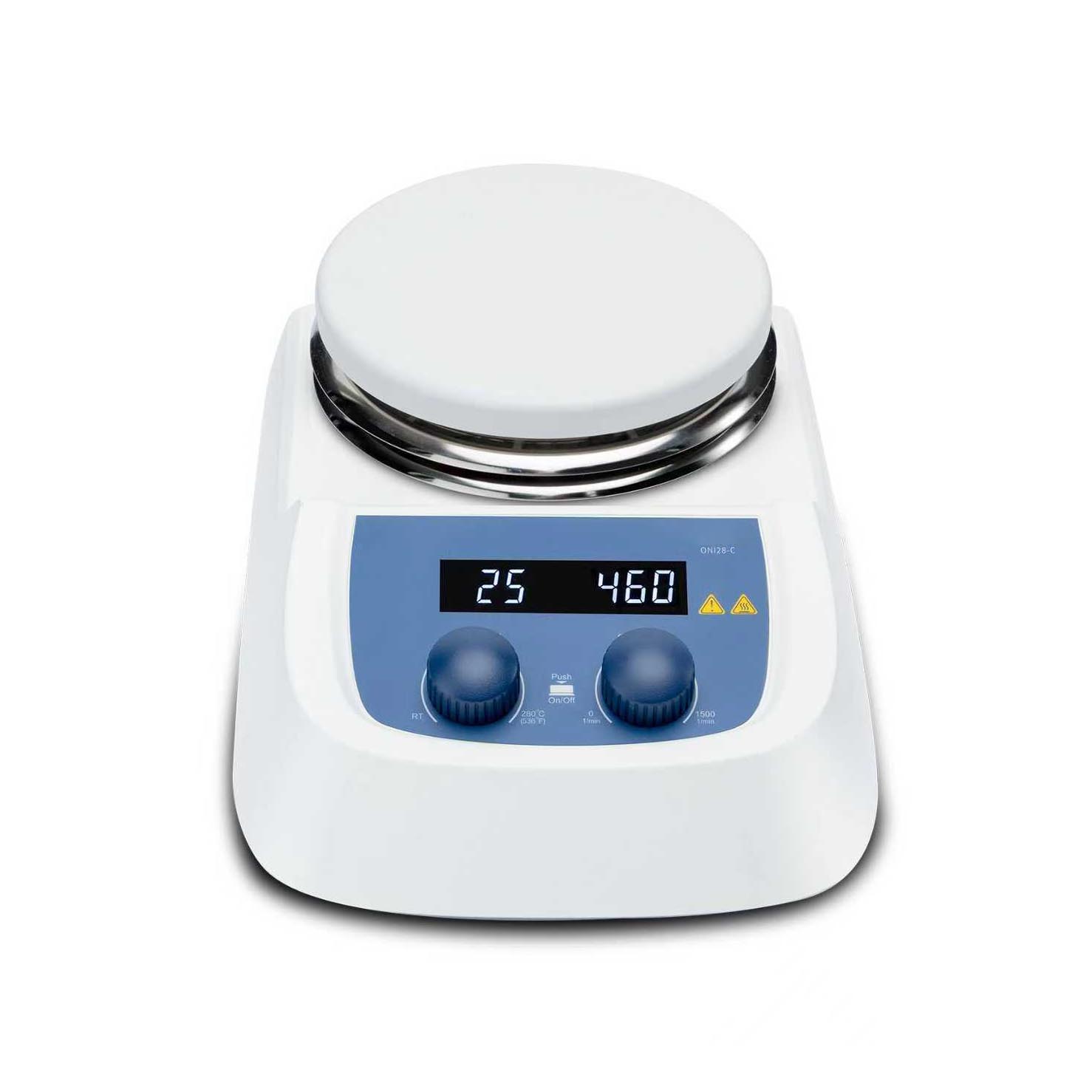

5-inch 280°&120°Heating Magnetic Stirrer
Features and Advantages:
² Ceramic-coated aluminum plate surface, strong corrosion resistance, easy to clean.
² Efficient diversion platform and slope to prevent liquids from entering the machine and corroding electronic components.
² Safety lock to prevent accidental changes in the operating status.
² Heat residual warning function: When the plate temperature exceeds 50°C, heating is automatically shut off, and the screen flashes "HOT" as a warning. Even after the power is turned off, the screen continues to flash "HOT," reminding of high temperatures.
² Two independent safety circuit designs continuously monitor the equipment. In cases of overheating, sensor failure, or short circuits, the machine will halt heating or automatically cut off power to ensure operator safety.
² Brushless DC motor, Spark-free, long lifespan; low noise, maintenance-free, and smooth operation.
² LED display shows speed, time, and temperature parameters clearly and intuitively.
Specification
Model | ONI28-C |
Work plate dimension [W×D] | Ø135mm (5inch) |
Plate material | Aluminum cover with ceramic coating |
Motor type | Brushless DC motor |
Stirring positions | 1 |
Max. stirring quantity [H₂O] | 5L |
Max. magnetic bar | 50mm |
Speed range and control accuracy | 200-1500rpm, resolution 10rpm |
Speed display | LED |
Temperature display | LED |
Heating Temperature range | Room Temp. - 280°C, increment 1°C |
Heating liquid temperature control accuracy | ±1°C (<100°C) ±1% (>100°C) |
Overheating protection | 320°C |
Temperature display accuracy | 1°C |
External temperature sensor | PT1000 (accuracy ±0.2°C) |
Hot warning | 50°C |
IP Protection class | IP41 |
Timer function | 10W |
Motor input power | 650W |
Power | 600W |
Voltage | 100-120/200-240V, 50/60Hz |
Dimensions[W×D×H] | 150×260×100mm |
Weight | 1.8kg |
Permissible ambient temperature and humidity | 5-40°C, 80%RH |
