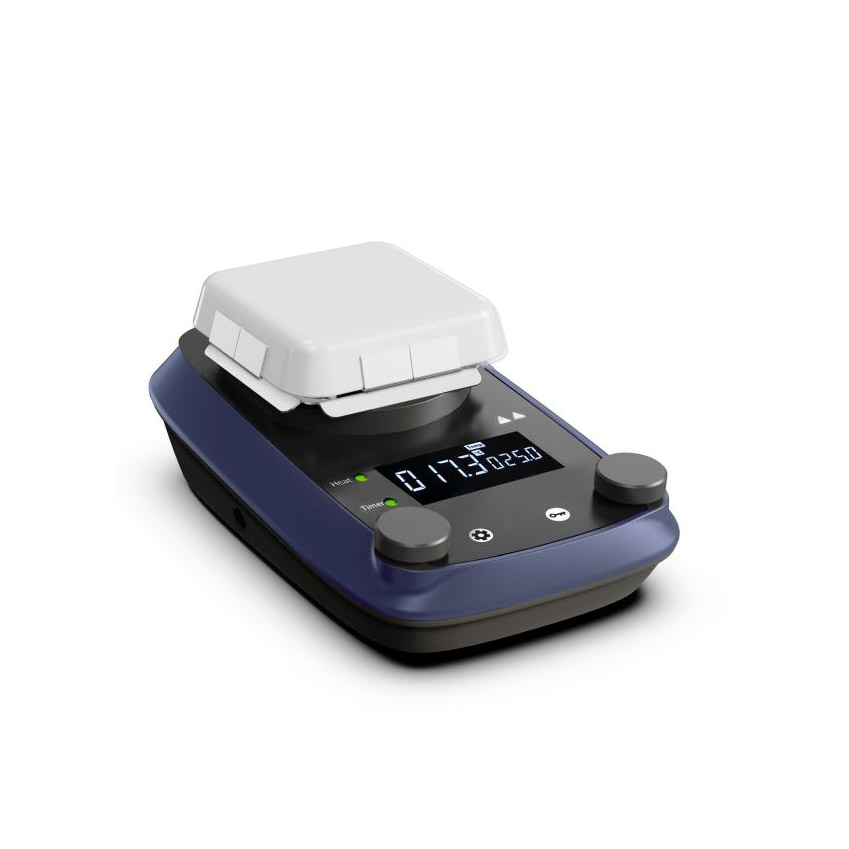

DHP4-550
NADE
100-120/200-240V, 50/60Hz
1
OEM
1 year
China
Product Description
DMS7-550M/DMS4-550/DHP4-550/DMS4
Heated Magnetic Stirrer, Heating Plate, Magnetic Stirrer
Features
v Ceramic discs are extremely corrosion-resistant, resistant to strong acids and alkalis, and high temperatures, making it easy to clean accidental drips of solvents, oils, or other contaminants.
v The corrosion-resistant all-metal housing provides good heat dissipation and reliable fire protection.
v High-efficiency infusion platform and waterproof edge design prevents liquid from entering the interior of the machine and corroding electronic components.
v Selected high-temperature resistant strong magnetic magnet, strong stirring, suitable for viscous liquid stirring.
v Heating modes are divided into: A rapid heating mode, B standard heating mode, C stable heating mode, to meet different customer needs.
v Safety locks to prevent accidental changes in operating conditions.
v Buzzer: When the machine malfunctions, or the timer function counts down to the end of the buzzer will emit a "drip drip drip" sound.
v Residual heat warning function, when the disc temperature is higher than 50 ℃, turn off the heating the screen will have a "HOT" flashing prompt, even if the power off, the display is still "HOT" flashing to remind the high temperature.
v Two independent safety circuits are designed to continuously monitor the equipment. When overheating occurs, the sensor fails, the machine reports an error and stops heating, and when the line is short-circuited, the machine automatically cuts off the power supply to protect the operator's safety.
v DC brushless motor, no spark, long life; low noise, maintenance-free, smooth running.
v The LCD displays the set and real-time values of speed, time and temperature in an intuitive and clear manner.
v Timing function, timing range 1min-99h59min, countdown to the end of the stop heating, will not stop stirring, so as not to heat damage to the sample.
v Remote control function with PC connection.
v Safety temperature can be set.
Specification
Model | DMS7-550M | DMS4-550 | DHP4-550 | DMS4 |
Work plate Dimension [W×D] | 184×184mm (7inch) | 100×100mm (4inch) | 100×100mm (4inch) | 100×100mm (4inch) |
Work plate material | Glass ceramic | Glass ceramic | Glass ceramic | Glass ceramic |
Motor type | Brushless DC motor | Brushless DC motor | - | Brushless DC motor |
Stirring positions | 1 | 1 | - | 1 |
Max. stirring quantity [H2O] | 20L | 10L | - | 10L |
Max. magnetic bar length | 80mm | 40mm | - | 40mm |
Speed range | 50-1500rpm, increment 1rpm | 50-1500rpm, increment 1rpm | - | 50-1500rpm, increment 1rpm |
Speed display | LCD | LCD | - | LCD |
Temperature display | LCD | LCD | LCD | LCD |
Heating temperature range | Room Temp-550℃, increment 1℃ | Room Temp-550℃, increment 1℃ | Room Temp-550℃, increment 1℃ | - |
Temperature control accuracy | ±1℃(<100℃) ±1% (>100℃) | ±1℃(<100℃) ±1% (>100℃) | ±1℃(<100℃) ±1% (>100℃) | - |
Overheating protection | 580℃ | 580℃ | 580℃ | - |
Temperature display accuracy | 0.1℃ | 0.1℃ | 0.1℃ | - |
"Hot" warning | 50℃ | 50℃ | 50℃ | - |
Data connector | RS232 | RS232 | RS232 | RS232 |
Protection class | IP21 | IP21 | IP21 | IP21 |
Timer function | 1min-99h59min | 1min-99h59min | 1min-99h59min | 1min-99h59min |
Motor rating output | 50W | 10W | - | 10W |
Power | 1200W | 430W | 400W | 30W |
Heating output | 1150W | 380W | 380W | - |
Voltage-Frequency | 100-120/200-240V, 50/60Hz | 100-120/200-240V, 50/60Hz | 100-120/200-240V, 50/60Hz | 100-240V, 50/60Hz |
Dimension [W×D×H] | 360×230×110mm | 270×175×108mm | 270×175×108mm | 270×175×108mm |
Weight | 4.3kg | 2.2kg | 1.8kg | 1.8kg |
Permissible ambient temperature and humidity | 5-40℃, 80%RH | 5-40℃, 80%RH | 5-40℃, 80%RH | 5-40℃, 80%RH |
