MS-H340-S4
NADE
MS-H340-S4
100-120V,60Hz; 200-240V,50Hz
1
1 year
China
Product Description
MS-H340-S4

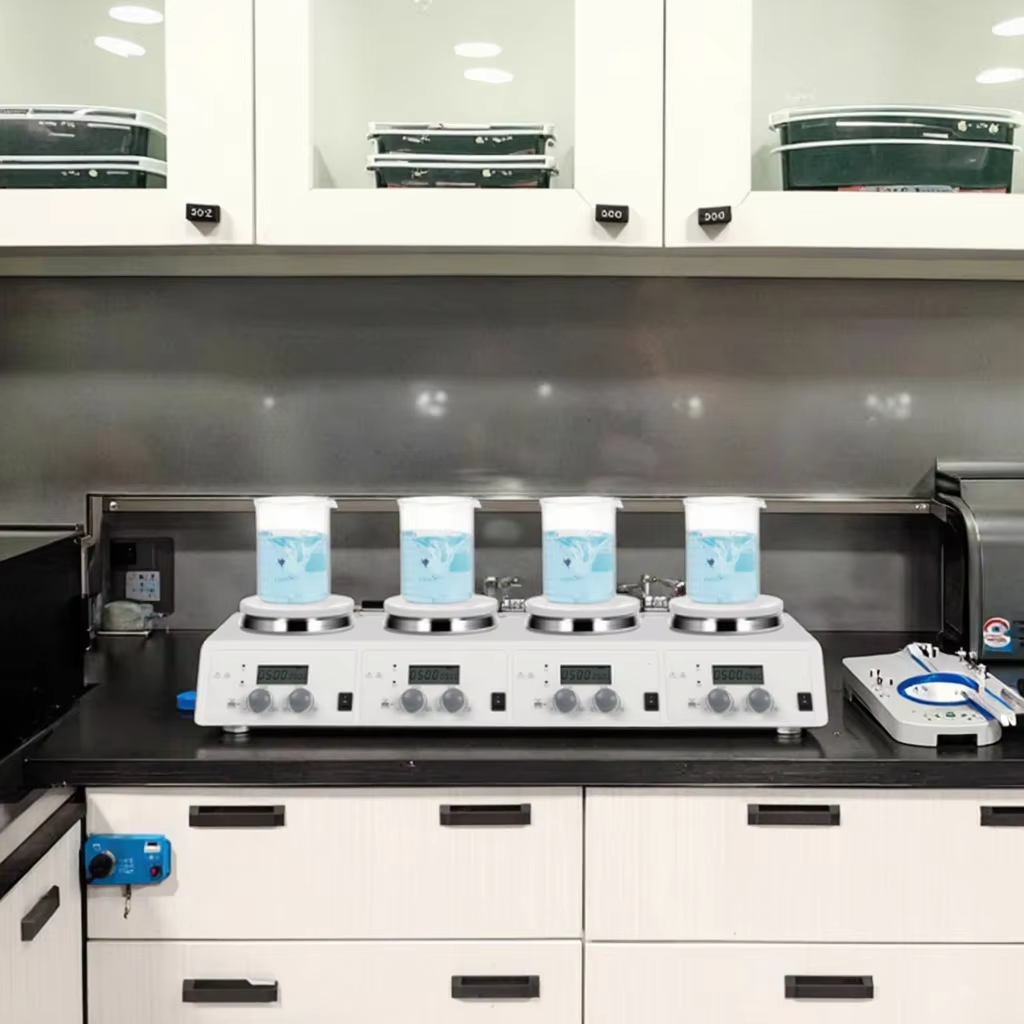

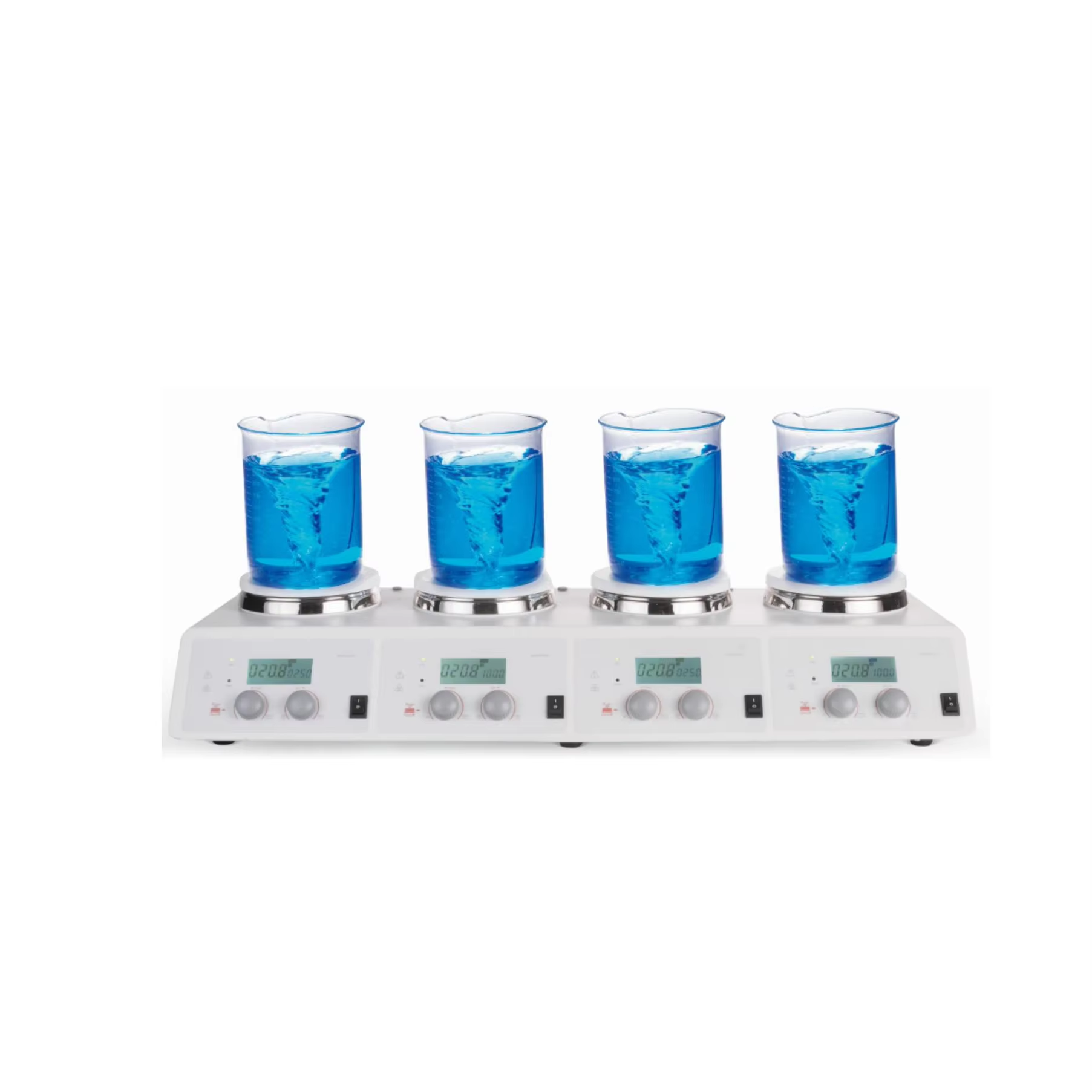

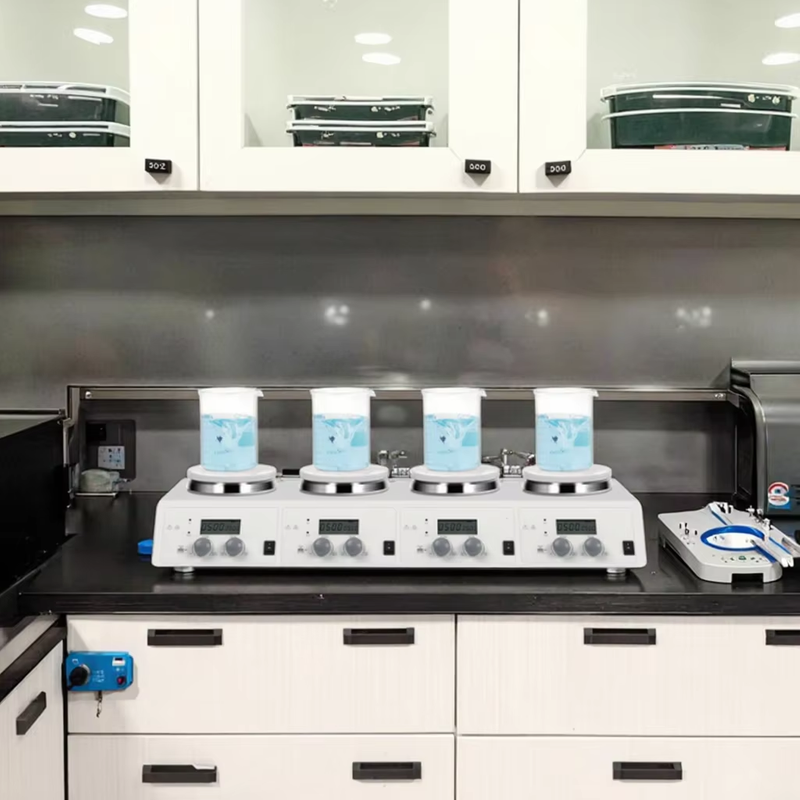

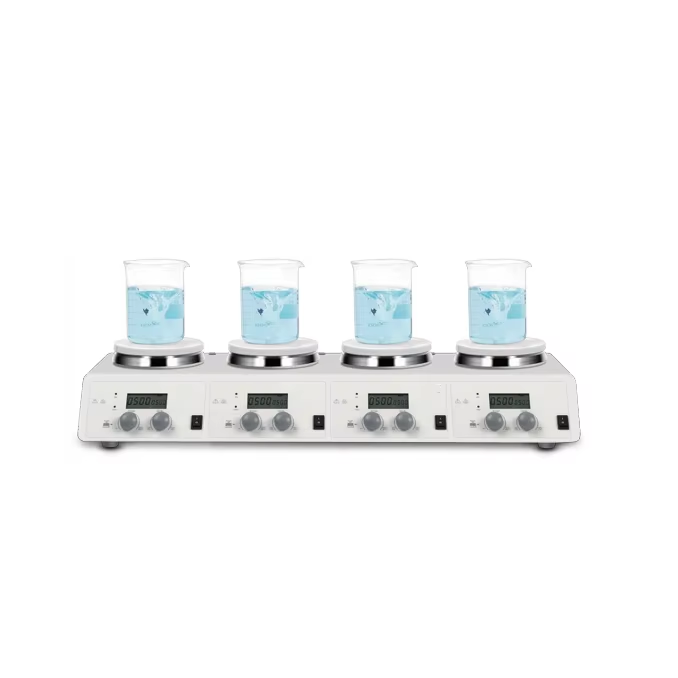

LCD 4-Channel Digital Magnetic Hotplate Stirrer
It is widely used in chemical synthesis, physical and chemical analysis, bio
pharmaceuticals etc.
Advantages
1. Independent heating and stirring control for each position
2. LCD display shows real-time temperature and speed
3. PID controller ensures a precise and stable heating process (maximum temperature up to 340℃)
4. Brushless DC motor is quiet, reliable & maintenance free, and provides more powerful speed control
5. External temperature sensor (PT1000) with accuracy 2℃
6. Overheating protection temperature at 420℃
7. Stainless steel work plate with ceramic coating provides good chemical resistance
8. Wide variety of accessories available to choose from
Specification
| Model | HS-H340-S4 |
| Work plate dimension | Ø135mm(5nch) x4 |
| Plate material | Stainless steel with ceramic coating |
| Motor type | Brushless DC motor |
| Stirring positions | 4 |
| Max. stirring quantity of single position (H2O) | 10L x 4 |
| Max. magnetic bar | 40mm |
| Speed range | 200-1500rpm |
| Speed display | LCD |
| Temperature display | LCD |
| Control accuracy of sensor | ±20rpm |
| Temperature range | 25-340℃ |
| Over temperature protection | 420℃ |
| Temperature display accuracy | ±0.1℃ |
| External temperature sensor | PT1000( accuracy±0.2℃ ) |
| IP Protection class | IP20 |
| Motor output power | 1.8Wx4 |
| Power | 515Wx4 |
| Heating Power | 500Wx4 |
| Voltage,Frequency | 100-120V,60Hz; 200-240V,50Hz |
| Dimensions[WxDxH] | 698x270x128mm |
| Weight | 9.5kg |
| Permissible ambient temperature | 5~40℃ |
| Permissible relative humidity | 80%RH |

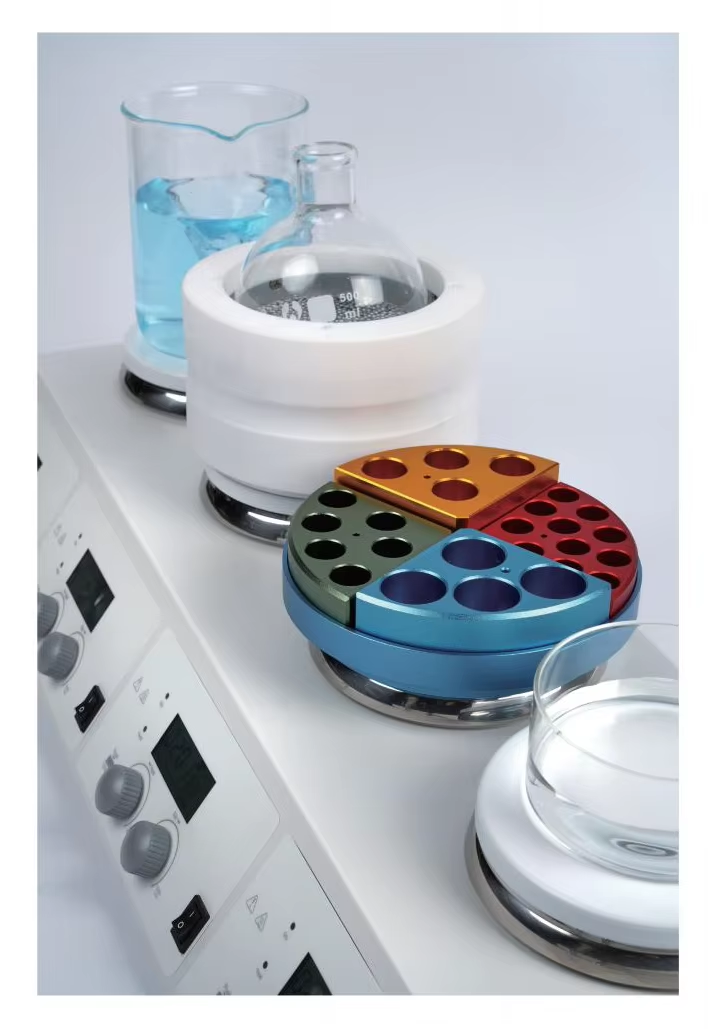

Optional Accessories
| Cat. No. | Description | MS10-H500-PRO | MS7-H550-Pro MS7-H550-S | MS-H-ProA MS-H-ProTMS-H-ProM | MS-H340-S4 MS-H280-S4 MS-H280-S6 | MS-H-S | MS-H280-Pro | MS-H380-Pro |
| 18900001 | Blue carrying plate, use with color quarter pies | √ | √ | √ | √ | |||
| 18900065 | Blue Fixed ring, use with color quarter pies | √ | √ | √ | √ | |||
| 18900002 | Red quarter pie, 11 holes, 4mL reaction vessel, Ø15.2mm, 20mm depth | √ | √ | √ | √ | √ | √ | √ |
| 18900003 | Purple quarter pie, 4holes, 20mL reaction vessel, Ø28mm, 24mm depth | √ | √ | √ | √ | √ | √ | √ |
| 18900004 | Blue quarter pie, 4holes,30mL reaction vessel, Ø28mm, 30mm depth | √ | √ | √ | √ | √ | √ | √ |
| 18900005 | Black quarter pie, 4 holes, 40mL reaction vessel, Ø28mm, 43mm depth | √ | √ | √ | √ | √ | √ | √ |
| 18900048 | Green quarter pie, 6 holes,8mL reaction vessel, Ø17.8mm, 26mm depth | √ | √ | √ | √ | √ | √ | √ |
| 18900049 | Golden quarter pie, 4holes, 16mL reaction vessel, Ø21.6mm, 31.7mm depth | √ | √ | √ | √ | √ | √ | √ |
| 18101006 | Reaction block for 50mL round bottom flask (one flask capacity) | √ | √ | √ | √ | |||
| 18101007 | Reaction block for 100mL round bottom flask (one flask capacity) | √ | √ | √ | √ | |||
| 18101008 | Reaction block for 250mL round bottom flask (one flask capacity) | √ | √ | √ | √ | |||
| 18101009 | Reaction block for 500mL round bottom flask (one flask capacity) | √ | √ | √ | √ | |||
| 18900019 | F101 protective cover, temperature resistance of 135℃ | √ | √ | √ | ||||
| 18900016 | PT1000-A, length of 230mm | √ | √ | √ | √ | √ | √ | |
| 18900136 | PT1000-B, temperature sensor with glass coated, length of 230mm | √ | √ | √ | √ | √ | √ | |
| 18900017 | Support clamp of PT1000 Vertical bar length：45cm, stents length：25cm, Stem diameter:10cm | √ | √ | √ | ||||
| 18204540 | Square Module, capacity of 16 x 4mL flat bottom, hole dimensions: Ø15.2x 18.5mm | √ | √ | √ | √ | √ | √ | √ |
| 18204542 | Square Module, capacity of 16 x 8mL flat bottom, hole dimensions: Ø17.5X23.5mm | √ | √ | √ | √ | √ | √ | √ |
| 18204544 | Square Module, capacity of 9 x 16mL flat bottom, hole dimensions: Ø20.5X 28.5mm | √ | √ | √ | √ | √ | √ | √ |
| 18204546 | Square Module, capacity of 4x 20mL flat bottom, hole dimensions: Ø28.5X23.5mm | √ | √ | √ | √ | √ | √ | √ |
| 18204548 | Square Module, capacity of 4x 30mL flat bottom, hole dimensions: Ø28.5X33.5mm | √ | √ | √ | √ | √ | √ | √ |
| 18204552 | Ø65X25.5mm -150mL （Aperture x Hole depth — Adapted container volume）Spherical Square Module | √ | √ | √ | √ | √ | √ | √ |
| 18204554 | Square Module, capacity 250mL round bottom, hole dimensions: Ø86X31.5mm | √ | √ | √ | √ | √ | √ | √ |
| 18204535 | Square Tray with Handle，Length x deepth x width：160 x 32 x 160 mm， Suitable for 5-inch Ø135mm magnetic stirrer） | √ | √ | √ | √ | |||
| 18204528 | Square Tray without Handle （Length x deepth x width：160 x 32 x 160 mm， Suitable for 5-inch Ø135mm magnetic stirrer） | √ | √ | √ | √ | |||
| 18204550 | Square Module, capacity of 4 x 40mL flat bottom, hole dimensions: Ø28.5X4X43.5mm | √ | √ | √ | √ | √ | √ | √ |
