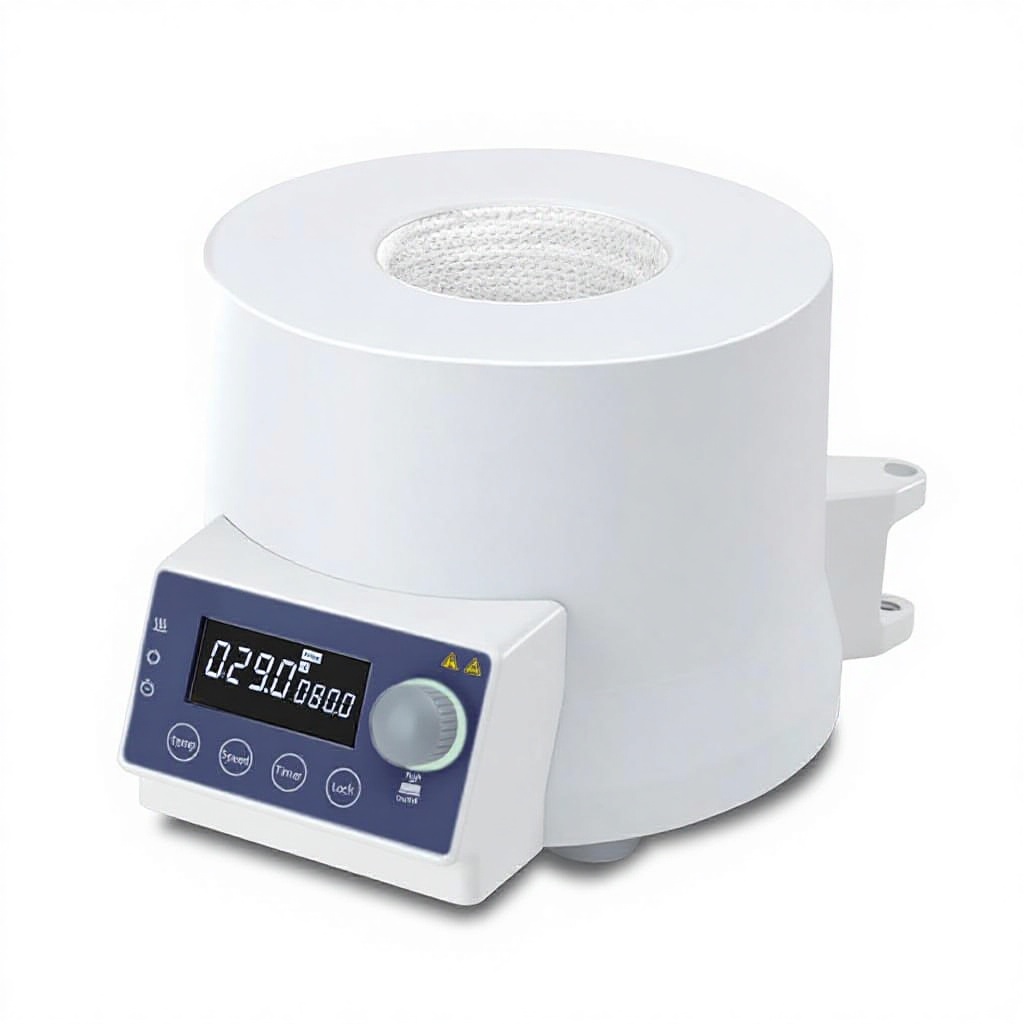

MS-H380-F Series LCD Digital Magnetic Stirrer Heating Mantle

MS-H380-F100/250/ 500/1000/2000

LCD Digital Magnetic Stirrer Heating Mantle

Featurare

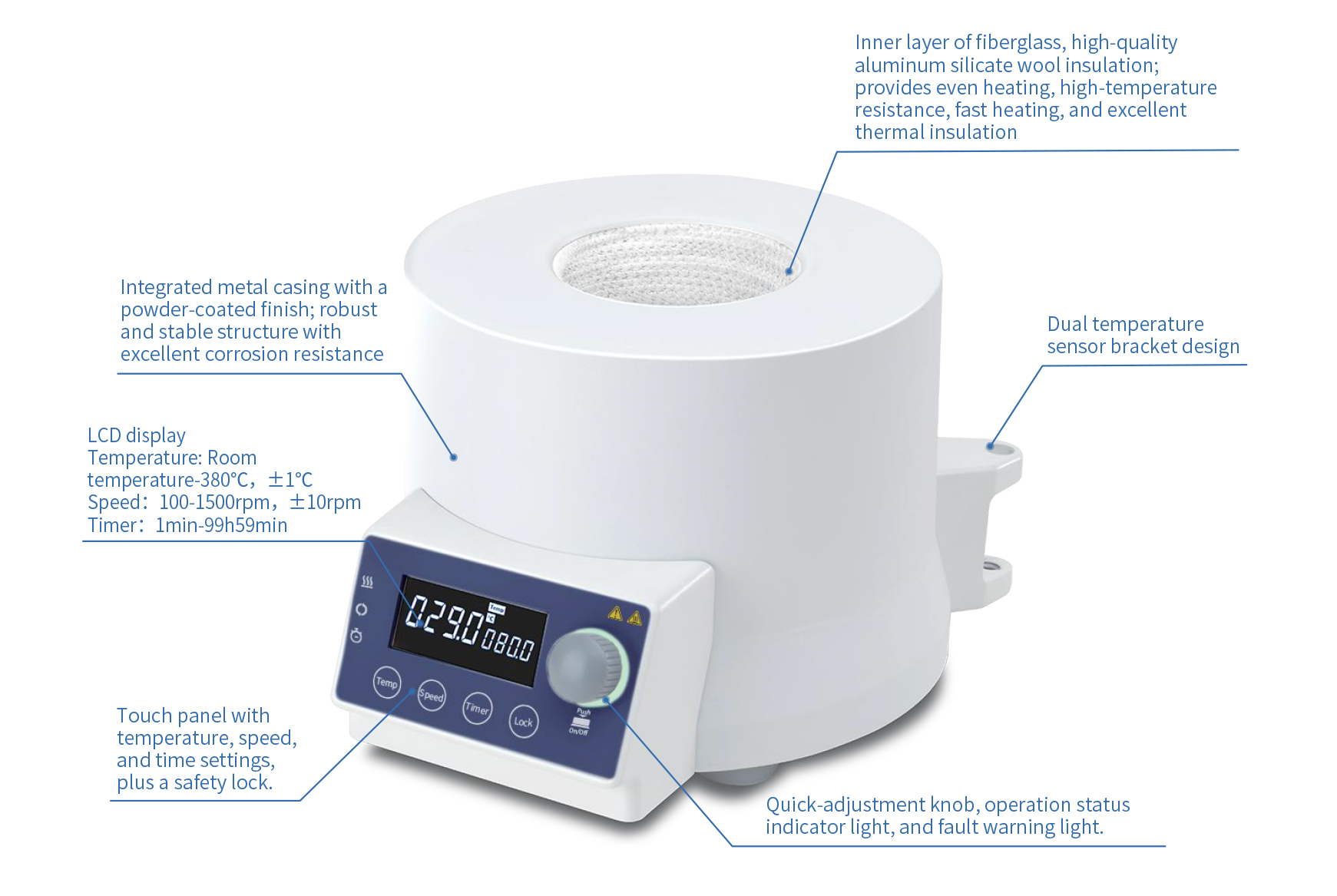

² Integrated metal housing with powder coating; robust and stable structure, corrosion-resistant.

² Glass fiber inner sleeve and high-quality aluminum silicate wool insulation ensure uniform heating, high-temperature resistance, fast heating, and excellent thermal insulation.

² Dual independent safety circuit design continuously monitors the device. In case of overheating or sensor failure, the machine will trigger an error and stop heating. In case of a short circuit, the machine will automatically cut off power to ensure operator safety.

² Residual heat warning function: when the plate surface temperature exceeds 50°C, after heating is turned off, the screen will flash a "HOT" warning.

² Protection features: overcurrent protection, ground fault protection, and over-temperature protection.

² Brushless DC motor: spark-free, long lifespan, low noise, maintenance-free, and stable operation.

² Safety lock prevents accidental changes in operating status.

² Multiple flask volume options: 100, 250, 500, 1000, 2000 mL.

² Dual-side bracket design allows convenient placement of reaction flasks and PT1000 sensors from different angles.

² LCD display shows speed, time, and temperature parameters clearly and intuitively.

² Data communication: RS232 interface.

² Buzzer alert: countdown timer end is indicated by a "beep-beep-beep" sound.

² Timer function: time range from 1 minute to 99 hours 59 minutes. Heating stops when countdown ends, but stirring continues to avoid sample damage from residual heat.

² Operating status indicator lights:Green is Reached to set temperature；Blinking green is heating to set temperature; Red is fault/alarm.

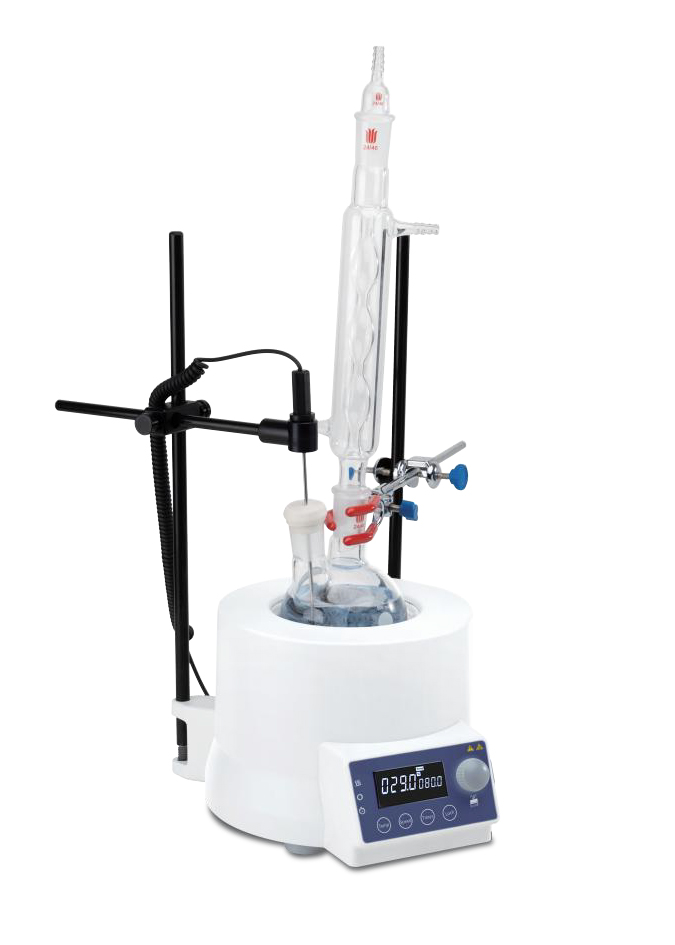

Application Scenarios

Organic synthesis, polymerization, distillation and purification, sample dissolution and extraction, sample pretreatment before analysis, catalytic reaction kinetics research, etc.

Target Customers

Technicians in chemical, biological, pharmaceutical, and materials enterprises; researchers in universities and research institutes; quality control analysts in laboratories related to pharmaceuticals, food, environmental protection, etc.
