MS-H-proA Lab LCD Digital Magnetic Hotplate Stirrer

Share to:

MS-H-proT Lab LCD Digital Magnetic Hotplate Stirrer

Max stirring quantity: 20L

Speed range: 100-1500 rpm resolution±1rpm

Work plate dimension: Dia.135mm(5inch)

Heating power: 550w

Availability:



Inquire

Model:
MS-H-proT
Brand:
NADE
Voltage:
100-120/200-240V
MOQ:
1
Warranty:
1 year
Place of Origin:
China

Product Description

Introduction:

New heating magnetic stirrers with aluminum work plate,is capable of rapid heating and stable heating as well as precise temperature control.Almost all leading safety standards and features are included for superior and are cost-effective.They are widely used in chemical synthesis, physical and chemical analysis, bio-pharmaceuticals and other fields.

MS-H-Pro^T MS-H-Pro^T Aluminum hotplate

with external temperature sensor PT1000

Precise temperature and speed control:

Temperature to 340°C
Plug and play PT1000 temperature sensor accessory for precise temperature control. Control accuracy is ±0.2°C
Excellent heat control accuracy at the work plate: ±1

Convenient:

Digital process timer provides unattended operation and can be set from 1min to 99h 59min. When the set time has elapsed, the heat tums off.
Backlit LCD displays target and actual temperatures and speed
Integral temperature sensor technology with plug and play transfer to PT1000 sensor operating mode
Stainless steel with ceramic coated hotplate allows immediate heat transfer for quick heat-up times, chemical-resistant and scratch proof

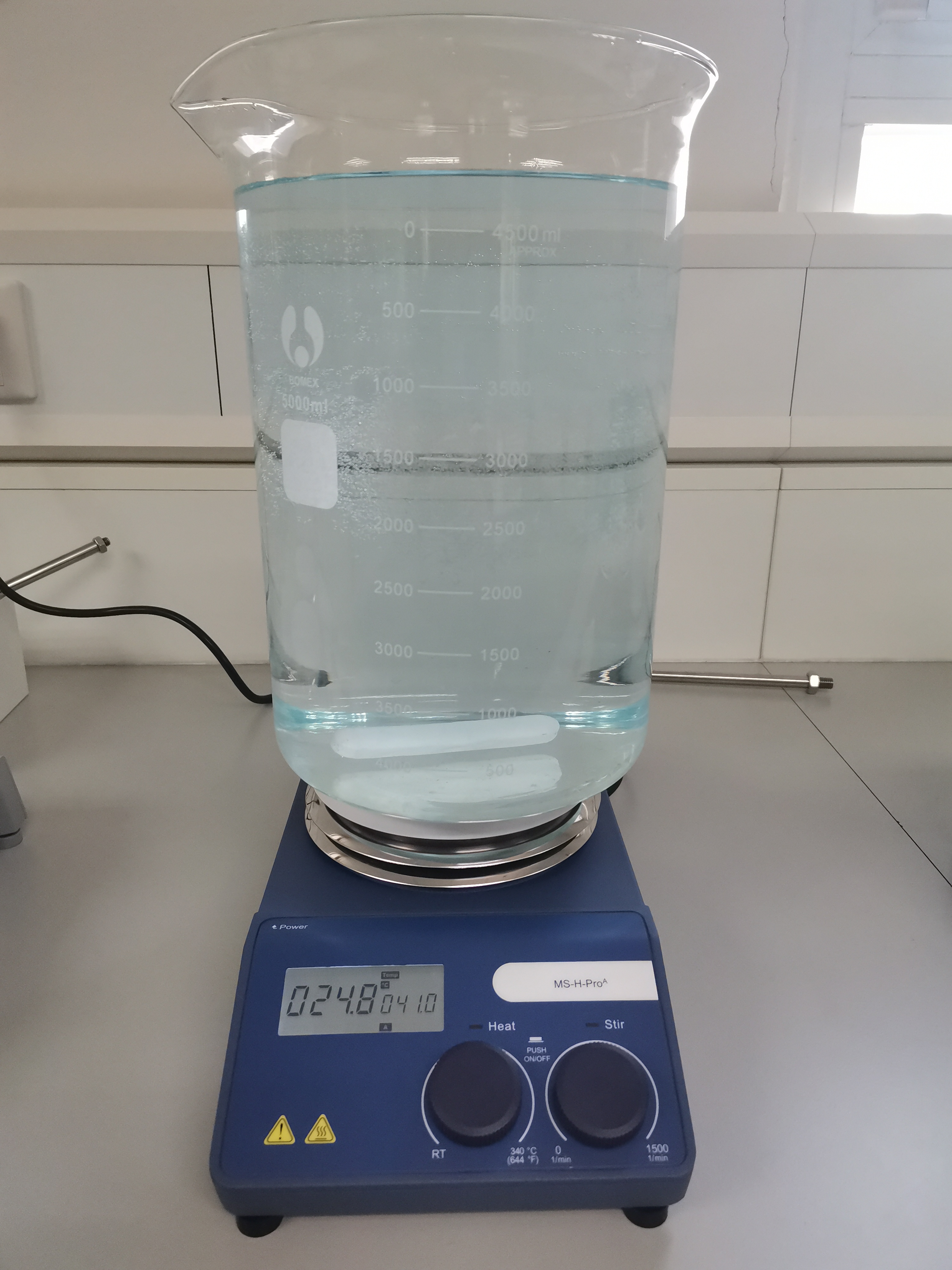

Max. stirring quantity 20L
PC can control and document all parameters via RS232 interface
A wide variety of accessories are available

Features

1. Brushless DC motor is maintenance free and explosion-proof
2. Digital temperature control up to 340°C
3. Digital speed control up to 1500rpm
4. Maximum stirring quantity of H2O is 20L
5. Safety circuits provide overheating protection

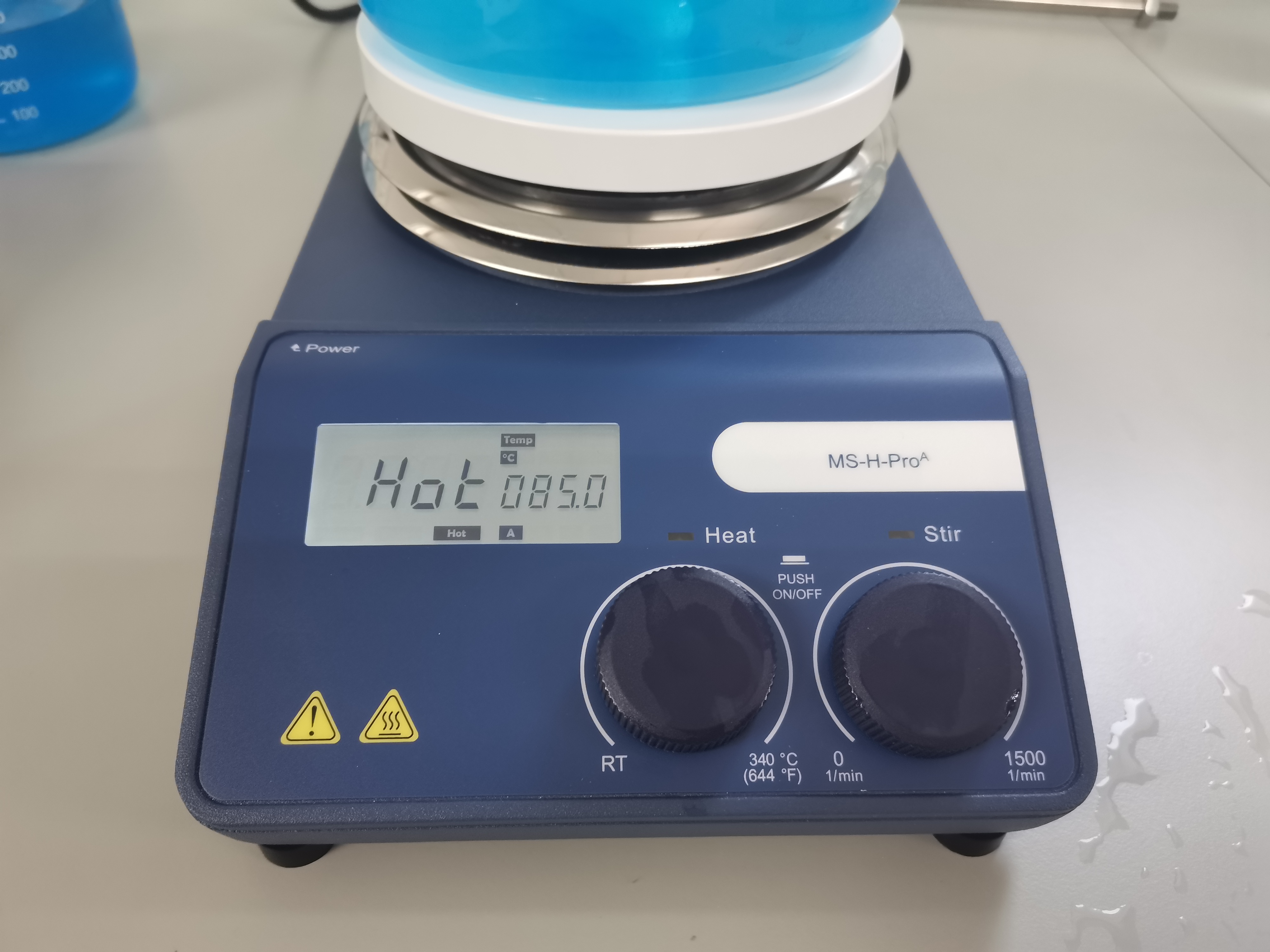

6. "HOT" warning flashes if plate temperature is above 50°C even when hotplate is turned off
7. Wide range timer function from1 min to 99h 59min (MS-H-ProT only)
8. High-resolution LCD display shows actual temperatures and speed (MS-H-ProT displays the time)
9. External temperature control is possible by connecting the temperature sensor(PT 1000)with accuracy at ±2°C
10. Work plate with ceramic coating provides good chemical-resistant performance
11. Remote function provides PC control and data transmission
12. Wide variety of accessories available to choose

Specification

Model	MS-H-Pro^A	MS-H-Pro+	MS-H-PRO^T	MS-H-S	MS-H380-Pro	MS-H280-Pro
Work plate Dimension [W x D]	Ø135mm（5 inch）	Ø135mm（5 inch）	Ø135mm（5 inch）	Ø135mm（5 inch）	140x140mm	Ø135mm（5 inch）
Work plate material	Aluminum cover with ceramic coating	stainless steel cover with ceramic coating	stainless steel cover with ceramic coating	stainless steel cover with ceramic coating	Aluminum cover with ceramic coating	stainless steel cover with ceramic coating
Motor type	Brushless DC motor	Brushless DC motor	Brushless DC motor	Brushless DC motor	Brushless DC motor	Brushless DC motor
Stirring positions	1	1	1	1	1	1
Max. stirring quantity, [H2O]	20L	20L	20L	20L	5L	3L
Max. magnetic bar [length]	80mm	80mm	80mm	80mm	50mm	50mm
Speed range	100-1500rpm resolution ±1rpm	100-1500rpm resolution ±1rpm	100-1500rpm resolution ±1rpm	0-1500rpm	200-1500rpm	200-1500pm
Speed display	LCD	LCD	LCD	Scale	LCD	LED
Temperature display	LCD	LCD	LCD	Scale	LCD	LED
Heating temperature range	Room temp.-340℃，increment 1℃	Room temp.-340℃，increment 1℃	Room temp.-340℃，increment 1℃	Room temp.-340℃	Room Temp-380℃	Room Temp-280℃
Heating liquid temperature control accuracy	±1℃(<100℃) ±1%(>100℃)	±1℃(<100℃) ±1%(>100℃)	±1℃(<100℃) ±1%(>100℃)	-	±1℃(<100℃) ±1%(>100℃)	±1℃(<100℃) ±1%(>100℃))
Overheating temperature protection	420℃	420℃	420℃	420℃	420℃	320℃
Temperature display accuracy	±0.1℃	±0.1℃	±0.1℃	-	±0.1℃	±1℃
External temperature sensor	PT1000 ( accuracy±0.2℃ )	PT1000 ( accuracy±0.2℃ )	PT1000 ( accuracy±0.2℃ )	-	PT1000 ( accuracy±0.2℃ )	PT1000 ( accuracy±0.2℃ )
"Hot" warning	50℃	50℃	50℃	-	-	50℃
Data connector	RS232	RS232	RS232	-	-	-
Protection class	IP21	IP21	IP21	IP21	IP21	IP42
Timer function	1min to 99h59min	-	1min to 99h59min	-	-	-
Motor rating output	10W	10W	10W	10W	1.8W	3W
Power	720W	550W	550W	530W	510W	515W
Heating output	600W	550W	550W	550W	550W	550W
Voltage,Frequency	100-120/200-240V，50/60Hz	100-120/200-240V，50/60Hz	100-120/200-240V，50/60Hz	100-120/200-240V，50/60Hz	100-120/200-240V，50/60Hz	100-120/200-240V，50/60Hz
Dimension [WxDxH]	280x160x100mm	160x280x100mm	160x280x100mm	160x280x100mm	320x180x108mm	150x260x100mm
Weight	2.8kg	2.8kg	2.8kg	2.8kg	2.2kg	1.8kg
Permissible ambient temperature and humidity	5-40℃,80%RH	5-40℃,80%RH	5-40℃,80%RH	5-40℃,80%RH	5-40℃,80%RH	5-40℃,80%RH

Optional Accessories

Cat. No.	Description	MS10-H500-PRO	MS7-H550-Pro MS7-H550-S	MS-H-Pro^A MS-H-Pro^T MS-H-Pro^M	MS-H340-S4 MS-H280-S4 MS-H280-S6	MS-H-S	MS-H280-Pro	MS-H380-Pro
18900001	Blue carrying plate, use with color quarter pies			√	√	√	√
18900065	Blue Fixed ring, use with color quarter pies			√	√	√	√
18900002	Red quarter pie, 11 holes, 4mL reaction vessel, Ø15.2mm, 20mm depth	√	√	√	√	√	√	√
18900003	Purple quarter pie, 4holes, 20mL reaction vessel, Ø28mm, 24mm depth	√	√	√	√	√	√	√
18900004	Blue quarter pie, 4holes,30mL reaction vessel, Ø28mm, 30mm depth	√	√	√	√	√	√	√
18900005	Black quarter pie, 4 holes, 40mL reaction vessel, Ø28mm, 43mm depth	√	√	√	√	√	√	√
18900048	Green quarter pie, 6 holes,8mL reaction vessel, Ø17.8mm, 26mm depth	√	√	√	√	√	√	√
18900049	Golden quarter pie, 4holes, 16mL reaction vessel, Ø21.6mm, 31.7mm depth	√	√	√	√	√	√	√
18101006	Reaction block for 50mL round bottom ﬂask (one ﬂask capacity)			√	√	√	√
18101007	Reaction block for 100mL round bottom ﬂask (one ﬂask capacity)			√	√	√	√
18101008	Reaction block for 250mL round bottom ﬂask (one ﬂask capacity)			√	√	√	√
18101009	Reaction block for 500mL round bottom ﬂask (one ﬂask capacity)			√	√	√	√
18900019	F101 protective cover, temperature resistance of 135℃			√		√	√
18900016	PT1000-A, length of 230mm	√	√	√	√		√	√
18900136	PT1000-B, temperature sensor with glass coated, length of 230mm	√	√	√	√		√	√
18900017	Support clamp of PT1000 Vertical bar length：45cm, stents length：25cm, Stem diameter:10cm	√	√	√
18204540	Square Module, capacity of 16 x 4mL ﬂat bottom, hole dimensions: Ø15.2x 18.5mm	√	√	√	√	√	√	√
18204542	Square Module, capacity of 16 x 8mL ﬂat bottom, hole dimensions: Ø17.5X23.5mm	√	√	√	√	√	√	√
18204544	Square Module, capacity of 9 x 16mL ﬂat bottom, hole dimensions: Ø20.5X 28.5mm	√	√	√	√	√	√	√
18204546	Square Module, capacity of 4x 20mL ﬂat bottom, hole dimensions: Ø28.5X23.5mm	√	√	√	√	√	√	√
18204548	Square Module, capacity of 4x 30mL ﬂat bottom, hole dimensions: Ø28.5X33.5mm	√	√	√	√	√	√	√
18204552	Ø65X25.5mm -150mL （Aperture x Hole depth — Adapted container volume）Spherical Square Module	√	√	√	√	√	√	√
18204554	Square Module, capacity 250mL round bottom, hole dimensions: Ø86X31.5mm	√	√	√	√	√	√	√
18204535	Square Tray with Handle，Length x deepth x width：160 x 32 x 160 mm， Suitable for 5-inch Ø135mm magnetic stirrer）			√	√	√	√
18204528	Square Tray without Handle （Length x deepth x width：160 x 32 x 160 mm， Suitable for 5-inch Ø135mm magnetic stirrer）			√	√	√	√
18204550	Square Module, capacity of 4 x 40mL ﬂat bottom, hole dimensions: Ø28.5X4X43.5mm	√	√	√	√	√	√	√
