MS-H-proM Lab LCD Digital Magnetic Hotplate Stirrer

Share to:

MS-H-proM Lab LCD Digital Magnetic Hotplate Stirrer

Max stirring quantity: 20L

Speed range: 100-1500 rpm resolution±1rpm

Work plate dimension: Dia.135mm(5inch)

Heating power: 15w

Availability:



Inquire

Model:
MS-H-proM
Brand:
NADE
Voltage:
100-120/200-240V ,50/60Hz
MOQ:
1
Warranty:
1 year
Place of Origin:
China

Product Description

MS-H-ProM

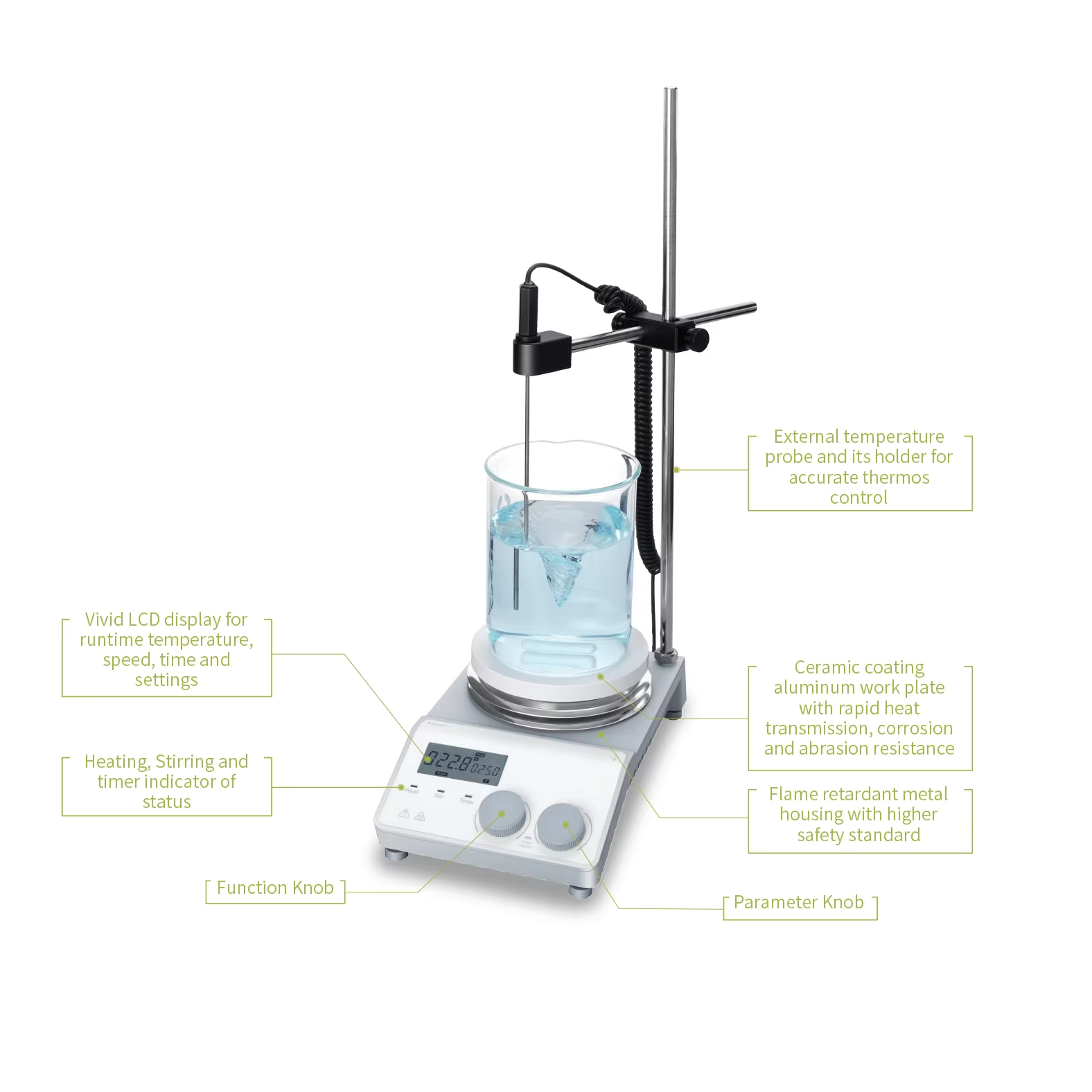

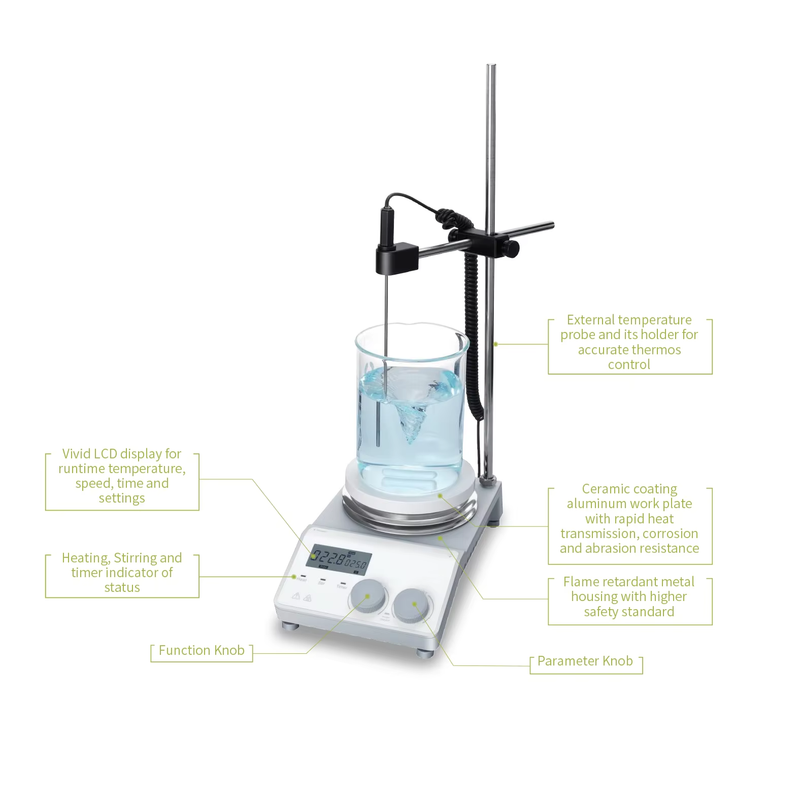

LCD Digital Enhanced Magnetic Hotplate Stirrer with Timer

Magnetic heating stirrer is suitable for low viscosity liquid or solid-liquid mixing. The MS-H-ProM (package) is widely used in different fields such as chemical synthesis, physical and chemical analysis, biopharmaceuticals bioengineering, material science, food research and more.

Features

1. Enhanced magnets and powerful motors for outstanding performance in the stirring of viscous liquid.
2. Smooth acceleration and deceleration for stable running without spillage
3. Timer control from 1 minute to 99hours and 59 When the time countdown completes, it will keep stirring but turn off heating to keep the sample safe from heat damage.
4. Three heating modes for different demands: A) Fast heating; B) Standard heating; C) Steady heating.
5. “HOT” warning flashes on the LCD display if the work plate temperature is above 50°C after the user turn off the power switch.
6. Two independent safety circuits keep monitoring the instrument. When overheating is detected and the sensor malfunctions, it will stop heating and sound alarm; When short circuit is detected, it will cut off the power to ensure the human safety.
7. Can be connected to PC with remote control.

Specification

Model	MS-H-ProM
Work plate dimension	Ø135mm (5 inch)
Work plate material	Aluminum with ceramic coating
Motor type	Brushless DC motor
Stirring positions	1
Max. stirring quantity (H2O)	20L
Max. magnetic bar [length]	80mm
Motor rating output	15W
Speed range	100-1500rpm
Speed display	LCD
Temperature display	LCD
Heating temperature range	Room temperature ~ 340℃, increment 1℃
Temperature control accuracy	±1℃(<100℃)，±1%(>100℃)
Overheating protection	420℃
Temperature display resolution	0.1℃
External temperature sensor	PT1000 (accuracy±0.2℃ )
“Hot” warning	50℃
Data connection	RS232
IP protection class	IP21
Timer range	1min~99h59min
Motor rating ouput	10W
Total power	720W
Heating power	600W
Voltage, Frequency	100-120/200-240V,50/60Hz
Dimensions (WxDxH)	160×280×100mm
Weight	2.8kg
Permissible ambient temperature and humidity	5-40℃, 80% RH

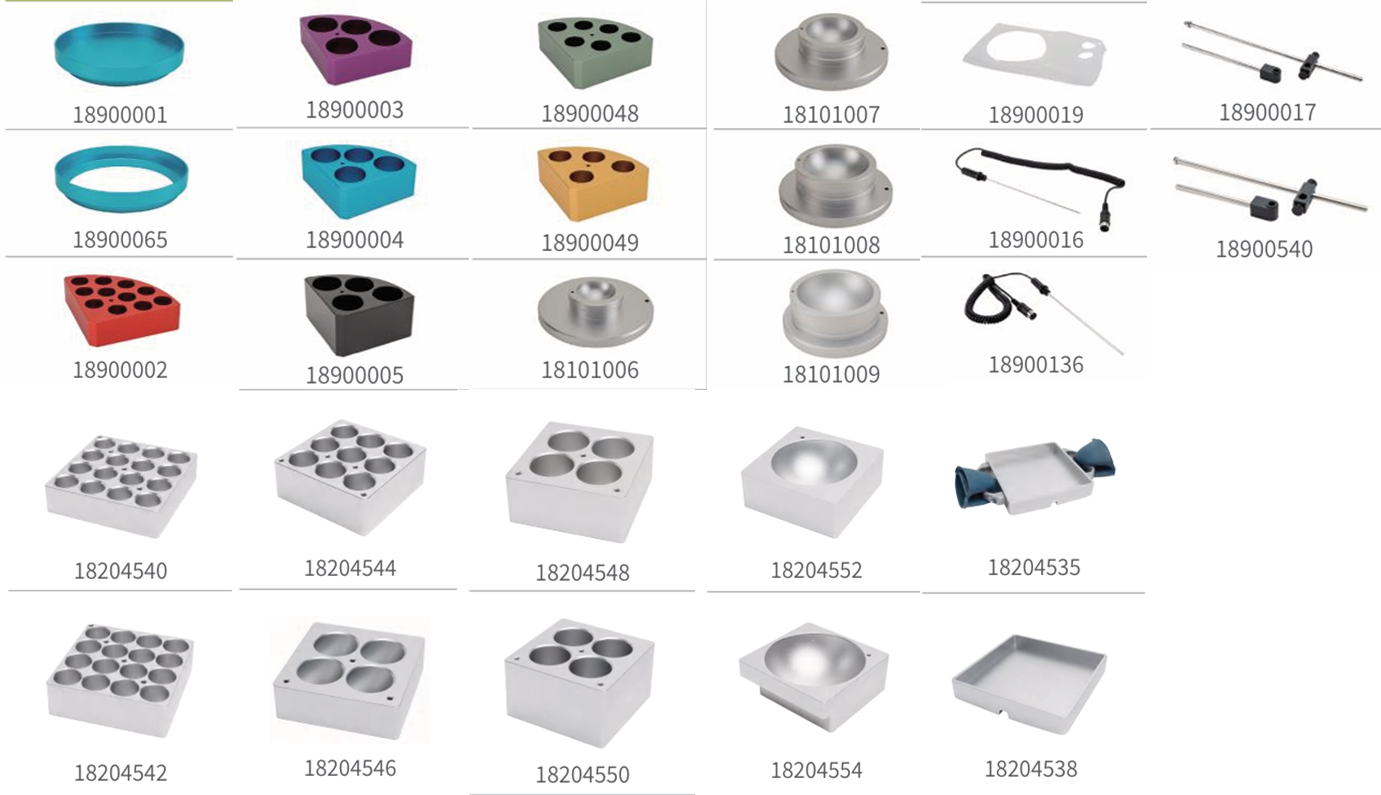

Optional Accessories

Cat. No.	Description	MS10-H500-PRO	MS7-H550-Pro MS7-H550-S	MS-H-Pro^A MS-H-Pro^T MS-H-Pro^M	MS-H340-S4 MS-H280-S4 MS-H280-S6	MS-H-S	MS-H280-Pro	MS-H380-Pro

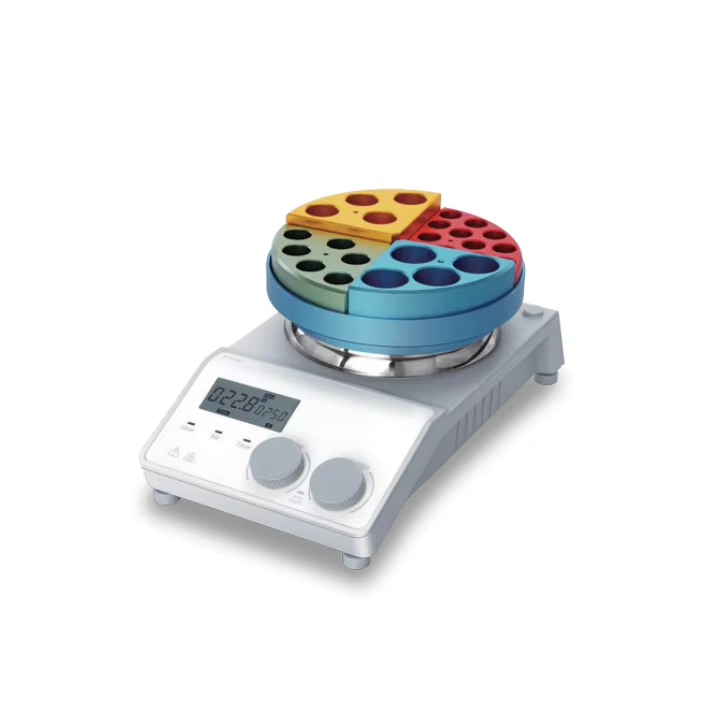

18900001	Blue carrying plate, use with color quarter pies			√	√	√	√
18900065	Blue Fixed ring, use with color quarter pies			√	√	√	√
18900002	Red quarter pie, 11 holes, 4mL reaction vessel, Ø15.2mm, 20mm depth	√	√	√	√	√	√	√
18900003	Purple quarter pie, 4holes, 20mL reaction vessel, Ø28mm, 24mm depth	√	√	√	√	√	√	√
18900004	Blue quarter pie, 4holes,30mL reaction vessel, Ø28mm, 30mm depth	√	√	√	√	√	√	√
18900005	Black quarter pie, 4 holes, 40mL reaction vessel, Ø28mm, 43mm depth	√	√	√	√	√	√	√
18900048	Green quarter pie, 6 holes,8mL reaction vessel, Ø17.8mm, 26mm depth	√	√	√	√	√	√	√
18900049	Golden quarter pie, 4holes, 16mL reaction vessel, Ø21.6mm, 31.7mm depth	√	√	√	√	√	√	√

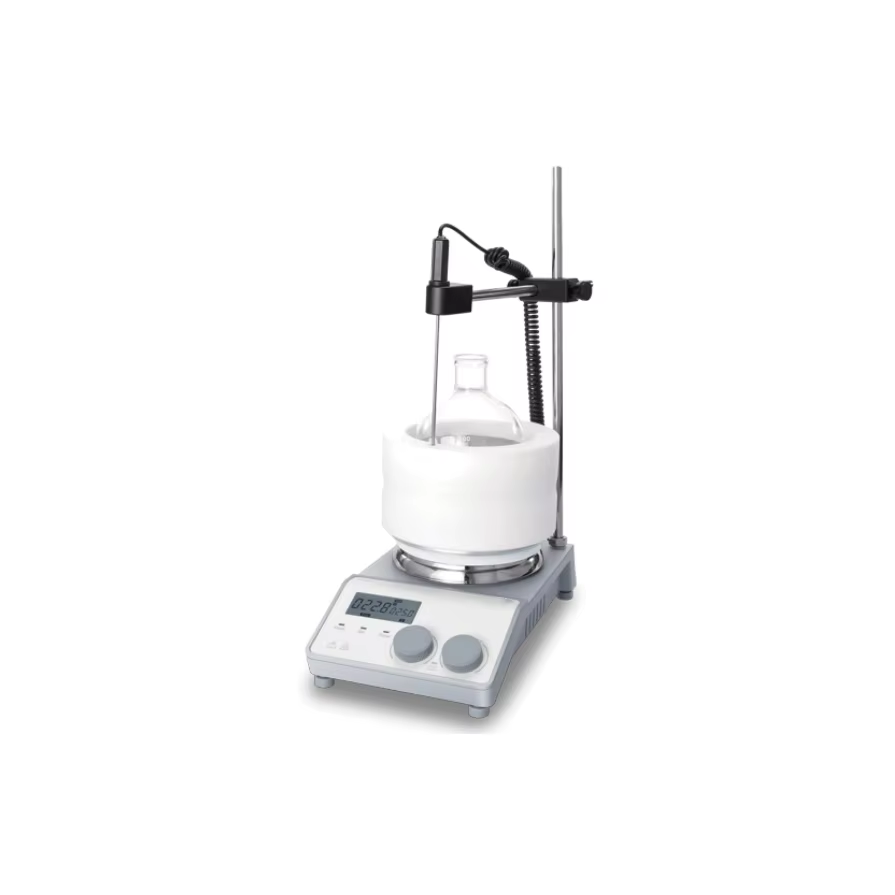

18101006	Reaction block for 50mL round bottom ﬂask (one ﬂask capacity)			√	√	√	√
18101007	Reaction block for 100mL round bottom ﬂask (one ﬂask capacity)			√	√	√	√
18101008	Reaction block for 250mL round bottom ﬂask (one ﬂask capacity)			√	√	√	√
18101009	Reaction block for 500mL round bottom ﬂask (one ﬂask capacity)			√	√	√	√
18900019	F101 protective cover, temperature resistance of 135℃			√		√	√
18900016	PT1000-A, length of 230mm	√	√	√	√		√	√
18900136	PT1000-B, temperature sensor with glass coated, length of 230mm	√	√	√	√		√	√
18900017	Support clamp of PT1000 Vertical bar length：45cm, stents length：25cm, Stem diameter:10cm	√	√	√
18204540	Square Module, capacity of 16 x 4mL ﬂat bottom, hole dimensions: Ø15.2x 18.5mm	√	√	√	√	√	√	√
18204542	Square Module, capacity of 16 x 8mL ﬂat bottom, hole dimensions: Ø17.5X23.5mm	√	√	√	√	√	√	√
18204544	Square Module, capacity of 9 x 16mL ﬂat bottom, hole dimensions: Ø20.5X 28.5mm	√	√	√	√	√	√	√
18204546	Square Module, capacity of 4x 20mL ﬂat bottom, hole dimensions: Ø28.5X23.5mm	√	√	√	√	√	√	√
18204548	Square Module, capacity of 4x 30mL ﬂat bottom, hole dimensions: Ø28.5X33.5mm	√	√	√	√	√	√	√
18204552	Ø65X25.5mm -150mL （Aperture x Hole depth — Adapted container volume）Spherical Square Module	√	√	√	√	√	√	√
18204554	Square Module, capacity 250mL round bottom, hole dimensions: Ø86X31.5mm	√	√	√	√	√	√	√
18204535	Square Tray with Handle，Length x deepth x width：160 x 32 x 160 mm， Suitable for 5-inch Ø135mm magnetic stirrer）			√	√	√	√
18204528	Square Tray without Handle （Length x deepth x width：160 x 32 x 160 mm， Suitable for 5-inch Ø135mm magnetic stirrer）			√	√	√	√
18204550	Square Module, capacity of 4 x 40mL ﬂat bottom, hole dimensions: Ø28.5X4X43.5mm	√	√	√	√	√	√	√
