MS-H280-S6
NADE
MS-H280-S6
100-120V,60Hz; 200-240V,50Hz
1
1 year
China
Product Description

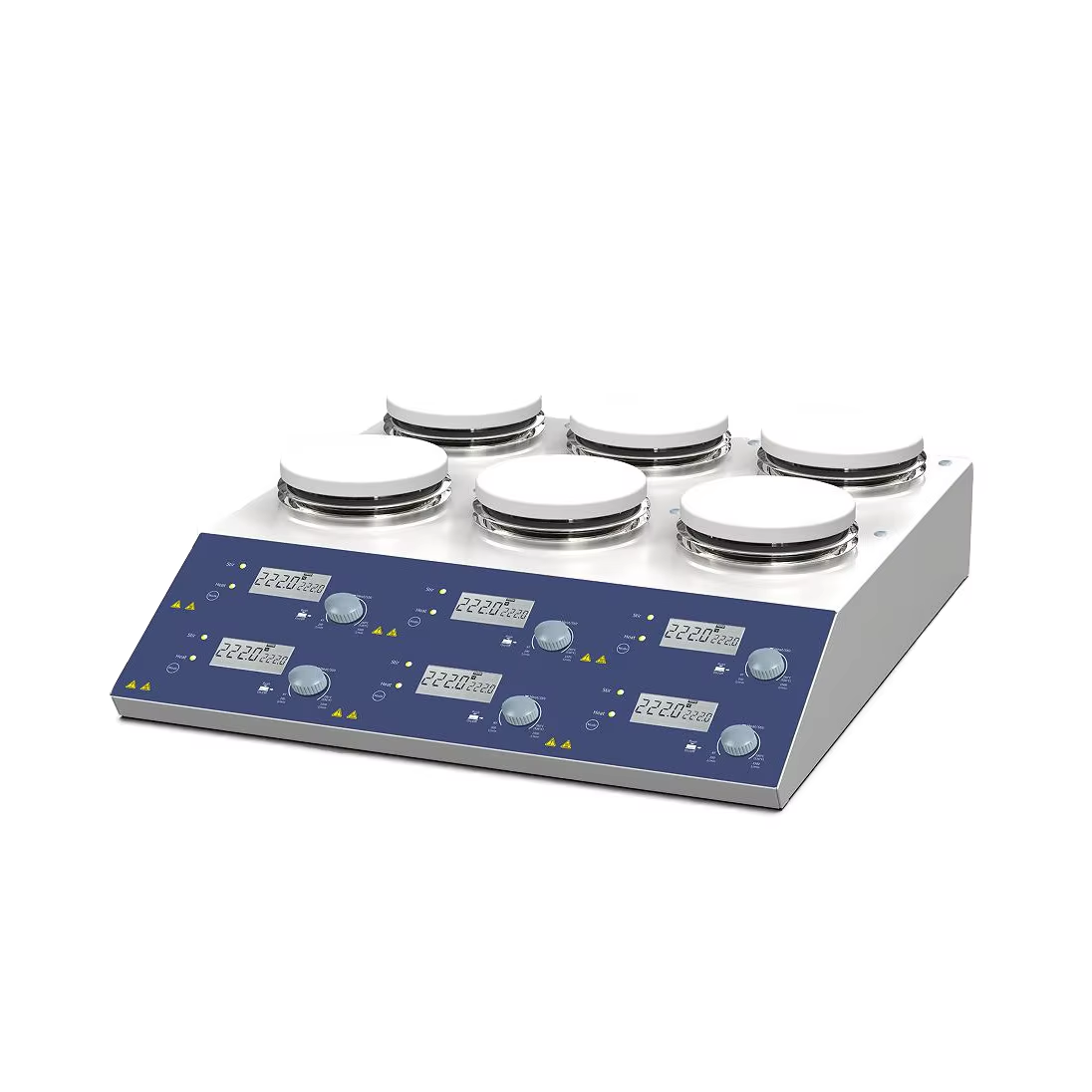

6-Channel LCD Digital Hotplate Magnetic Stirrer
6-Channel Digital Magnetic Hotplate Stirrer，Aluminum cover with ceramic coating，heating temperature up to 280°C.
Features
1. 4/6channels with independently control of start/stop, temperature, speed and display for better parallel experiment control.
2. Ceramic coating aluminum work plate with fast heat transmission and strong resistance to corrosion.
3. Powerful, rapid heating with accurate PID temperature control
4. Spark-free DC brushless motor with extended life and no maintenance
Applications

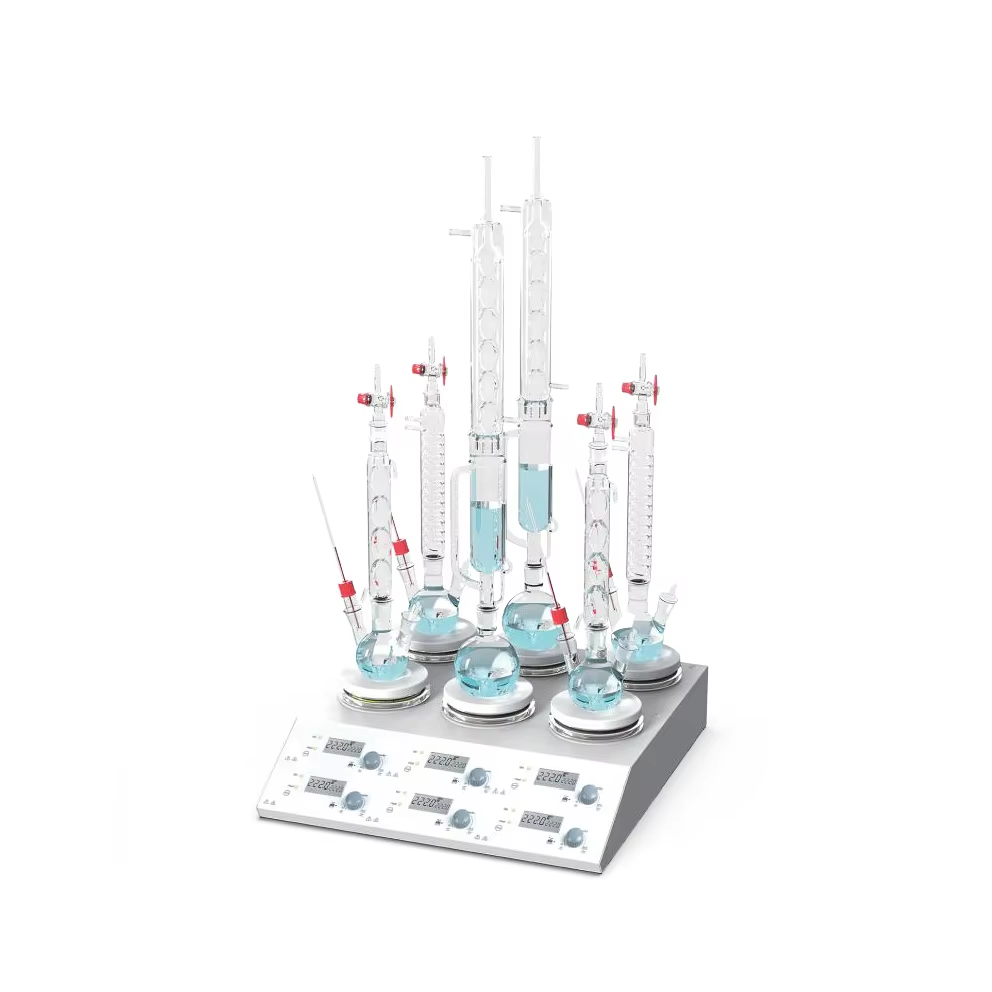

The 4/6 channel hotplate magnetic stirrers are designed for parallel experiment and multiple parameter optimization, thus can serve as handy tools for Kjeldahl nitrogen determination, Soxhlet extraction and parallel synthesis, etc. They are ideal choices for test laboratories in food, animal feed, textile, soil, sewage, water treatment, pharmaceutical, polymerization, petroleum products, resin and plastic sectors. The user can handle 4 or 6 tests at the same time with stable performance, good reproducibility, high accuracy and easy operation.
Specification
Specifications | MS-H280-S4 | MS-M-S4 | MS-H280-S6 | MS-M-S6 |
Work plate | Ø134mm | Ø134mm | Ø134mm | Ø134mm |
Work plate material | Aluminum with ceramic coating | Aluminum with ceramic coating | Aluminum with ceramic coating | Aluminum with ceramic coating |
Motor type | Brushless DC motor | Brushless DC motor | Brushless DC motor | Brushless DC motor |
Motor rating output | 5WX4 | 5WX4 | 5WX6 | 5WX6 |
Heating power | 600WX4 | - | 600WX6 | - |
Total power | 605WX4 | 5WX4 | 605WX6 | 5WX6 |
Voltage, Frequency | 100-120V,60Hz; 200-240V,50Hz | 100-240V,50/60Hz | 100-120V，60Hz; 200-240V,50Hz | 100-240V,50/60Hz |
Stirring positions | 4 | 4 | 6 | 6 |
Max. stirring quantity (H2O) | 3LX4 | 3LX4 | 3LX6 | 3LX6 |
Max. stirring quantity (H2O) per channel | 3L | 3L | 3L | 3L |
Max. magnetic bar [length] | 40mm | 40mm | 40mm | 40mm |
Speed range | 200-1500rpm | 200-1500rpm | 200-1500rpm | 200-1500rpm |
Speed control accuracy [rpm] | ±20 | ±20 | ±20 | ±20 |
Speed display | LCD | LCD | LCD | LCD |
Temperature display | LCD | LCD | LCD | LCD |
Heating temperature range | 25-280℃ | - | 25-280℃ | - |
Overheating protection | 420℃ | - | 420℃ | - |
Temperature display resolution | 0.1℃ | - | 0.1℃ | - |
Temperature control accuracy | ±1℃(<100℃)， ±1%(>100℃) | - | ±1℃(<100℃)， ±1%(>100℃) | - |
External temperature sensor | PT1000 (accuracy±0.2℃ ) | - | PT1000 (accuracy±0.2℃ ) | - |
IP protection class | IP21 | IP21 | IP21 | IP21 |
Dimensions (WxDxH) | 701×265×127mm | 701×265×127mm | 564×523×127mm | 564×523×127mm |
Weight | 8.7Kg | 8.7Kg | 12.7Kg | 12.7Kg |
Permissible ambient temperature and humidity | 5~40℃, 80% RH | 5~40℃, 80% RH | 5~40℃, 80% RH | 5~40℃, 80% RH |
Optional Accessories
| Cat. No. | Description | MS10-H500-PRO | MS7-H550-Pro MS7-H550-S | MS-H-ProA MS-H-ProTMS-H-ProM | MS-H340-S4 MS-H280-S4 MS-H280-S6 | MS-H-S | MS-H280-Pro | MS-H380-Pro |
| 18900001 | Blue carrying plate, use with color quarter pies | √ | √ | √ | √ | |||
| 18900065 | Blue Fixed ring, use with color quarter pies | √ | √ | √ | √ | |||
| 18900002 | Red quarter pie, 11 holes, 4mL reaction vessel, Ø15.2mm, 20mm depth | √ | √ | √ | √ | √ | √ | √ |
| 18900003 | Purple quarter pie, 4holes, 20mL reaction vessel, Ø28mm, 24mm depth | √ | √ | √ | √ | √ | √ | √ |
| 18900004 | Blue quarter pie, 4holes,30mL reaction vessel, Ø28mm, 30mm depth | √ | √ | √ | √ | √ | √ | √ |
| 18900005 | Black quarter pie, 4 holes, 40mL reaction vessel, Ø28mm, 43mm depth | √ | √ | √ | √ | √ | √ | √ |
| 18900048 | Green quarter pie, 6 holes,8mL reaction vessel, Ø17.8mm, 26mm depth | √ | √ | √ | √ | √ | √ | √ |
| 18900049 | Golden quarter pie, 4holes, 16mL reaction vessel, Ø21.6mm, 31.7mm depth | √ | √ | √ | √ | √ | √ | √ |
| 18101006 | Reaction block for 50mL round bottom flask (one flask capacity) | √ | √ | √ | √ | |||
| 18101007 | Reaction block for 100mL round bottom flask (one flask capacity) | √ | √ | √ | √ | |||
| 18101008 | Reaction block for 250mL round bottom flask (one flask capacity) | √ | √ | √ | √ | |||
| 18101009 | Reaction block for 500mL round bottom flask (one flask capacity) | √ | √ | √ | √ | |||
| 18900019 | F101 protective cover, temperature resistance of 135℃ | √ | √ | √ | ||||
| 18900016 | PT1000-A, length of 230mm | √ | √ | √ | √ | √ | √ | |
| 18900136 | PT1000-B, temperature sensor with glass coated, length of 230mm | √ | √ | √ | √ | √ | √ | |
| 18900017 | Support clamp of PT1000 Vertical bar length：45cm, stents length：25cm, Stem diameter:10cm | √ | √ | √ | ||||
| 18204540 | Square Module, capacity of 16 x 4mL flat bottom, hole dimensions: Ø15.2x 18.5mm | √ | √ | √ | √ | √ | √ | √ |
| 18204542 | Square Module, capacity of 16 x 8mL flat bottom, hole dimensions: Ø17.5X23.5mm | √ | √ | √ | √ | √ | √ | √ |
| 18204544 | Square Module, capacity of 9 x 16mL flat bottom, hole dimensions: Ø20.5X 28.5mm | √ | √ | √ | √ | √ | √ | √ |
| 18204546 | Square Module, capacity of 4x 20mL flat bottom, hole dimensions: Ø28.5X23.5mm | √ | √ | √ | √ | √ | √ | √ |
| 18204548 | Square Module, capacity of 4x 30mL flat bottom, hole dimensions: Ø28.5X33.5mm | √ | √ | √ | √ | √ | √ | √ |
| 18204552 | Ø65X25.5mm -150mL （Aperture x Hole depth — Adapted container volume）Spherical Square Module | √ | √ | √ | √ | √ | √ | √ |
| 18204554 | Square Module, capacity 250mL round bottom, hole dimensions: Ø86X31.5mm | √ | √ | √ | √ | √ | √ | √ |
| 18204535 | Square Tray with Handle，Length x deepth x width：160 x 32 x 160 mm， Suitable for 5-inch Ø135mm magnetic stirrer） | √ | √ | √ | √ | |||
| 18204528 | Square Tray without Handle （Length x deepth x width：160 x 32 x 160 mm， Suitable for 5-inch Ø135mm magnetic stirrer） | √ | √ | √ | √ | |||
| 18204550 | Square Module, capacity of 4 x 40mL flat bottom, hole dimensions: Ø28.5X4X43.5mm | √ | √ | √ | √ | √ | √ | √ |
