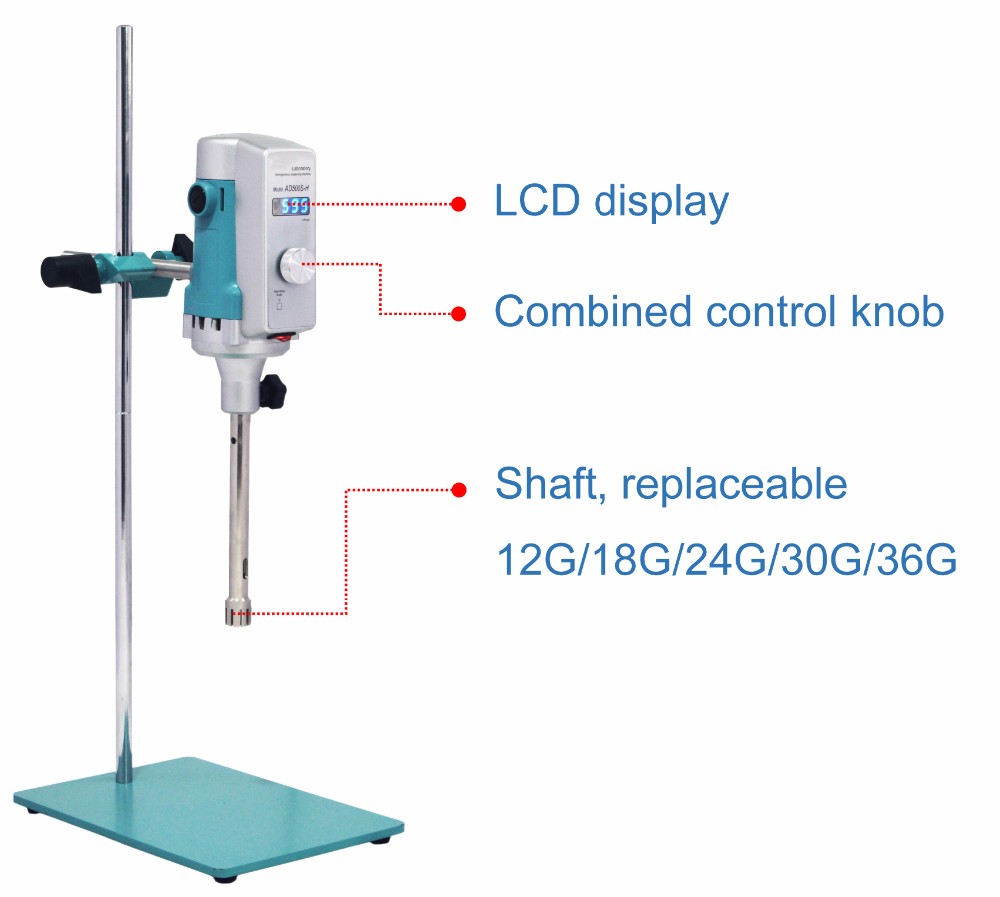

Product Description
Adopts structure compact series-excited type miniature high speed motor drive for the Low to medium and High viscosity liquid mixing ,dispersing & Homogenizing materials in liquid medium.
The device can be applied to different areas like dispersing of tissue in biotechnology, sample preparation in medicine, cosmetic industry, paint industry, petro-chemical processing. It can also be applied to any liquid material experiment like liquid and liquid phase, Liquid and solid phase, Viscosity less than 0.2Pa.s, temperature below 80 ℃. The experimental medium can achieve a fine and delicate mixing by squeezing, strongly impacting and cracking, and liquid layers can be avoided during the operating.

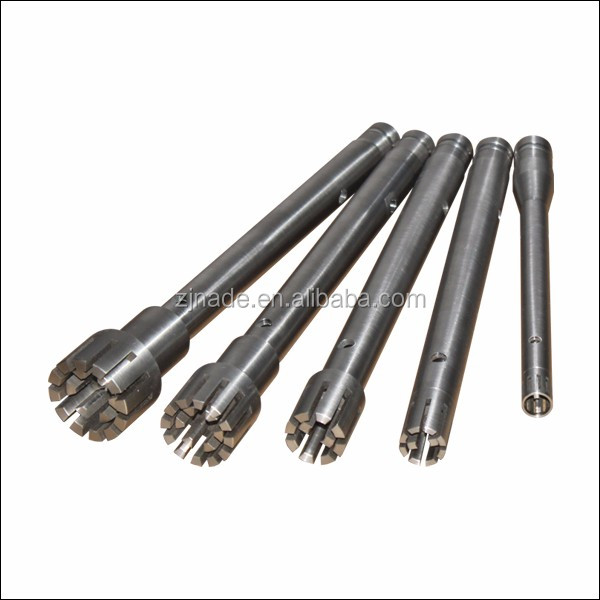

1. High Shear Homogenizer has Various of agitators(working heads) are designed for different processing capacity and difference experiment requirement ,include Crushing, emulsifying , homogenizing , polymerization, suspension, dissolving and Mixing etc. Especially for high viscosity material.
2. And it is easy to operate and easy to clean, easy to maintenance .
3. Variable Rating Speed Control provide with a high effect.
4. Speed controller adopts IC constant speed control, can instantly to compensate for speed change of the load changes and power supply voltage fluctuation .
| Model | AD500S-H(Digital) AD500S-P(not digital) | ||||||||
| Working head | 12G | 18G | 24G | 30G | 36G | ||||
| Maximum line speed of the rotor | 12m/s | 15m/s | 18m/s | 22m/s | 26m/s | ||||
| Mixing capacity (H2O,ml) | 30~800 | 50~1500 | 80~5000 | 100~8000 | 150~13000 | ||||
| Model | AD500S-H(Digital) AD500S-P(not digital) |
| Rated voltage | AC 220±10% |
| Rated frequency | 50/ 60 Hz |
| Input power | 850 W |
| Output power | 500 W |
| Rated torque | 178 N·cm |
| Work mode | S1 |
| Speed control | Continuously Adjustable |
| Speed range | 2000~28000 rpm |
| Dynamical Speed recording, Oversload protection, Speed memory | YES |
| Timing range | 1~1000min (H models only) |

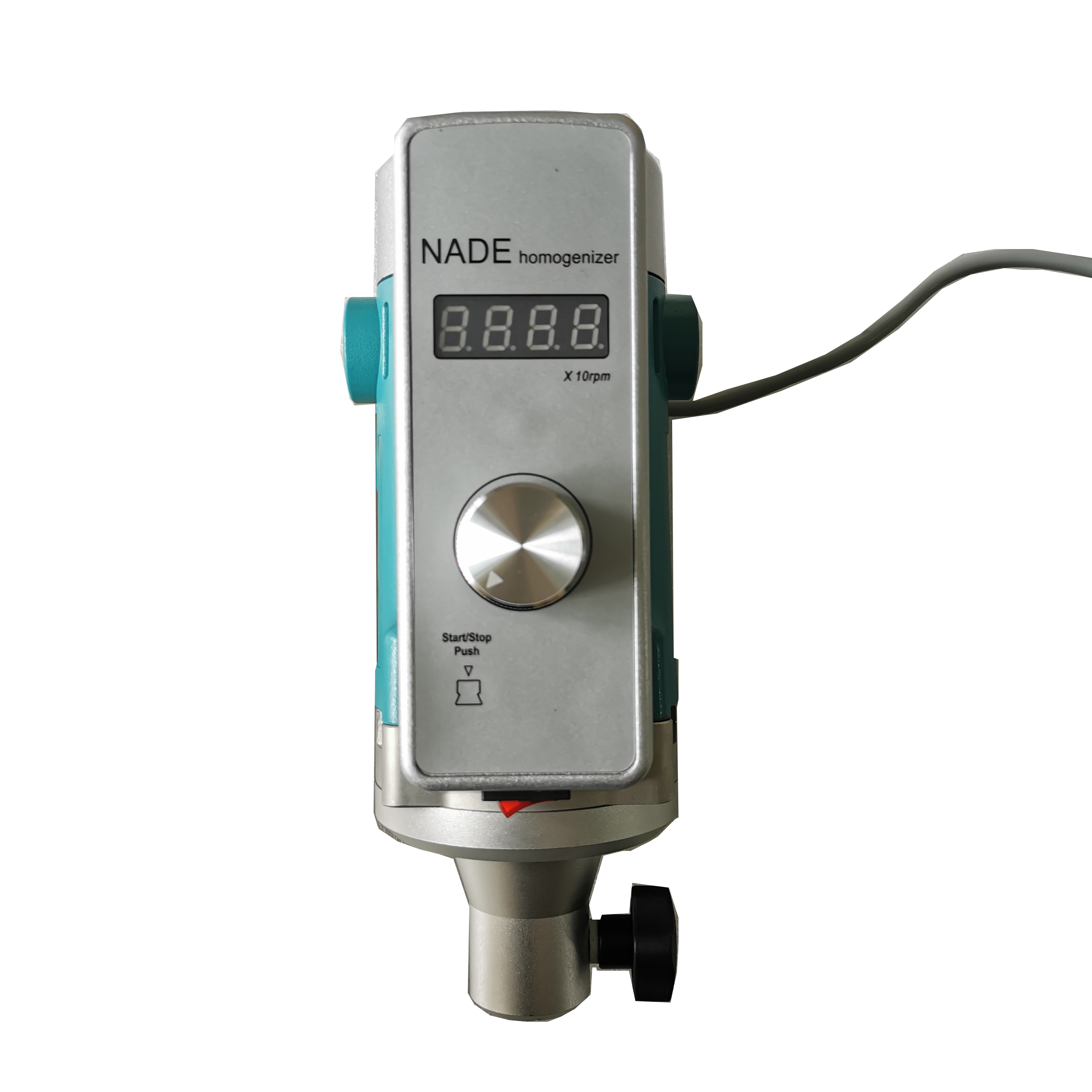

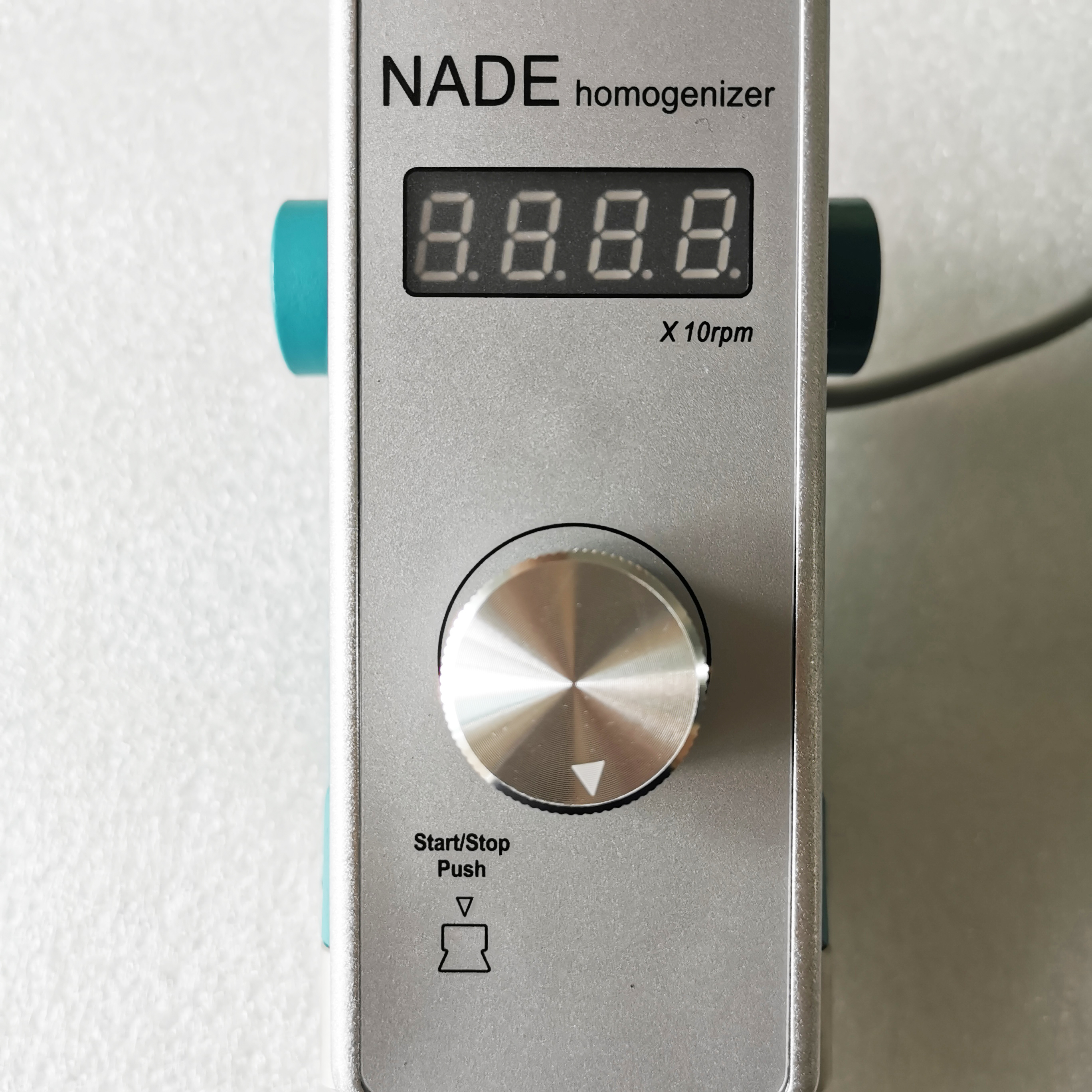

| Speed display | LED digital display×10 rpm (H models only) |
| The Material of the Operating head | SS316 |
| Size of the mixer (T×B×H) | 215×310×700 mm |
| Permissible ambient temperature | Lower than 40ºC |
| Permissible relative humidity | Less than 90% |
| Net weight | 9KG |
| Working head | 12G | 18G | 24G | 30G | 36G |
| Mixing capacity (H2O, ml) | 30~800 | 50~1500 | 80~5000 | 100~8000 | 150~13000 |
| Max viscosity(mPa.s) | 5000 | 5000 | 5000 | 6000 | 7000 |
| Max. rotation speed(m/s) | 12 | 15 | 18 | 22 | 26 |
| Min./max.immersion depth(mm) | 35/150 | 45/160 | 50/165 | 60/170 | 65/175 |
| Size of stator(mm) | Ø12 | Ø18 | Ø24 | Ø30 | Ø36 |
| Legth(mm) | 215 | 242 | 245 | 255 | 258 |
| Max temperature(℃) | 120 | 120 | 120 | 120 | 120 |
| Working head material | SS316L | SS316L | SS316L | SS316L | SS316L |
