Homogenizer
0.15 L
Chemicals, Medicine
0.15 L
150ml
8 KG
New
Cosmetic
liquid mixing, emulsion, homogenization dispersion of solid powder in, laboratory
speed control
China
NADE
220V
38*8*5cm
ISO
0.12 kW
1 Year
Online support, No overseas service provided
Easy to Operate
laboratory
No service
None
None
Ordinary Product
Not Available
Not Available
1 Year
Other
5,000 to 35,000 rpm
Stepless speed control
standard 10G head: 30~150ml
8G head: 1-60ml; 6G head: 0.2~10ml
Product Description
Introduction :

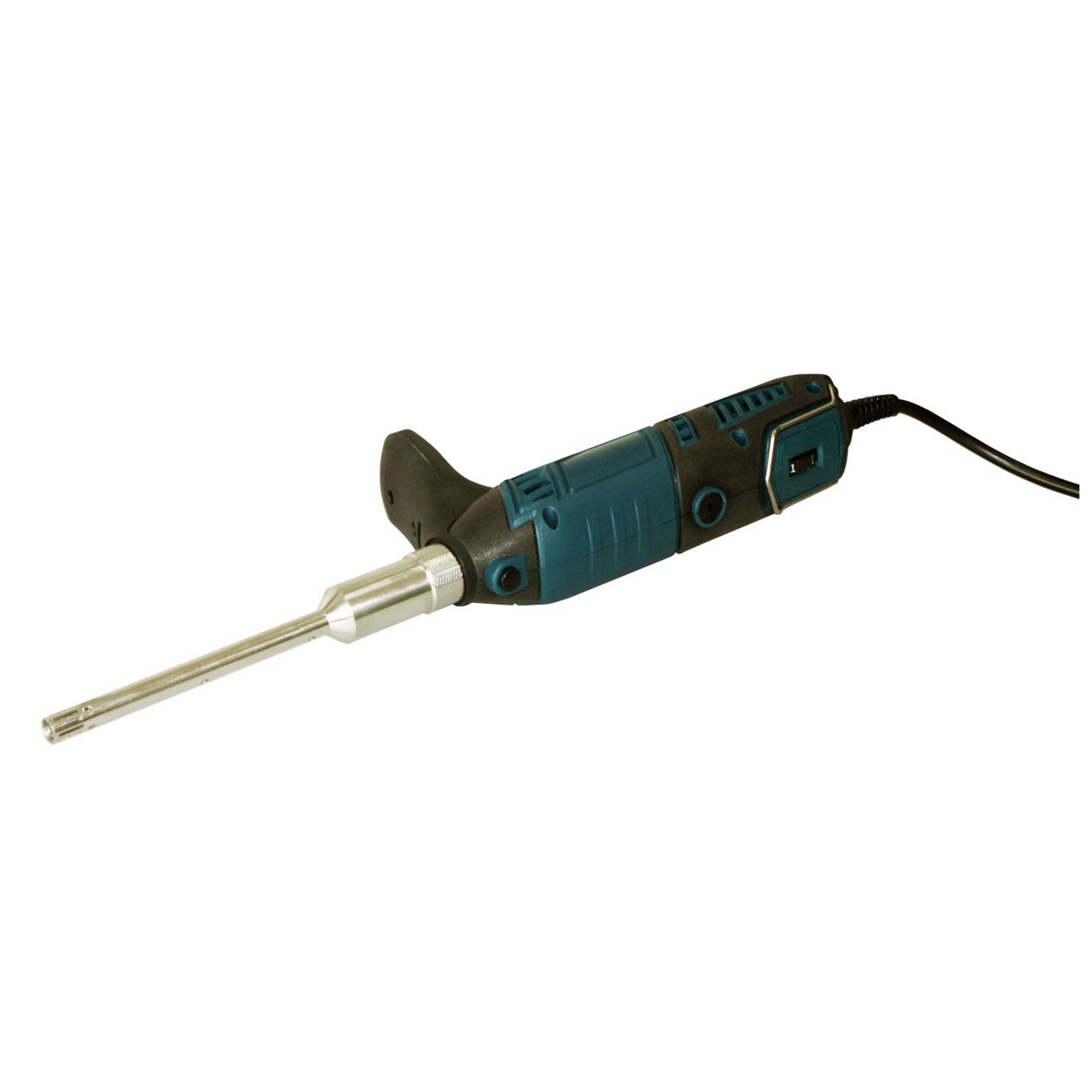

AD145S-P Laboratory High Shear Handheld Homogenizer adopts structure compact series-excited type miniature high speed motor drive for the low to medium viscosity liquid homogenizing materials in liquid.
Main Features:
Various of agitators are designed for different processing capacity and difference experiment requirement ,include Crushing, emulsifying , Homogenizing , polymerization, suspension, dissolving and Mixing etc. And it is easy to operate and easy to clean, easy to maintenance .
Specifications:
| Model | AD145S-P |
| Voltage Rating | AC220V 50Hz |
| Input power | 160W |
| Output power | 120W |
| Rated torque | 3.95N.cm |
| Speed range(rpm) | 5000-35000 rpm, stepless control |
| Working Head size | 10G (Φ10mm) (30-150ml) |
| Material of head | SSA 316L |
| Minimum/Maximum level of liquid | 20mm/110mm |
| Capacity(H2O) | 3-150ml |
| Dimension(mm) | 380*80*50mm |
| Max viscosity | 200cP |
| Permissible ambient temperature | 5-40℃ |
| Permissible relative humidity | <=90% RH |
| Optional working head | 6G (Φ6mm)(1-60ml) |

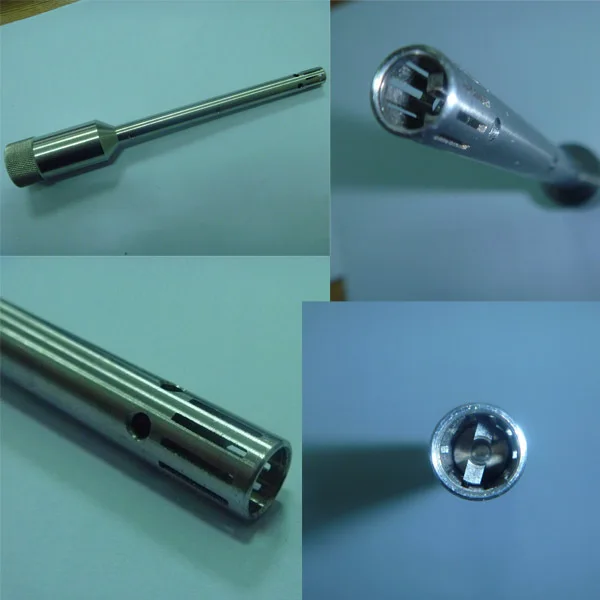

Parameter of working head:
| Working head | 10G | 8G | 6G |
| Mixing capacity (H2O, ml) | 3~150 | 1~60 | 0.2~100 |
| Max viscosity(mPa.s) | 200 | 100 | 100 |
| Max. rotation speed(m/s) | 13 | 10 | 8 |
| Min./max.immersion depth(mm) | 20/110 | 25/85 | 18/60 |
| Size of stator(mm) | Ø10 | Ø8 | Ø6 |
| Legth(mm) | 178 | 148 | 125 |
| Max temperature(℃) | 120 | 120 | 120 |
| Working head material | SS316L | SS316L | SS316L |
Please contact us by alibaba message or TEL: +0086-571-88064952 for any requirements or questions. There may be a time zone difference depending on your location, but we will respond to you as soon as we can.
We cherish every opportunity to serve our customer! It will be our great pleasure to do business with you and hope it will be a win-win situation for both of us.

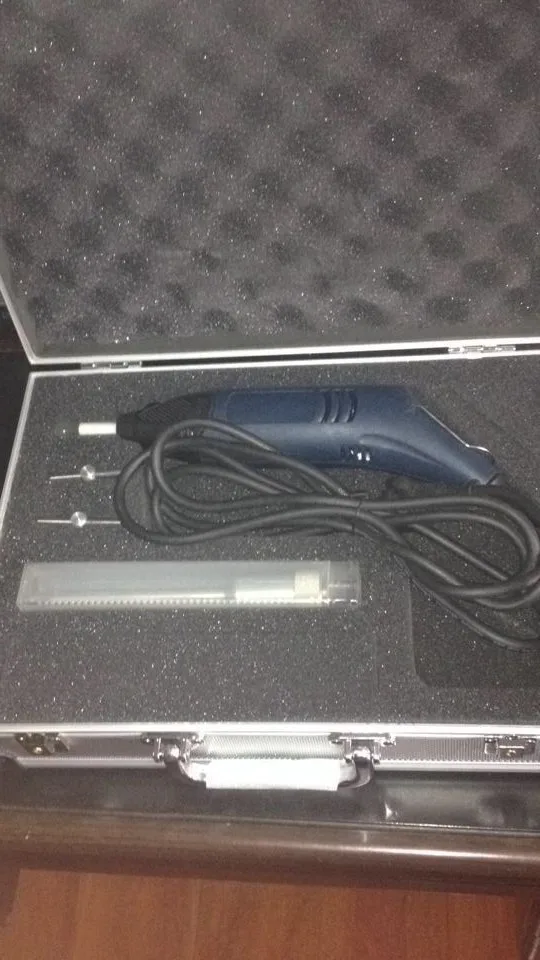

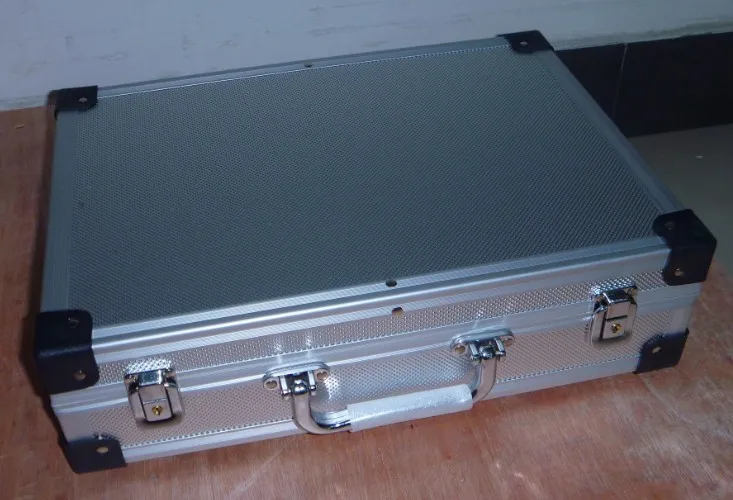

Our Packaging Details:
Our Shipping
Q: How long is the delivery time?
A: 7-15 working days after we received your payment or order confirmed.
Q: What is the warranty for the equipment?
A: One year. We can provide you lifelong technical support.
Q: What is the payment terms?
A: T/T, L/C, Western Union, etc.
Q: What after-sales service can be provided by Nade ?
A: The after-sales service of Nade is divided into two parts: technical support and maintenance.
Q: What about the technical support and maintenence?
A: Sometimes users will get some problems when they operate the instruments which are unfamiliar or first time use, users can send us emails or call us about detailed information. We will provide users solution or operation video.For so many years’ experience, our instruments works well during warranty period. If there any parts are broken during warranty period, we would like to provide spare parts for free.
