Conductivity Meter
Zhejiang, China
NADE
EC9500
±0.5%F.S ±1 digit
0~2000mS/cm
0.01/0.1/1uS,0.01/0.1/1mS
O~20MΩ.cm
0.1mg/l~500 g/l
0~100 ppt
0~100℃;32 to 212°F
TFT color display
IP54 water and dust proof
2401T-F
Product Description

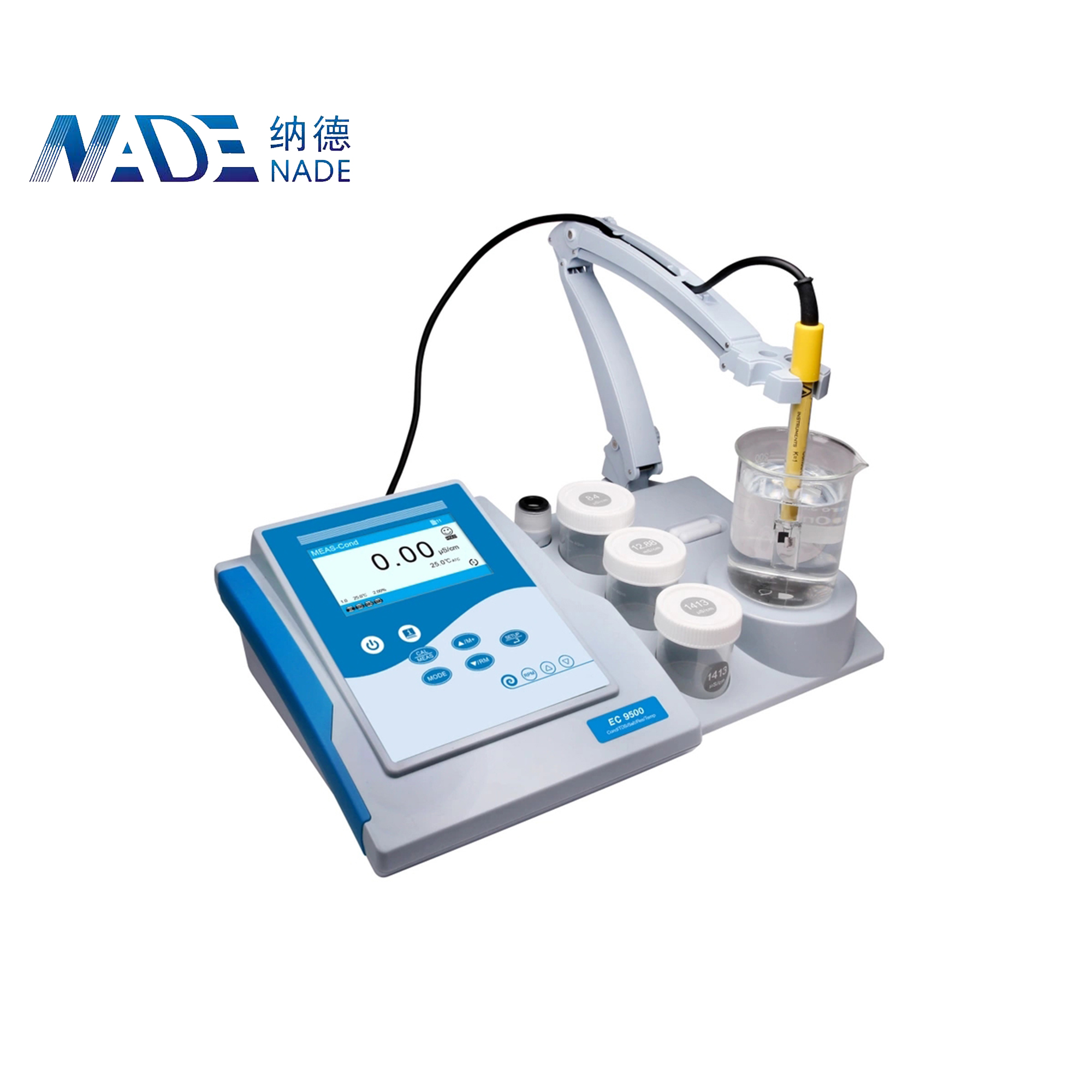

EC9500 is a research-grade benchtop conductivity meter that is designed for laboratory professionals, offering long-term reliability in high-accuracy conductivity/TDS/salinity/resistivity measurement.
The meter is rich in features including comprehensive GLP data logging, data export to printer or PC, calibration password protection, buffer organizers, self-diagnosis, i-Guidance, and many more while retaining simplicity in use.
1. An advanced yet intuitive user interface with plain language and graphic screen prompts that does not require tedious manual reading or training to operate. Multi-language supports English, German, Spanish, and Chinese.
2. Manual/Auto. data logger with 1000 groups of storage with comprehensive GLP data input including electrode ID, user ID, sample ID, company name, and calibration password for data protection. USB Data export to PC for further analysis or to a pin-type mini printer for instant report (sold separately).
3. i-Guide is always available through the “i” key. Clear tutorial messages and directions are available on-screen to quickly and easily guide users through setup and calibration.
4. Comes with TestBench that incorporates a flexible electrode holder, an intelligent magnetic stirrer, and buffer organizers altogether, streamlining the process of measurement and calibration.
1. The 2401T-F glass-body conductivity/temp. Electrode allows you to take highly accurate conductivity measurement in any sample solutions within a range of 0 to 200mS/cm at ±1% F.S accuracy.
2. 1 to 4 points automatic calibration with a choice of 4 conductivity standards (84µS/cm, 1413µS/cm, 12.88mS/cm, 111.8mS/cm) or user-define standards.
3. One-tap switch from conductivity to TDS, salinity or resistivity.
4. Three salinity types for your option: general salinity, saltwater salinity, and NaCl.
5. Standard BNC conductivity connector, compatible with 2310T-F for high range measurement (up to 2000 mS/cm) and DJS-0.1-F for high purity water; RCA connector for a temperature probe, NTC 30KΩ thermistor
| Model | EC9500 | |
| Parameter | Cond./TDS/Sa/Res/°C(°F) | |
| Cond. | Range | 0~2000mS/cm |
| Resolution | 0.01/0.1/1µS,0.01/0.1/1mS | |
| Accuracy | ±0.5%F.S ±1 digit | |
| Electrode constant | 0.1 / 1 .0/ 10.0 cm-1 | |
| Temp. compensation Criterion temperature | 0 to 50°C(32 to 212°F)Auto. or Manual | |
| Temp. compensation coefficient | 0~10.00%/°C | |
| Calibration | 1 to 4 points automatic | |
| Calibration standard | USA/CH/User | |
| Calibration reminding | Yes | |
| Calibration data checking | Yes | |
|
| Measuring alarm | Yes |
| TDS | Range | 0.1mg/l~500 g/l |
|
| TDS coefficient | 0.40~1.00 |
| Salinity | Range | 0~100 ppt |
| Resistivity | Range | O~20MΩ.cm |
| Temp. | Measuring Range | 0~100℃;32 to 212°F |
| Resolution | 0.1℃;0.1/1°F | |
|
| Accuracy | ±0.5°C±1 digit;±.0.9°F±1 digit |
| Function | Display | TFT color display |
| Stable measuring indication |
| |
| Automatic hold | Yes | |
| Date and time | Yes | |
| Data storage | 1000 sets | |
| Timing storage | Yes | |
| Self-diagnosis information | Yes | |
| USB output | Yes | |
| GLP print | Yes ( printer optional ) | |
| External keypad | Yes | |
| Cond. electrode connector | BNC | |
| Electrode holder | 606 combination test bench ( with stirrer) | |
| IP Rating | IP54 water and dust proof | |
|
| Electrode | 2401T-F |
| Other | Power | DC9V |
| Dimension | 360*165*400mm | |
| Weight | 1.25kg | |
