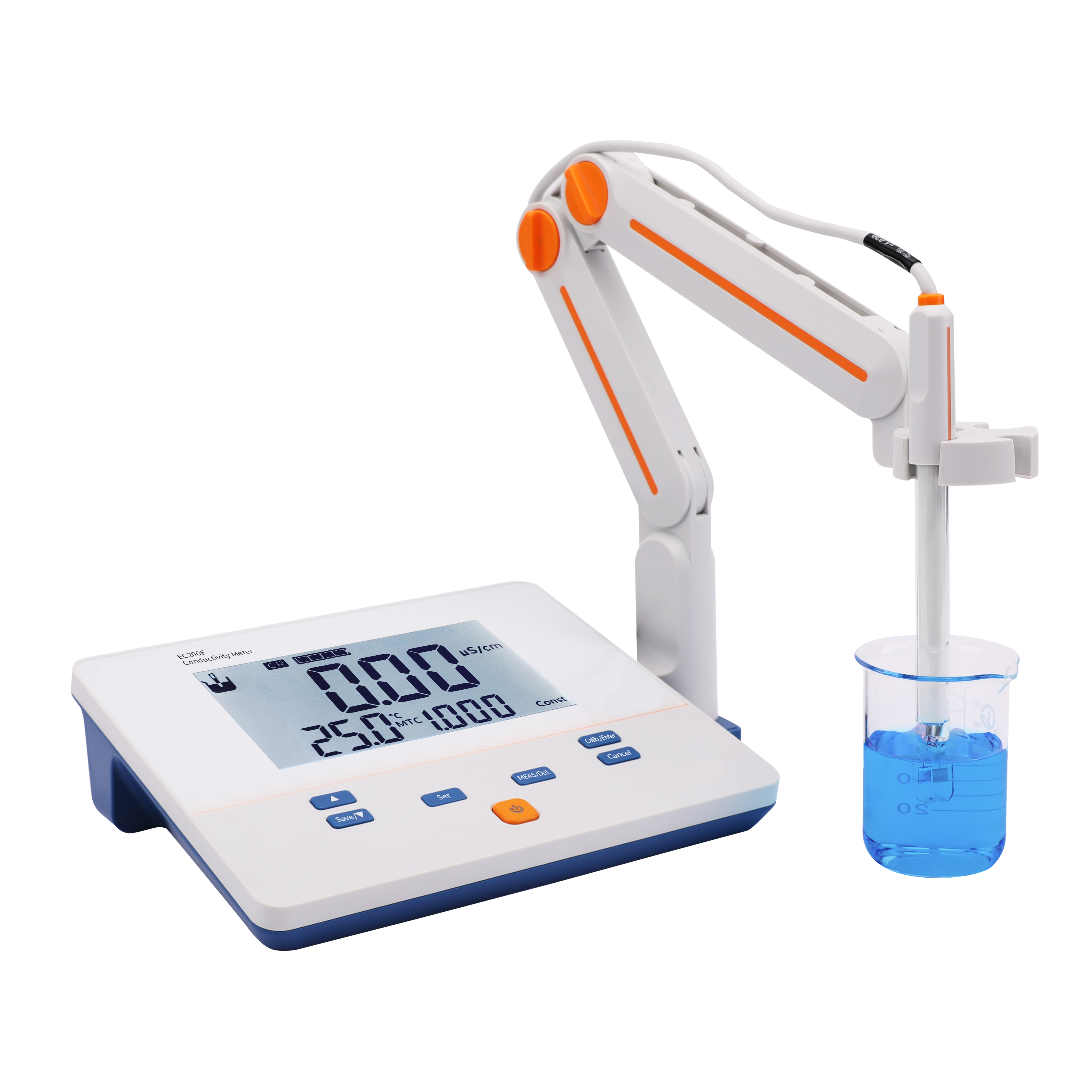

EC200E
AC Adapter, 100-240V AC input, DC9V output
1
1 year
China
Product Description
● High resolution LCD display screen, 6.0 inches.
● Multi-reading feature allows auto-read and continuous-read.
● Automatic/Manual temperature compensation ensures accurate results.
● Auto-hold feature senses and locks the measurement endpoint.
● Data Storage 50 sets for each parameter.
● Reset feature automatically resumes all settings back to factory default options.
● IP54 waterproof.
● 1 point calibration with Standard Recognition.
● Cell constant is settable
Specification
Model | EC200E | |
Parameters | EC/Temp.(TDS) | |
Conductivity | Range | 0.00 μ S/cm to 200 mS/cm |
Resolution | 0.01 μ S/cm minimum, various with range selection | |
Accuracy | ± 1.0% FS | |
Reference Temperature | 25 ºC | |
Calibration Points | Up to 1 | |
Standard Recognition | 84 μ S/cm, 1413 μ S/cm, 12.88mS/cm | |
TDS | Range | 0.00mg/L~100g/L |
Resolution | 0.01mg/L minimum, various with range selection | |
Accuracy | ± 1.0% FS | |
Temperature | Range | -5.0 to 110 ºC, 23.0 to 230 ºF |
Unit | ºC | |
Resolution | 0.1 | |
Accuracy | ± 0.2 | |
Measurement | Reading Mode | Auto Read, Continuous |
Reading Prompts | Reading, Stable, Locked | |
Temp. Compensation | ATC, MTC | |
Data management | Data Storage | 50 results each |
Inputs | Conductivity with Temp. Probe | 5-pin aviation connector |
Display options | Backlight | Yes |
Auto Shutdown | 300, 600, 1200, 1800, 3600 sec., off | |
IP Rating | IP54 | |
General | Power | AC Adapter, 100-240V AC input, DC9V output |
Dimensions | 242 × 195 × 68 mm | |
Weight | 900g (1.98 lb) | |
Configuration
DJS-1VTC EC Electrode
1413μS/cm Conductivity Standards Solution 1 Bottle (50ml/bottle)
REX-5 Multifunction Electrode Stand
DDS-307A
