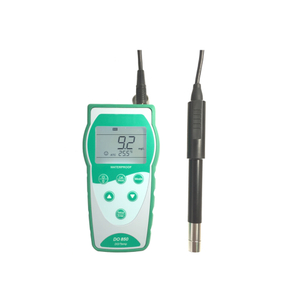

NADE DO8500 0.01mg/L (ppm) Portable Optical DO Meter LCD display for Dissolved Oxygen test

  • China
  • NADE
  • (0-20.00) mg/L (ppm), (0-200.0)%
  • 0.01mg/L (ppm), 0.1%
  • 0 to 50℃ (32℉ to 122℉)
  • IP57
  • Saturation Point & Zero Oxygen
  • ±0.1 mg/L,(0~8mg/L); ±0.2 mg/L,(8~20mg/L)
  • Backlight LCD
  • AA*3 (1.5V*3)
  • Meter: 88*170*33 mm/313g
  • 500 group(with time and data)

Product Description

Product Description
NADE DO8500 0.01mg/L (ppm) Portable Optical DO Meter LCD display for Dissolved Oxygen test

Advanced fluorescent optical sensors:

1. It does not consume oxygen during the measurement and is not affected by the flow speed of the sample. The measurement is stable.

2. No fluoride and electrode membrane, no preheating and frequent calibration, easy to use.

3. The fluorescent cap is plated with a light-shielding layer, which is not affected by external light sources; non-chemical sensors are not affected by various heavy metal ions, H2S and NH4 in the measurement.

4. In addition to mechanical damage (such as scratching the shading layer), the fluorescent cap has a displacement of up to 8000 hours. Matching electrode calibration sleeve makes calibration and maintenance more convenient and reliable.

Advanced smart meters:

1. Automatic temperature compensation, automatic pressure compensation, manual salinity compensation.

2. Large LCD display with white backlight, clear display.

3. There are reading stable display mode and automatic lock display mode.

4. In line with IP57 waterproof rating, equipped with instruments and meters as standard.

Application:

NADE DO8500 0.01mg/L (ppm) Portable Optical DO Meter LCD display for Dissolved Oxygen test

Specification:

Model

DO8500

Dissolved Oxygen

Measuring Range

(0-20.00) mg/L (ppm), (0-200.0)%

Resolution

0.01mg/L (ppm), 0.1%

Accuracy

±0.1 mg/L,(0~8mg/L)

±0.2 mg/L,(8~20mg/L)

Response Time

≤30 s (25℃ , 90% response)

Calibration Points

Saturation Point & Zero Oxygen

Temperature Compensation

Automatic, (0 to 50)℃

Pressure Compensation

Automatic, (60 to 120) kPa

Salinity Compensation

Manual or automatic, (0 to 45) ppt

Temperature

Range

(0 to 50.0) ℃

Resolution

0.1 ℃

Accuracy

±0.5 ℃

Reading stable indication

Yes

Automatic lock on

Yes

Display screen

Backlight LCD

Data logging

500 group(with time and data)

Real time clock

Yes

Signal output

USB

Batteries

IP Rating

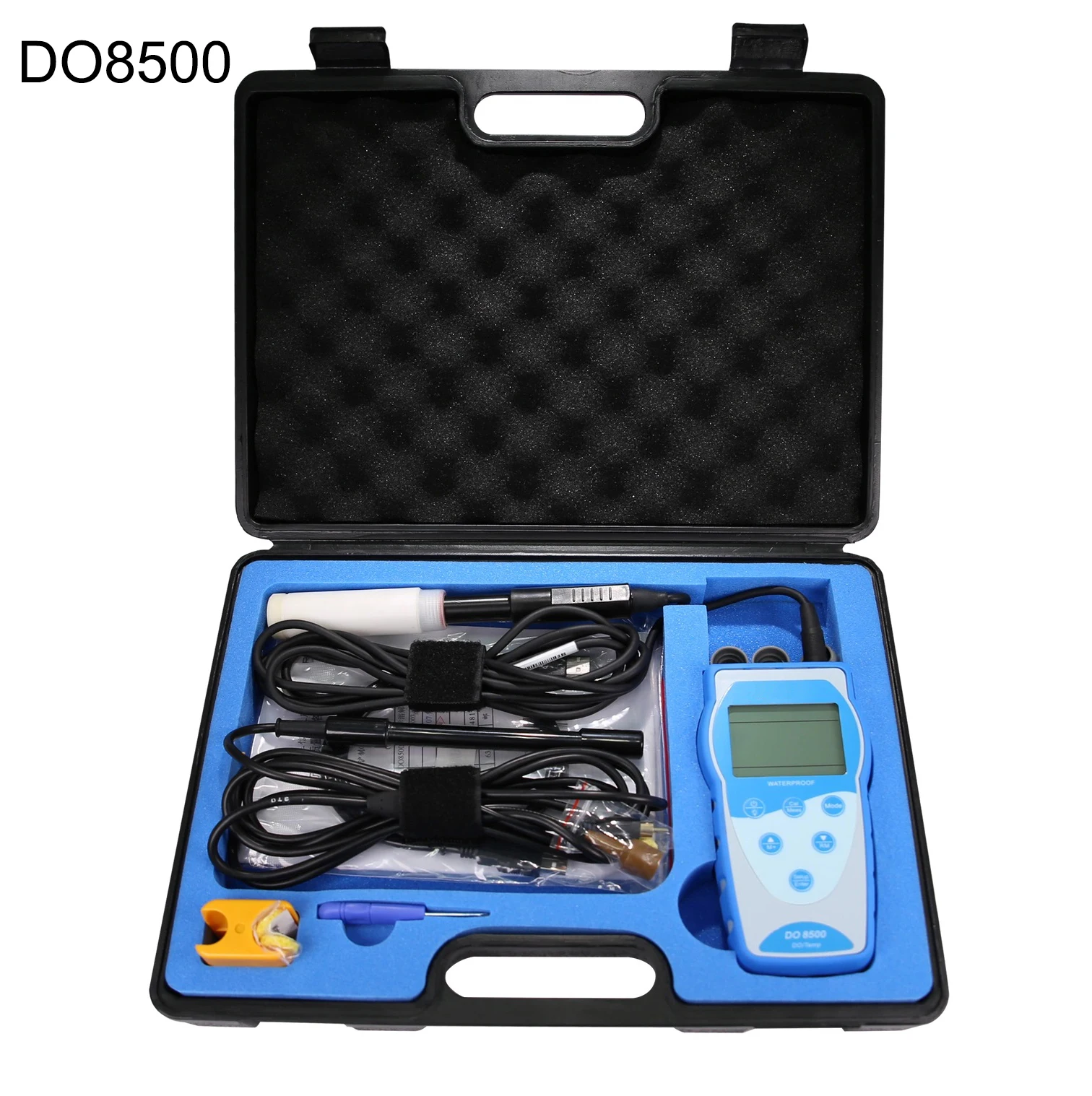

Product set

DO8500 meter

DO803 electrode(3M)

salinity electrode(3M)

Calibration sheath combination probe cap

USBcable+CD+ carrying case

Dimensions and Weight

Meter: 88×170×33 mm/313g

With case: 360×270×76 mm/1.3kg

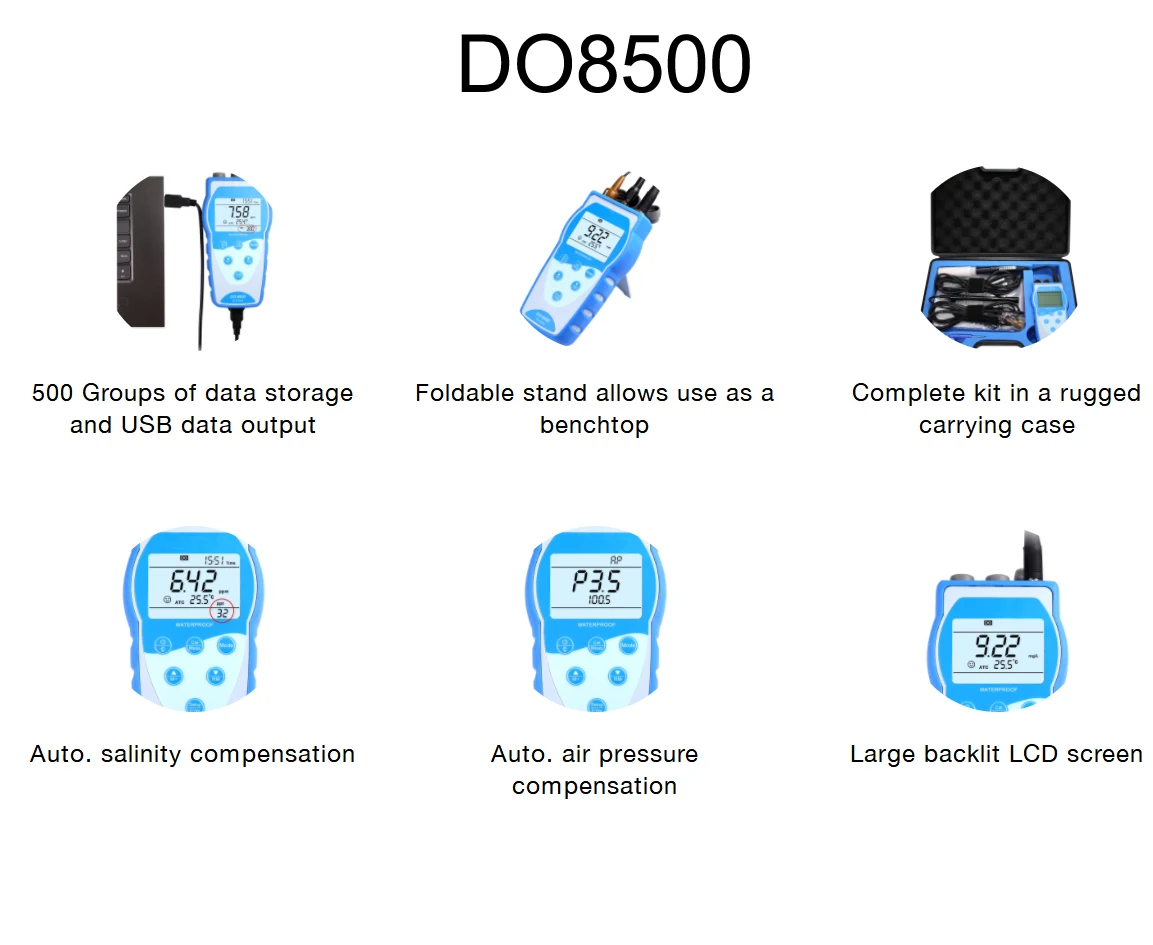

Real photos show
