DO850 Portable Optical DO Meter

Dissolved Oxygen Measuring Range: (0-20.00) mg/L (ppm), (0-200.0)%
Resolution: 0.1mg/L (ppm), 1%
Operating Temp.Range: 0 to 50℃ (32℉ to 122℉)
Calibration: Saturation Point & Zero Oxygen
Availability:
  • DO850
  • NADE
  • 1
  • 1 year
  • China

Product Description

4

Advanced fluorescent optical sensors:

1. It does not consume oxygen during the measurement and is not affected by the flow speed of the sample. The measurement is stable.

2. No fluoride and electrode membrane, no preheating and frequent calibration, easy to use.

3. The fluorescent cap is plated with a light-shielding layer, which is not affected by external light sources; non-chemical sensors are not affected by various heavy metal ions, H2S and NH4 in the measurement.

4. In addition to mechanical damage (such as scratching the shading layer), the fluorescent cap has a displacement of up to 8000 hours. Matching electrode calibration sleeve makes calibration and maintenance more convenient and reliable.

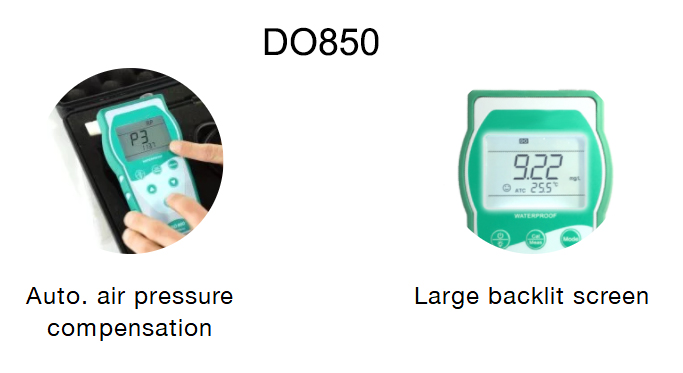

Advanced smart meters:

1. Automatic temperature compensation, automatic pressure compensation, manual salinity compensation.

2. Large LCD display with white backlight, clear display.

3. There are reading stable display mode and automatic lock display mode.

4. In line with IP57 waterproof rating, equipped with instruments and meters as standard.


Application

1

Specification

Model

DO850

Dissolved Oxygen



Measuring Range

(0-20.00) mg/L (ppm), (0-200.0)%

Resolution

0.1mg/L (ppm), 1%

Accuracy

±0.1 mg/L,(0~8mg/L)

±0.2 mg/L,(8~20mg/L)

Response Time

≤30 s (25℃ , 90% response)

Calibration Points

Saturation Point & Zero Oxygen

Temperature Compensation

Automatic, (0 to 50)℃

Pressure Compensation

Automatic, (60 to 120) kPa

Salinity Compensation

Manual, (0 to 45) ppt

Temperature

Range

(0 to 50.0) ℃

Resolution

0.1 ℃

Accuracy

±0.5 ℃

Reading stable indication

Yes

Automatic lock on

Yes

Display screen

Backlight LCD

Data logging

No

Real time clock

No

Signal output

No

Batteries

AA x 3 (1.5V×3)

IP Rating

IP57

Product set

DO850 meter

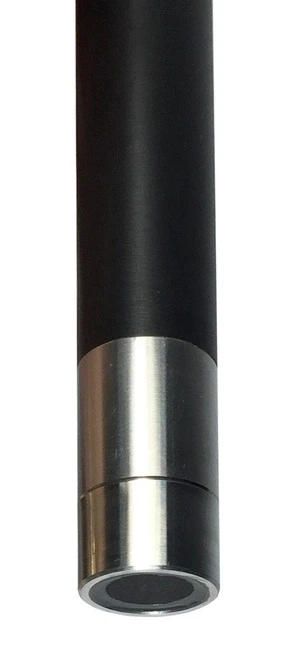

DO803 electrode(3M)

Calibration sheath + carrying case



Real photos show

2.jpgdo850 .jpg

         .jpg     do_850_case.jpg
