Product Description
We provide a wide range of stirrer/mixer/agitator/homogenizer,

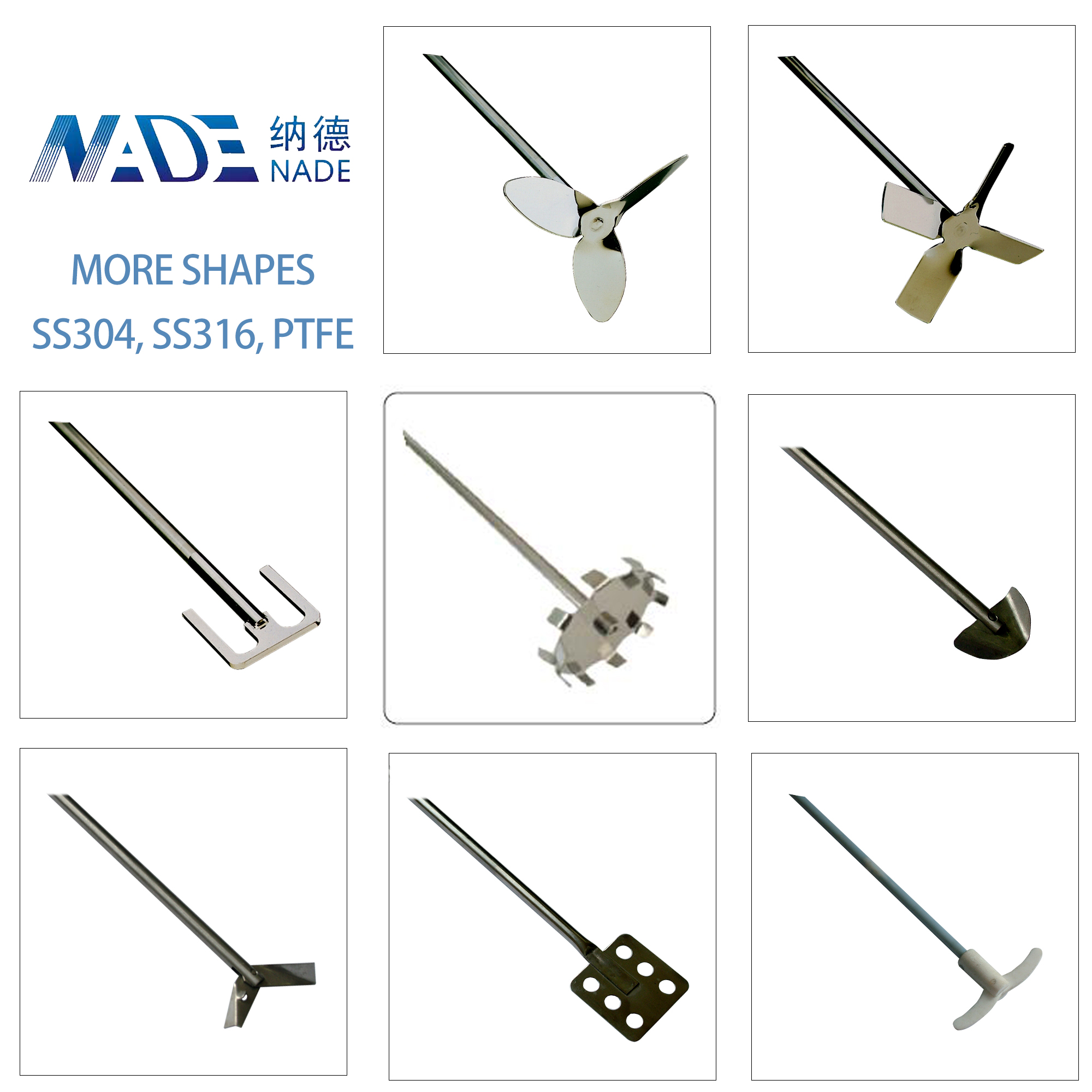

paddle can be customized as your requirement,
pls enquiry us for more details.

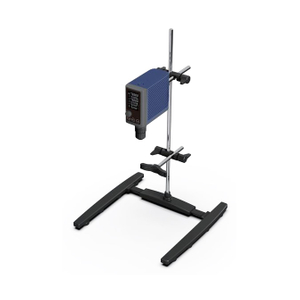

The stirrer can stir high viscosity medium or thick liquid and stirring speed can be regulated easily during operation. The stirrer is an ideal device in the field of biological material, physics and chemistry, reagent, building material, cosmetics and health products etc. for products developing, quality control and material testing.
l AM series lab mixer has compact design: the head machine includes micro-driven motor, controller and the moment institutions and other components.
l Widely suitable for the laboratory of low to medium and high viscosity liquid mixture mixing.
l AM Series Mixers adopt high quality engineering plastics for the body, runs more stably, more safe for using electricity(has better insulativity).
l Output torque is multiplied by using variable speed force.
l speed controller IC all constant speed detection technology, can be immediately effective compensation arising from the variation of load and power supply voltage fluctuation speed, internal soft - start, automatic overload protection, and the whole process of constant power compensation and other features.
l Models with " H " show speed directly, easy to record experimental data.
1. Strong power Motor.
2. Widely used in laboratory for mixing and dispersing material of solid-liquid, liquid-liquid, in different viscosity from low to high.
3. Suitable for a wide range of material with different stirring paddle and different speed.
4. Stable and constant operation.
5. Overload protection.
6. Long time running.
7. High effective in speed control.
8. Easy operate and easy clean easy maintenance.
9. Models with “H” have function of digital display.
| Model | AM200S-P | AM300S-P | AM200S-H | AM300S-H |
| Rated Power Supply | AC 220 V 50 Hz | AC 220 V 50 Hz | AC 220 V 50 Hz | AC 220 V 50 Hz |
| Input Power | 340W | 510W | 340W | 510W |
| Output Power | 200W | 300W | 200W | 300W |
| Rated Torque | 1.45Nm | 1.96Nm | 1.45Nm | 1.96Nm |
| Working system | 100% | 100% | 100% | 100% |
| Speed display | NO display | NO display | Display value*10 rpm | Display value*10 rpm |
| Rating Speed Control | Variable | Variable | Variable | Variable |
| Range of Speed | 50-1800 rpm | 50-1800 rpm | 50-1800 rpm | 50-1800 rpm |
| Max viscosity | 17000cP | 26000cP | 17000cP | 26000cP |
| Capacity (H2O) | 50-60,000 ml | 50-85,000ml | 50-60,000 ml | 50-85,000ml |
| Shape Size (mm) | 360×260×760 | 360×260×760 | 360×260×760 | 360×260×760 |
| Permission ambient temperature | ≤ 40 °C | ≤ 40 °C | ≤ 40 °C | ≤ 40 °C |
| Permission Relative humidity | ≤ 90 % | ≤ 90 % | ≤ 90 % | ≤ 90 % |
