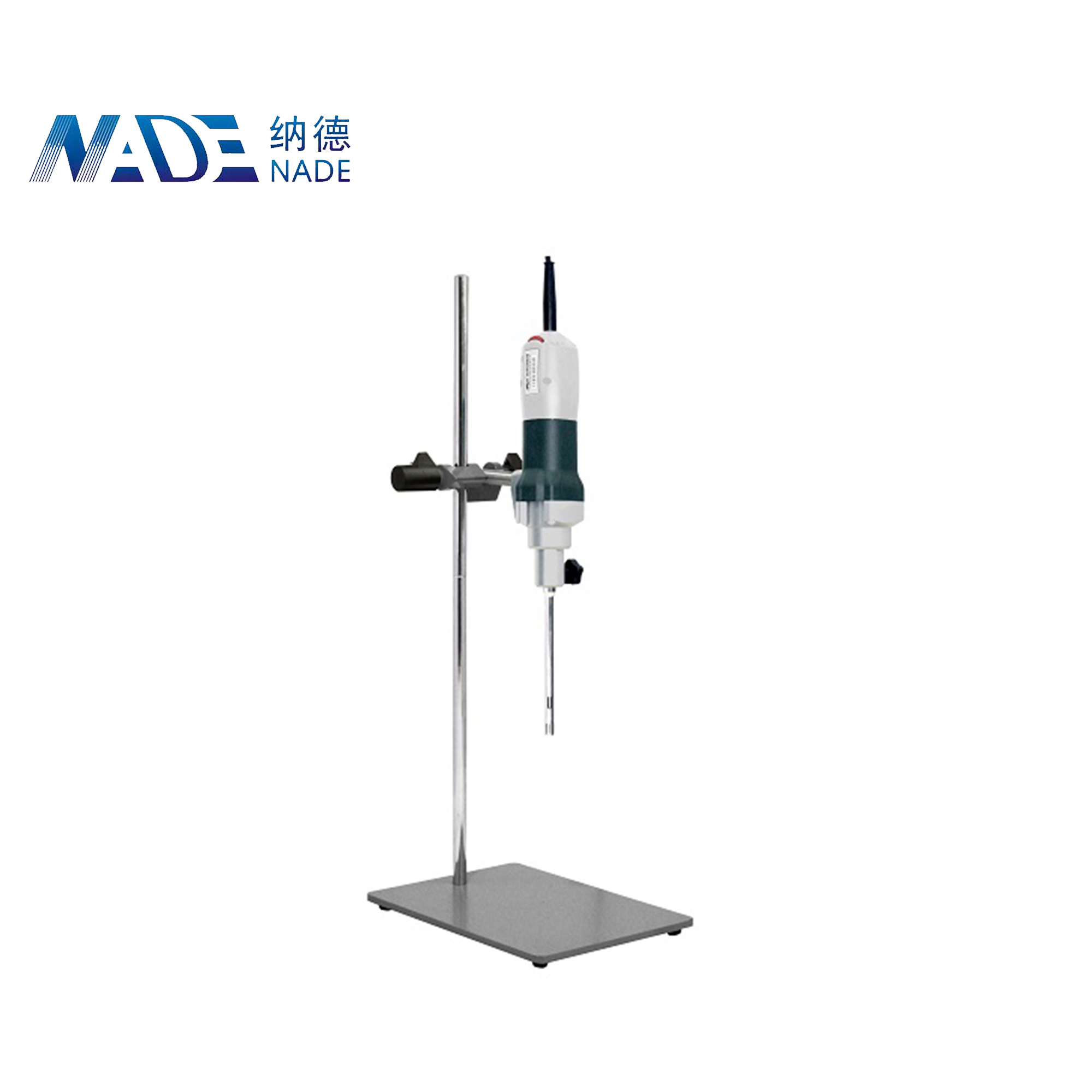

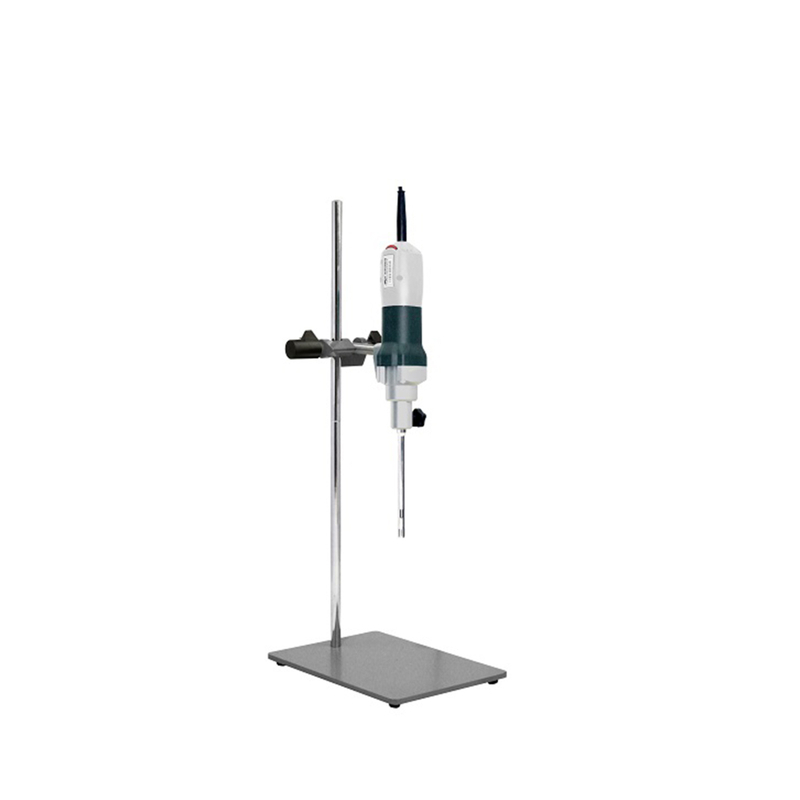

NADE AD18 15~5000ml Laboratory Small scale High Shear Disperser Emulsifier Homogenizer 8G/10G/12G/18G/24G

  • Homogenizer

  • 5 L

  • 5 L

  • 11 KG

  • New

  • Cosmetic

  • Liquid with Suspended Solids, liquid/liquid, Solid/liquid, Medicine Processing, Chemicals Processing, Food Processing

  • China

  • 220V 50HZ

  • 215*310*700mm

  • ISO

  • 0.71 kW

  • 1 year

  • Easy to Operate

  • laboratory

  • No service

  • None

  • None

  • Ordinary Product

  • Not Available

  • Not Available

  • 1 Year

  • other

  • No overseas service provided

  • 15~5000 ml(5 shafts for choice)

  • 8G/10G/12G/18G/24G

  • Stainless steel 316L

  • 13000~34000 rpm

  • NO

  • 710W

  • 430W

  • Combined controlling knob

Product Description

Introduction

Adopts structure compact series-excited type miniature high speed motor drive for the Low to medium and High viscosity liquid mixing ,dispersing & Homogenizing materials in liquid medium.

Usage:

The device can be applied to different areas like dispersing of tissue in biotechnology, sample preparation in medicine, cosmetic industry, paint industry, petro-chemical processing. It can also be applied to any liquid material experiment like liquid and liquid phase, Liquid and solid phase, Viscosity less than 0.2Pa.s, temperature below 80 ℃. The experimental medium can achieve a fine and delicate mixing by squeezing, strongly impacting and cracking, and liquid layers can be avoided during the operating.

Features

1.High Shear Homogenizer has Various of agitators(working heads) are designed for different processing capacity and difference experiment requirement ,include Crushing, emulsifying , homogenizing , polymerization, suspension, dissolving and Mixing etc. Especially for high viscosity material.
2.And it is easy to operate and easy to clean, easy to maintenance .
3.Variable Rating Speed Control provide with a high effect.
4.Speed controller adopts IC constant speed control, can instantly to compensate for speed change of the load changes and power supply voltage fluctuation .

Specification
Model
AD18
Working head
8G
10G
12G
18G
24G
Maximum line speed of the rotor
10m/s
11m/s
12m/s
15m/s
18m/s
Mixing capacity (H2O,ml)
15~50
20~100
30~800
50~1500
80~5000
Rated voltage
AC 220
Rated frequency
50/ 60 Hz
Input power
710 W
Output power
430 W
Rated torque
12.1 N·cm
Work mode
S1
Speed control
Continuously Adjustable
Speed range
13000~34000 rpm
The Material of the Operating head
SS316
Size of the mixer (T×B×H)
215×310×700 mm
Permissible ambient temperature
Lower than 40ºC
Permissible relative humidity
Less than 80%
Net weight
11.0KG

Parameter of working shaft:

Working head
8G
10G
12G
18G
24G
Mixing capacity (H2O, ml)
15~50
20~100
30~800
50~1500
80~5000
Max viscosity(mPa.s)
1000
1000
1000
2000
5000
Max. rotation speed(m/s)
10
11
12
15
18
Min./max.immersion depth(mm)
15/150
25/160
35/150
45/160
50/165
Size of stator(mm)
Ø8
Ø10
Ø12
Ø18
Ø24
Legth(mm)
156
182
215
222
225
Max temperature(℃)
120
120
120
120
120
Working head material
SS316L
SS316L
SS316L
SS316L
SS316L
