NADE 60L Laboratory High Speed Digital Homogenizer Emulsifier machine

  • Zhejiang, China

  • NADE

  • 800ml~60,000 ml

  • 2000rpm~11000 rpm, continuous

  • 220V/110V, 50hZ/60hZ

  • 500W

  • YES

  • 1~1000min

  • YES

  • YES

  • 90mm

  • AISI 304

Product Description

Introduction

1. AE Series laboratory shear emulsifying machine adopts structure compact series-excited type miniature high speed motor drive for the Low to medium and High viscosity liquid mixing, crushing particle materials in liquid medium shear emulsification.
2. Various of agitators are designed for different processing capacity and difference experiment requirement And easy to operate, to clean, and to maintenance .
3. Variable Rating Speed Control provide with a high effect.
4. Speed controller adopts IC constant speed control, can instantly to compensate for speed change of the load changes and power supply voltage fluctuation.

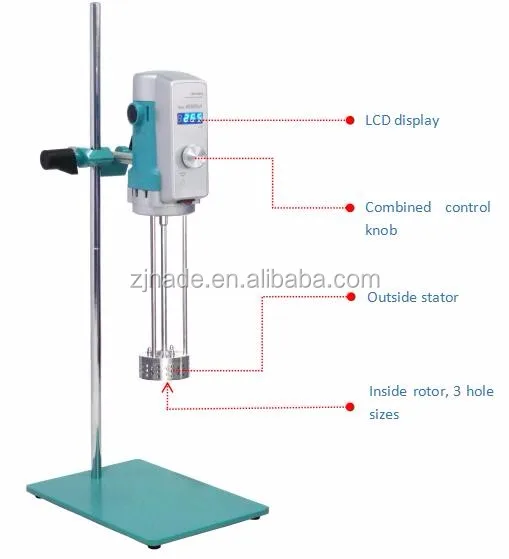

Features

LED screen digital display, it shows real-time speed and left setting time.
More powerful motor driver, also suitable for high viscosity material.
It can alarm if driver overloads or failure to protect the equipment.
Different size of stators for choice.

All functions are setted by one knob, easy to operate.

Applications

Laboratory shear emulsifying machine is suitable for the area of biotechnology-Organizations dispersed, Sample preparation for the pharmaceutical field, Enzymatic treatment of food industry and the pharmaceutical industry, cosmetics industry, The paint industry and petrochemical liquid and the liquid phase, such as experiments of liquid and solid phase.

Specification
Model
AE500S-H 50G
AE500S-H 70G
AE500S-H 90G
Rated voltage
220±10 % VAC
220±10 % VAC
220±10 % VAC
Rated frequency
50/60 Hz
50/60 Hz
50/60 Hz
Input power
850 W
850 W
850 W
Output power
500 W
500 W
500 W
Rated torque
34.1 N.cm
34.1 N.cm
43.3 N.cm
Work mode
S1(Continuous)
S1(Continuous)
S1(Continuous)
Operation control mode
Combined control knob
Combined control knob
Combined control knob
Speed range
1000~14000 rpm
2000~14000 rpm
2000~11000 rpm
Speed control
Continuously Adjustable, Stepless
Continuously Adjustable, Stepless
Continuously Adjustable, Stepless
Speed display
LED
LED
LED
Timing control range
1~1000min
1~1000min
1~1000min
Dynamical Speed detection function
Yes
Yes
Yes
Speed memory function
Yes
Yes
Yes
Overload protection function
Yes
Yes
Yes
Peak torque of the stirring head
34.0 N.cm
34.0 N.cm
43.2 N.cm
Maximum line speed of the rotor
20.5 m/s
20.5 m/s
22 m/s
Stirring head material
AISI 304
AISI 304
AISI 304
Stirring head diameter
Φ50 mm
Φ70 mm
Φ90 mm
Min./max.height of the liquid immersed
50/236mm
50/236mm
50/236mm

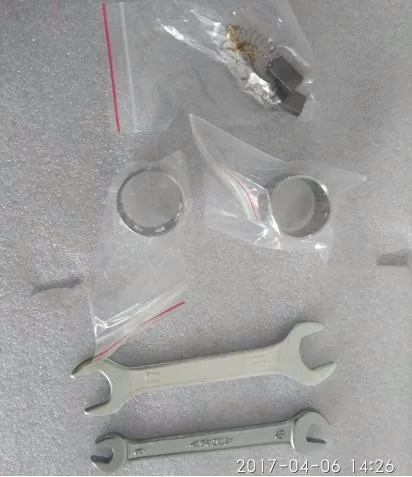

Standard layout of stator
5mm2 20mm2 50mm2
5mm2 20mm2 50mm2
5mm2 20mm2 50mm2
Mixing capacity(H2O)
500~20000 ml
500~40000 ml
800~60000 ml
Max viscosity
8000 mPa.s
8000 mPa.s
8000 mPa.s
Permissible ambient temperature
Lower than 40°C
Lower than 40°C
Lower than 40°C
Permissible relative humidity
Less than 80%
Less than 80%
Less than 80%
Size of the mixer (TxBx H)
215 x310x 720 mm
215 x310x 720 mm
250 x350x 720 mm
Net weight
9.5kg
9.5kg
11kg
