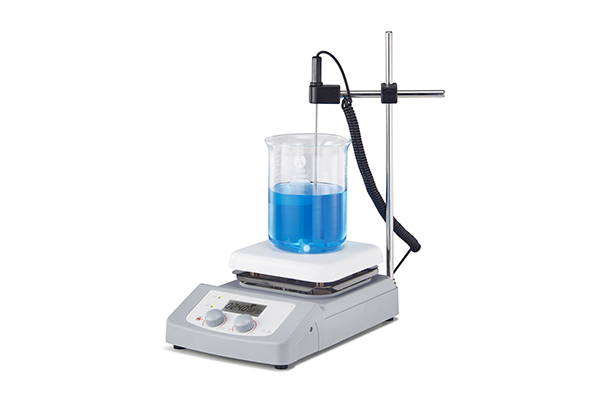

NADE 5L 380C Laboratory Chemical Resistance Magnetic Hotplate Stirrer

  • Other
  • NADE
  • MS-H380-Pro
  • China
  • 5L
  • 200-1500 rpm
  • RT+5 to 380℃
  • 510W
  • 140*140mm

Product Description

Product Description

introduction:

This 380°C magnetic hotplate stirrers include all leading safety standards and is chemically-resistant with white ceramic work plate. They can be used in physical, chemical, analytical and biological laboratories.

Features:

1. Max. heating temperature is 380°C
2. High resolution LCD displays actual temperature and speed
3. Brushless DC motor is maintenance free
4. Aluminum cover with ceramic work plate, allows for immediate heat transfer
5. External temperature control is possible with temperature sensor PT1000
6. Digital temperature control with max. temperature at 380°C
7. Digital speed control with max. speed up to 1500rpm
8. Max. stirring quantity of H2O at 5L

Specification
Model
MS-H380 Pro
Work plate Dimension
140x140mm
Work plate material
Aluminum cover with ceramic coating
Motor type
Brushless DC motor
Motor rating input
2.4W
Motor rating output
1.8W
Power
510W
Heating output
500W
Voltage
100-120/200-240V 50/60Hz
Stirring positions
1
Max. stirring quantity[H2O]
5L
Max. magnetic bar[length]
50mm
Speed range
200-1500rpm
Speed display
LCD
Temperature display
LCD
Heating temperature range
Room temp.+5°C - 380°C
Over heat Protection
420°C
Temperature display accuracy
±1°C
External temperature sensor
PT1000 (accuracy ±0.5°C)
Control accuracy of sensor
±20rpm
Protection class
IP21
Dimension [W x D x H]
320x180×108mm
Weight
2.2kg
Permissible ambient temperature and humidity
5-40°C 80%RH
