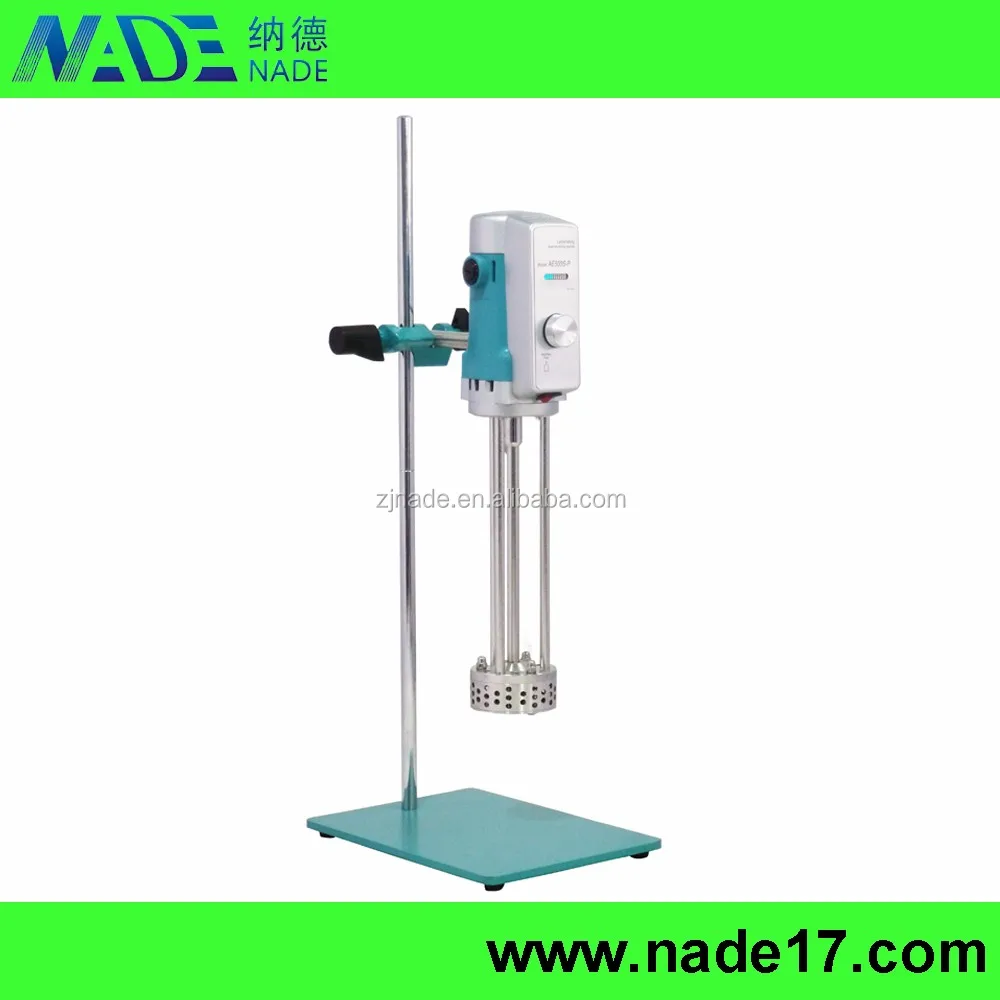

NADE 40L High Speed Small Scale Laboratory Homogenizer

  • Other
  • NADE
  • AE300L-P
  • China
  • 500~40000 ml
  • 0~13000 rpm
  • speed control box
  • 300W
  • NO
  • AISI 304
  • 8000 mPas
  • 13.8kg
  • 220V/110V, 50Hz/60Hz

Product Description

More homogenizer

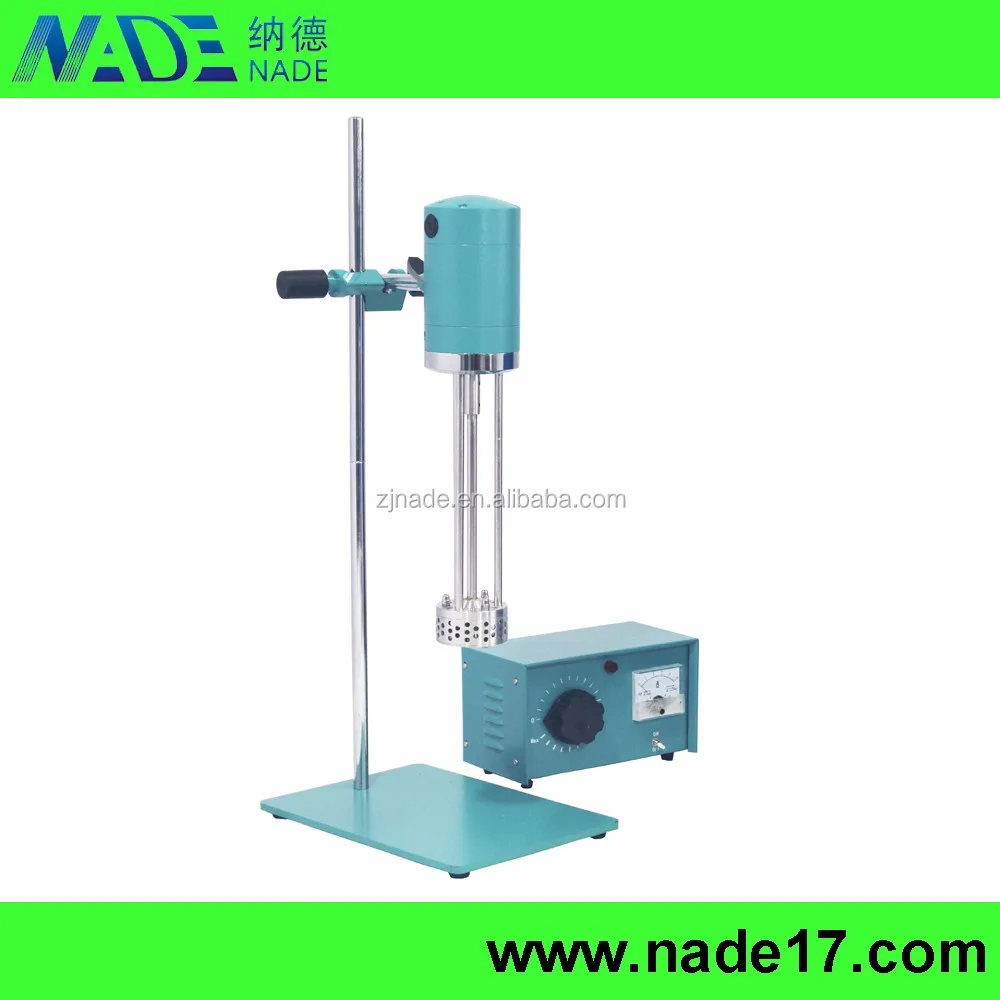

AE300L-P, 40L

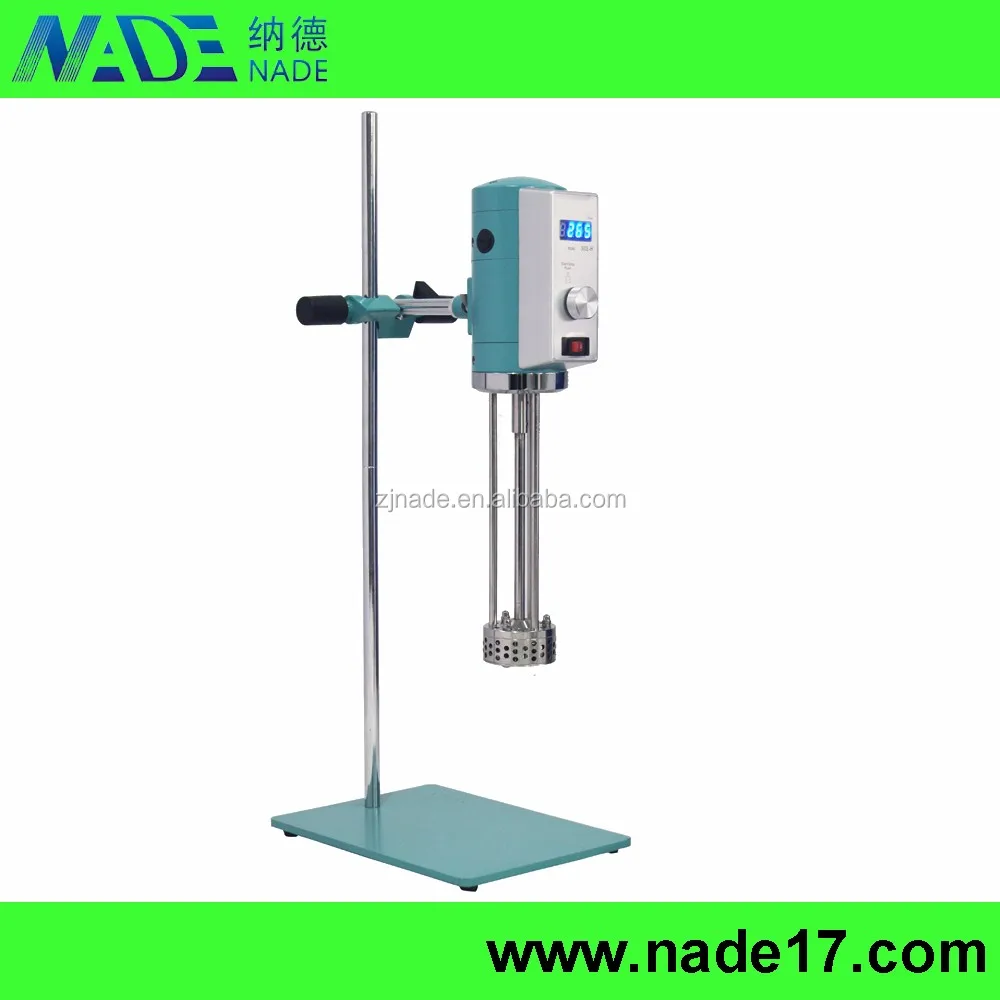

AE300L-H, 40L, digital

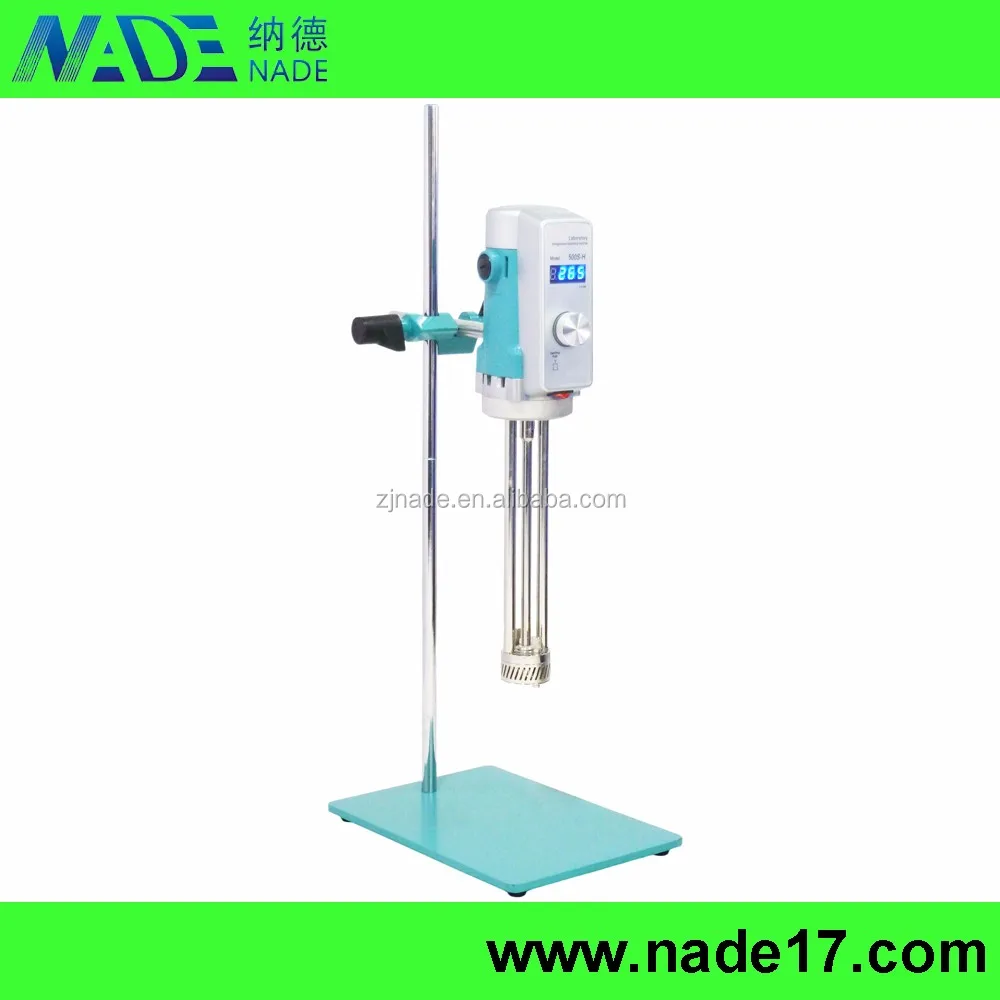

AE500S-H 20/40/60L digital
AE500S-P, 40L
Introduction
Besides homogenizer, we also provide laboratory overhead stirrer, mechanical mixer, high shear emulsifying machine, magnetic stirrer for liquid/liquid+ solid processing. Pls contact us for more details.
Features

1. AE Series laboratory shear emulsifying machine adopts structure compact series-excited type miniature high speed motor drive for the Low to medium and High viscosity liquid mixing, crushing particle materials in liquid medium shear emulsification.
2. Various of agitators are designed for different processing capacity and difference experiment requirement And easy operate and easy clean easy maintenance .
3. Variable Rating Speed Control provide with a high effect.
4. Speed controller adopts IC constant speed control, can instantly to compensate for speed change of the load changes and power supply voltage fluctuation.

Usage:
Laboratory shear emulsifying machine is suitable for the area of biotechnology-Organizations dispersed, Sample preparation for the pharmaceutical field, Enzymatic treatment of food industry and the pharmaceutical industry, cosmetics industry, The paint industry and petrochemical liquid and the liquid phase, such as experiments of liquid and solid phase.

Specification
MODEL
AE300L-P
Rated Power Supply
AC 220 V, 50 Hz; optional AC 110V, 60Hz
Input Power
510W
Output Power
300W
Rated Torque
22.1 N.cm
Work mode
S1 (continuous)
Rating Speed Control
Stepless
Range of Speed
0-13000 rpm
Speed Display
NO
Stator
5/20/50mm
Capacity (H2O)
500~40000 ml
Shape Size
215×310×720 mm
Permission ambient temperature
≤ 40 °C
Permission Relative humidity
≤ 90 %
Max processing viscosity
N/A
working head size
70mm
