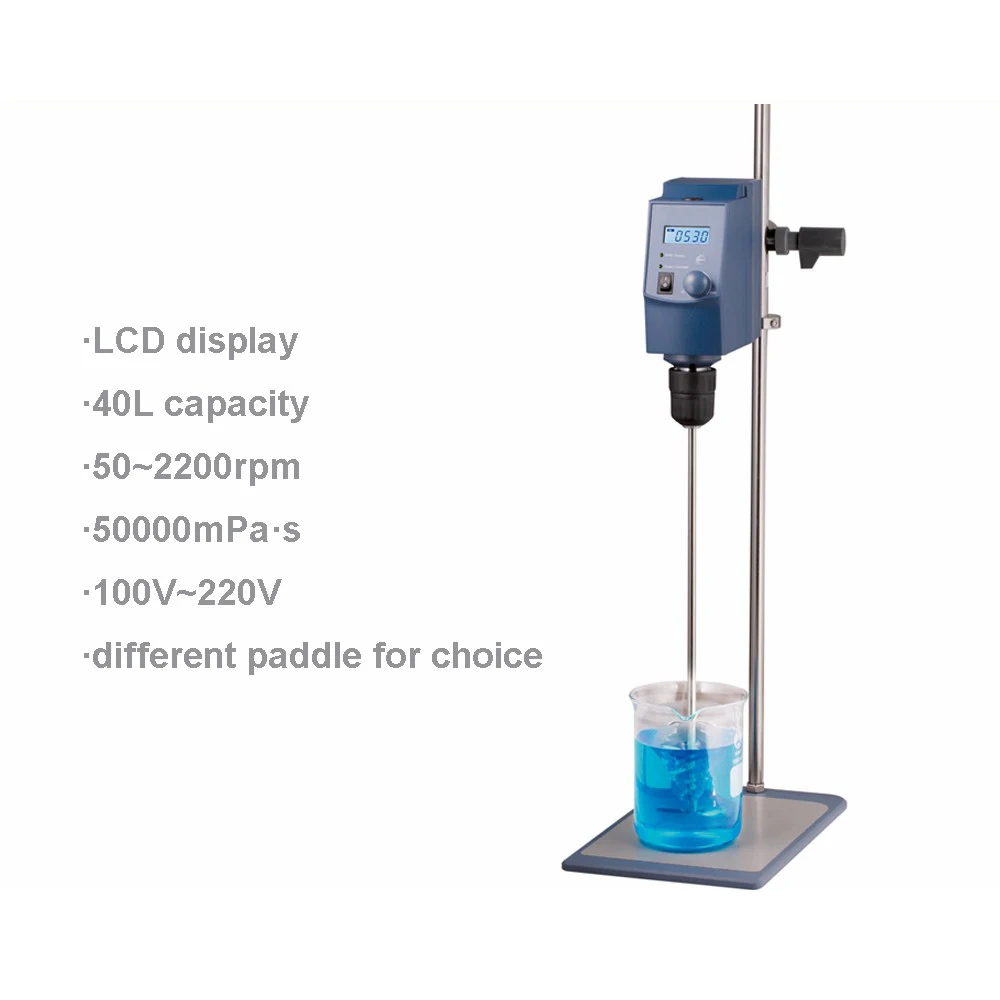

Product Description
Overhead Stirrers can accomplish the most demanding tasks and provide high safety and increased performance. They are widely used in chemical synthesis, pharmaceutical synthesis, physical and chemicalanalysis,petrochemical industries, etc.
1.High reliability and outstanding performance
2.LCD display for precise monitoring of set and actual speeds, a wide range of speed from 50 to 2200rpm with control accuracy of ±3 rpm
3.Brushless DC motor for long life, maintenance free and explosion proof
4.Torque trend display for real-time information on viscosity changes
5.Safety circuits allow for safe stop function in anti-stall or overload conditions
6.Smooth operation prevents accidental spillage and splashing
7.Provides a constant speed even with changes in viscosities of the sample
8.Remote function provide PC control and data transmission
| OS20-Pro | OS40-Pro | |
| Max. stirring quantity(H2O) | 20L | 40L |
| Motor type | Brushless DC motor | Brushless DC motor |
| Motor rating input | 60W | 120W |
| Motor rating output | 50W | 100W |
| Voltage | 100~220V, 50/60Hz | 100~220V, 50/60Hz |
| Power | 70W | 130W |
| Speed range | 50~2200rpm | 50~2200rpm |
| Speed display accuracy | ±3rpm | ±3rpm |
| Speed display | LCD | LCD |
| Torque display | LCD | LCD |
| Overload protection display | LED lights | LED lights |
| Max. torque | 40Ncm | 60Ncm |
| Viscosity max. | 10000mPas | 50000mPas |
| Chuck range diameter | 0.5~10mm | 0.5~10mm |
| Dimension[W x H x D] | 83*220*186cm | 83*220*186cm |
| Weight | 2.8kg | 2.8kg |
| Permissible ambient temperature and humidity | 5~40℃, 80% | 5~40℃, 80% |
| Data connector | RS232 | RS232 |
Ordering information of full set:
Motor+all necessary clamp+rod+plate+1 pc of paddle
There are different paddle shapes suitable for OS Series, please choose from below sheet.
