Paddle
3
Chemicals, Medicine
3 L
3L
1.8 KG
New
Other
Liquid, Medicine Processing
Other
China
NADE
100-120/200-240V
150*260*80mm
ISO CE
0.52 kW
1 Year
Easy to Operate
laboratory
No service
None
None
Ordinary Product
Not Available
Not Available
1 Year
Other
No overseas service provided
100-1500 rpm
±1 rpm
500W
RT~280 °C
135mm (5inch)
Product Description

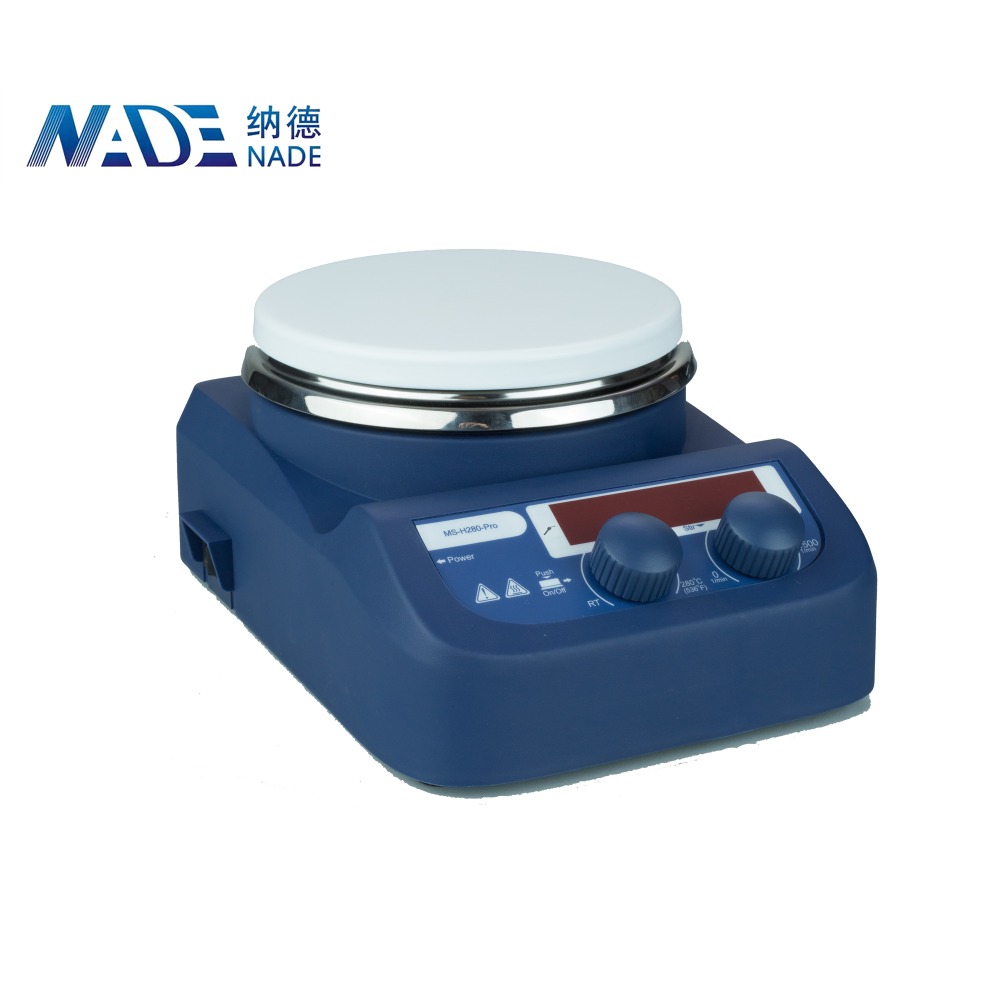

NADE 3000ml LED Digital Magnetic Hotplate Stirrer for lab
1.Digital control system is ideal for applications for physical - chemical analysis and biotech labs.
2.Heating temperature up to 280°C
3.Stainless steel with ceramic coated hotplate resists to corrosion
4.External temperature sensor PT1000 is available and control accuracy of ±1°C, real-time control medium temperature.
5.LED display temperature and speed.
6.50℃ HOT warning indicates residual hotplate temperature.
7.ABS casing with fire retardant material, resistance of weak acid and alkali
|
| MS-H280-Pro |
| Dimension of work plate [mm] | φ135(5 inch) |
| Work plate material | Stainless steel with ceramic coated |
| Motor type | Brushless DC motor |
| Motor rating input [W] | 5 |
| Motor rating output [W] | 3 |
| Power [W] | 515 |
| Voltage [VAC] | 100-120/200-240 |
| Frequency [Hz] | 50/60 |
| Stirring positions | 1 |
| Max. stirring quantity[H2O], L | 3 |
| Max. magnetic bar(L x Ø) [mm] | 50 x 8 |
| Speed range [rpm] | 100-1500 |
| Speed display | LED |
| Speed display resolution [rpm] | ±1 |
| Heating output [W] | 500 |
| Heating temperature range [°C] | RT-280, increment 1 |
| Control accuracy of work plate [°C] | ±1(<100°C) |
| Safety temperature [°C] | 320 |
| Temperature display | LED |
| Temperature display accuracy [°C] | ±1 |
| External temperature sensor | PT1000 |
| Control accuracy with external temperature sensor PT1000 [±°C] | ±0.5 |
| Heating warning [℃] | 50°C |
| Remote control (RS232 interface) | N/A |
| Protection class according to DIN EN60529 | IP21 |
| Dimension [W x D x H] mm | 150×260×80 |
| Weight [kg] | 1.8 |
| Permissible ambient temperature [℃] | 5-40 |
| Permissible relative humidity | 80% |

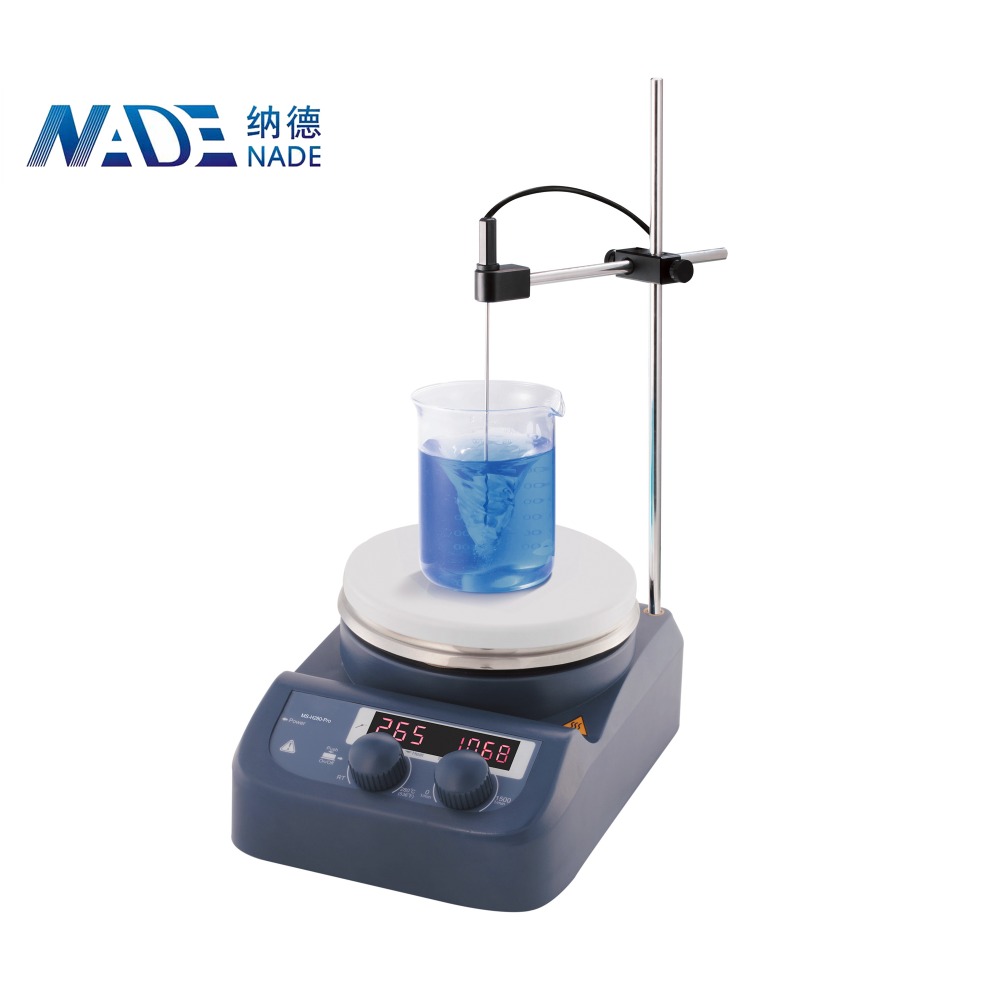

Temperature sensor and support
Stirrer bar and remover
| Number | Descriptions |
| MSBAR10 | Stirrer bar(10mm x 6mm),1pc/pk |
| MSBAR15 | Stirrer bar(15mm x 8mm),1pc/pk |
| MSBAR20 | Stirrer bar(20mm x 8mm),1pc/pk |
| MSBAR25 | Stirrer bar(25mm x 8mm),1pc/pk |
| MSBAR30 | Stirrer bar(30mm x 6mm),1pc/pk |
| MSBAR40 | Stirrer bar(40mm x 8mm),1pc/pk |
| MSBAR50 | Stirrer bar(50mm x 8mm),1pc/pk |
| MARRM | Stirrer bar remover, length of 200mm, 1pc/p |
Reaction block for round bottom flask, one flask capacity
