NADE 20L Laboratory LCD Digital Overhead Stirrer

  • Paddle
  • 20 L
  • Chemicals, Medicine
  • 20 L
  • 20L(H2O)
  • 2.8 KG
  • New
  • wide range, such as cosmetic, solution
  • Liquid, laboratory
  • mixing
  • China
  • NADE
  • 100V~220V
  • 83*220*186mm
  • ISO, CE
  • 0.13 kW
  • 1 year
  • Easy to Operate
  • laboratory
  • No service
  • None
  • None
  • Ordinary Product
  • Not Available
  • Not Available
  • 1 Year
  • other
  • No overseas service provided
  • 20L (H2O)
  • DC Brushless motor
  • 50-2200 rpm
  • LCD
  • 10000mPas
  • PTFE or SS316L
  • 70W

Product Description

How to choose

Don't know which is the most suitable stirrer for your application?

→ Then pls do not hesitate to inquire us!

→ In order to get a quick recommendation, Pls inform us your application, what material to mixing, requirement on capacity/speed/continuous stirring time, etc.

Introduction

Overhead Stirrers can accomplish the most demanding tasks and provide high safety and increased performance. They are widely used in chemical synthesis, pharmaceutical synthesis, physical and chemicalanalysis,petrochemical industries, etc.

Features

High reliability and outstanding performance
LCD display for precise monitoring of set and actual speeds, a wide range of speed from 50 to 2200rpm with control accuracy of ±3 rpm
Brushless DC motor for long life, maintenance free and explosion proof
Torque trend display for real-time information on viscosity changes
Safety circuits allow for safe stop function in anti-stall or overload conditions
Smooth operation prevents accidental spillage and splashing
Provides a constant speed even with changes in viscosities of the sample
Remote function provide PC control and data transmission

Specification
OS20-Pro
OS40-Pro
Max. stirring quantity(H2O)
20L
40L
Motor type
Brushless DC motor
Brushless DC motor
Motor rating input
60W
120W
Motor rating output
50W
100W
Voltage
100~220V, 50/60Hz
100~220V, 50/60Hz
Power
70W
130W
Speed range
50~2200rpm
50~2200rpm
Speed display accuracy
±3rpm
±3rpm
Speed display
LCD
LCD
Torque display
LCD
LCD
Overload protection display
LED lights
LED lights
Max. torque
40Ncm
60Ncm
Viscosity max.
10000mPas
50000mPas
Chuck range diameter
0.5~10mm
0.5~10mm
Dimension[W x H x D]
83*220*186cm
83*220*186cm
Weight
2.8kg
2.8kg
Permissible ambient temperature and humidity
5~40℃, 80%
5~40℃, 80%
Data connector
RS232
RS232
Optional accessories

Ordering information of full set: Motor+all necessary clamp+rod+plate+1 pc of paddle.

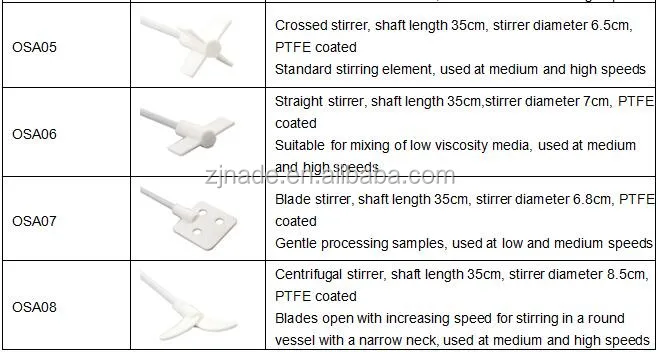

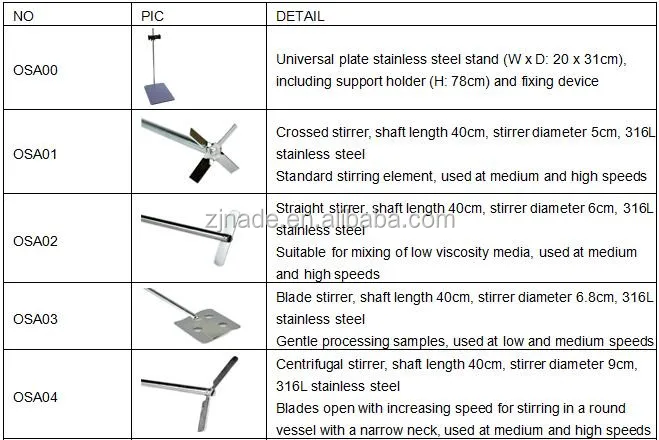

We provide SS316L paddle and PTFE paddle at different, Pls choose one or more paddle among OSA01~OSA08.
