stirring
20
20 L
20000ml
11 KG
New
suitable for wide range of products
liquid, liquid with suspended solids, viscous fluid, Chemicals Processing
Other
Zhejiang, China
NADE
220V,50Hz or 110V,60Hz
215x310x720 mm
ISO9001
0.12 kW
1 Year
Online support
Competitive Price
laboratory
No service
None
None
Ordinary Product
Not Available
Not Available
1 Year
other
60~500rpm; 240~2000rpm
50~20,000 ml
100,000 mPa.s
110V~220V, 50HZ/60HZ
YES
180W/120W
Product Description
NADE Digital Overhead Stirrer Lab Liquid Agitator MixerM
Model: AM120Z-H
Together with stirrer, we provide 1 pc of stirrer free.
If you need more stirrer, please inquiry us with expected shape,different material(SS304, SS316, PTFE). We can also customize paddle shape for you.
We provide a wide range of stirrer/mixer/agitator/homogenizer, Pls choose suitable model at our shop or inquire us.
The stirrer can stir high viscosity medium or thick liquid and stirring speed can be regulated easily during operation. The stirrer is an ideal device in the field of biological material, physics and chemistry, reagent, building material, cosmetics and health products etc. for products developing, quality control and material testing. It is a laboratory equipment.
1. Digital display.
2. Widely used in laboratory for mixing and dispersing material of solid-liquid, liquid-liquid, in different viscosity from low to high.
3. Suitable for a wide range of material with different stirring paddle and different speed.
4. Stable and constant operation.
5. Overload protection.
6. Long time running.
7. High effective in speed control.
8. Easy operate and easy clean easy maintenance.
9. Low noise.
10. Excellent motor.
Power Supply | AC 220 V, 50 Hz or 110V, 60Hz |
Input Power | 180W |
Output Power | 120W |
Rated Torque | 0.52Nm |
Work Type | S1 |
Rating Speed Control | stepless |
Range of Speed | low: 60-500rpm, High: 240-2,000rpm |
Stirring bar fixation | Quick type clamp |
Speed value | Display value, rpm |
Spin Chuck Maximum torque | 52Ncm |
Stir bar clamp range | 2-10mm |
Stirring paddle shape | 4 blade, M1601 |
Stirring Capacity (H2O) | 50~20,000 ml |
Max processing viscosity | 100000 mPa.s |
Size | 215×310×720 mm |
Ambient temperature | ≤ 40 °C |
Relative humidity | ≤ 80 % |

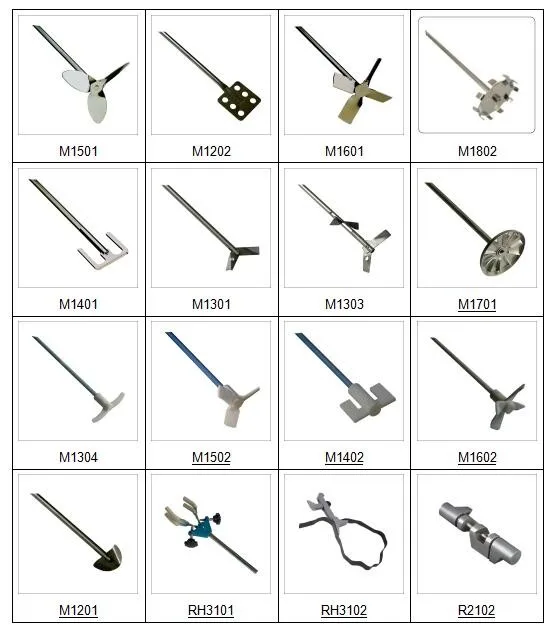

Standard shape of paddle:
M1601
More shapes, customized shape.
