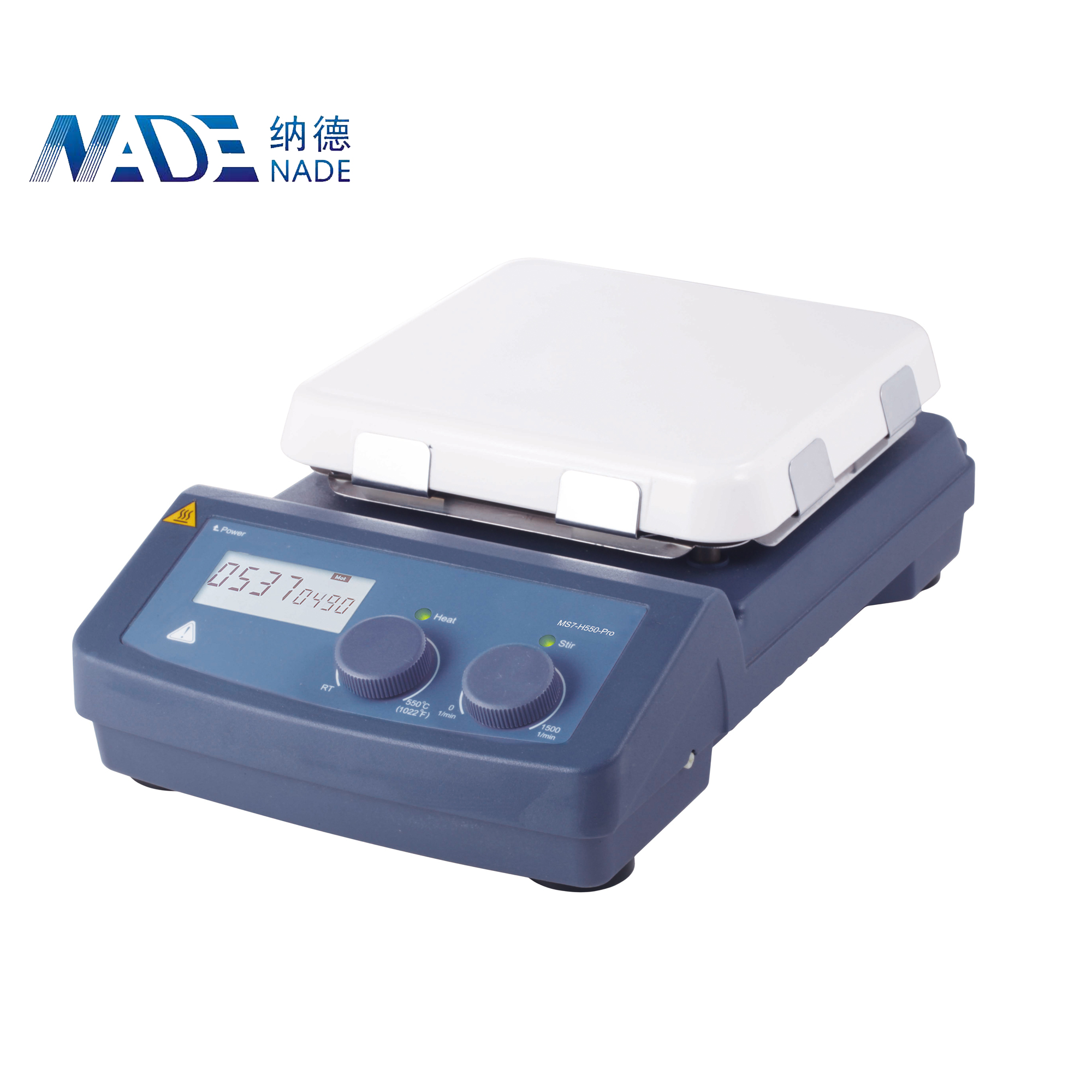

NADE 20L 550C LCD Display 7" Hotplate Magnetic Stirrer for Lab

  • Magnetic stirring bar
  • 20 L
  • Chemicals, Medicine
  • 20 L
  • 20L(H2O)
  • 5.3 KG
  • New
  • Many kinds of liquid such as cosmetic
  • Liquid, laboratory
  • liquid heating, liquid mixing
  • China
  • NADE
  • 100~120/200~240V, 50/60Hz
  • 215*360*112mm
  • ISO CE
  • 1.05 kW
  • 1 Year
  • Online support, No overseas service provided
  • Easy to Operate
  • laboratory
  • No service
  • None
  • None
  • Ordinary Product
  • Not Available
  • Not Available
  • 1 Year
  • Other
  • Glass ceramic, chemical resistance
  • 184*184mm
  • DC brushless motor
  • 100~1500rpm
  • RT~550℃
  • 1℃
  • 580℃
  • LCD screen

Product Description

Introduction
1.MS7-H550-Pro 7” square hotplate magnetic stirrer is widely used in chemical synthesis, physical and chemical analysis, bio-pharmaceuticals and other fields.

2.Combining with glass ceramic work plate, brushless DC motor, external temperature sensor and the work plate temperature optimized up to 550℃.
3.PID temperature technology precise controls heating process, rapidly reaches target temperature and enhances control accuracy, heating temperature up to 550℃.
4.7 inch square magnetic stirrers have glass ceramic plate extremely resistant to corrosion and easy to clean. The heating models are suitable for external temperature sensor PT1000, display and control actual medium temperature.

5. Ideal equipment for liquid handling in laboratory.

Features

1.LCD display for precise monitoring of speed and temperature
2.Built-in PID controller ensures the safe heating of the medium with overheating protection
3.Max. Heating plate temperature 550℃
4.Glass ceramic work plate provides excellent chemical resistant performance and most efficient heat transfer
5.External temperature control is possible by connecting the temperature sensor(PT 1000) with an accuracy at ±0.2℃
6.Digital speed controlling, Max. speed at 1500rpm
7.Outstanding brushless DC motor performance enables more stirring power
8.Two rotating knobs enable the easy and direct change of speed and temperature
9.The “HOT” warning will flash when the work plate temperature is above 50℃ even if the hotplate is turned off
10.Remote function provides PC control and data transmission

Specification
Model
MS7-H550-Pro
Work plate Dimension [W x D]
184x184mm (7 inch)
Work plate material
Glass ceramic
Motor type
Brushless DC motor
Motor rating input
18W
Motor rating output
10W
Power
1050W
Heating output
1000W
Voltage
100~120/200~240V 50/60Hz
Stirring positions
1
Max. stirring quantity, [H2O]
20L
Max. magnetic bar[length]
80mm
Speed range
100~1500rpm, resolution ±1rpm
Speed display
LCD
Temperature display
LCD
Heating temperature range
Room Temp.-550℃, increment 1℃
Temperature control accuracy
±1℃(<100℃) ±1%(>100℃)
Overheating protection
580℃
Temperature display accuracy
±0.1℃
External temperature sensor
PT1000 (accuracy ±0.2)
Hot warning
50℃
Data connector
RS232
Protection class
IP21
Dimension [W x D x H]
215x360x112mm
Weight
5.3KG
Permissible ambient temperature and humidity
5~40℃ 80%
Ordering information

Full set includes: 1 pc of magnetic stirrer + 1 pc of temperature sensor PT1000-A + support for sensor.

* Stirrer can also be used without temperature sensor, but it will not display real temperature value.
