NADE 20L 30~2000rpm Strong Power Brushless Motor Overhead mixer Chemical Lab stirrer

Share to:

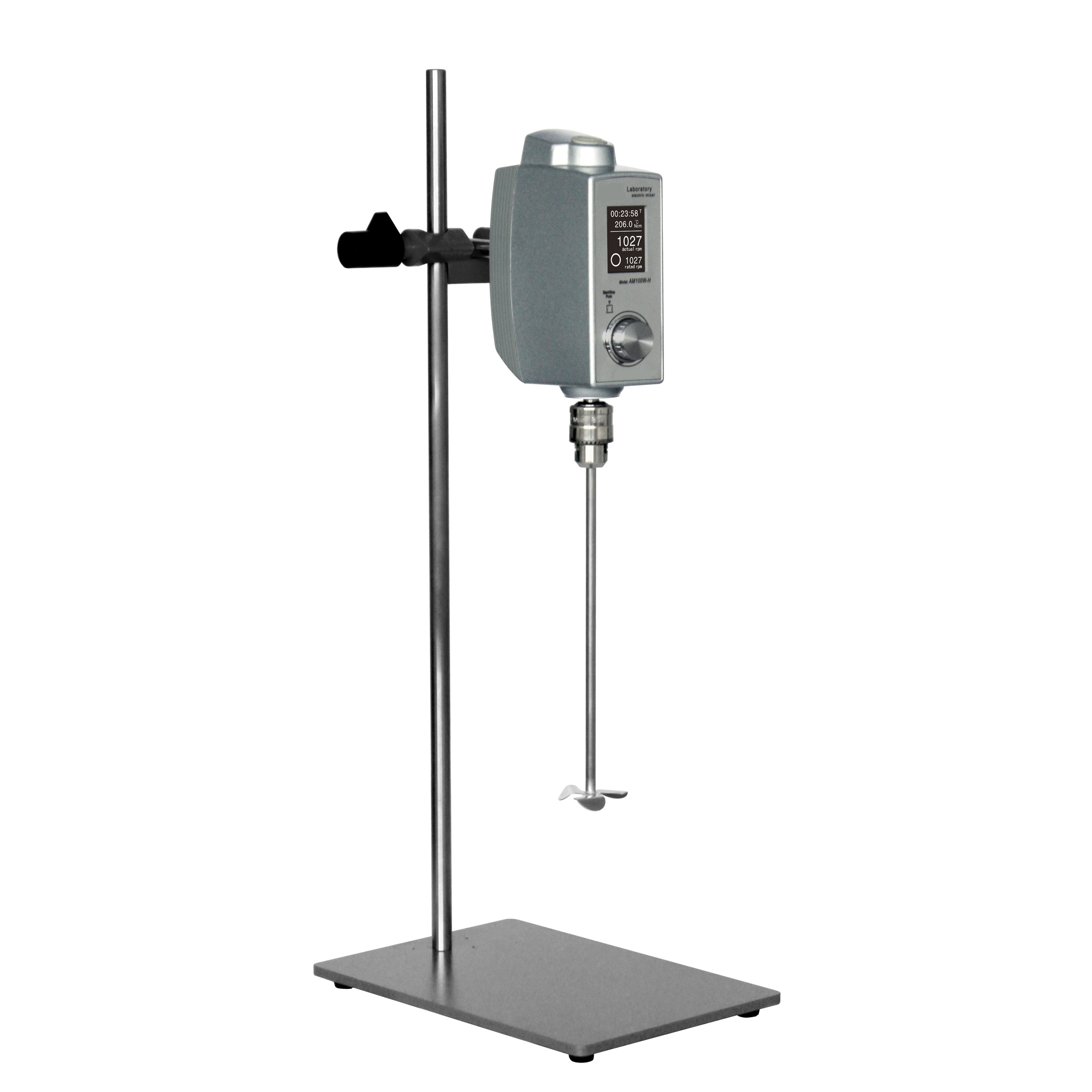

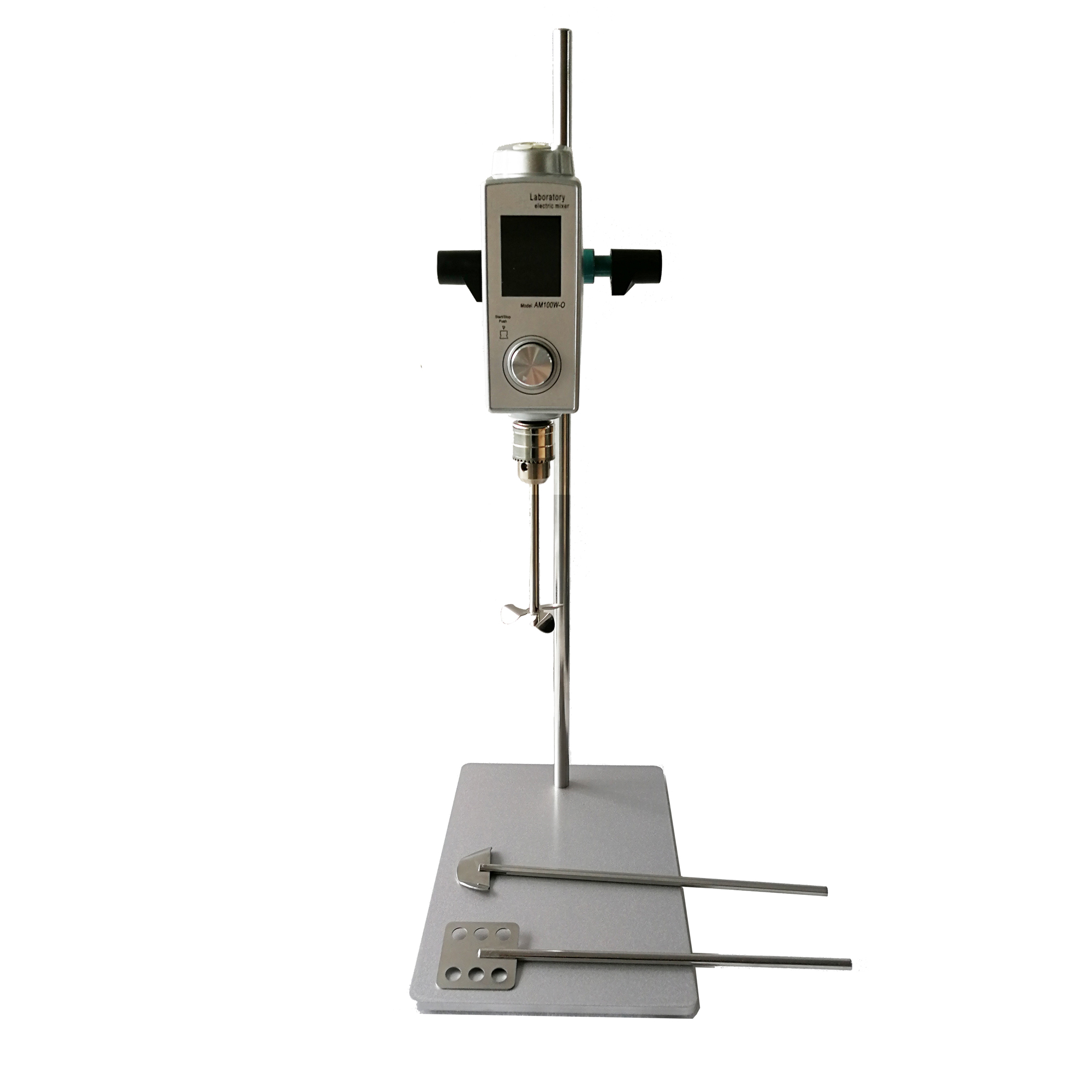

NADE 20L 30~2000rpm Strong Power Brushless Motor Overhead mixer Chemical Lab stirrer



Inquire

Mixer Type:
Paddle
Barrel Volume (L):
20 L
Max. Loading Volume (L):
20 L
Range of Spindle Speed(r.p.m):
30 - 2000 r.p.m
Max. Loading Capacity:
20L
Weight (KG):
8 KG
Condition:
New
Product Type:
liquid
Application:
Liquid, Medicine Processing, Chemicals Processing, Cosmetic
Place of Origin:
China
Brand Name:
NADE
Voltage:
100V~240V, 100V~240V
Dimension(L*W*H):
215*310*720
Power (kW):
0.16 kW
Warranty:
1 Year
After-sales Service Provided:
Online support
Key Selling Points:
Low Noise Level
Applicable Industries:
Laboratory
Rotary speed:
30-2000 rpm
Max stirring capacity of H2O:
20,000 ml (20L)
Output power:
110W
High performance motor:
AC brush less motor
Timing range:
0~6000min
Frequency:
50Hz/60Hz
Display:
LCD Screen
Max viscosity:
100,000 mPa.s
Torque:
13.1N.cm

Product Description

Product Description

Contact us for discount, based on ordering quantity.

Introductions

This high-power brushless mixer is driven by a brushless DC motor and is suitable for mixing low-to-medium, high-viscosity liquids in the laboratory.
The machine has low speed operation, high torque output, low noise, and no maintenance.
The stirring speed is controlled by the microprocessor. It can instantly and effectively compensate the speed change caused by the load change and power supply voltage fluctuation, and the constant speed is reliable.
Built-in automatic overload protection device to ensure the safety of continuous high-load continuous operation for a long time.
The stirring speed is adjusted steplessly to meet the stirring speed at any time in the experiment.

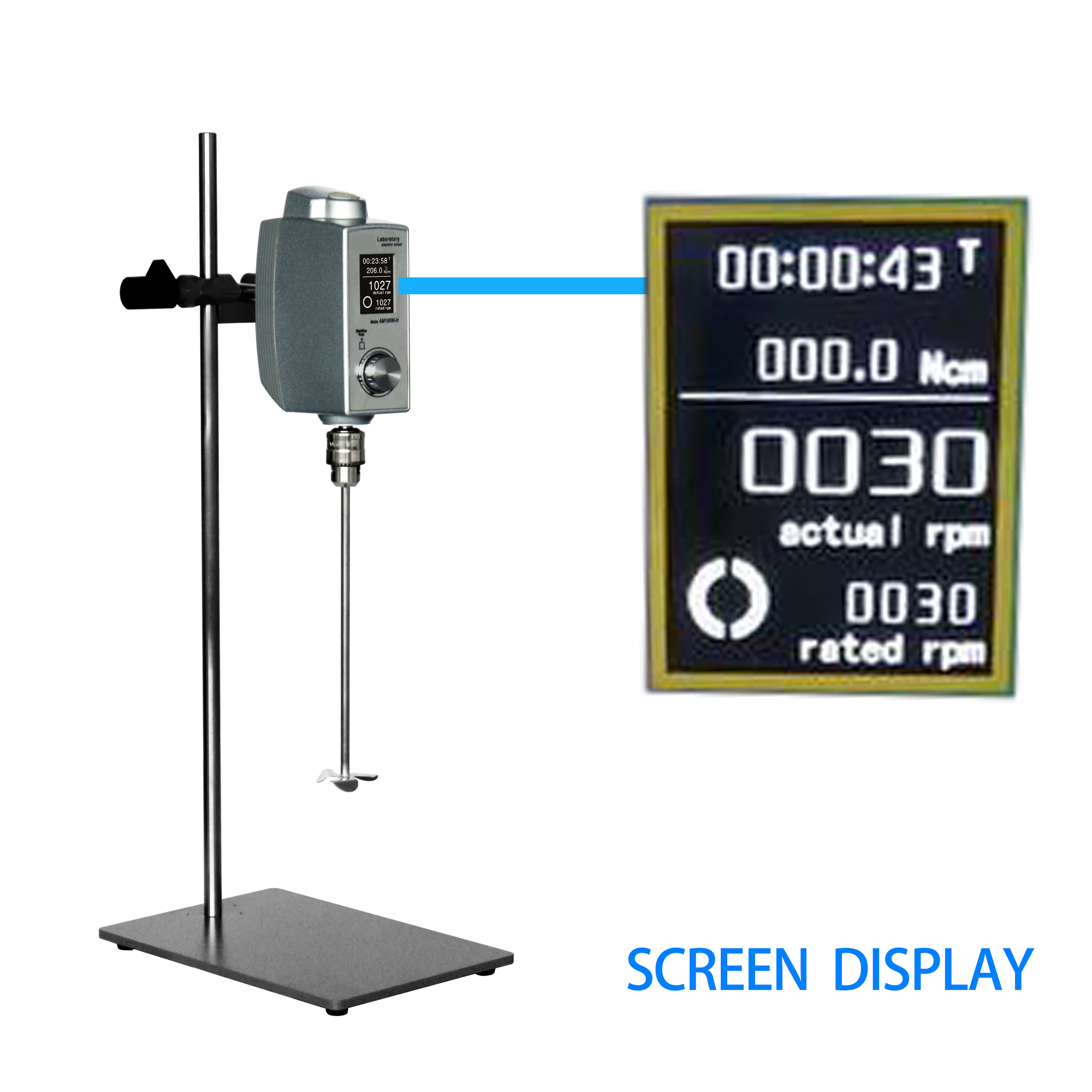

The digital display shows the actual output stirring speed and speed increase and decrease to ensure the intuitive collection of experimental data.
Running timing control ensures that the time of the experiment is effectively controlled.

Application:

The stable stirring speed of the machine is suitable for stirring high viscosity media and slurry.

The stirrer can stir high viscosity medium or thick liquid and stirring speed can be regulated easily during operation. The stirrer is an ideal device in the field of biological material, physics and chemistry, reagent, building material, cosmetics and health products etc. for products developing, quality control and material testing.

Features:

1. Brushless Direct Current Motor.

2. Widely used in laboratory for mixing and dispersing material of solid-liquid, liquid-liquid, in different viscosity from low to high.

3. Suitable for a wide range of material with different stirring paddle and different speed.

4. Stable and constant operation.

5. Overload protection.

6. Long time running.

7. High effective in speed control.

8. Easy operate and easy clean easy maintenance.

9. Timing. speed setting memoried.

Specification:

Model	AM100W-O
Processing capacity (H2O)	20 L
Input power	162 W
Output power	110 W
Rated torque	13.1 N.cm
Peak torque	39 N.cm
Rated voltage	AC 100~240 V
Rated frequency	50\60 Hz
Rotary clamp head range	Φ2~10 mm

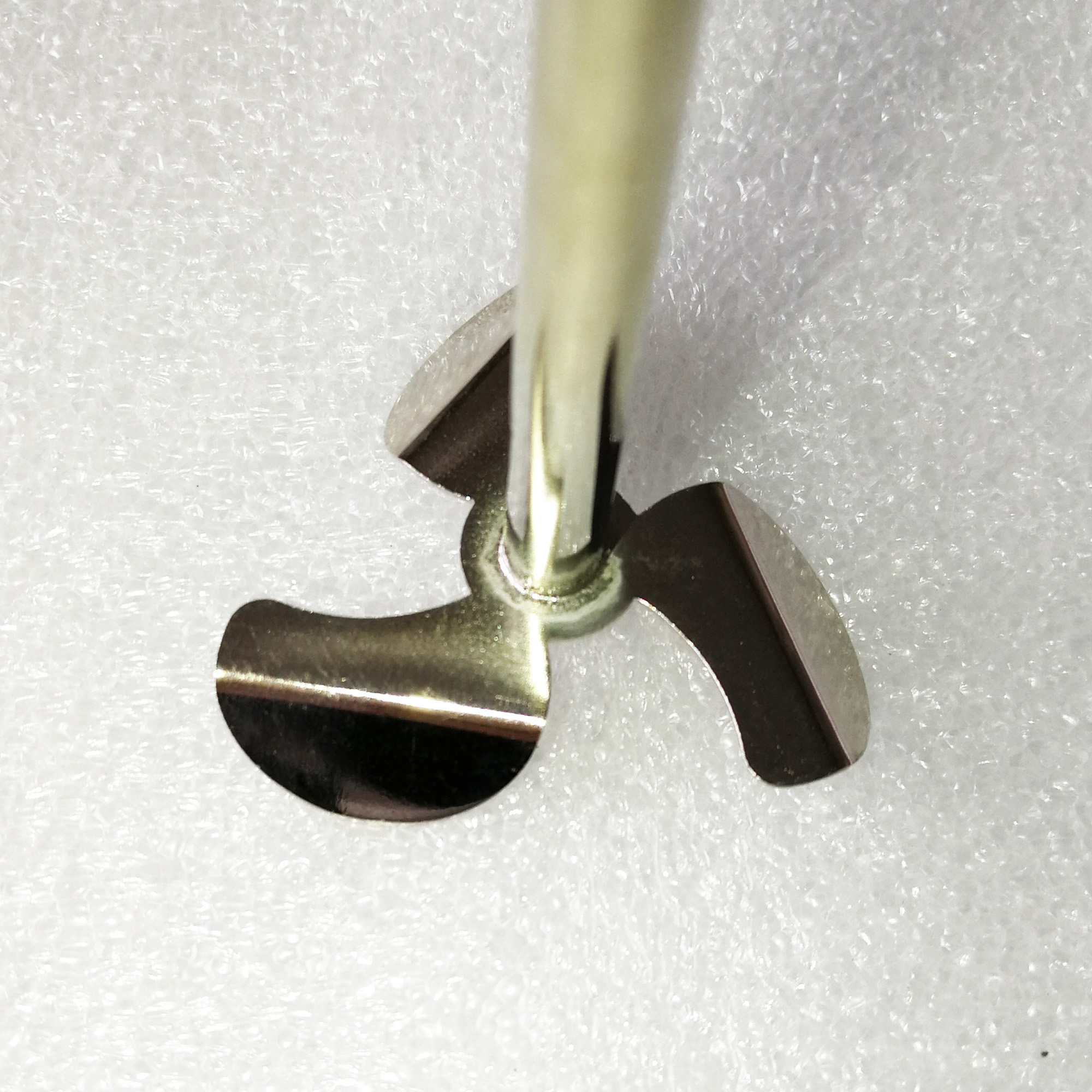

Stirrer configuration	3 blade paddle
Drive type	Brushless DC Motor
Work mode	S1 (Continuous)
Operation status display	LCD
Operation control method	Function knob
Speed adjustment range	30~2000 rpm
Speed control type	Stepless
Timing control range	1~6000 min
Speed dynamic detection function	Yes
Motor temperature dynamic detection function	Yes
Speed memory function	Yes
Overload protection	Yes
Stir bar fixing method	Quick install chuck
Treatment viscosity	100000 mPa.s
Allowable ambient temperature	Not more than 40 ℃
Allowable relative humidity	Not more than 80 %
Protection level	IP 40
Machine size	215×310×720 mm
Weight	7.6 kg

We provide a wide range of stirrer/mixer/agitator/homogenizer, at different speed, different capacity, with different paddle shapes, suitable for different liquid.

Model	AM100W-O	AM200W-O	AM300W-O	AM400W-H
Processing capacity (H2O)	20 L	30 L	50 L	60 L
Input power	162 W	295 W	440 W	615 W
Output power	110 W	200 W	300 W	418 W
Rated torque	13.1 N.cm	40.2 N.cm	60.1 N.cm	100 N.cm
Peak torque	39 N.cm	120 cm	180 N.cm	300 N.cm
