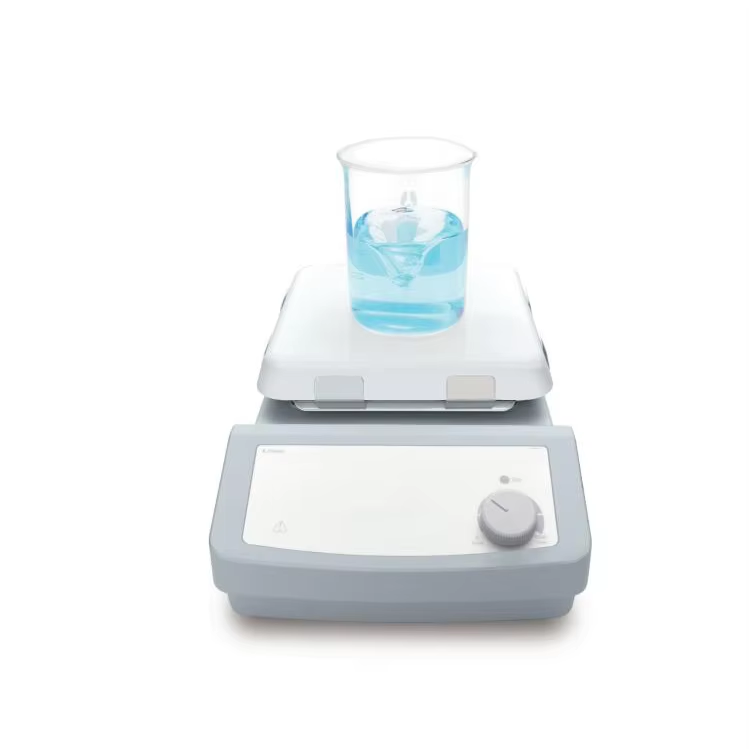

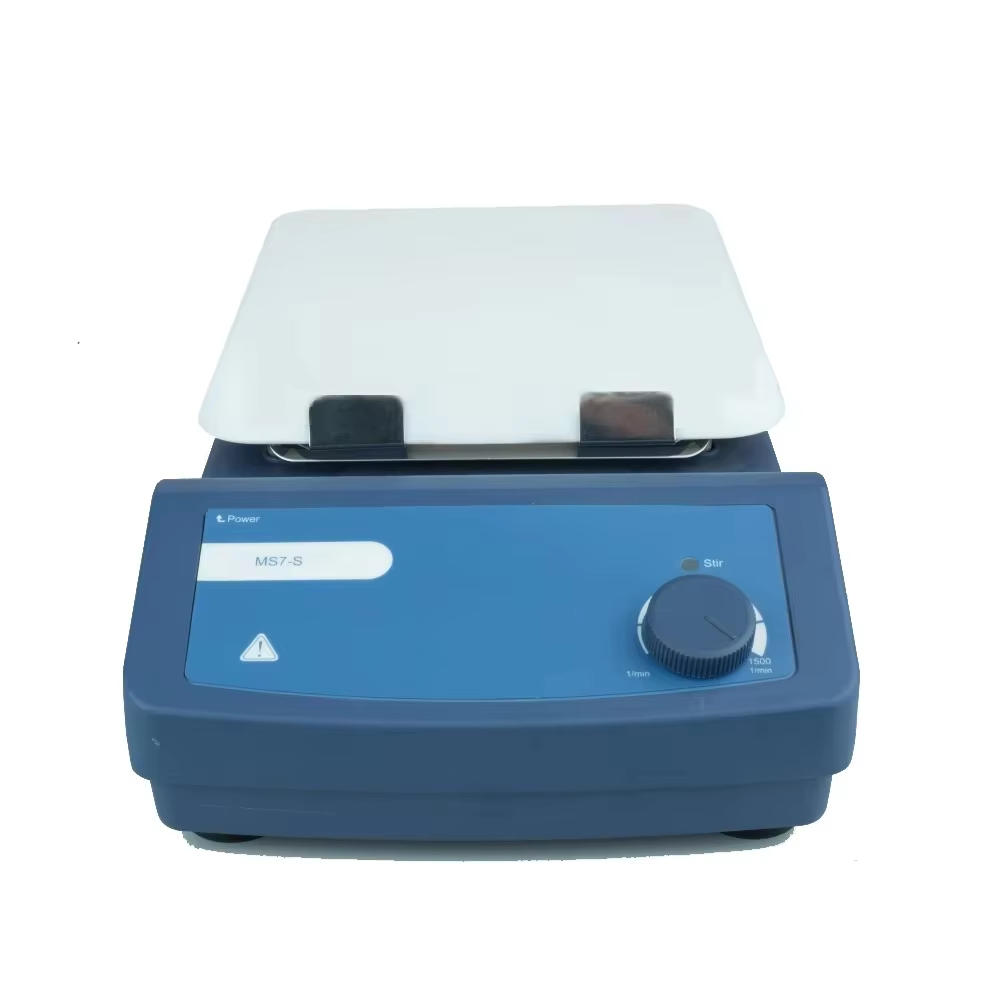

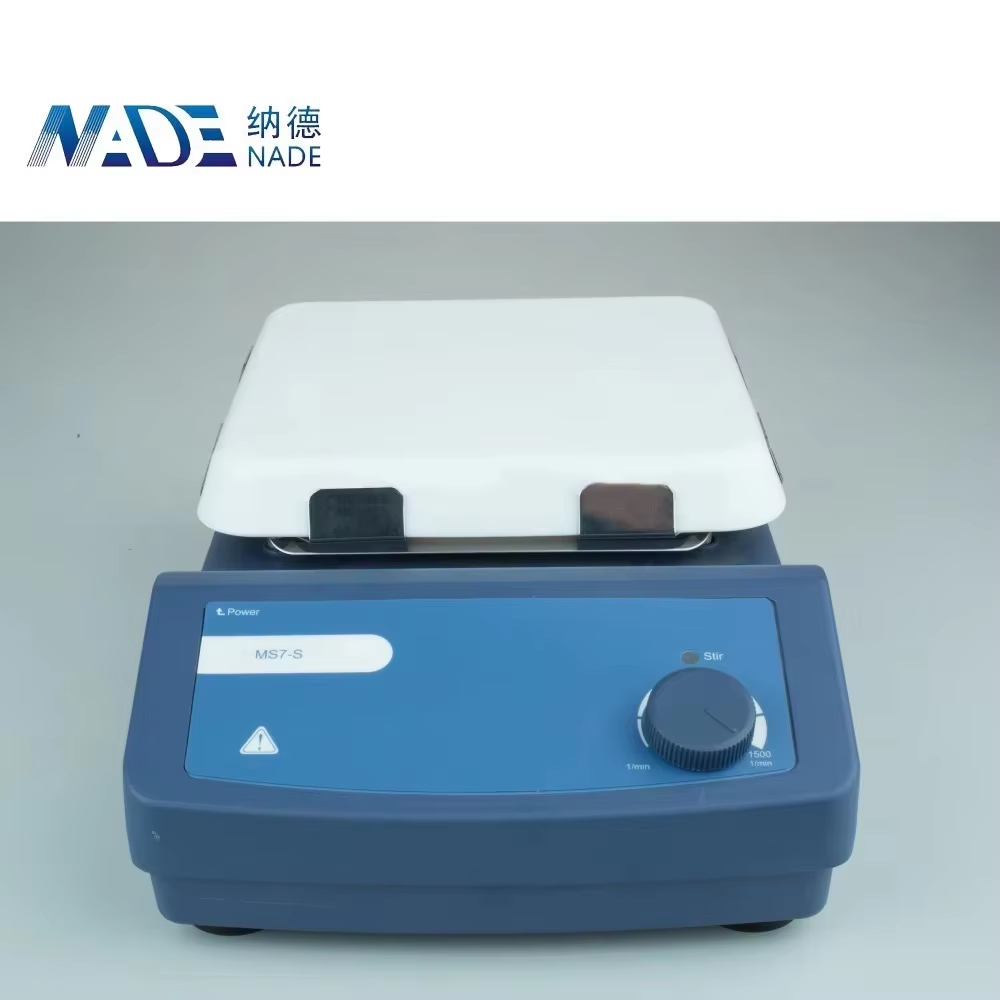

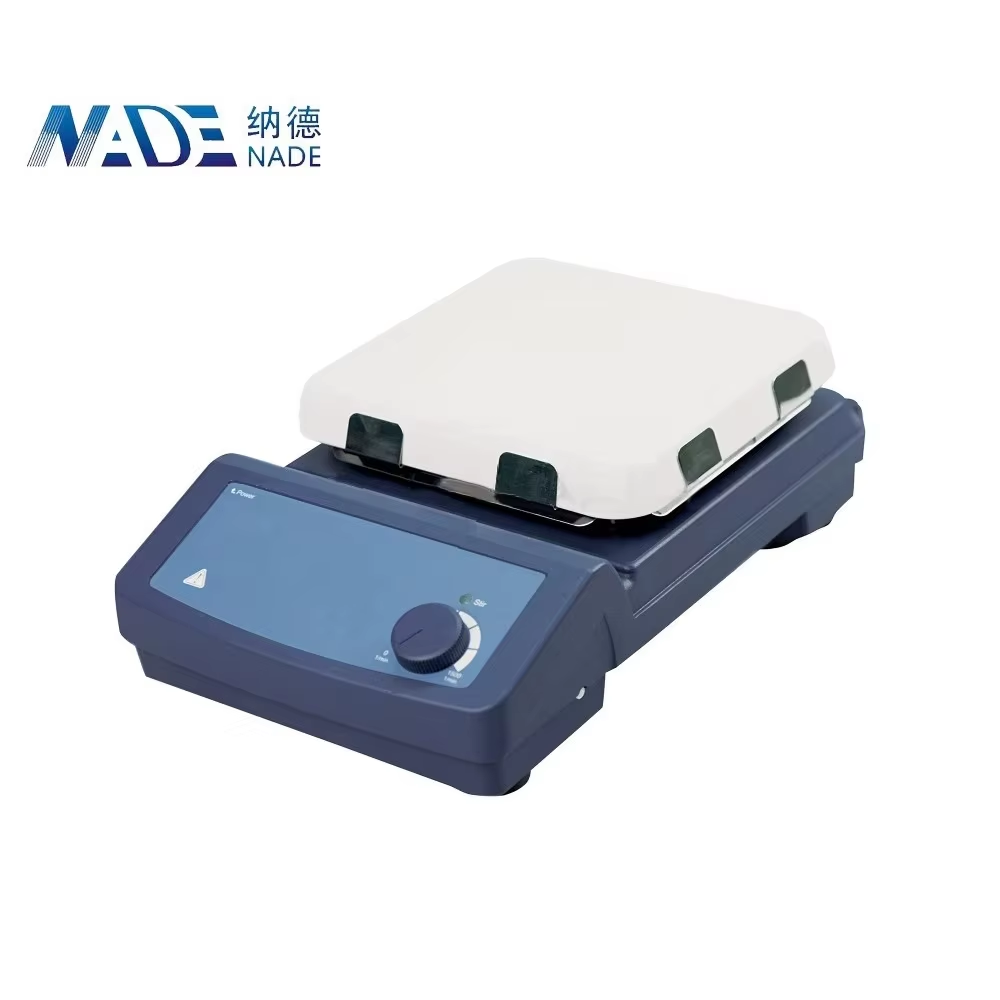

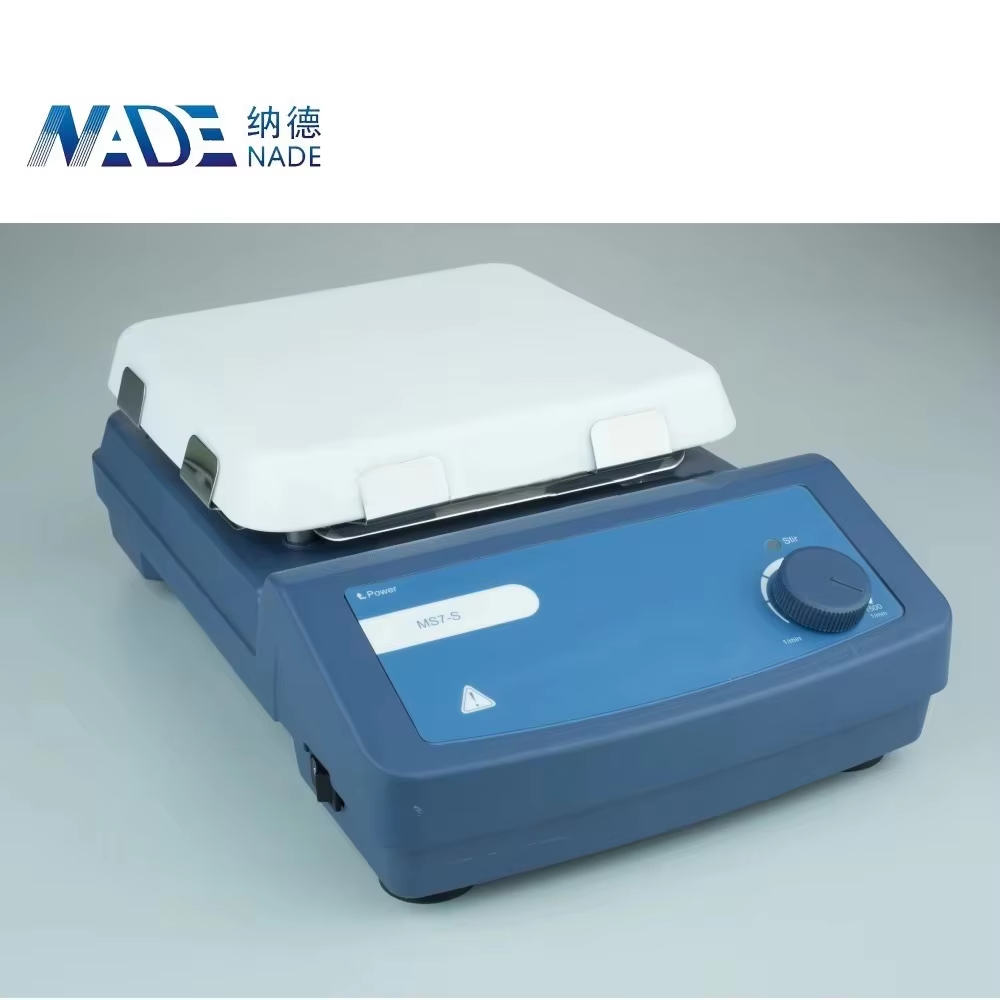

MS7-S Magnetic Stirrer

Motor type:Shaded pole motor
Speed range [rpm]:0-1500rpm
Work plate dimension[W x D]:184x184mm (7 inch)
Work Plate material:Glass ceramic
Availability:
  • MS7-S

  • NADE

  • MS7-S

  • 100V-240V,50Hz/60Hz

  • 1

  • 1 year

  • China

Product Description

MS7-S
7 Inch Square Magnetic Stirrer

work plate 184*184mm
Max.stirring quantity 10L
Glass ceramics plate


Features

1. Speed range of 0-1500rpm
2. Maximum stirring quantity of H2O up to 10L
3. Ceramic work plate provides excellent corrosion resistance

Specifications

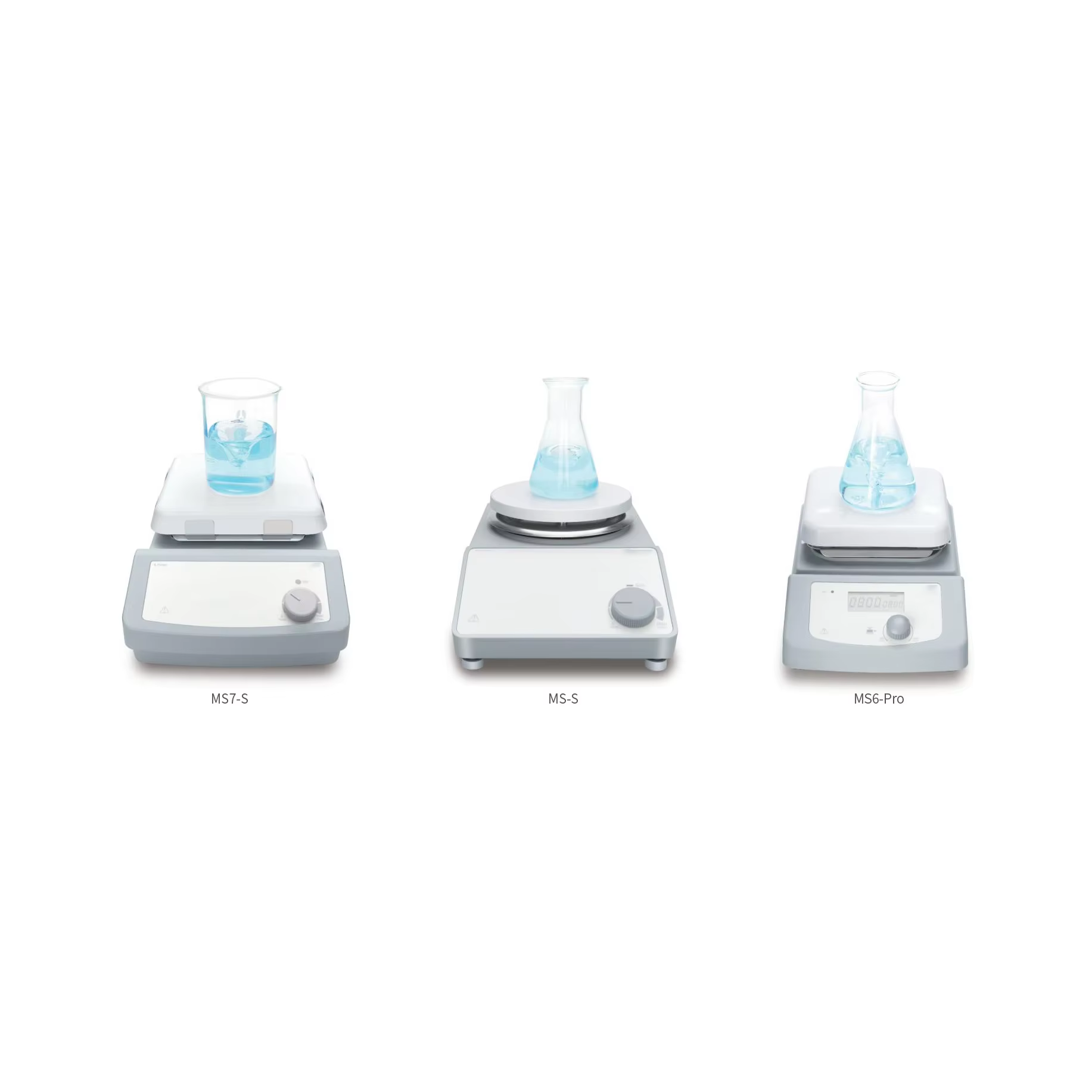

Model
MS7-S
MS-S
MS6-Pro
Work plate Dimension [W x D]
184x184mm (7 inch)
Ø135mm(5 inch)
140x140mm
Work plate material
Glass ceramic
Stainless steel cover with ceramic
Aluminum cover with ceramic coating
Motor type
Shaded pole motor
Brushless DC motor
Brushless DC motor
Stirring positions
1
1
1
Max. stirring quantity[H2O]
10L
20L
5L
Max.magnetic bar[length]
80mm
80mm
40mm
Speed range
0-1500rpm
0-1500rpm
200-1500rpm
Speed display
Scale
Scale
LCD
Protection class
IP21
IP21
IP21
Motor output Power
1.5W
10W
1.8W
Power
30W
30W
10W
Voltage,Frequency
100-120/200-240V,50/60Hz
100-240V,50/60Hz
100-240V,50/60Hz
Dimension[WxDxH]
215x360x112mm
160x280x85mm
320x180x108mm
Weight
3.8kg
2.8kg
2.2kg
Permissible ambient temperature and humidity
5-40℃, 80%RH
5-40℃, 80%RH
5-40℃, 80%RH
