MS10-H500-Pro Lab Hotplate Magnetic Stirrer

Work plate dimension: 254x254mm (10 inch)
Work plate material:     Glass ceramic
Max. stirring quantity: 30,000ml (H2O)
Speed range:     100-1500rpm

Availability:
  • MS10-H500-pro
  • NADE
  • 110V/220V,50/60HZ
  • 1
  • 1 year
  • China

Introduction

Magnetic heating stirrer is suitable for low viscosity liquid or solid-liquid mixing. The MS10-H500-Pro is widely used in different fields such as chemical synthesis, physical and chemical analysis, biopharmaceuticals bioengineering, material science, food research and more.

Features

  1. Large volume: Up to 30L of liquid on 10-inch hot plate with powerful magnetic stirring.

  2. Glass ceramic work plate provides excellent chemical resistant performance and most efficient heat transfer

  3. LCD display for precise monitoring of speed and temperature . External temperature control is possible by connecting the temperature sensor (PT1000) with an accuracy at±0.2°C.

  4. Digital speed control of 100 ~ 1500rpm.

  5. Max. heating plate temperature 500°C.

  6. The “HOT” warning will flash when the work plate temperature is above 50°C even when the hotplate is turned off.

  7. Data connector: The SD card records the instrument's running data in real time.

  8. Timing function: the running time of the instrument can be set.


Parameters

Model

MS10-H500-Pro

Work plate dimension

254x254mm ( 10inch)

Work plate material

Glass ceramic

Motor type

Brushless DC motor

Stirring positions

1

Max. stirring quantity, [H2O]

30L

Max. magnetic bar[length]

80mm

Speed range

100- 1500rpm resolution+ 1rpm

Speed,Time,Temperature display

LCD

Timer display

1min- 99h59min

Heating temperature range

Room Temp.500 ℃, increment 1 ℃

Temperature control accuracy

+1℃ (<100℃ )+1%(>100℃)

Overheating protection

540℃

Temperature display accuracy

+0.1 ℃

External temperature sensor

PT100(+0.2℃)

Hot warning

50℃

Data connector

SD card

Protection class

IP21

Power

1400W

Heating output

1350W

Voltage Frequency

100-120/200-240 V 50/60 Hz

Dimension

328x424x138mm

Weight

7.18kg

Permissible ambient temperature and humidity

5- 40℃, 80%RH


Ordering information

P/N

Descriptions

Power supply

MS10-H500-Pro

LCD Digital 10"Square Hotplate Magnetic Stirrer

110V/220V,50/60HZ,CN/EU/UK/USA plug

MS10-H500-Pro

package

Include: LCD Digital 10" Square Hotplate Magnetic Stirrer, glass ceramic hotplate, heating temperature up to 500°C (8030132117)+ PT1000A (18900016) + support clamp (18900017)

110V/220V,50/60HZ,

CN/EU/UK/USA plug


More configuration

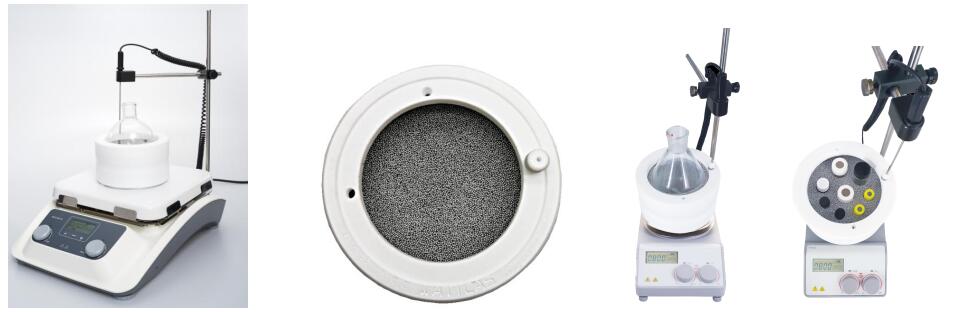

MS10-H500-Pro stirrer can also equip with our alloy bead heating bath:










MS10-H500-Pro with alloy bead heaing bath
