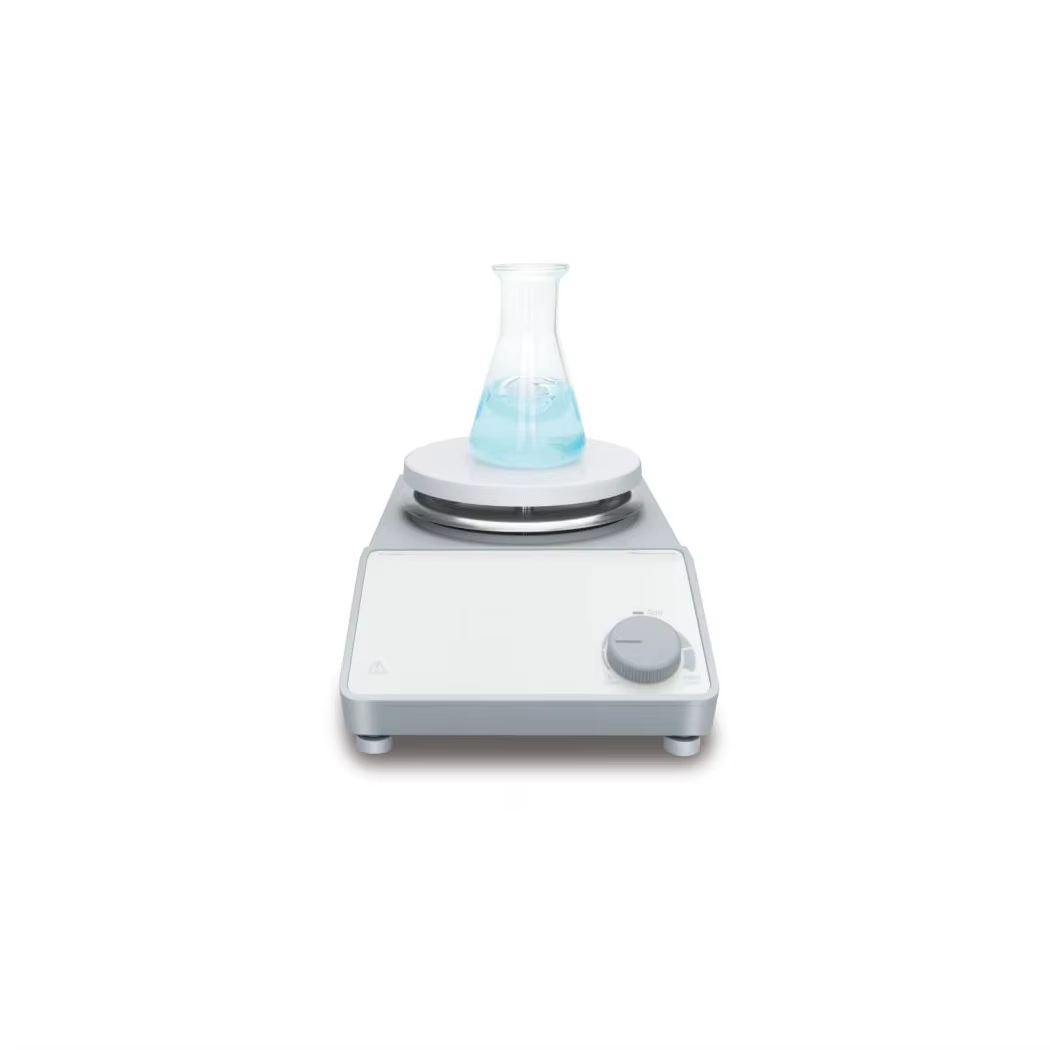

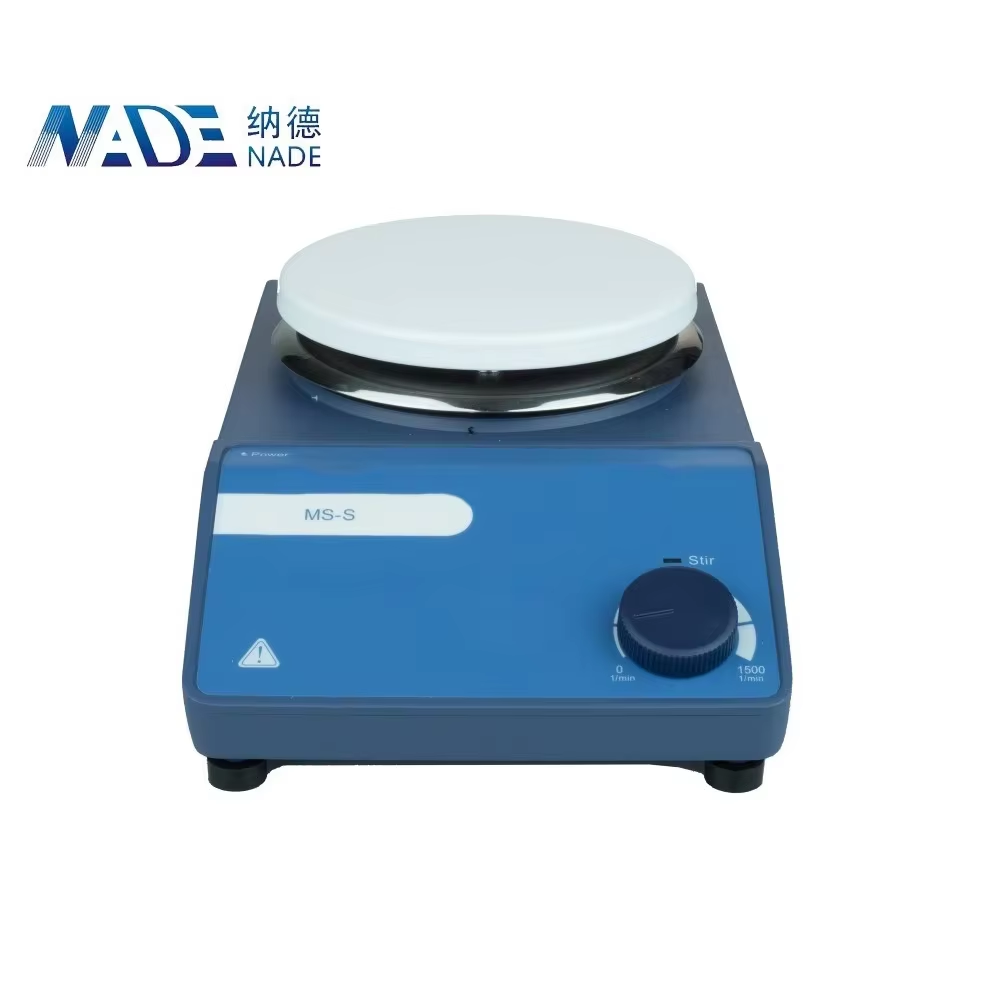

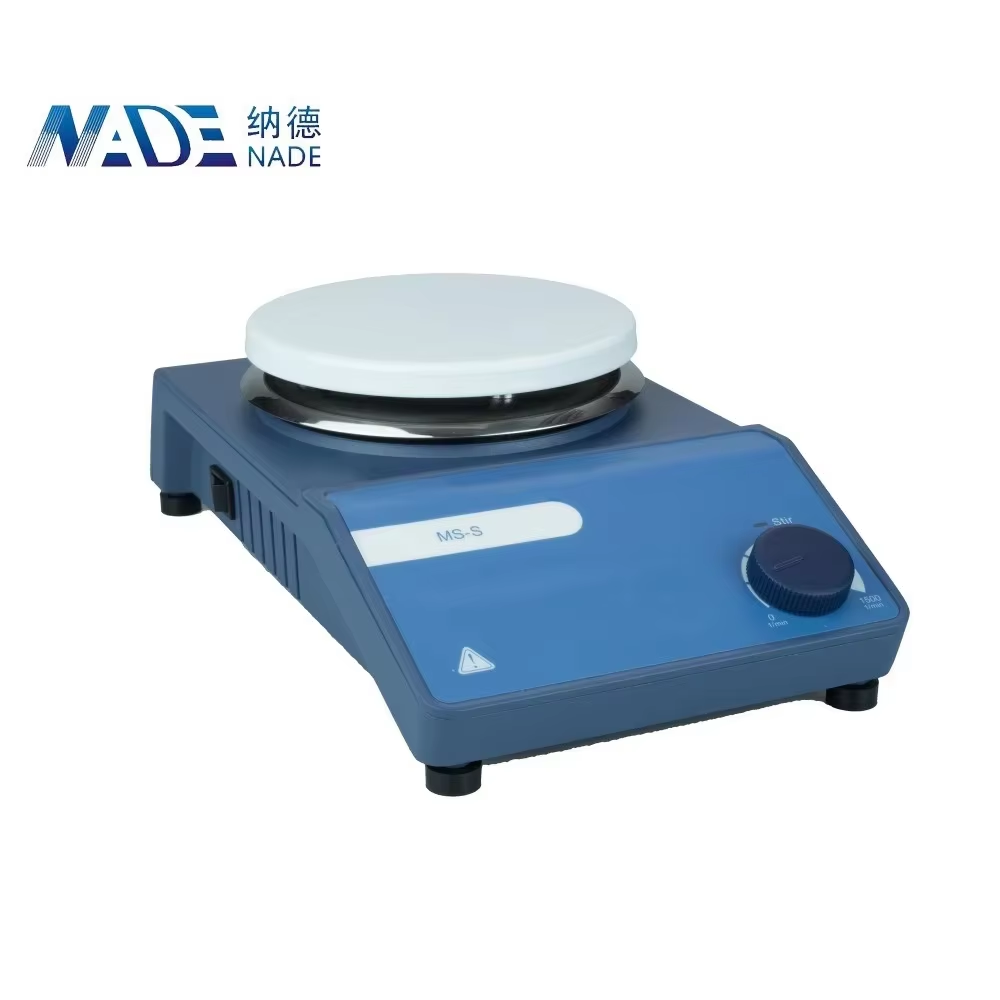

MS-S Magnetic Stirrer

Name: MS-S Magnetic Stirrer
Brand: NADE
Rating: 5.0 (71 reviews)

Motor type:Brushless DC motor

Speed range [rpm]:0-1500rpm

Work plate dimension[W x D]:Dia 135mm(5 inch)

Work Plate material:Stainless steel cover with ceramic

Product Description

MS-S
Magnetic Stirrer

work plate Φ135mm
Max.stirring quantity 20L

Cemamic coated plate

Specifications

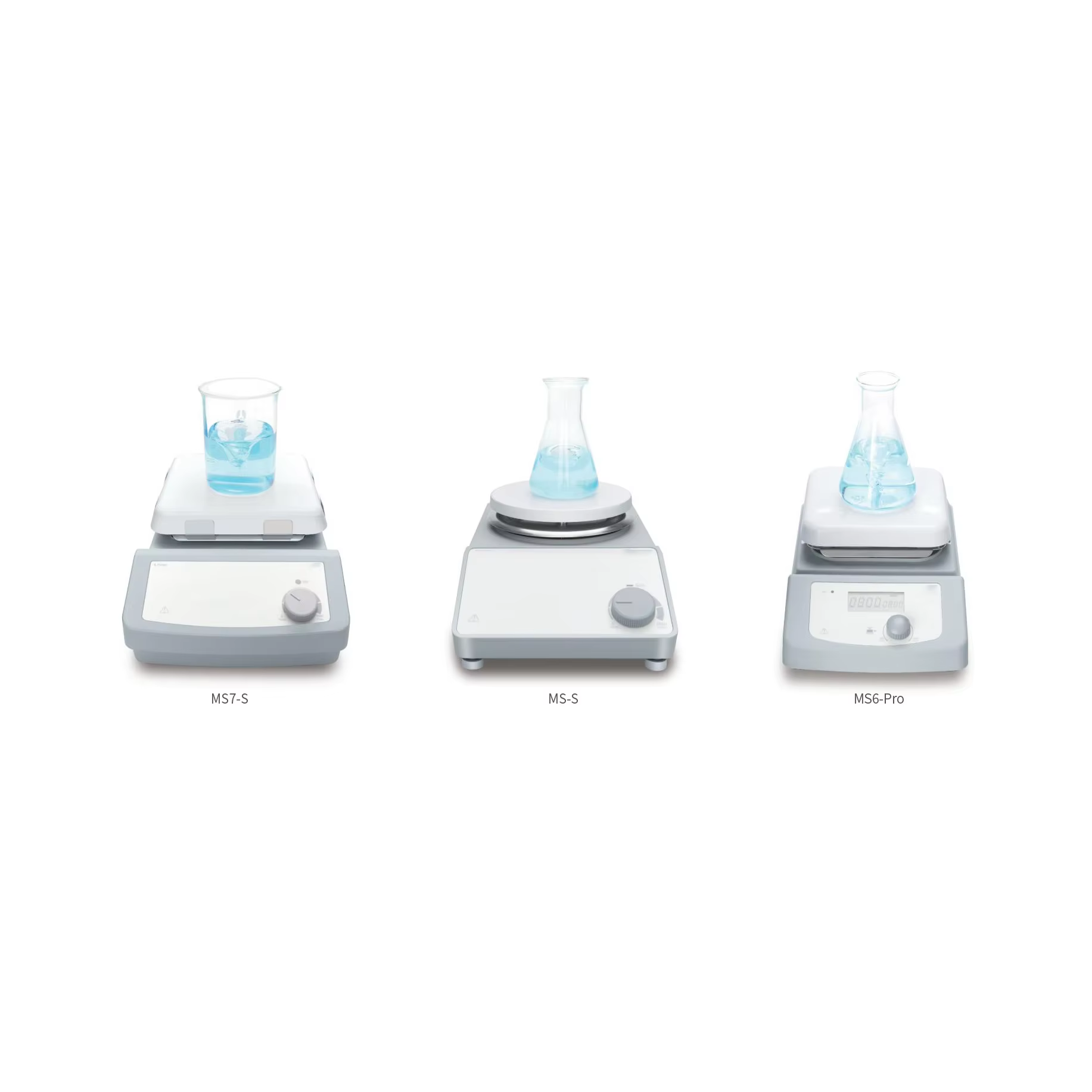

Model	MS7-S	MS-S	MS6-Pro
Work plate Dimension [W x D]	184x184mm (7 inch)	Ø135mm（5 inch）	140x140mm
Work plate material	Glass ceramic	Stainless steel cover with ceramic	Aluminum cover with ceramic coating
Motor type	Shaded pole motor	Brushless DC motor	Brushless DC motor
Stirring positions	1	1	1
Max. stirring quantity[H2O]	10L	20L	5L
Max.magnetic bar[length]	80mm	80mm	40mm
Speed range	0-1500rpm	0-1500rpm	200-1500rpm
Speed display	Scale	Scale	LCD
Protection class	IP21	IP21	IP21
Motor output Power	1.5W	10W	1.8W
Power	30W	30W	10W
Voltage,Frequency	100-120/200-240V，50/60Hz	100-240V，50/60Hz	100-240V，50/60Hz
Dimension[WxDxH]	215x360x112mm	160x280x85mm	320x180x108mm
Weight	3.8kg	2.8kg	2.2kg
Permissible ambient temperature and humidity	5-40℃, 80%RH	5-40℃, 80%RH	5-40℃, 80%RH
