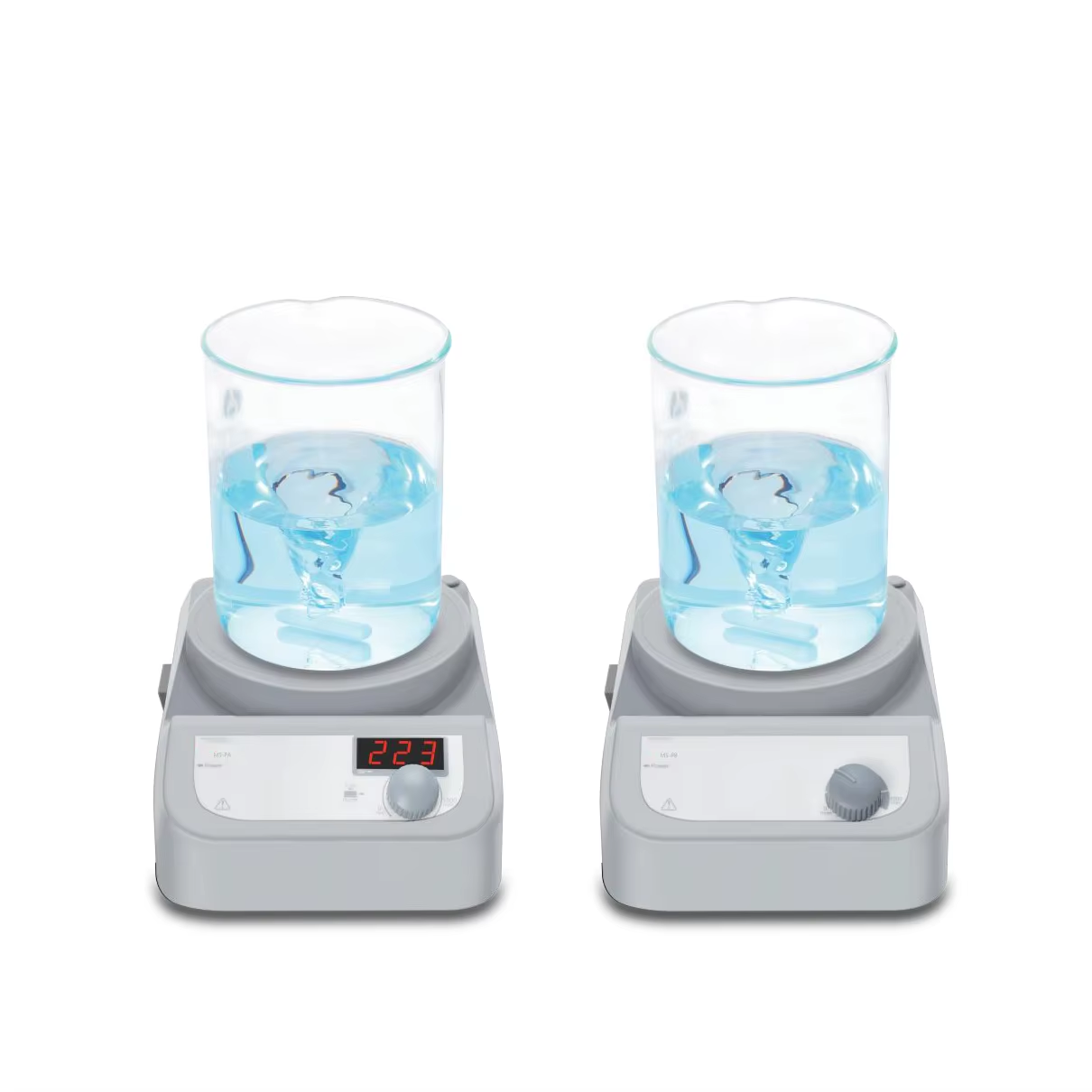

MS-PB Magnetic Stirrer

Motor type:Brushless DC motor
Speed range [rpm]:0-1500rpm
Work plate dimension[W x D]:135mm(5 inch)
Work Plate material:Nylon+GF
Availability:
Inquire

  • MS-PB

  • NADE

  • MS-PB

  • 100V-240V,50Hz/60Hz

  • 1

  • 1 year

  • China

Product Description


MS-PB

Magnetic Stirrer


LED Digital display
Work plate Φ135mm
Max.stirring quantity 3L
plastic plate


Advantages

1. Digital speed control within the range of 0-1500rpm
2. Maximum stirring quantity of H2O at 3L
3. LED display shows stirring speed （MS-PA）

Specifications

Model
MS-PA
MS-PB
Work plate Dimension
135mm（5 inch）
135mm（5 inch）
Work plate material
Nylon+GF
Nylon+GF
Motor type
Brushless DC motor
Brushless DC motor
Stirring positions
1
1
Max. stirring quantity[H2O]
3L
3L
Max.magnetic bar[length]
50mm
50mm
Speed range
200-1500rpm
0-1500rpm
Speed display
LED
scale
Protection class
IP42
IP42
Motor output Power
3W
3W
Power
15W
10W
Voltage,Frequency
100-240V，50/60Hz
100-240V，50/60Hz
Dimension[WxDxH]
150x260x80mm
150x260x80mm
Weight
1.8kg
1.8kg
Permissibleambient temperature and humidity
10-40℃,80%RH
5-40℃,80%RH
