Laboratory 10L Digital 7'' square Hot plate Magnetic Stirrer

  • Magnetic stirrer
  • 10
  • Chemicals, Medicine
  • 10 L
  • 10L
  • 4.5 KG
  • New
  • Other
  • Liquid
  • Other
  • China
  • NADE
  • 215x360x112mm
  • 215*360*112mm
  • ISO
  • 1.03 kW
  • 18 Months
  • Easy to Operate
  • laboratory
  • No service
  • None
  • None
  • Ordinary Product
  • Not Available
  • Not Available
  • 1 Year
  • Other
  • No overseas service provided
  • RT~550℃
  • 100-1500rpm
  • 10L
  • Brushless DC Motor
  • Glass ceramic, chemical resistant

Product Description

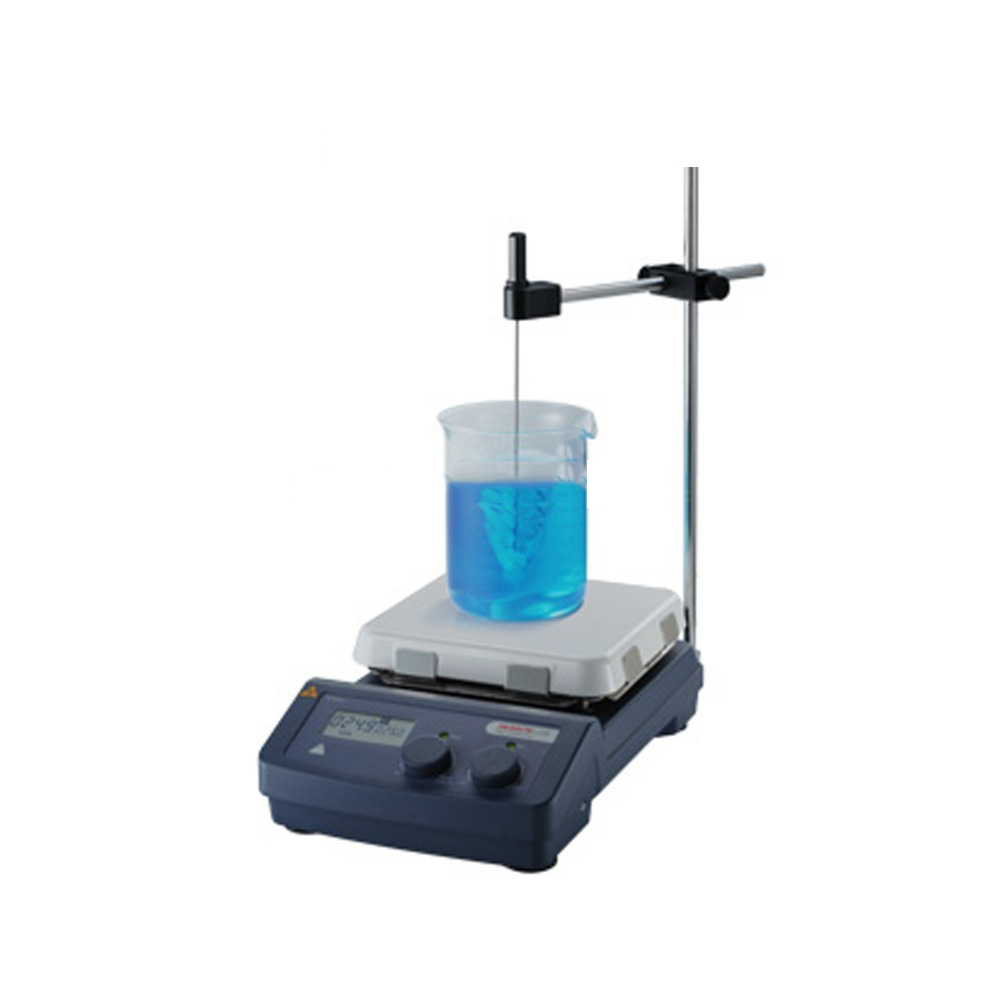

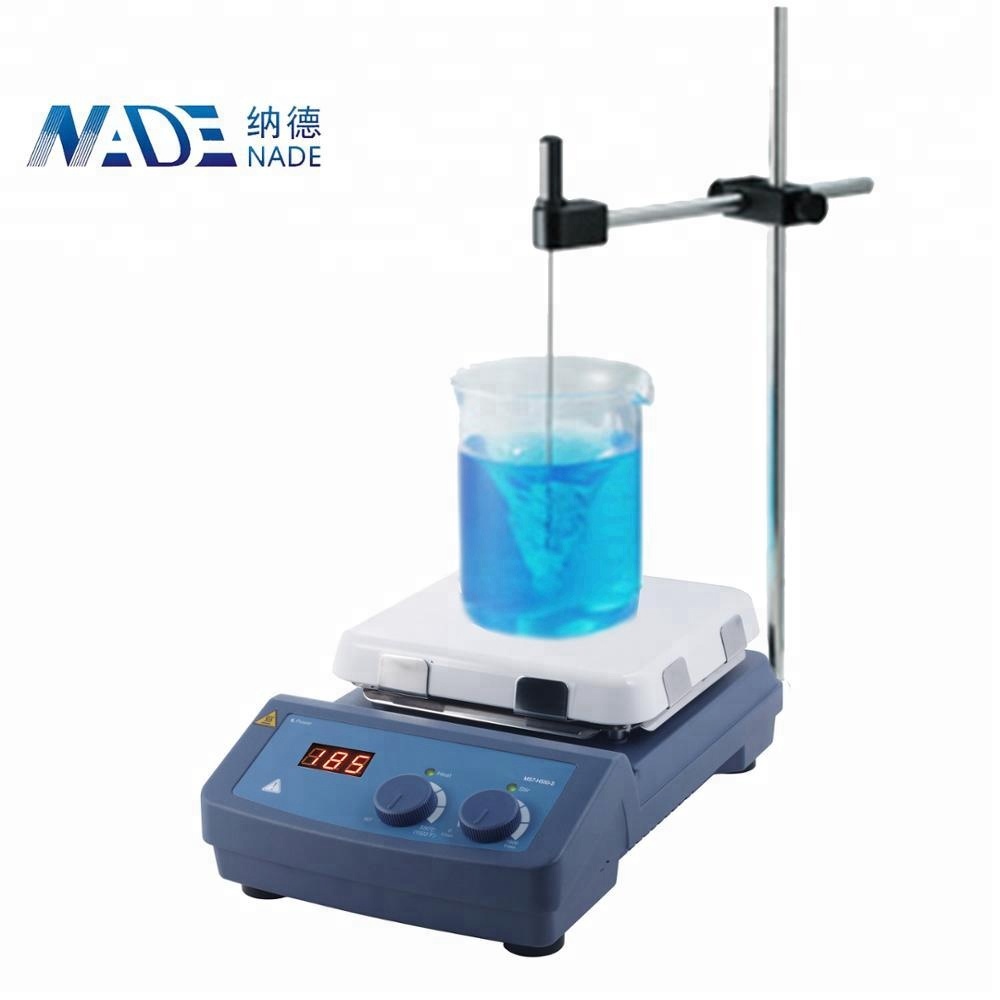

NADE Laboratory 10L Digital 7'' square Hot plate Magnetic Stirrer

Introductions

MS7-H550-S 7” square hotplate magnetic stirrer is widely used in chemical synthesis, physical and chemical analysis, bio-pharmaceuticals and other fields.

Combining with glass ceramic work plate, brushless DC motor, external temperature sensor and the work plate temperature optimized up to 550℃.

PID temperature technology precise controls heating process, rapidly reaches target temperature and enhances control accuracy, heating temperature up to 550℃.

7 inch square magnetic stirrers have glass ceramic plate extremely resistant to corrosion and easy to clean. The heating models are suitable for external temperature sensor PT1000, display and control actual medium temperature.

Features:

LED display for precise monitoring of temperature

A wide speed range of 0 to 1500rpm

Max. Heating plate temperature 550 ℃

External temperature control is possible by connecting the temperature sensor(PT 1000) with accuracy at ±0.2 ℃

The HOT warning will flash when the work plate temperature is above 50℃ even the hotplate is turned off

Specification:

Model

MS7-H550-S

Work plate Dimension [W x D]

184x184mm (7 inch)

Work plate material

Glass ceramic

Motor type

Brushless DC motor

Motor rating input

15W

Motor rating output

1.5W

Power

1030W

Heating output

1000W

Voltage

100~120/200~240V 50/60Hz

Stirring positions

1

Max. stirring quantity, [H2O]

10L

Max. magnetic bar[length]

80mm

Speed range

100~1500rpm

Speed display

Scale

Temperature display

LED

Heating temperature range

Room Temp.-550℃, increment 5℃

Temperature control accuracy

±10℃

Overheating protection

580℃

Temperature display accuracy

±1℃

External temperature sensor

PT1000 (accuracy ±0.2)

"Hot" warning

50℃

Data connector

-

Protection class

IP21

Dimension [W x D x H]

215x360x112mm

Weight

4.5KG

Permissible ambient temperature and humidity

5~40℃ 80%
