D-160
D-160
110-120V/60Hz 220-240V/50-60Hz
1
1 year
China
Product Description
Features
² Portable, lightweight with ergonomic design ideal for manual operations
² Processing volumes from 0.1-50mL or 1-250mL
² Variable speed from 8000 to 32000 rpm
² 316L stainless steel shafts are fully autoclavable
² Interchangeable shafts for easy dismantling and cleaning
Applications
Designed for rapidly homogenize, emulsify, suspend and disrupt biological samples like tissue of animal, bacteria, yeast, plant samples, etc. in liquids. Ideal for samples from 0.1mL to 250mL depending on shaft chosen.
Specifications
Model | D-160 |
Speed Range | 8000-32000rpm |
Max linear velocity | 6.3, 10, 14 m/sec |
Speed level | 10 stage |
Working Volume (H2O) | 0.1-50ml(Dispersing shaft DS-160/5) |
1-150ml(Dispersing shaft DS-160/7) | |
1-250ml(Dispersing shaft DS-160/10) | |
Max. Viscosity | 5000mPas |
Material of Dispersing Shaft | SS 316L stainless steel / PTFE |
Noise Level | 72 dB(A) |
Protection Class | IP20 |
Voltage,Frequency | 110-120V/60Hz,220-240V / 50-60 Hz |
Power | 160W |
Motor Type | AC carbon brush motor |
Dimension (L x W x H) | 45mm x 55mm x 190mm |
Weight | 0.54 kg |
Permissible ambient temperature and humidity | 0-40°C, 85% RH |
Accessories
Working head
1.
DS-160/5 | Cat. No.18900543 |
Volume 0.1-50mL Max. Circum. Speed 6.3m/sec Material: 316L stainless steel Application: small amounts of solid liquid mixed Function: dispersing tool for solid/liquid media | |
2.

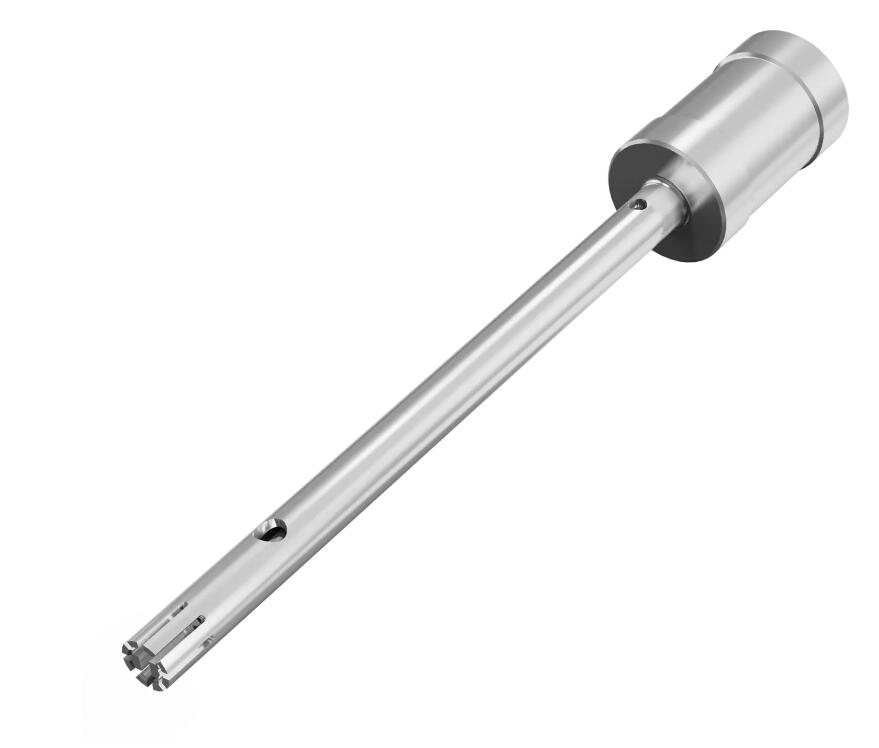

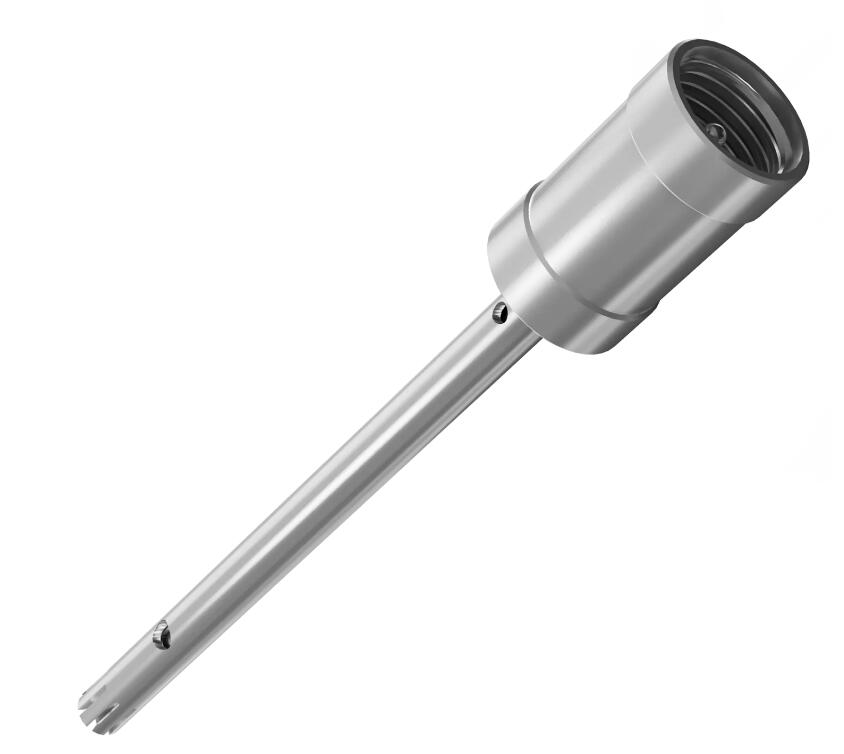

DS-160/7 | Cat. No.18900815 |
Volume 1-150mL Max. Circum. Speed 10m/sec Material: 316L stainless steel Application: small amounts of solid liquid mixed Function: dispersing tool for solid/liquid media | |
3.

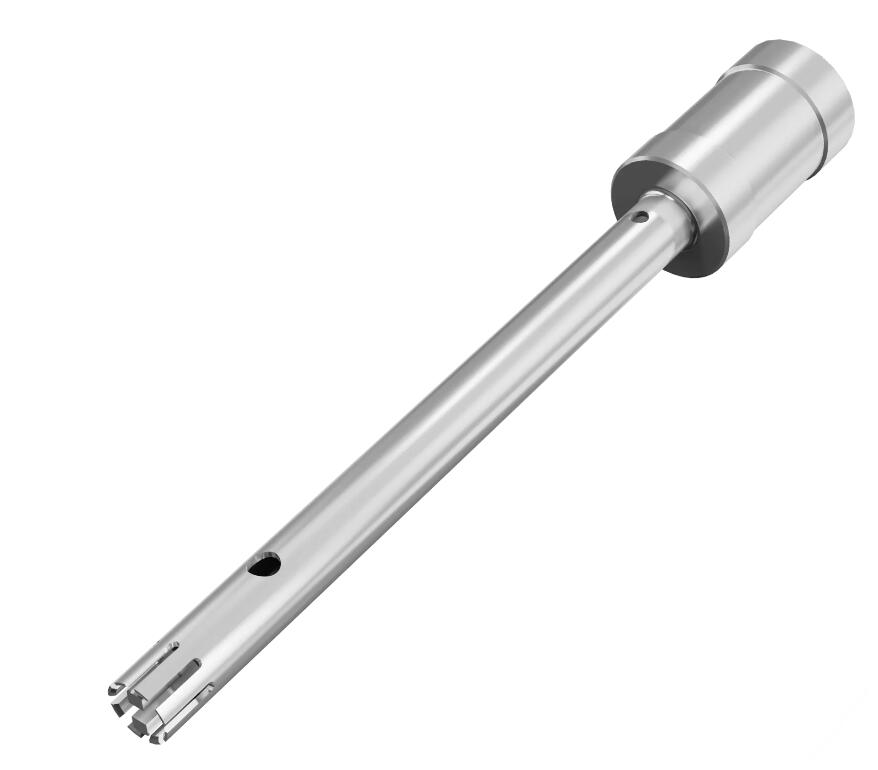

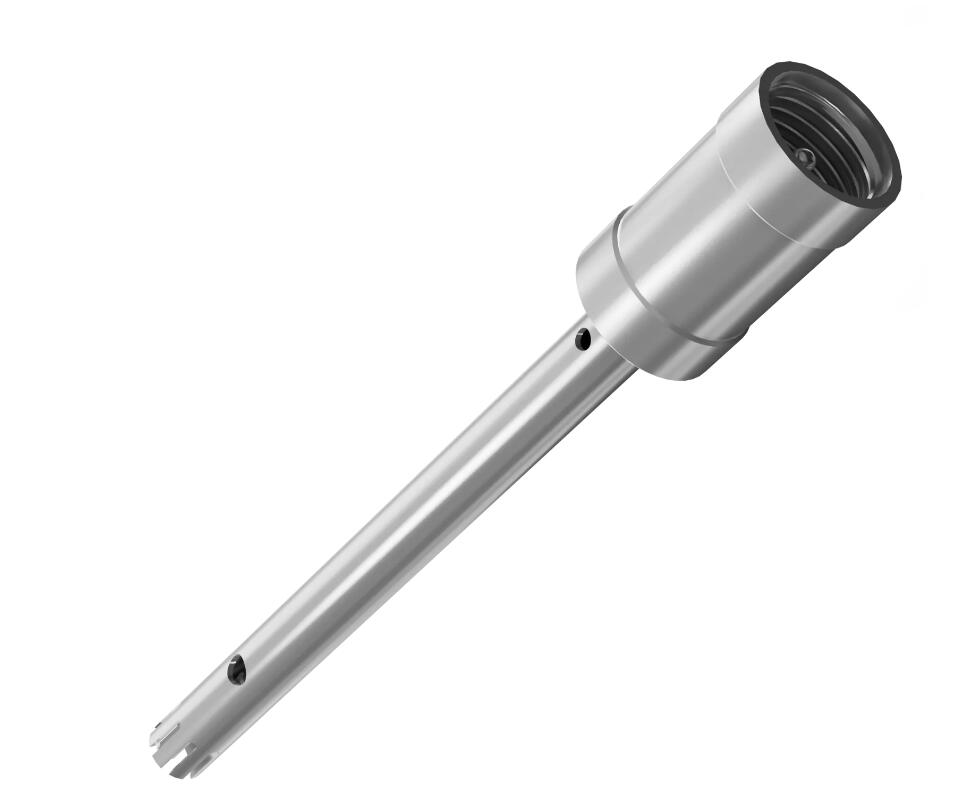

DS-160/10 | Cat. No.18900544 |
Volume 1-250mL Max. Circum. Speed 14m/sec Material: 316L stainless steel Application: small amounts of solid liquid mixed Function：dispersing tool for solid/liquid media | |
