20L 1500rpm NADE Blue Spin Classic Magnetic Stirrer

  • stirring
  • 20
  • Chemicals, Medicine
  • 20 L
  • 20L
  • 2.8 KG
  • New
  • wide range
  • Liquid, laboratory processing
  • n/m
  • Zhejiang, China
  • NADE
  • 100V~240V
  • 280*160*85
  • ISO
  • 0.018 kW
  • 1 Year
  • Online support, No overseas service provided
  • Automatic
  • laboratory
  • No service
  • None
  • None
  • Ordinary Product
  • Not Available
  • Not Available
  • 1 Year
  • Other
  • stainless steel

Product Description

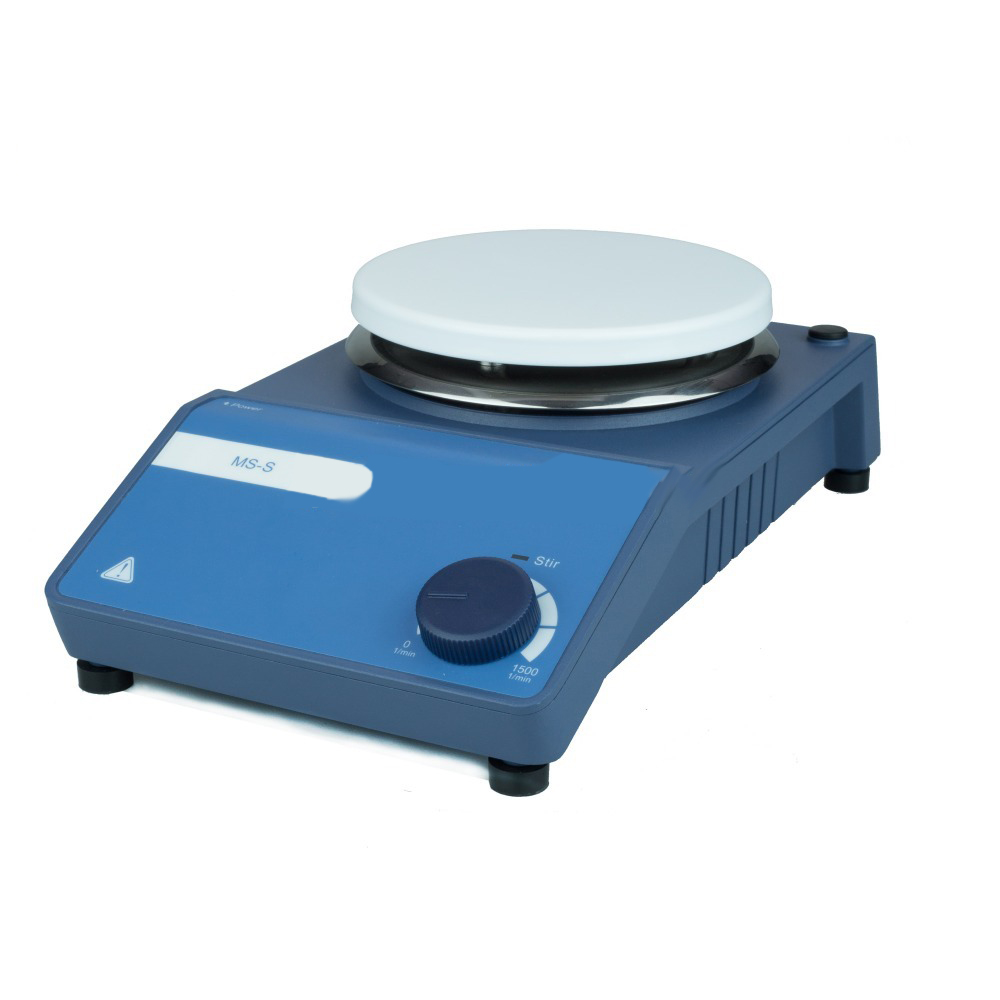

20L 1500rpm NADE Blue Spin Classic Magnetic Stirrer MS-S

Features:

  • A traditional magnetic stirrer with modern design
  • Stainless steel plates and with/without hotplate porcelain enamel surface
  • Variable speed of motor
  • Motor with electronic speed control, constant speed even during changes in load
  • High magnetic adhesion, prevent the stirrer bar escape
  • Enclosed assembly(IP42) and external rotor brushless motor guarantees long service time
  • Safe separate circuit, automatically stop to heat when the temperature over 340°C(MS-H-S)
Specification

MS-H-S

MS-S

Voltage [VAC]

100-120/200-240

100-120/200-240

Frequency [Hz]

50/60

50/60

Power [W]

530

30

Stirring point position quantity

1

1

Max. stirring quantity(H2O)[L]

20

20

Stirring point position quantity [mm]

80

80

Motor type

External rotor brushless motor

External rotor brushless motor

Motor rating input [W]

18

18

Motor rating output [W]

10

10

Speed range [rpm]

0-1500

0-1500

Speed display

Scale

Scale

Material

Porcelain enamel/Stainless steel

Porcelain enamel/Stainless steel

Dimension of Plate [mm]

φ135

φ135

Heating power [W]

500

--

Heat rate(1Lwater)[K/min]

6

--

Heating Temperature Range [°C]

RT-340

--

Temperature display

Analog Scale

--

Temperature display accuracy [°C]

350

--

Dimension [mm]

280×160×85

280×160×85

Weight[kg]

2.8

2.8

Permissible ambient temperature [°C]

5-40

5-40

Permissible relative humidity

80%

80%

Protection class acc. to DIN EN60529

IP42

IP42
