Room temp -400°C
0.1° C ~20° C /min
automatic melting point apparatus
AC 1 Phase 220V 60/50Hz

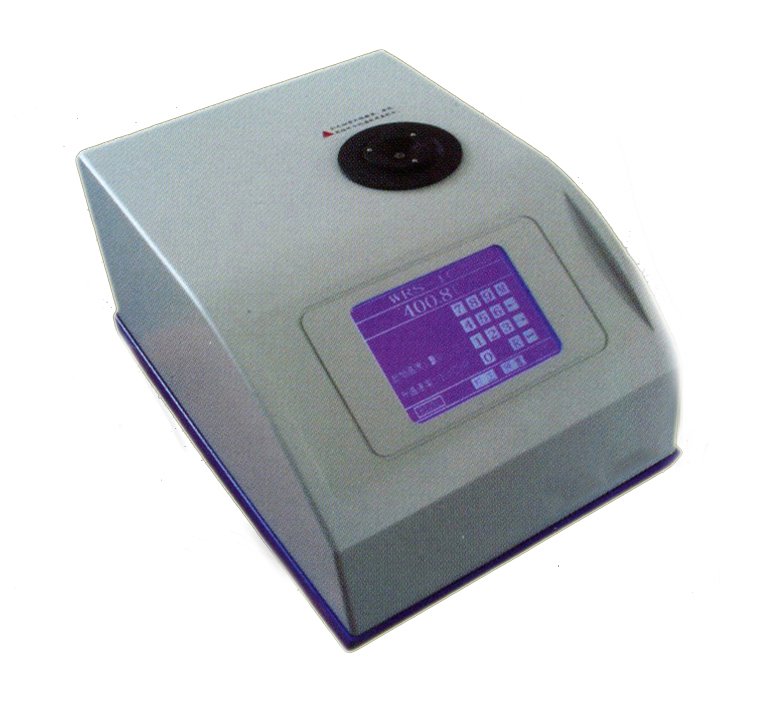

Nade Lab Testing Equipment digital melting-point apparatus WRS-1C room temperature ~ 400° C
l Measurement of melting point is one of the important methods of measurement of purity.
l To be used in production of medicines, dye-stuffs, perfumes and other organic crystal substances.
l Use PID & PWM to control the temperature
l Automatically records the melting curve
l It can measure three samples at the same time and calculate average value of initial and final melting points automatically.
l Touch Screen
l USB and RS232
l Melting-point measurement range: room temperature ~ 400° C
l Setting rate of the “starting temperature”:
50°C~400°C no more than 5 mins; 400°C~50°C no more than 7 mins
l Minimum digital display: 0.1° C
l Size of the capillary: φ1.4mm(outside diameter)φ1.0mm(inside diameter), 80mm
l Loading height of the sample: 3mm
l Linear heating-up rate: 0.1° C ~20° C /min
l Repeatability: 0.3° C
l Accuracy: ≤200° C : ±0.5°C; >200° C: ±0.8°C
Our Packaging Details:
Q: How long is the delivery time?
A: 7-15 working days after we received your payment or order confirmed.
Q: What is the warranty for the equipment?
A: One year. We can provide you lifelong technical support.
Q: What is the payment terms?
A: T/T, L/C, Western Union, etc.
Q: What after-sales service can be provided by Nade ?
A: The after-sales service of Nade is divided into two parts: technical support and maintenance.
Q: What about the technical support and maintenence?
A: Sometimes users will get some problems when they operate the instruments which are unfamiliar or first time use, users can send us emails or call us about detailed information. We will provide users solution or operation video.For so many years’ experience, our instruments works well during warranty period. If there any parts are broken during warranty period, we would like to provide spare parts for free.
