1 year
other
Zhejiang, China
Nade-apparatus
WRS-2A
Electronic
WRS-2A
Room temp -300°C
3
3mm
±0.8℃
0.1° C
melting point apparatus
<200℃±0.5℃;200℃~300℃±0.8℃
220V±22V, 100W,50Hz
12.5kg
Product Description

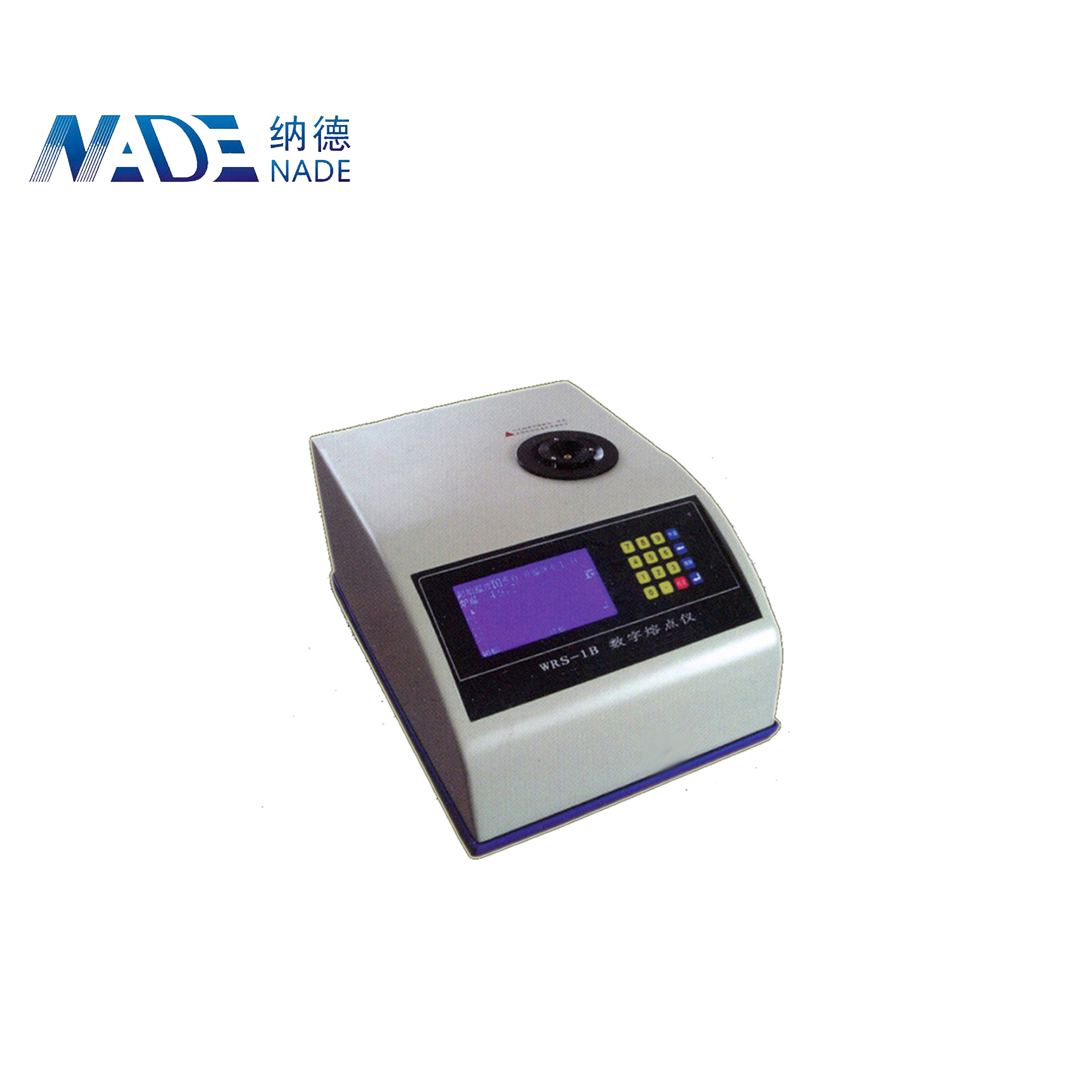

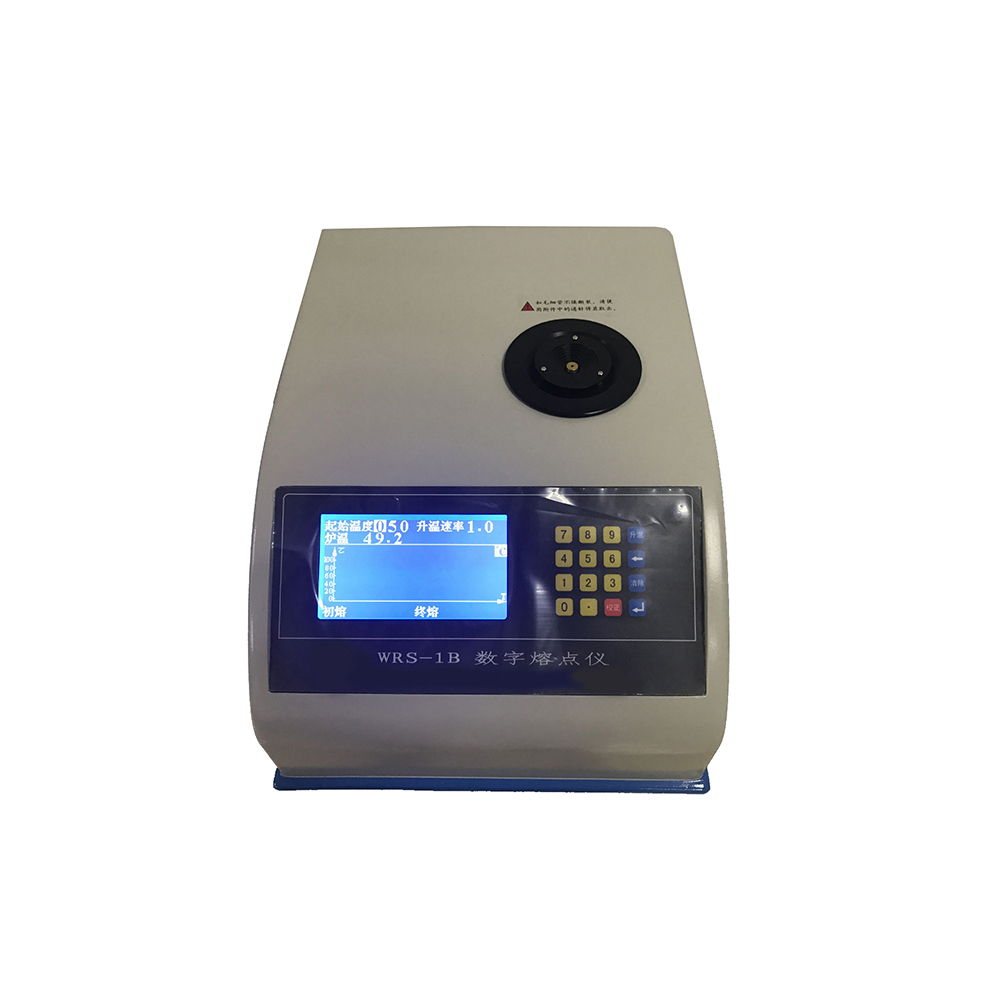

NADE WRS2A laboratory Microprocessor melting point instrument/apparatus Room temp -300C
In according with the definition of physical chemistry, the melting point of substance means the temperature at which the substance changes from solid state to liquid state.In the field of organic chemistry, the measurement of melting point is a basic means of organic chemistry, the measurement of melting point is a basic means of
recognizing the nature of substance, and is also one of the important place in the chemical industry and medicine researches.Also, the melting-point meter is a kind ofnecessary instrument in the production of medicines, perfumes, dyestuff and other organic crystal substances.
Microcomputer melting point meter uses the technology of photoelectric detection and temperature display by liquid crystal. Type WRS-2A could measure three sample at the same time. It has the functions of automatic displaying of initial and final melting points, automatic recording of the melting curves and calculating average value. The temperature system uses the linearly corrected platinum resistor asthe detecting element, and additionally, it uses the integrated circuits to realize the speedy setting of eight-step linearly heating rate for being selected .Since the initial and final melting-point readings can be stored up automatically, there is no
need for this function to be monitored manually.
| Model | WRS-2A |
| Number of test samples | 3 |
| Measuring range of the melting-point | room temperature ~300℃ |
| Setting rate of the “starting temperature” | 50℃~300℃ no more than 3 min 300℃~50℃ no more than 5 min |
| Setting accuracy of the “starting temperature” | ±0.8℃ |
| Minimum reading of the digital temperature display | 0.1℃ |
| Rate of the linear heating | 0.2℃/min,0.5℃/min,1℃/min,1.5℃/min, 2℃/min,3℃/min, 4℃/min, 5℃/min |
| Deviation of linear heating rate | no more than 10% (setting value) |
| Accuracy of measuring the melting-poin | <200℃±0.5℃ 200℃~300℃±0.8℃ |
| Repeatability | 0.3℃(rate is 1℃/min), 0.2℃(rate is 0.2℃/min) |
| Size of the capillary | φ1.4mm(outside diameter) φ1.0mm(inside diameter) |
| Loading height of the sample | 3mm |
| Power source | 220V±22V, 100W,50Hz |
| Dimensions | 398mm×278mm×210mm |
| Net Weight | 12.5kg |
| RS232 interface | band rate 9600,1 bit stop, 8bits data |
Q: How long is the delivery time?
A: 7-15 working days after we received your payment or order confirmed.
Q: What is the warranty for the equipment?
A: One year. We can provide you lifelong technical support.
Q: What is the payment terms?
A: T/T, L/C, Western Union, etc.
Q: What after-sales service can be provided by Nade ?
A: The after-sales service of Nade is divided into two parts: technical support and maintenance.
Q: What about the technical support and maintenence?
A: Sometimes users will get some problems when they operate the instruments which are unfamiliar or first time use, users can send us emails or call us about detailed information. We will provide users solution or operation video.For so many years’ experience, our instruments works well during warranty period. If there any parts are broken during warranty period, we would like to provide spare parts for free.
