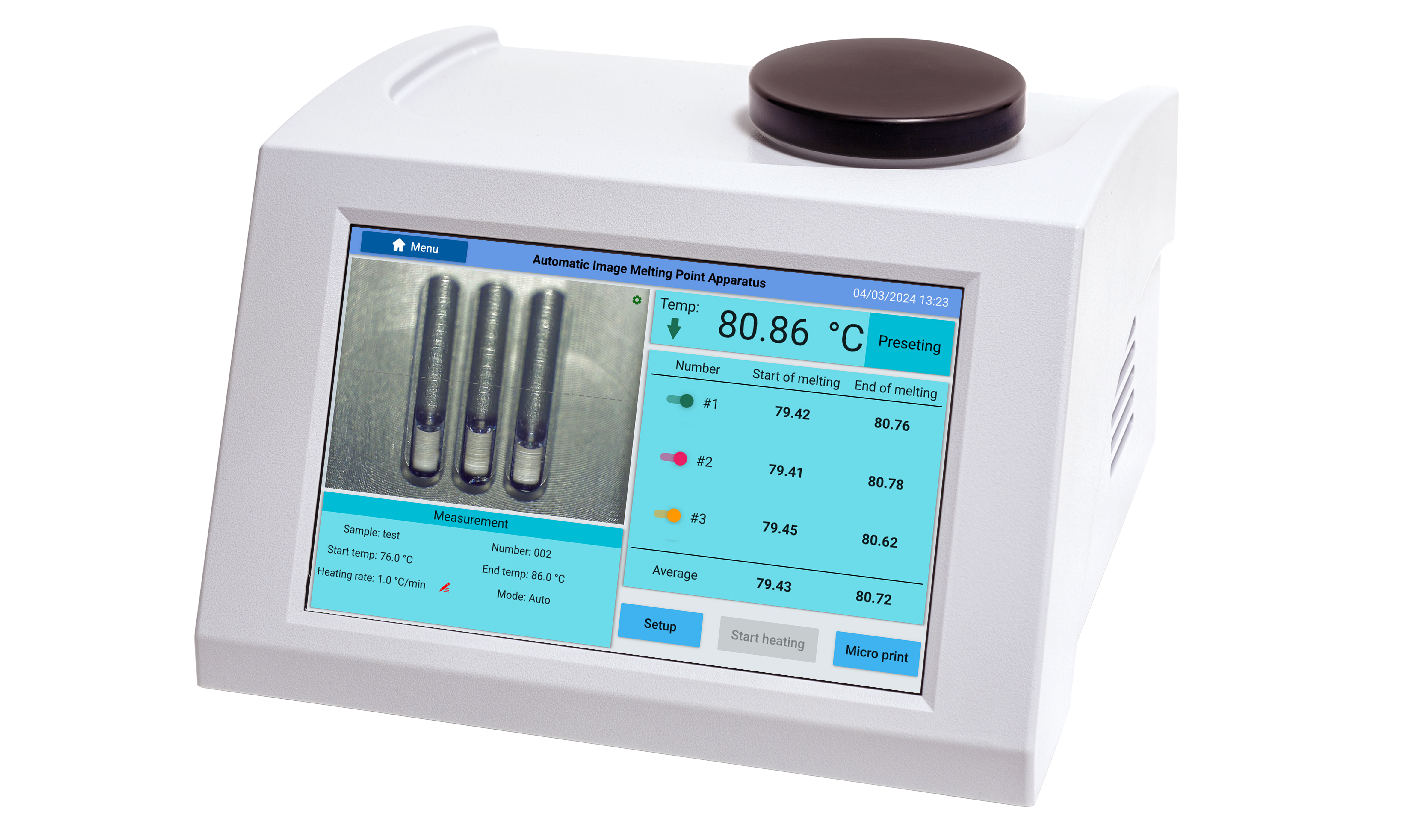

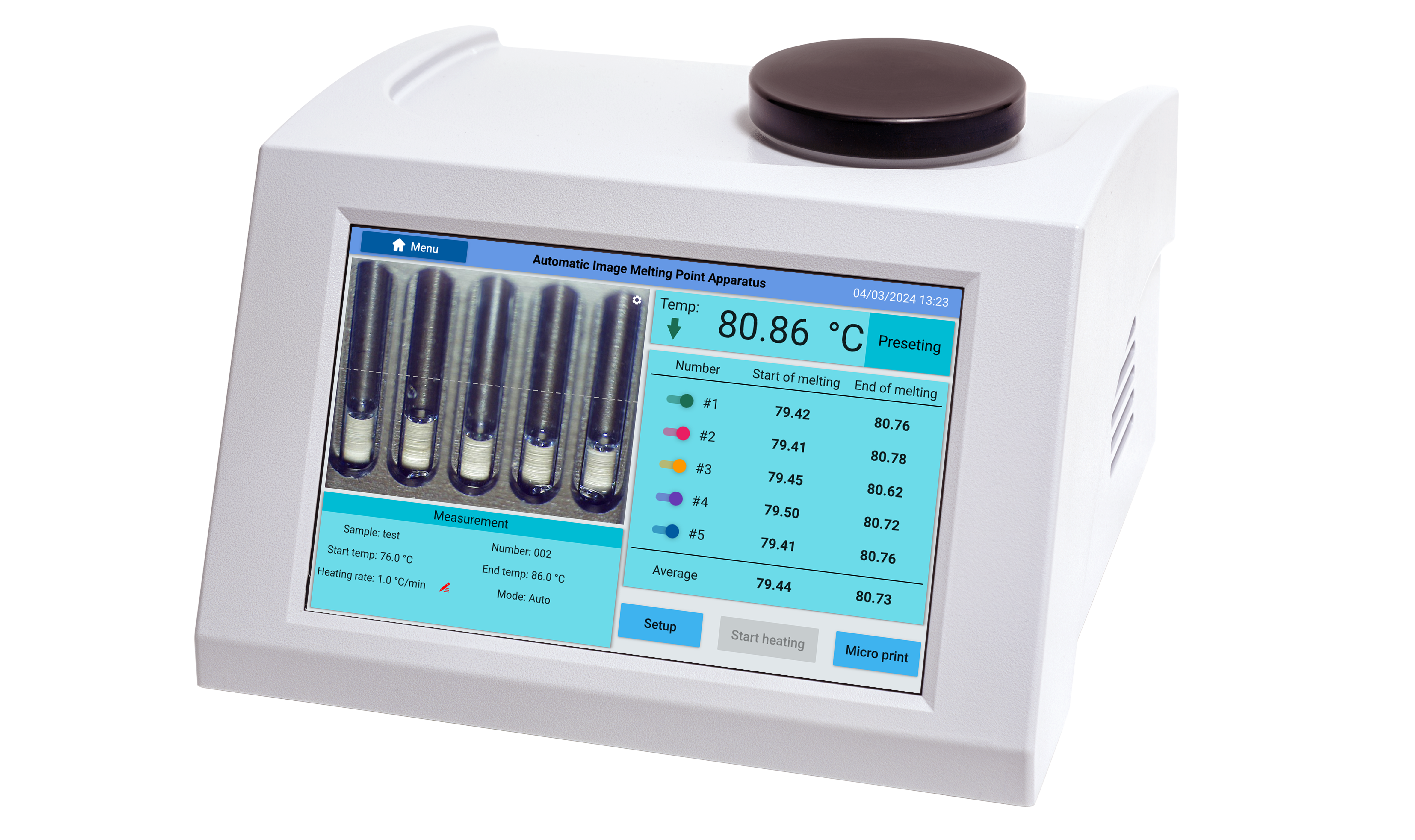

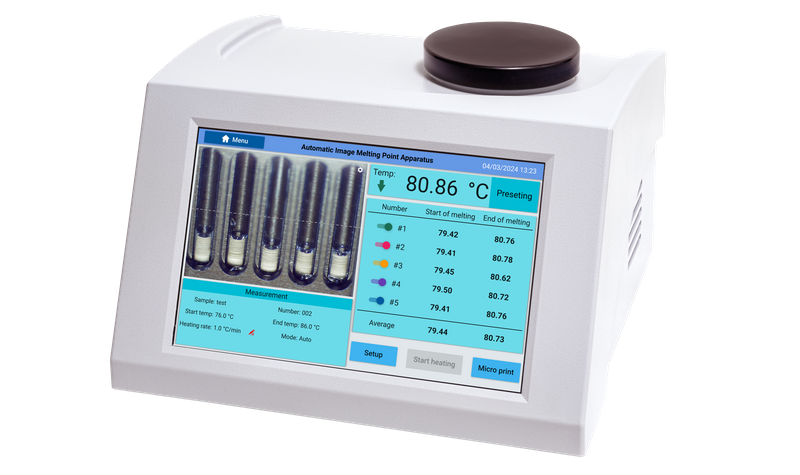

SGW-650A / SGW-630A
NADE
1
Product Description
A melting point apparatus is a precision instrument used to determine the melting point of a substance. By precisely controlling the temperature and observing the phase transition of the substance from solid to liquid, the melting point range can be determined.
• Image processing and analysis, with video recording and playback.
• Android operating system with large touch screen.
• Equipped with multi-point calibration function, observing with automatic mode or visual mode.
• Improved accuracy and reliability of the melting point.
• It can measure special samples that appear dark or opaque after melting, as well as samples that
decompose during heating.
• Compliant with the relevant requirements of the National Pharmacopoeia, GMP, GLP, and FDA/21CFR
Part 11.
Applications
• Pharmaceutical Industry: To inspect the purity of samples.
•Chemical Industry: To assist in identifying unknown compounds and determining the thermal stability of substances through melting point determination.
• Food and Cosmetics Industry: To determine whether certain ingredients in food additives or cosmetics meet the standards.
Specifications
Parameters/Model | SGW-650A | SGW-630A |
Measuring range | Room temperature – 400℃ | |
Measuring mode | Auto / Visual | |
Measuring methods | 600 | 400 |
Number of Users | 300 | 200 |
Audit trai | Optional | Optional |
Electronic Signature | Yes | Yes |
Resolution | 0.01℃ | |
Linear heating-up rate | 0.1℃/min~20℃/min | |
Accuracy | ≤200℃ ±0.3℃ ; ＞200℃ ±0.5℃ | |
Repeatability | 0.3℃ (heating rate: 1.0℃/min) | |
Linear heating rate error | ±5% | |
Number of capillary | 5 | 3 |
Capillary dimensions | Outer diameter: φ1.4mm Inner diameter: φ1.0mm Length: 90mm | |
Height of sample | 3mm | |
Operation System | Android | |
Data storage | 128G | |
Display | 10.1 inch touch screen | |
Graph storage | 10000 sets | |
Interface | 1 x RS232，3 x USB，1 x RJ-45，WIFI | |
Power supply | 100~240 V，50/60 Hz，150 w | |
Overall Dimension | 495mm×493mm×350 mm | |
Weight(Gross) | 5kg | |
