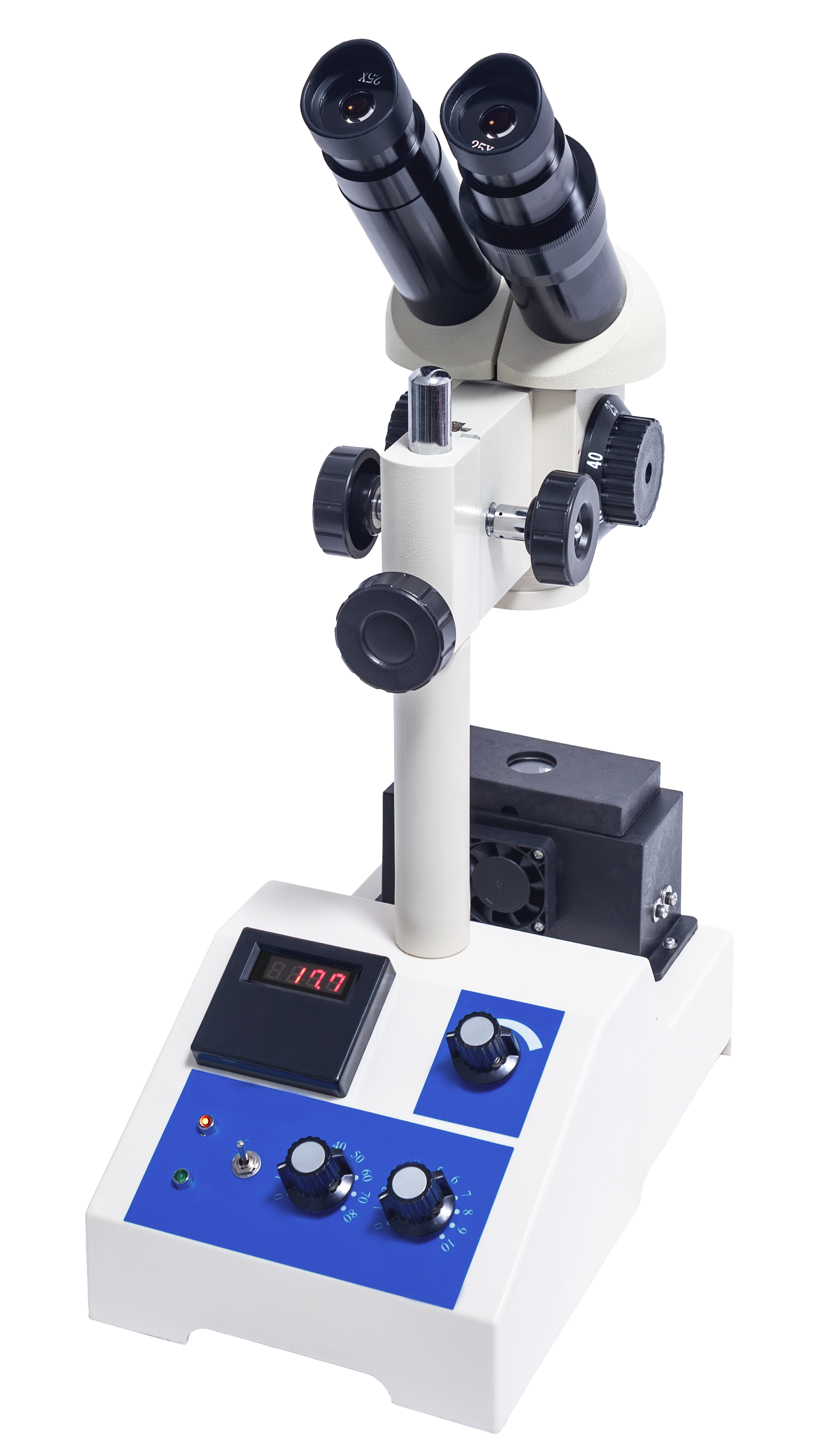

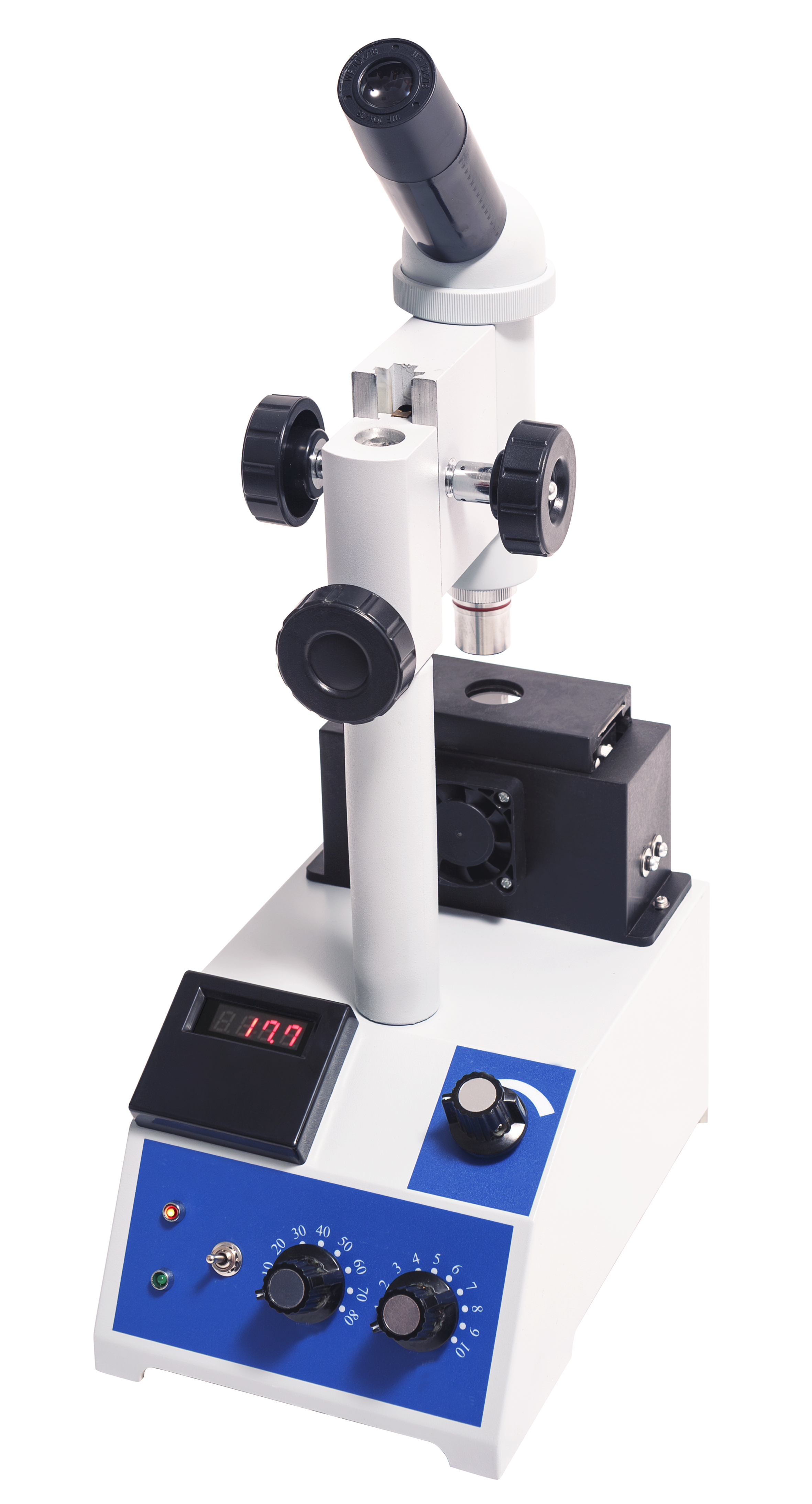

SGW X-4B / SGW X-4A / SGW X-4
NADE
1
CHINA
Product Description
A melting point apparatus is a precision instrument used to determine the melting point of a substance. By precisely controlling the temperature and observing the phase transition of the substance from solid to liquid, the melting point range can be determined.
• To be used in pharmaceutical industry, chemical industry, textile industry, dyestuff.
• Use capillary or hot table (slide and cover glass) for sample loading.
• Observe with microscope.
• SGW X-4B and SGW X-4A are equipped with windscreen to reduce the impact of the environment on test results.
Applications
• Pharmaceutical Industry: To inspect the purity of samples.
•Chemical Industry: To assist in identifying unknown compounds and determining the thermal stability of substances through melting point determination.
• Food and Cosmetics Industry: To determine whether certain ingredients in food additives or cosmetics meet the standards.
Specifications
Parameters/Model | SGW X-4B | SGW X-4A | SGW X-4 |
Measuring range | Room temperature - 320℃ | ||
Measuring mode | Visual | ||
Sample loading | Capillary / Hot table | ||
Repeatability | ≤ 200℃: ±1℃；＞ 200℃: ±2℃ | ||
Resolution | 0.1℃ | 0.1℃ | 1℃ |
Observation mode | Binocular Stereoscopic microscope | Monocular microscope | |
Optic magnification | 40 X -100 X Continuous zoom | 10 X (Eye lens) 4 X (Objective lens) | |
Power supply | 220V±22V，50Hz±1Hz，80w | 220V±22V，50Hz±1Hz，80w | 220V±22V，50Hz±1Hz，80w |
Overall Dimension | 300mm ×220mm×440mm | 300mm ×220mm×440mm | 300mm ×220mm×440mm |
Weight(Gross) | 4kg | 3.5kg | |
