NADE WRS-2 laboratory Microprocessor melting point instrument/apparatus Room temp -300C

  • 1 year
  • other
  • Zhejiang, China
  • Nade-apparatus
  • WRS-2
  • Electronic
  • WRS-2(China motor)
  • Room temp -300°C
  • 1
  • 3mm
  • ±0.8℃
  • 0.1° C
  • melting point apparatus
  • <200℃±0.5℃;200℃~300℃±0.8℃
  • 220V±22V, 100W,50Hz
  • 12.5kg

Product Description

NADE WRS-2 laboratory Microprocessor melting point instrument/apparatus Room temp -300C

Product Description

In according with the definition of physical chemistry, the melting point of substance means the temperature at which the substance changes from solid state to liquid state.In the field of organic chemistry, the measurement of melting point is a basic means of organic chemistry, the measurement of melting point is a basic means of

recognizing the nature of substance, and is also one of the important place in the chemical industry and medicine researches.Also, the melting-point meter is a kind ofnecessary instrument in the production of medicines, perfumes, dyestuff and other organic crystal substances.

Specification

Model

WRS-2(China motor)

Number of test samples

1

Measuring range of the melting-point

room temperature ~300℃

Setting rate of the “starting temperature”

50℃~300℃ no more than 3 min

300℃~50℃ no more than 5 min

Setting accuracy of the “starting temperature”

±0.8℃

Minimum reading of the digital temperature display

0.1℃

Rate of the linear heating

0.2℃/min,0.5℃/min,1℃/min,1.5℃/min, 2℃/min,3℃/min, 4℃/min, 5℃/min

Deviation of linear heating rate

no more than 10% (setting value)

Accuracy of measuring the melting-poin

<200℃±0.5℃

200℃~300℃±0.8℃

Repeatability

0.3℃(rate is 1℃/min), 0.2℃(rate is 0.2℃/min)

Size of the capillary

φ1.4mm(outside diameter)

φ1.0mm(inside diameter)

Loading height of the sample

3mm

Power source

220V±22V, 100W,50Hz

Dimensions

398mm×278mm×210mm

Net Weight

12.5kg

RS232 interface

band rate 9600,1 bit stop, 8bits data

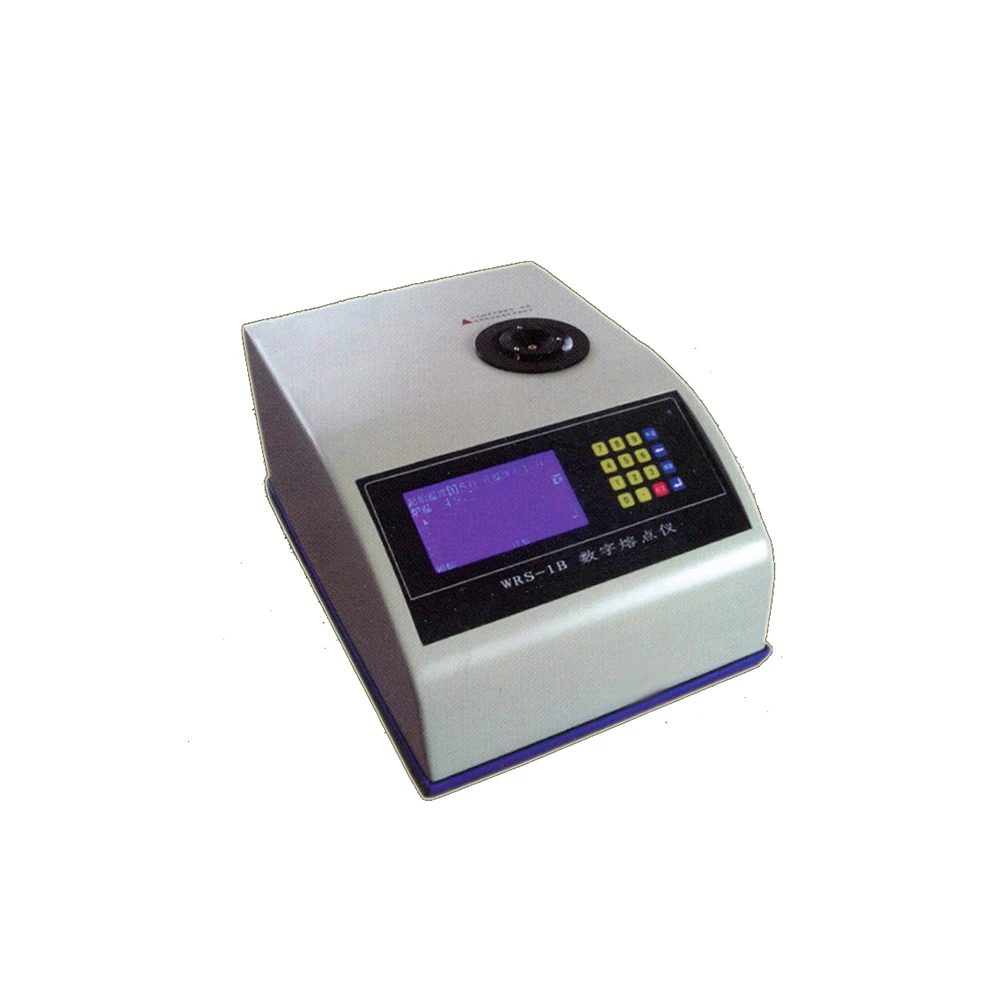

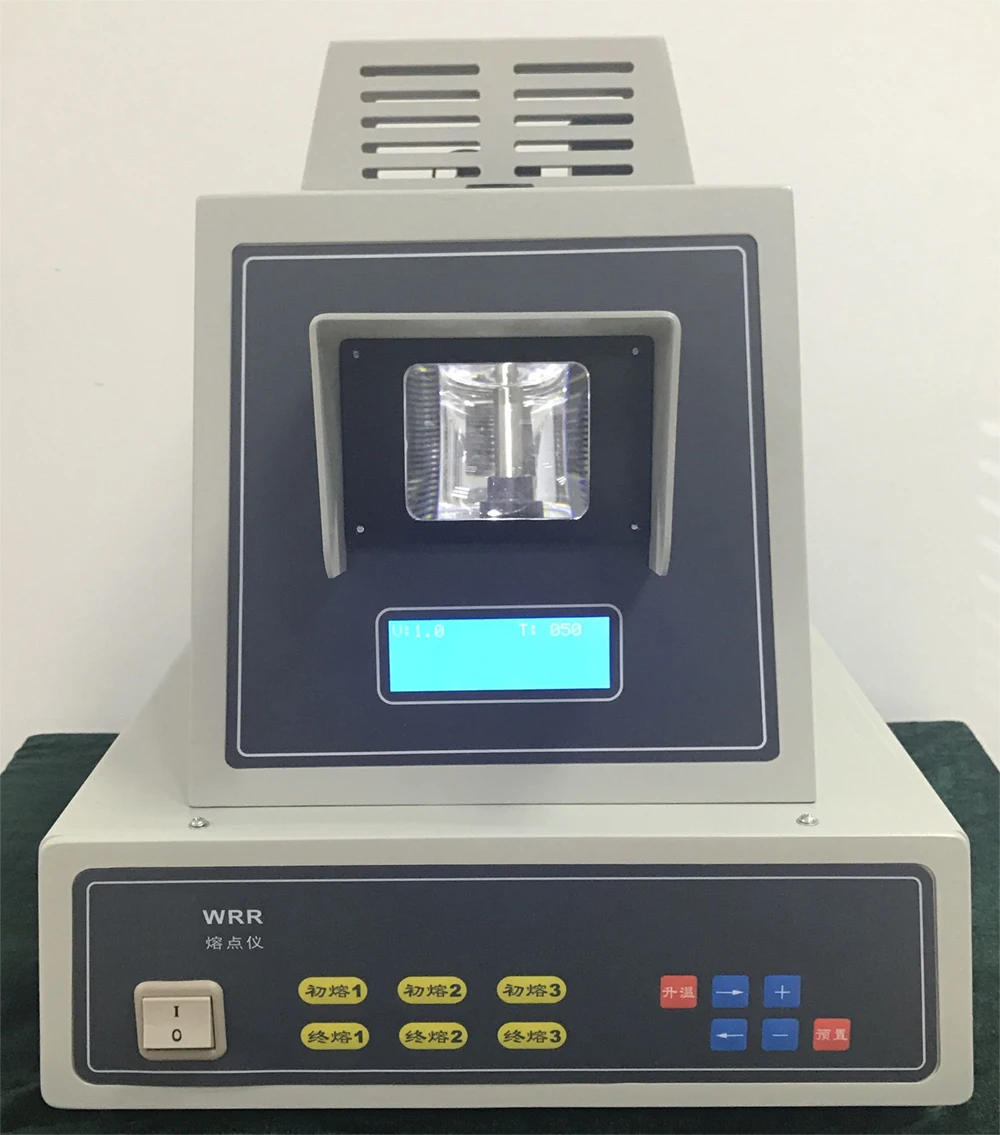

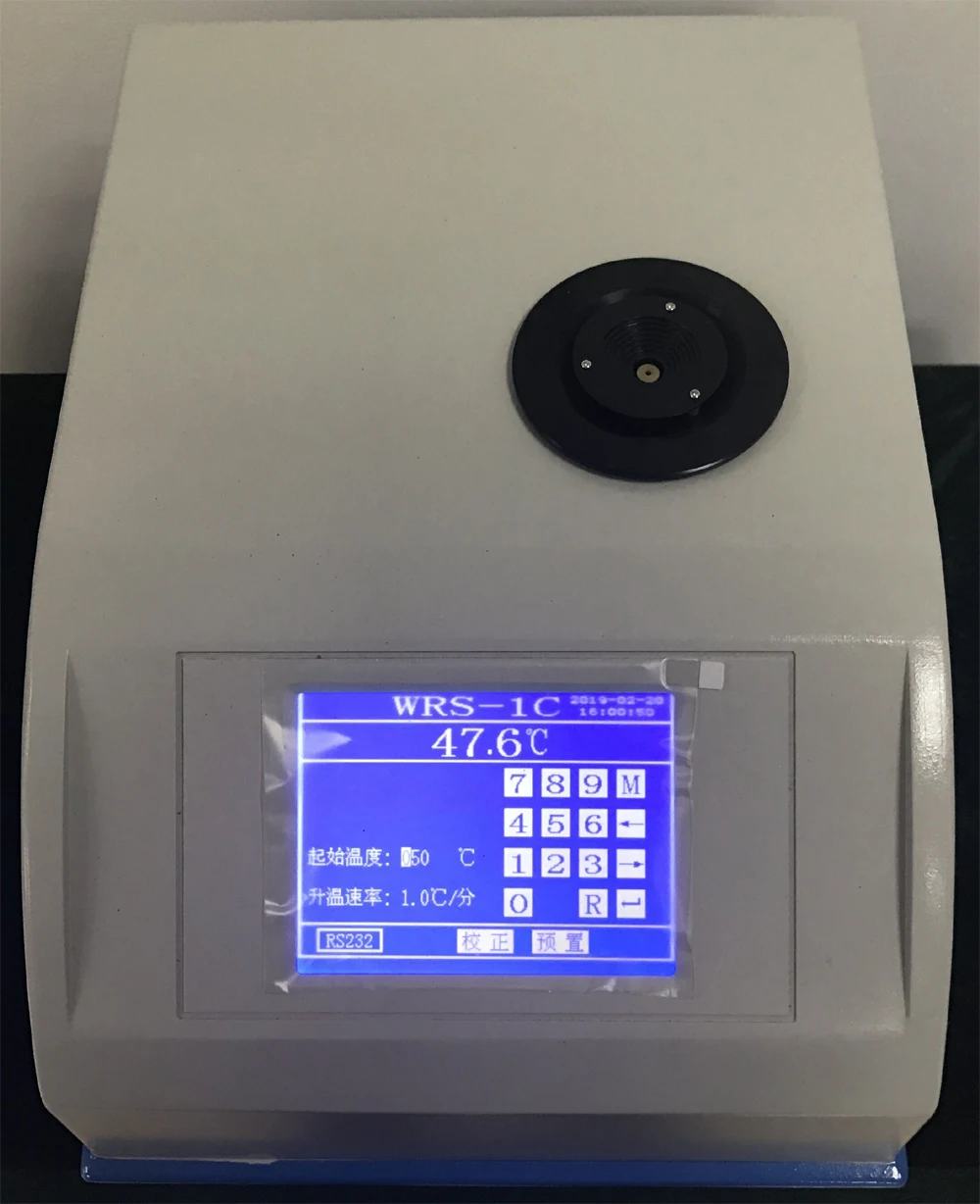

Real photos show

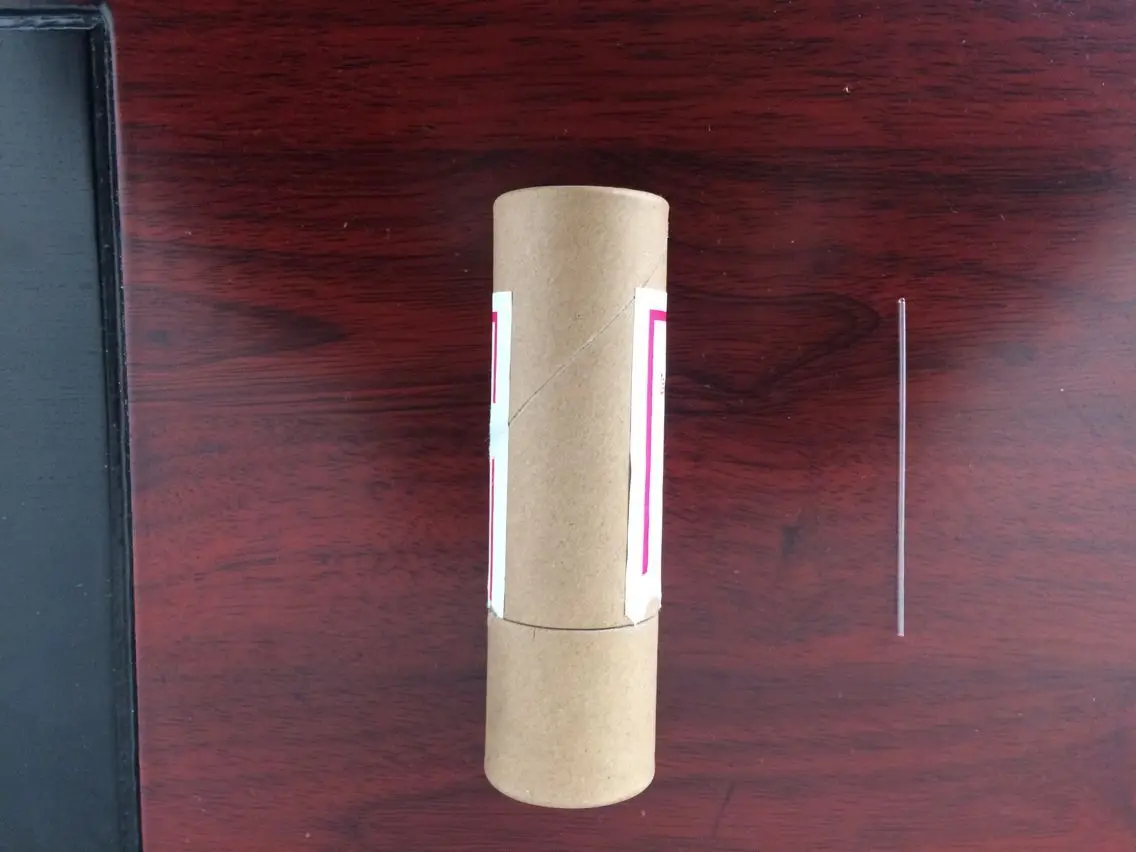

Packaging & Shipping

NADE WRS-2 laboratory Microprocessor melting point instrument/apparatus Room temp -300C

NADE WRS-2 laboratory Microprocessor melting point instrument/apparatus Room temp -300C

Company Information

NADE WRS-2 laboratory Microprocessor melting point instrument/apparatus Room temp -300C

NADE WRS-2 laboratory Microprocessor melting point instrument/apparatus Room temp -300C

Our Services

NADE WRS-2 laboratory Microprocessor melting point instrument/apparatus Room temp -300C

FAQ

Q: How long is the delivery time?
A: 7-15 working days after we received your payment or order confirmed.


Q: What is the warranty for the equipment?
A: One year. We can provide you lifelong technical support.


Q: What is the payment terms?
A: T/T, L/C, Western Union, etc.

Q: What after-sales service can be provided by Nade ?
A: The after-sales service of Nade is divided into two parts: technical support and maintenance.


Q: What about the technical support and maintenence?
A: Sometimes users will get some problems when they operate the instruments which are unfamiliar or first time use, users can send us emails or call us about detailed information. We will provide users solution or operation video.For so many years’ experience, our instruments works well during warranty period. If there any parts are broken during warranty period, we would like to provide spare parts for free.
