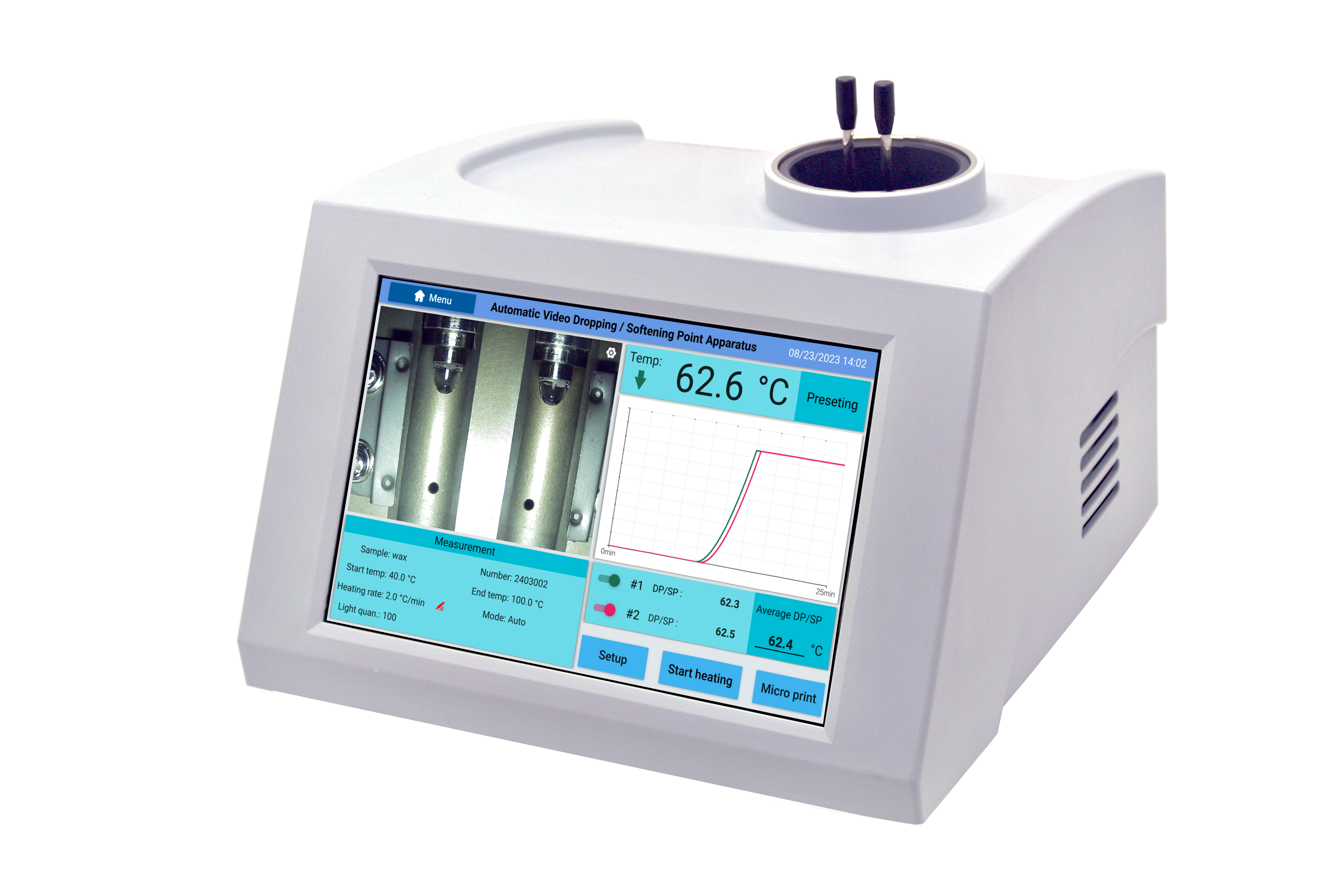

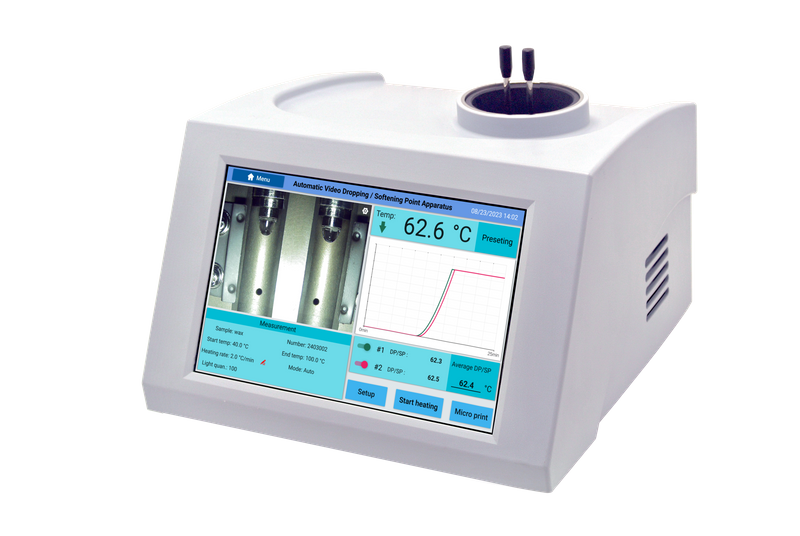

WQD-400 / WQD-360
NADE
1
CHINA
Product Description
A melting point apparatus is a precision instrument used to determine the melting point of a substance. By precisely controlling the temperature and observing the phase transition of the substance from solid to liquid, the melting point range can be determined.
• HD video detection system, observing 2 samples at the same time.
• Automatically record measuring process, support video playback and data recalling.
• Compliant with ASTM D3461, ASTM D3104, ASTM D3954, ASTM D6090.
• Touch screen, user-friendly operation.
• Widely used to component control and quality test of tar , asphalt , paraffin , resin , fats , rosin , lubricant , Vaseline , medical ointment , ointment , suppository , edible grease.
Applications
• Pharmaceutical Industry: To inspect the purity of samples.
•Chemical Industry: To assist in identifying unknown compounds and determining the thermal stability of substances through melting point determination.
• Food and Cosmetics Industry: To determine whether certain ingredients in food additives or cosmetics meet the standards.
Specifications
Parameters/Model | WQD-400 | WQD-360 |
Measuring range | Room temperature-400℃ | Room temperature-360℃ |
Measuring modes | Auto / Visual | Auto / Visual |
Number of sample | 2 | 2 |
Measuring methods | 600 | 400 |
Number of Users | 200 | 150 |
Audit trail | Optional | Optional |
Resolution | 0.1℃ | |
Linear heating rate | 0.1℃ / min~20℃ / min | |
System | Android | |
Data storage | 128G | 64G |
Display | 10.1 inch touch screen, 720P HD camera | |
Interface | 1 x RS232，3 x USB ，1 x RJ-45 | |
Power supply | 100-240V，50 / 60Hz ，150w | |
Package Dimensions | 495mm×493mm×350mm | |
Weight(Gross) | 5kg | |
