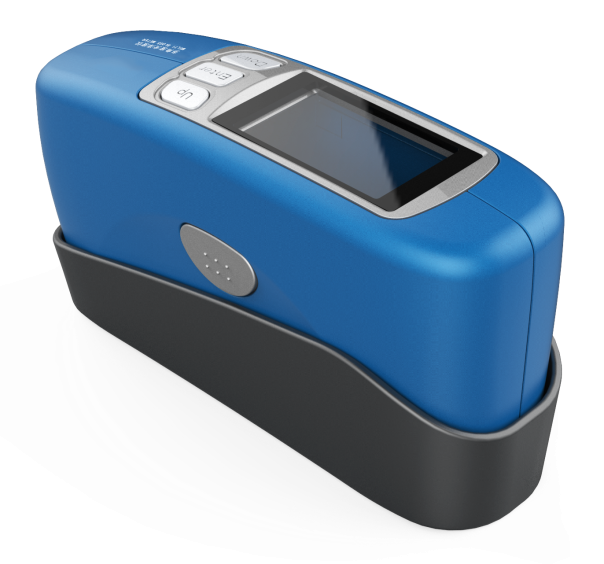

NADE portable Gloss Meter CS-380 20/60/85 degree Angle test range 0-2000GU

  • 1 year

  • Zhejiang, China

  • NADE

  • CS-300

  • 20°,60°,85°

  • 20°:10*10;60°:9*15;85°:5*38

  • 20°:0-2000GU;60°:0-1000GU;85°:0-160GU

  • 0.1GU

  • 0-100GU:0.2GU;100-2000GU:0.2%GU

  • < 1s 0.5s

  • 0-40℃

  • 100 standard samples; 10000 test samples

Product Description

Product Description

Multiple new technologies are changing gloss meters.

Gloss meters are mainly used in the surface gloss measurement for paint, plastic, metal, ceramics, building materials and so on. Our gloss meter conform to the DIN 67530, ISO 2813, ASTM D 523, JIS Z8741, BS 3900 Part D5, JJG696 standards and so on.

1. High Precision

Our gloss meters use top of the line sensors from Japan, high end OP chips and processor chips from the US to ensure highly precise gloss measurement for every piece of your measured data.

Our gloss meters conform to JJG 696 standard for class one gloss meters. Every machine has metrology accreditation certificate from State Key Laboratory of modern metrology and testing instruments and Engineering center of the Ministry of Education in China.

2. High Stability (Patent ZL2012201796876)

Uses our patent protected dual light path technology, our gloss meters have stability of 0.2GU.

Every one of our gloss meter instruments has undergone the following:

412 calibration tests;

43200 stability tests;

110 hours of accelerated aging test;

and 17000 vibration tests.

3. Comfortable Grip

The hull is made of Dow Corning TiSLV material, a desirable elastic material. It is resistant to UV and bacteria and usually do not cause allergy, for better user comfort.

4. Free APP

We offer free App for easier data transmission and display as well as the ability to view measured data at any time.

5. High Battery Capacity

We fully utilized every inch of space in the neat and comfortable instrument hull with specially designed 4.4V high density lithium battery, which has enough battery capacity to complete 54300 measurements before the battery runs out.

Support

1. Three years quality assurance;

2. If there are quality problems with the instrument, we offer replacement instrument for the user;

3. Every instrument comes with metrology test report to ensure the authority of measurement data.NADE portable Gloss Meter CS-380 20/60/85 degree Angle test range 0-2000GU NADE portable Gloss Meter CS-380 20/60/85 degree Angle test range 0-2000GU

Specification

Model CS-380

Test Angle 20°,60°,85°

Test light spot(mm) 20°:10*10

60°:9*15

85°:5*38

Test range 20°:0-2000GU

60°:0-1000GU

85°:0-160GU

Index value 0.1GU

Test modes Average mode, standard and test sample measurement mode

Repeatability 0-100GU:0.2GU

100-2000GU:0.2%GU

Accuracy Conform to JJG 696 standard for class one gloss meters

Test time < 1s 0.5s

Data storage 100 standard samples; 10000 test samples

Size(mm) 165*51*77

Weight About 400g

Language Simplified Chinese, English

Battery capacity 3000mAh lithium battery

Port USB, Bluetooth (optional)

PC software

Working temperature 0-40℃

Working humidity <85%, no condensation

Accessories 5V/2A recharger, USB cable, user manual, software CD, calibration boards,metrology accreditation certificate

Packaging & Shipping

Our Packaging Details:

NADE portable Gloss Meter CS-380 20/60/85 degree Angle test range 0-2000GU

Our Shipping

NADE portable Gloss Meter CS-380 20/60/85 degree Angle test range 0-2000GU

Our Services

Please contact us by alibaba message or TEL: +0086-571-88064952 for any requirements or questions. There may be a time zone difference depending on your location, but we will respond to you as soon as we can.

We cherish every opportunity to serve our customer! It will be our great pleasure to do business with you and hope it will be a win-win situation for both of us.

NADE portable Gloss Meter CS-380 20/60/85 degree Angle test range 0-2000GU

Company Information

NADE portable Gloss Meter CS-380 20/60/85 degree Angle test range 0-2000GU

NADE portable Gloss Meter CS-380 20/60/85 degree Angle test range 0-2000GU

FAQ

Q: How long is the delivery time?
A: 7-15 working days after we received your payment or order confirmed.


Q: What is the warranty for the equipment?
A: One year. We can provide you lifelong technical support.


Q: What is the payment terms?
A: T/T, L/C, Western Union, etc.

Q: What after-sales service can be provided by Nade ?
A: The after-sales service of Nade is divided into two parts: technical support and maintenance.


Q: What about the technical support and maintenence?
A: Sometimes users will get some problems when they operate the instruments which are unfamiliar or first time use, users can send us emails or call us about detailed information. We will provide users solution or operation video.For so many years’ experience, our instruments works well during warranty period. If there any parts are broken during warranty period, we would like to provide spare parts for free.
